- Position the LH primary rear body seal to the lower B-pillar, and then press the seal into position working along the upper bright molding.
NOTE:

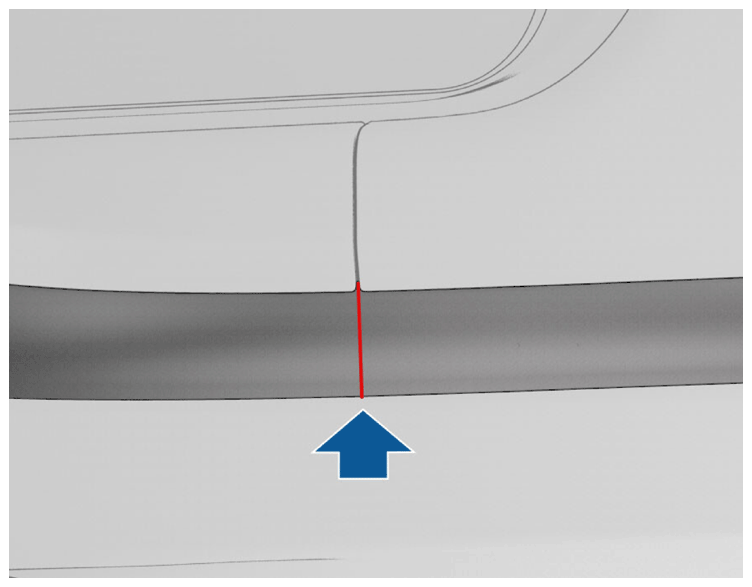

Ensure the seam on the seal is even with the bottom of the LH lower B-Pillar.
NOTE:
Ensure the wider side of the seal is seated towards the interior of the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

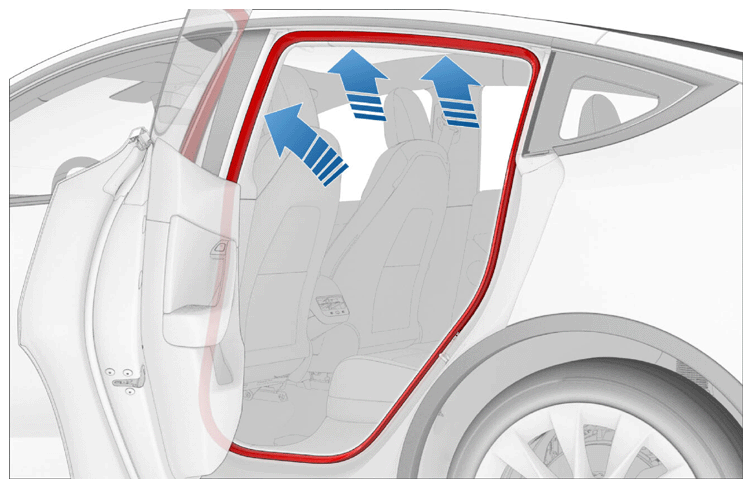

- Tuck the LH primary rear side body seal into the bright trim molding.
NOTE:
Make sure that the seal is fitted properly to the trim panels and the headliner.

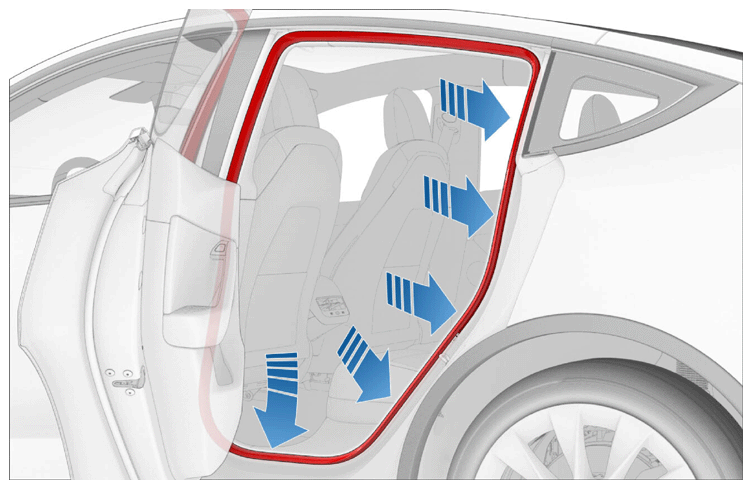

- Press the LH primary rear body seal into the C-pillar, and then work downward toward the bottom of the B-pillar.
NOTE:
If excess material forms along the seal, release the seal and disperse in opposite directions.
 Courtesy of TESLA, INC.
|
- Pull the seal strings from the new seal.
- Calibrate the windows. See Window Regulator - Recalibrate .
- Confirm that the window operates correctly and without any abnormal noise.
