- Position the LH primary front body seal to the mid A-pillar trim, and then press the seal into position working along the upper bright trim molding.
NOTE:

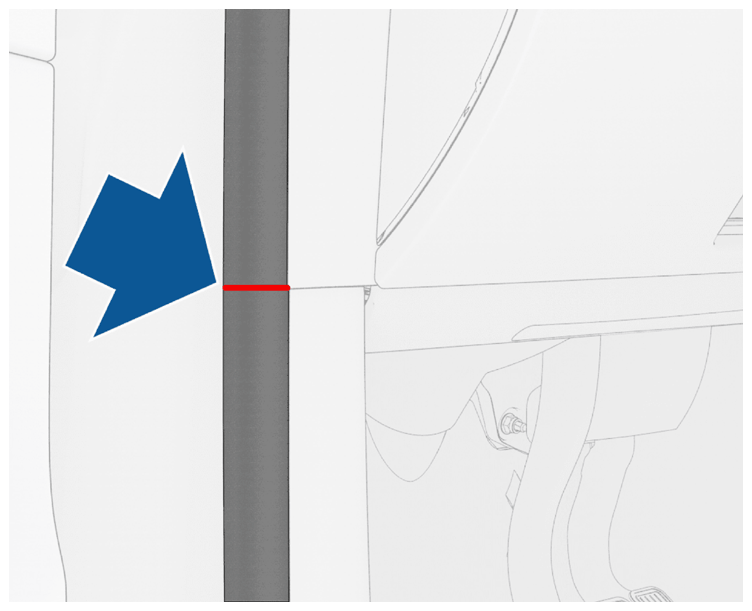

Ensure the seam on the seal is even with the bottom of the LH lower B-Pillar.
NOTE:

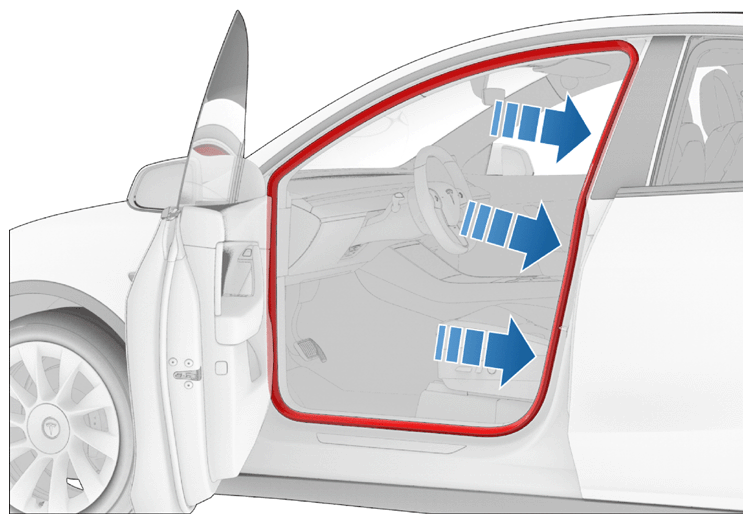

Ensure the wider side of the seal is seated towards the interior of the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

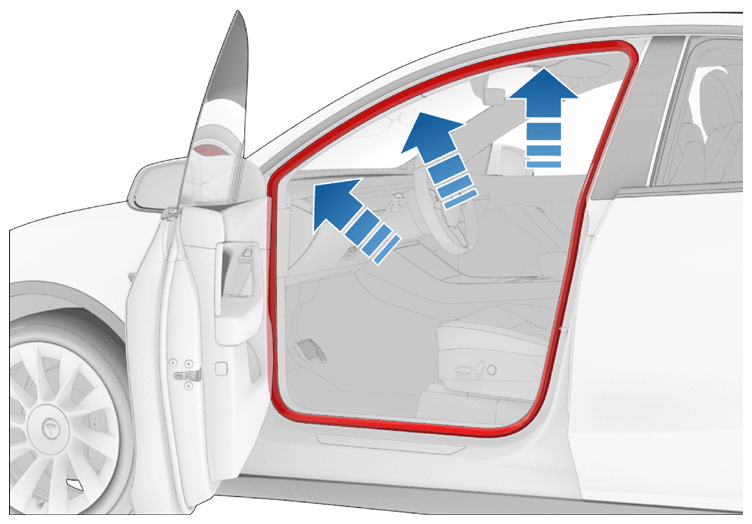

- Tuck the seal into the bright trim molding.
NOTE:
Make sure that the trim is fitted properly into the trim panels and the headliner

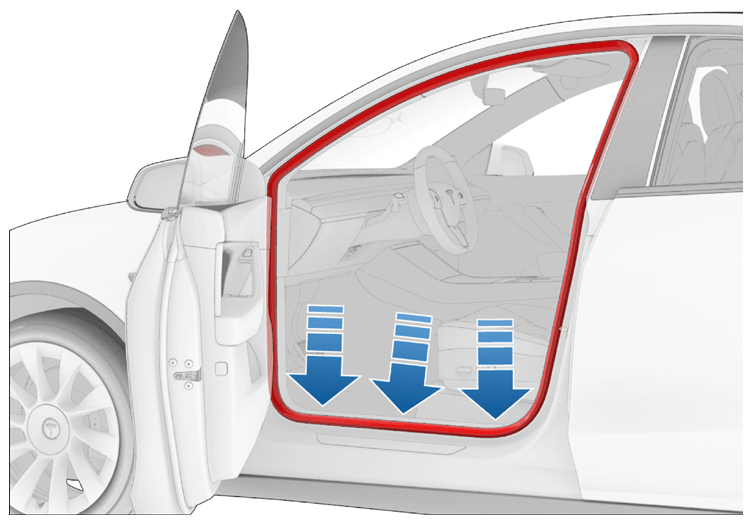

- Press the LH primary front body seal into the B-pillar, and work downwards toward the bottom of the A-pillar.
NOTE:
If excess material forms along the seal, release the seal and disperse in opposite directions.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Calibrate the windows. See Window Regulator - Recalibrate
- Confirm that the window operates correctly and without any abnormal noise.
