Seal - B-Pillar Applique - LH - Remove And Replace: Remove

  1. Remove the B-pillar applique. See APPLIQUE - B-PILLAR - LH (REMOVE AND REPLACE) .
  2. Release the B-pillar applique seal from the B-pillar applique.
    NOTE: Pull down on the bottom portion of the seal, and then release the sides from the applique channel.
    G14821145Courtesy of TESLA, INC.

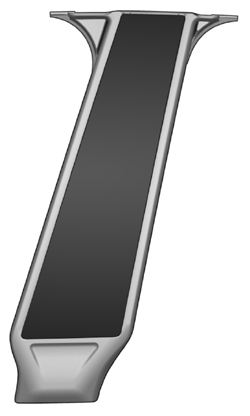

    G14821146Courtesy of TESLA, INC.
