Striker - Hood - Remove And Replace: Install

  1. Install the striker on to the hood, but do not fully torque the bolts.
    NOTE: Use the masking tape and hood indentations as a guide.
  2. Close the hood and use the gap and flush tool to verify alignment is within specification.
  3. Open the hood and adjust the striker position as necessary.
  4. Repeat step  2 and step  3 until alignment is satisfactory.
  5. Fully tighten the bolts.

    18 N.m (13.3 lbs-ft)

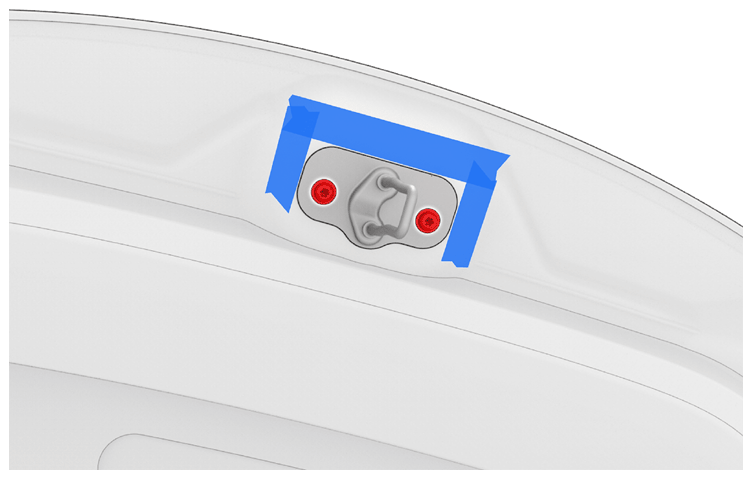

    G14820988Courtesy of TESLA, INC.
  6. Remove the masking tape, and then close the hood.
