Latch - Hood - Remove And Replace: Remove

NOTE: If the hood latch does not open electronically, use the manual front trunk tool to open the hood.
  • 1130534-00-ATOOL, FRUNK RELEASE, MANUAL, MODEL 3
  1. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace) .

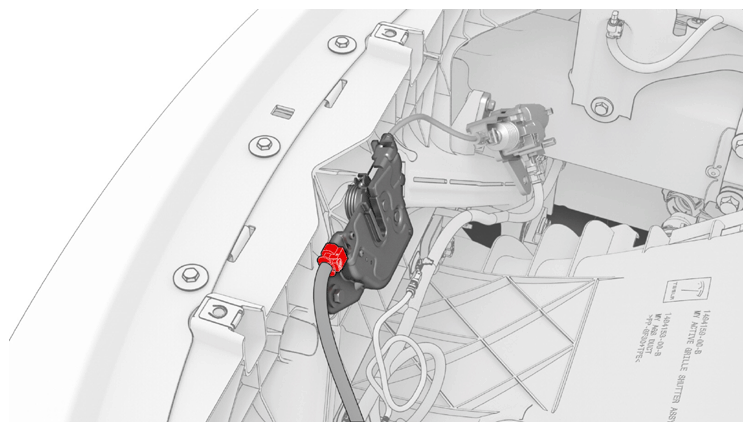

  2. Release the connector lock, and then disconnect the hood latch electrical connector.
    CAUTION: Do not push down on the red locking tab. Pull the red tab to release the connector lock, and then pull again to release the connector.
    G14820966Courtesy of TESLA, INC.
  3. Mark the location of the hood latch with masking tape.

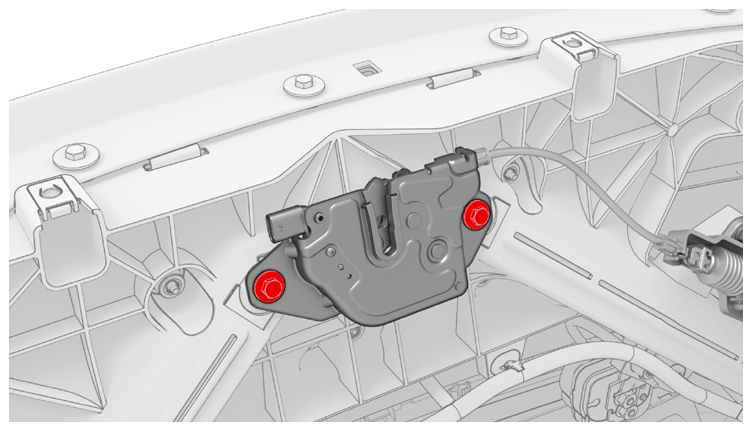

  4. Remove the bolts that attach the hood latch to the front end carrier.

    8 N.m (5.9 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • 2 in extension
    • Ratchet/torque wrench
    G14820967Courtesy of TESLA, INC.

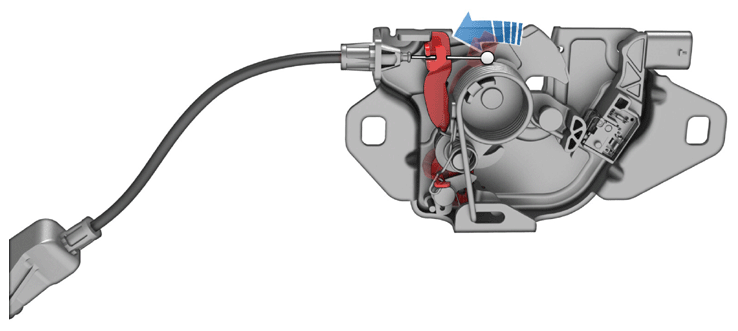

  5. Release the hood latch actuator cable from the hood latch.
    NOTE: Manually open the latch to create slack in the cable for removal.
    G14820968Courtesy of TESLA, INC.

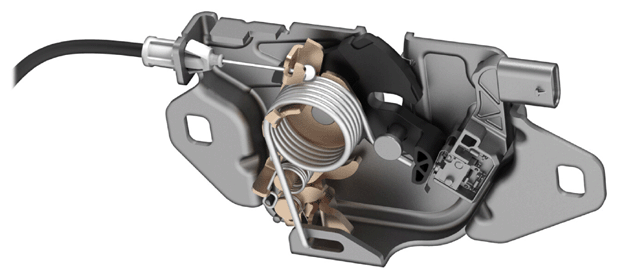

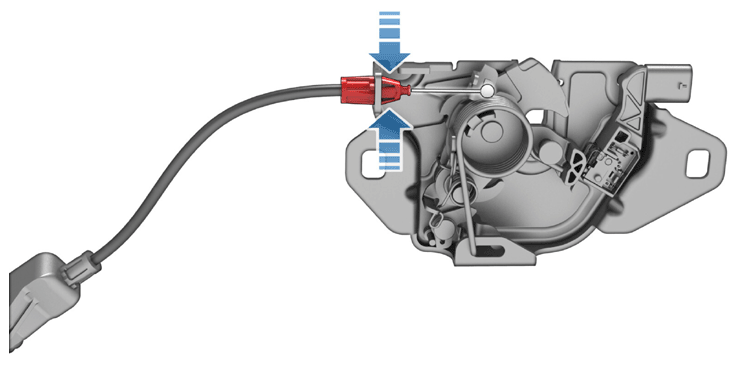

  6. Release the hood latch actuator cable clip from the hood latch.
    G14820969Courtesy of TESLA, INC.
    G14820970Courtesy of TESLA, INC.
