Foam - Seat Back - Front Passenger Seat - Remove and Replace: Install

  1. Position the front passenger seat back trim onto the seat back foam, and then install the clips (x2) that attach the front passenger seat back trim to the seat back foam.
    NOTE: Make sure the clips are secured.
    G00651256Courtesy of TESLA, INC.
  2. Install the strap that attaches the front passenger seat back trim to the seat back foam.
    NOTE: Make sure the strap is secured.
    G00651255Courtesy of TESLA, INC.
  3. Install the front passenger seat, seat back and foam onto the seat back frame.
    NOTE: Start by sliding the foam trim straight onto the seat back frame. Ensure the posts for the headrests engage the seat back foam. Ensure the heater harness and lower trim that engages the frame are pushed through to the back side of the frame.

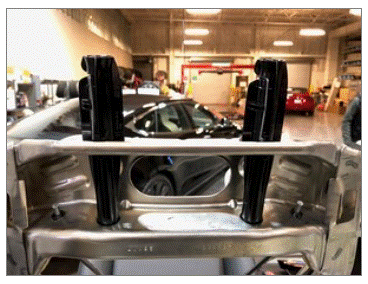

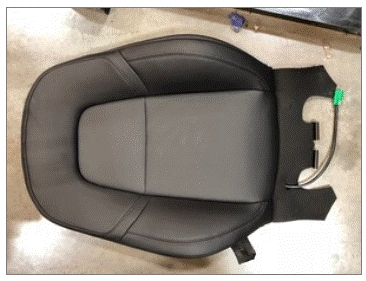

    G00651258Courtesy of TESLA, INC.
    G00651259Courtesy of TESLA, INC.

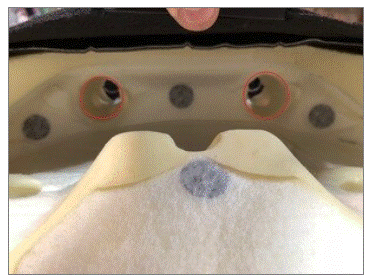

    G00651260Courtesy of TESLA, INC.
  4. Install the front passenger seat side airbag studs into the seat back frame.
    NOTE: The studs should line up with the two round holes. The elongated hole is not used for this part.

    Figure 5. LH shown; RH similar

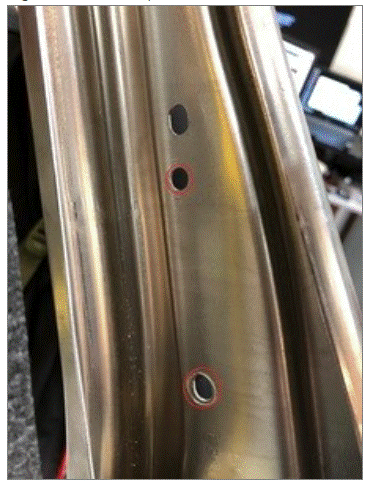

    G00651261Courtesy of TESLA, INC.
  5. Install new nuts (x2) that attach the front passenger seat airbag to the seat back frame.

    5.4 N.m (4.0 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket

    Figure 6. LH shown; RH similar

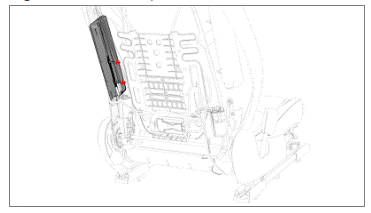

    G00651262Courtesy of TESLA, INC.
  6. Connect front passenger seat side airbag electrical connector.

    Figure 7. LH shown; RH similar

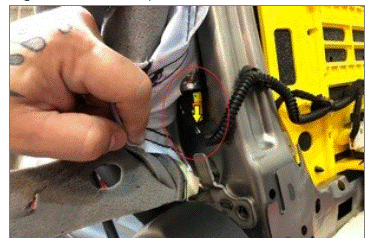

    G00651263Courtesy of TESLA, INC.
  7. Install the tabs (x2) that attach the bottom of the lumbar support to the seat back frame.

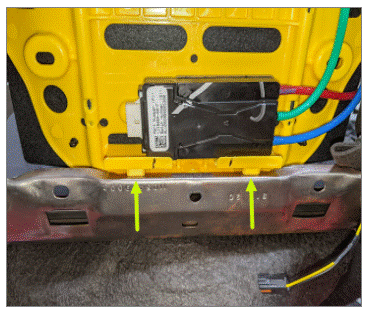

    G00651264Courtesy of TESLA, INC.
  8. Install the bolt that attaches the bottom of the lumbar support to the seat back frame.

    5 N.m (3.7 lbs-ft)

    NOTE: The bolt is located below the lumbar ECU.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket

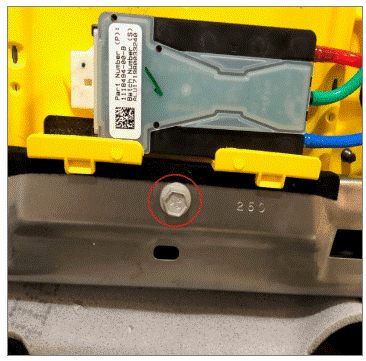

    G00651265Courtesy of TESLA, INC.
  9. Install the upper flap that covers the outboard corner of the front passenger seat, seat back frame.
    NOTE: Pull the flap over the metal tangs to secure it.
    G00605863Courtesy of TESLA, INC.
  10. Install the upper flap that covers the inboard corner of the front passenger seat, seat back frame.
    NOTE: Pull the flap over the metal tangs to secure it.
    G00605861Courtesy of TESLA, INC.
  11. Install the lower flap that covers the outboard corner of the front passenger seat, seat back frame.
    NOTE: Pull the flap over the metal tangs to secure it.
    G00605864Courtesy of TESLA, INC.
  12. Install the lower flap covering the inboard corner of the front passenger seat, seat back frame.
    NOTE: Pull the flap over the metal tangs to secure it.
    G00605862Courtesy of TESLA, INC.
  13. Install the front passenger seat back trim retainers (x7) to the front passenger seat back frame.
    G00605865Courtesy of TESLA, INC.
  14. Install the front passenger seat back shell onto the seat. See Shell - Seat Back - Driver - Remove And Replace .
  15. Install the front passenger headrest trim. See Trim - Headrest - Driver - Remove And Replace .
  16. Lay the seat on its seat back to gain access to the underside of the seat cushion.
    CAUTION: Protect the seat cushion from damage as necessary.
  17. Install the seat cushion connector to the seat assembly.
    G00605866Courtesy of TESLA, INC.
  18. Connect the seat cushion heat pad connector to the seat back head pad connector.
    G00605867Courtesy of TESLA, INC.
  19. Install the seat back harness connector to the seat assembly.
    G00605869Courtesy of TESLA, INC.
    G00605868Courtesy of TESLA, INC.
  20. Connect the seat back heater connector.
    G00605870Courtesy of TESLA, INC.
  21. Install the front passenger seat inboard side shield. See Trim - Cushion - Front Passenger Seat Remove and Replace
  22. Install the front passenger seat outboard side shield. See Side Shield - Outboard - Driver Seat - Remove And Replace .
  23. Install the front passenger seat into the vehicle. See Seat Assembly - 1st Row - LH - Remove and Replace .
  24. If servicing the front passenger seat in a North American vehicle:
    1. Remove all objects from the front passenger seat before beginning calibration.
    2. On the vehicle touchscreen, touch Controls (Vehicle Icon) > Software  and check the vehicle firmware version. If the vehicle firmware is 2023.2.11 or newer, perform a software reinstall. See SOFTWARE REINSTALL - TOUCHSCREEN . If the vehicle firmware is not 2023.2.11 or newer, update the vehicle firmware. See SOFTWARE UPDATE .
    3. Locally connect a laptop with Toolbox 3 to the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT .
    4. Unlock the vehicle gateway. See GATEWAY (UNLOCK) .
    5. In Toolbox, click on the Actions  tab, and then search for "OCS".
    6. Run  the PROC_OCS1P_SELF-CALIBRATION routine.
    7. Click on the Actions  tab, and then search for "Seat calibration".
    8. Run  the PROC_VCRIGHT_SEAT-TEST-CALIBRATE routine.
    9. Disconnect Toolbox and remove the laptop from the vehicle.
