Foam - Cushion - Front Passenger Seat - Remove and Replace: Remove

Remove the front passenger seat, seat cushion trim. See Trim - Cushion - Front Passenger Seat Remove and Replace .

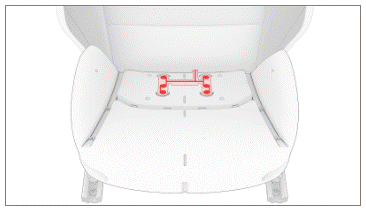

While wearing cut-resistant gloves, carefully use a razor blade to separate the resistive occupancy sensor from the passenger seat cushion foam.
WARNING: Always wear cut-resistant gloves when using cutting tools.

CAUTION: Take care not to damage the sensor harness, seat trim, or other surrounding components with the razor blade.

CAUTION: Take care to remove as little foam as possible.

Courtesy of TESLA, INC.
Position the resistive occupancy sensor on top of the passenger seat cushion foam, and then route the sensor harness through the harness opening in the foam.
CAUTION: While installing the harness, take care not to damage the foam.

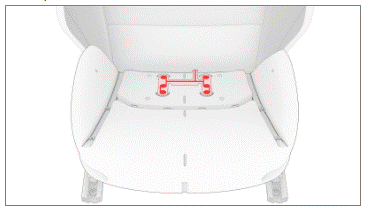

Figure 1. Resistive occupancy sensor positioned on top of the front seat cushion foam

Courtesy of TESLA, INC.

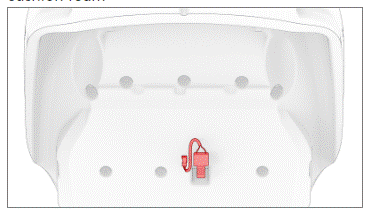

Figure 2. Resistive occupancy sensor harness routed through the bottom of the front seat

Courtesy of TESLA, INC.
