Closeout - Cup Holder - Seat - 3rd Row - Remove And Replace: Remove

  1. Open the LH front door and fully lower the LH front window.
  2. Move the driver seat fully forward.
  3. Move the LH 2nd row seat into easy entry mode.
  4. Starting from the front, release the clips that attach the 3rd row cup holder closeout to the seat cushion assembly, and then release the guide tabs.

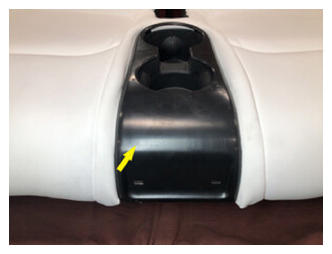

    G14823873Courtesy of TESLA, INC.

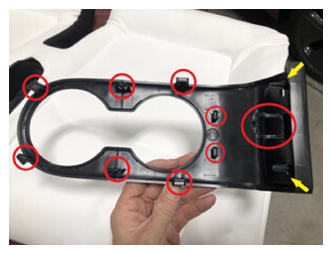

    G14823874Courtesy of TESLA, INC.
  5. Remove the 3rd row seat cup holder closeout from the vehicle.
