Closeout - Cup Holder - Seat - 3rd Row - Remove And Replace: Install

  1. Position the 3rd row seat cup holder closeout into the vehicle.

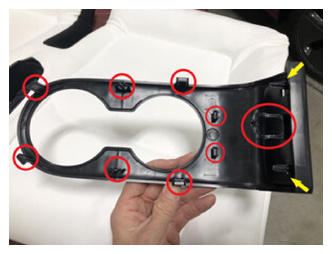

  2. Install the guide tabs first, and then install the clips that attach the 3rd row cup holder closeout to the seat cushion assembly.
    G14823875Courtesy of TESLA, INC.
  3. Move the LH 2nd row seat into the original position.
  4. Move the driver seat to the original position.
  5. Raise the LH front window and close the LH front door.
