Bolster - Seat Cushion - 3rd Row - LH - Remove And Replace: Remove
- Open all the doors and fully lower all the windows.
- Move the front seats fully forward.
- Move the 2nd row seats into easy entry mode.
- Remove the 3rd row seat cushion. See CUSHION - SEAT - 3RD ROW (REMOVE AND REPLACE) .

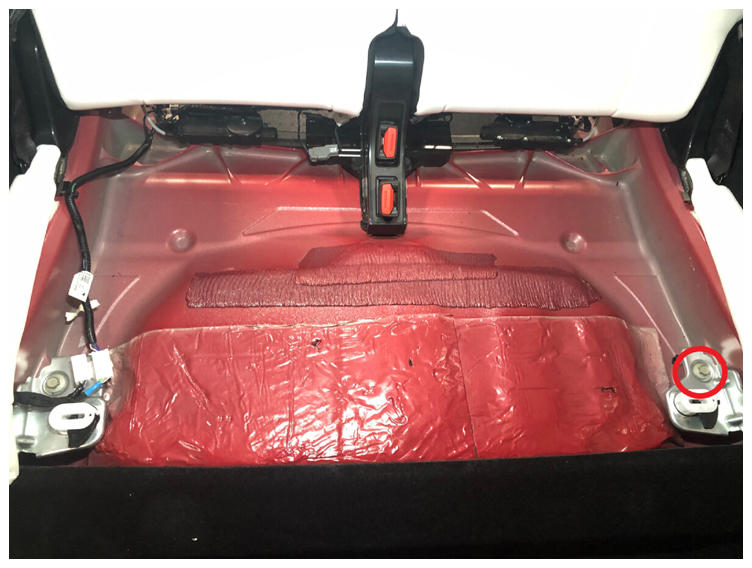

- Remove the bolt that attaches the 3rd row LH seat cushion bolster to the vehicle, and then slide the bolster forward to remove it from the assembly.
37 N.m (27.3 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 13 mm socket
- Flex head ratchet/flex head torque wrench
