Bolster - Seat Cushion - 3rd Row - LH - Remove And Replace: Install

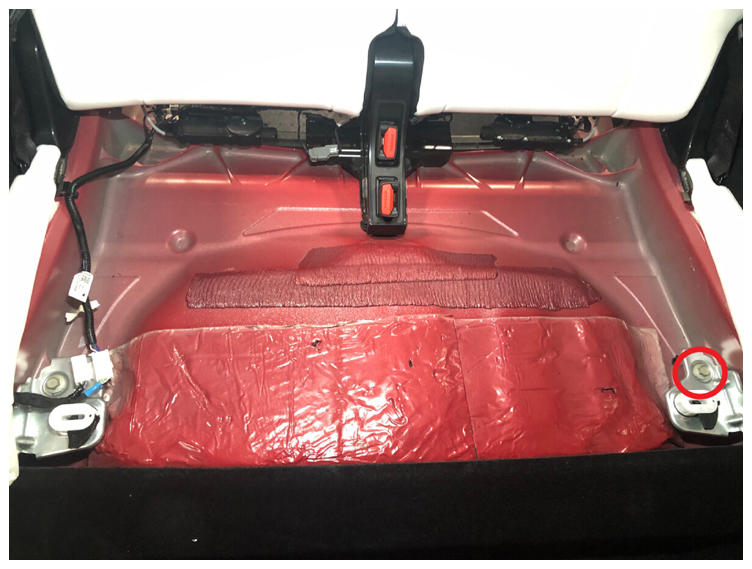

- Position the 3rd row LH seat cushion bolster into the vehicle, and then install the bolt.
37 N.m (27.3 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 13 mm socket
- Flex head ratchet/flex head torque wrench
- Install the 3rd row seat cushion. See CUSHION - SEAT - 3RD ROW (REMOVE AND REPLACE) .
- Move the 2nd row seats and front seat into the original positions.
- Raise all the windows and close all the doors.
