Actuator - Recliner - 3rd Row Seat - LH - Remove And Replace: Install

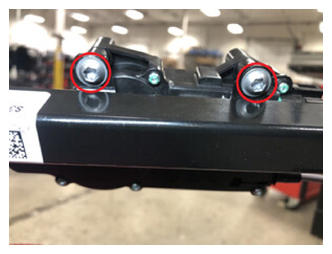

- Position the LH 3rd row recliner actuator onto the seat frame assembly, and then install the bolts that attach the actuator to the assembly.
2.5 N.m (1.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Hex bit set with Tamper-proof Torx

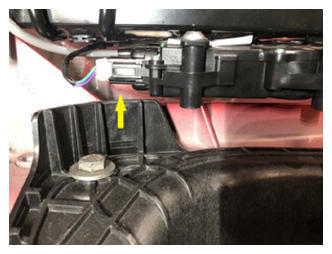

- Connect the 3rd row LH recliner actuator electrical connector.

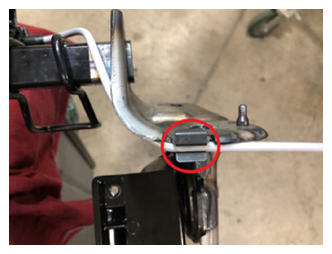

- Install the 3rd row LH recliner actuator cable into the clip on the seat frame assembly.

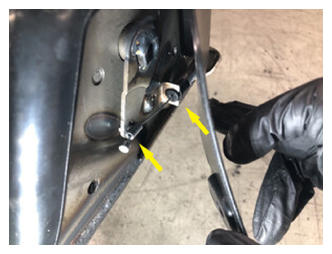

- Install the 3rd row LH recliner actuator cable into holding mount on the seat frame assembly.

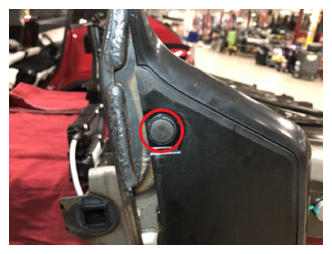

- Install the outer clip that attaches the 3rd row LH inner B-cover to the seat frame assembly.
- Install the 3rd seat backs. See SEAT BACKS - 3RD ROW (REMOVE AND REPLACE) .
