Remove And Replace

  1. Open all four doors
  2. Lower all four windows
  3. Move LH front seat forward
  4. Move RH front seat forward
  5. Partially remove LH rear door seal

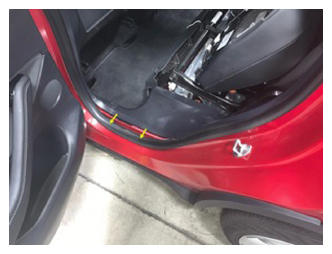

    G14822261Courtesy of TESLA, INC.
  6. Remove LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim

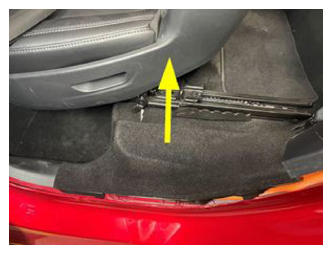

    G14822262Courtesy of TESLA, INC.
    G14822263Courtesy of TESLA, INC.

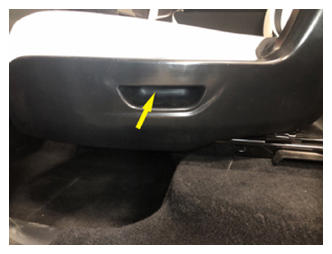

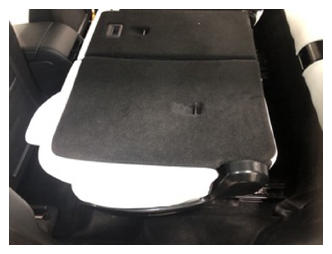

  7. Fold 60 seat into down position
    G14822264Courtesy of TESLA, INC.
    G14822265Courtesy of TESLA, INC.
  8. Disconnect logic connector at LH seat frame
    NOTE: 1x connector
    G14822266Courtesy of TESLA, INC.

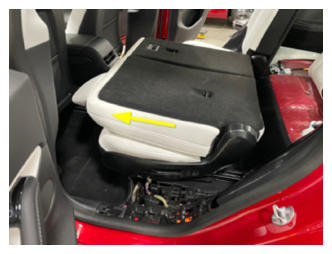

  9. Move 60 seat forward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14822267Courtesy of TESLA, INC.
    G14822268Courtesy of TESLA, INC.
  10. Remove 60 seat rear outboard track fastener
    NOTE: 1x patch bolt, 11 mm, 37 N.m, Discard after removal
    G14822269Courtesy of TESLA, INC.
  11. Remove 60 seat rear inboard track fasteners
    NOTE: 2x patch bolts, 11 mm, 37 N.m, Discard after removal
    G14822270Courtesy of TESLA, INC.

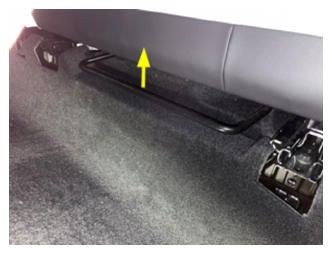

  12. Move 60 seat fully rearward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14822271Courtesy of TESLA, INC.

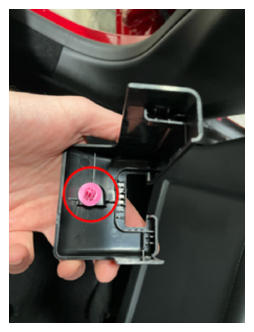

  13. Remove 60 seat outboard track cover
    NOTE: 1x clip, Slide covers forward to release from 60 seat tracks
    G14822272Courtesy of TESLA, INC.
    G14822273Courtesy of TESLA, INC.

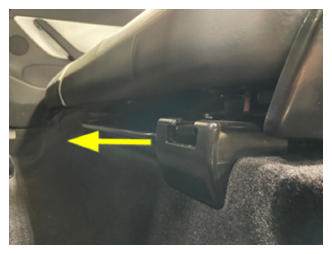

    G14822274Courtesy of TESLA, INC.

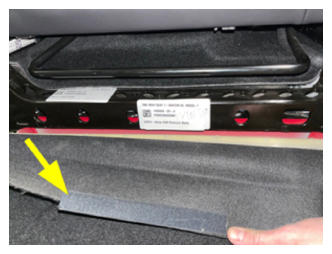

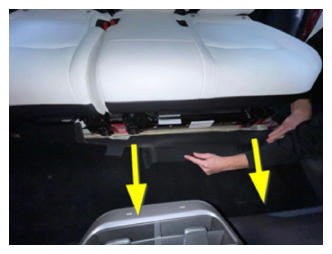

  14. Release cabin carpet from 60 seat
    NOTE: Pull cabin carpet towards front of vehicle
    G14822275Courtesy of TESLA, INC.
    G14822276Courtesy of TESLA, INC.
  15. Remove 60 seat front inboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14822277Courtesy of TESLA, INC.

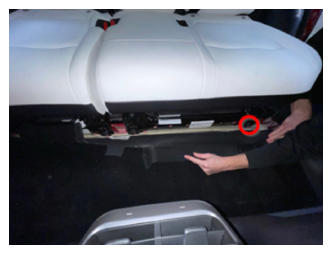

  16. Remove 60 seat front outboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14822278Courtesy of TESLA, INC.

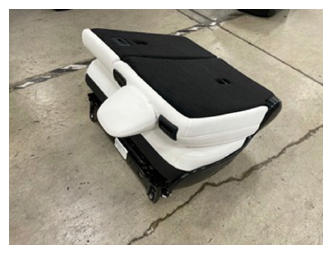

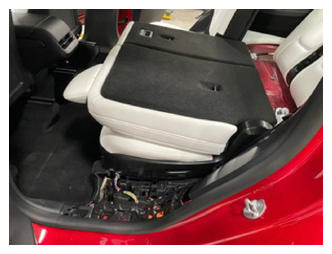

  17. Remove 2nd row 60 seat assembly from vehicle
    NOTE: Recommend assistance
    G14822279Courtesy of TESLA, INC.
    G14822280Courtesy of TESLA, INC.

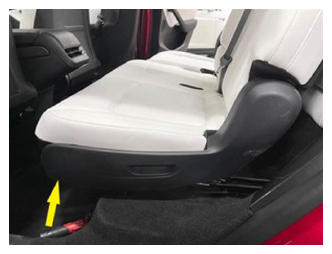

  18. Remove front push clip from 60 outer sideshield assembly
    NOTE: 1x clip, Use pick to remove the push clip from the bottom side of the outboard cover
    G14822281Courtesy of TESLA, INC.
    G14822282Courtesy of TESLA, INC.

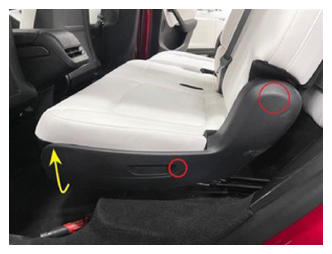

  19. Remove 60 outer sideshield assembly
    NOTE: 1x clip 1x connector, Remove outer sideshield assembly by pulling outwards and up at the front portion of the trim, Unclip remaining clip and unplug the connection
    G14822283Courtesy of TESLA, INC.
    G14822284Courtesy of TESLA, INC.

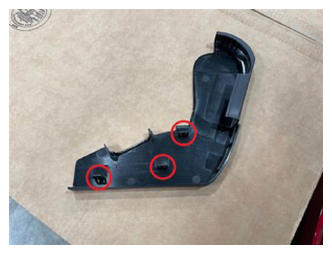

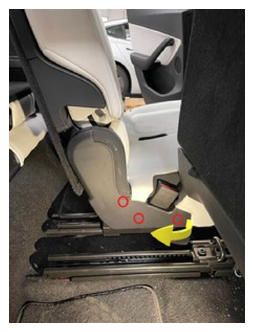

  20. Release clips and remove inboard outer trim from 60 seat
    NOTE: 3x clips, Use trim tool to unclip 3x clips and remove inboard outer trim towards rear of the vehicle
    G14822285Courtesy of TESLA, INC.
    G14822286Courtesy of TESLA, INC.

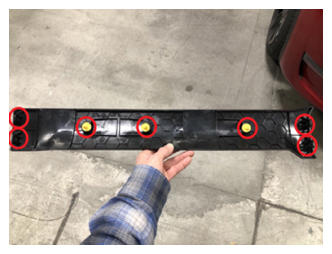

  21. Remove 60 seat toe kick cover
    NOTE: 7x clips, Pry up on LH side of 60 toe kick cover to release clips, Repeat on RH side to fully remove
    G14822287Courtesy of TESLA, INC.
    G14822288Courtesy of TESLA, INC.

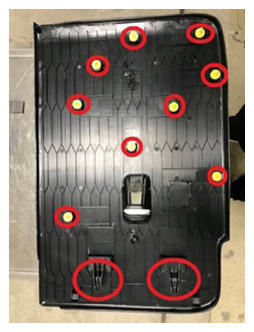

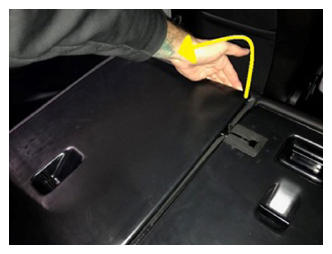

  22. Remove 60 seatback panel
    NOTE: 9x clips, 2x hooks, Release clips starting at the top of backpanel working your way down the lower backpanel, pull 60 backpanel towards front of vehicle to remove
    G14822289Courtesy of TESLA, INC.
    G14822290Courtesy of TESLA, INC.

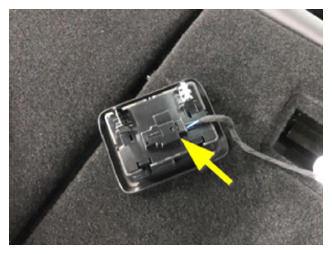

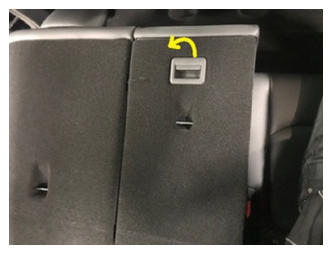

  23. Remove 2nd row center seat switch
    NOTE: 1x connector, 2x clips, Using plastic trim tool pry the top of the switch away from 20 backpanel to ease removal

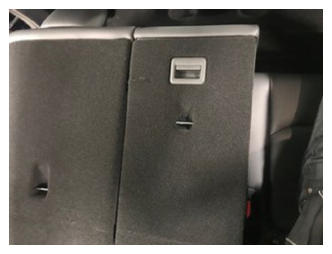

    G14822291Courtesy of TESLA, INC.
    G14822292Courtesy of TESLA, INC.
    G14822293Courtesy of TESLA, INC.

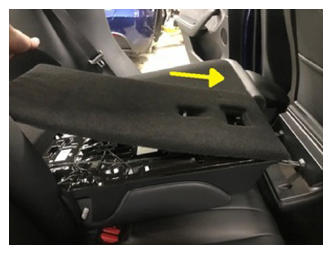

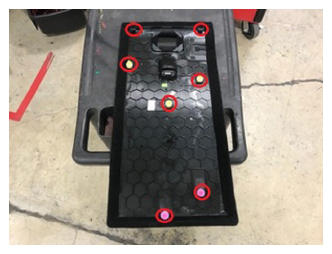

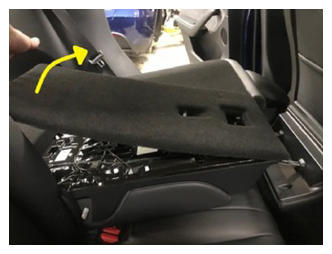

  24. Remove center backpanel from center seatback
    NOTE: 5x clips, 2 hooks, Lift up at the lower 20 backpanel and then slide forward to release
    G14822294Courtesy of TESLA, INC.
    G14822295Courtesy of TESLA, INC.
    G14822296Courtesy of TESLA, INC.

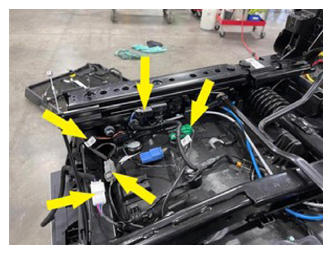

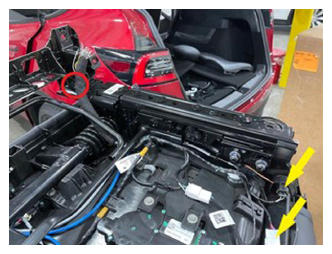

  25. Release 60 seat harness connectors and clip from seat from seat frame
    NOTE: 1x clip, 7x connectors
    G14822297Courtesy of TESLA, INC.
    G14822298Courtesy of TESLA, INC.

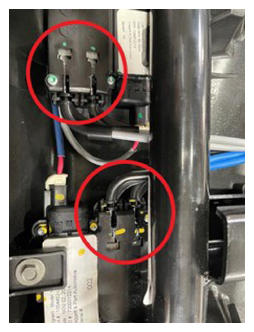

  26. Disconnect seat cables from easy entry actuators on 60 seat
    NOTE: 4x clips
    G14822299Courtesy of TESLA, INC.

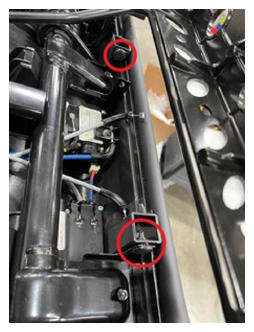

  27. Remove push clips for 60 bottom seat pan
    NOTE: 2x clips, Remove push clips from front of seat pan
    G14822300Courtesy of TESLA, INC.

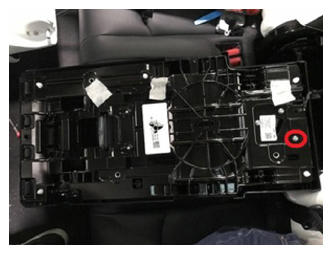

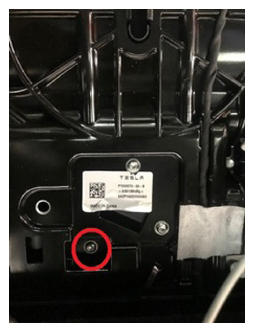

  28. Remove center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14822301Courtesy of TESLA, INC.
    G14822302Courtesy of TESLA, INC.

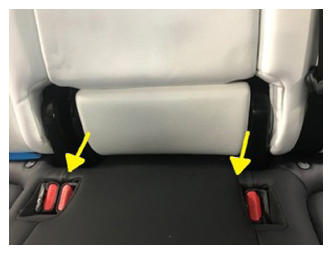

  29. Remove center seatback lumbar bun
    NOTE: 2x clips, Pull bolster outwards to release
    G14822303Courtesy of TESLA, INC.

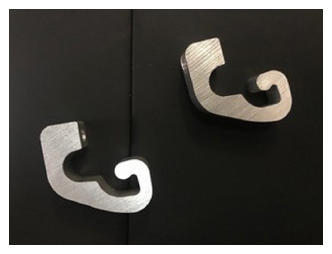

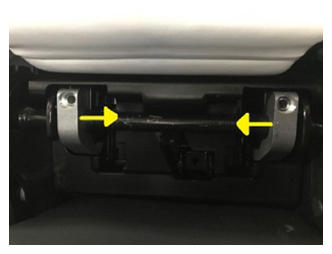

  30. Remove center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m. Once fasteners are removed slide pivot clamp towards the center of center seatback and pull each outwards to remove
    G14822304Courtesy of TESLA, INC.
    G14822305Courtesy of TESLA, INC.

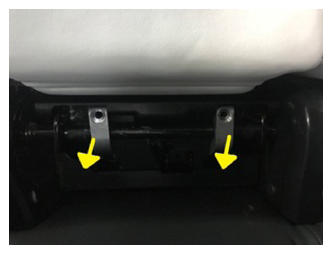

    G14822306Courtesy of TESLA, INC.
    G14822307Courtesy of TESLA, INC.

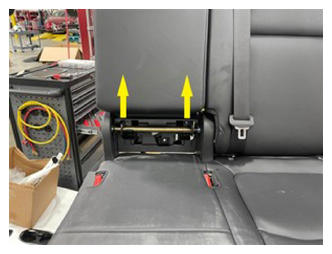

  31. Remove center seatback from 60 seat frame
    NOTE: Remove center seatback by lifting upwards
    G14822308Courtesy of TESLA, INC.

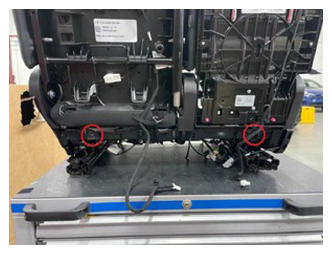

  32. Remove fasteners securing 60 seat pan to seat frame
    NOTE: 4x fastener, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Remove remaining bolts attaching seat pan to seat frame
    G14822309Courtesy of TESLA, INC.
    G14822310Courtesy of TESLA, INC.
    G14822311Courtesy of TESLA, INC.

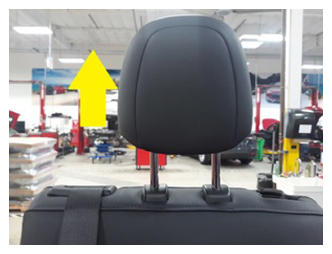

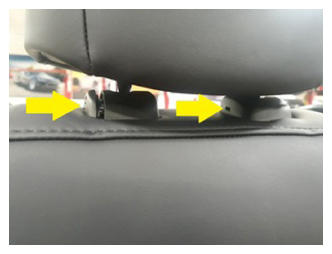

  33. Remove headrest from 60 seat assembly
    NOTE: Simultaneously depress the guide button and insert a 90 degree pick into the guide opening, Lift up while engaged
    G14822312Courtesy of TESLA, INC.
    G14822313Courtesy of TESLA, INC.
  34. Remove headrest from 60 seat assembly
    NOTE: Simultaneously depress the guide button and insert a 90 degree pick into the guide opening, Lift up while engaged
    G14822314Courtesy of TESLA, INC.
    G14822315Courtesy of TESLA, INC.

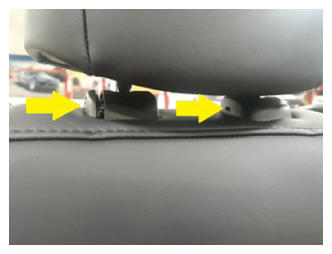

  35. Remove headrest from 60 seat assembly
    NOTE: Simultaneously depress the guide button and insert a 90 degree pick into the guide opening, Lift up while engaged
    G14822316Courtesy of TESLA, INC.
    G14822317Courtesy of TESLA, INC.

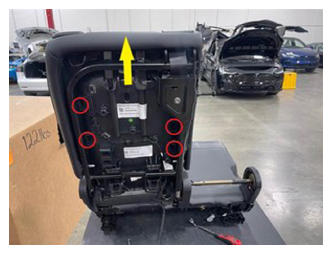

  36. Remove 60 seatback
    NOTE: 4x clips, Release clips securing 60 seatback and lift upwards
    G14822318Courtesy of TESLA, INC.

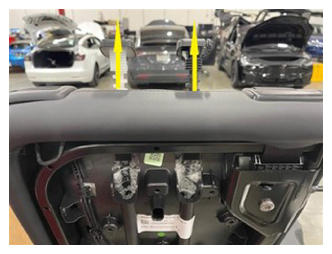

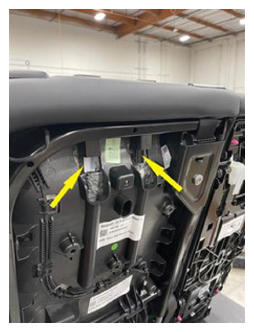

  37. Remove headrest guides from 60 seat
    NOTE: Pull back on lower portion of the headrest guide to release tab while also applying upward force to remove headrest guides
    G14822319Courtesy of TESLA, INC.
    G14822320Courtesy of TESLA, INC.

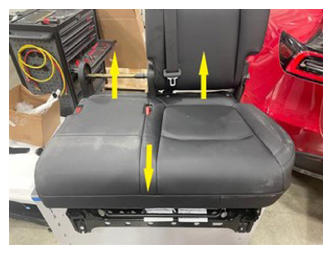

  38. Remove 60 seat bottom
    NOTE: Remove seat bottom by lifting the rear first and removing it towards front of the seat
    G14822321Courtesy of TESLA, INC.

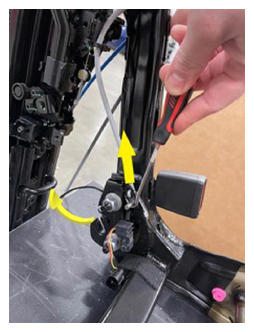

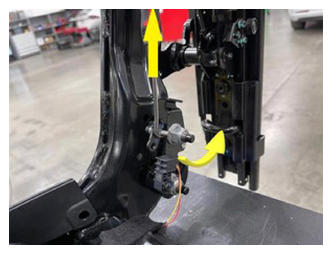

  39. Manually put 60 seat into easy entry
    NOTE: Put 60 seat into easy entry position by manually releasing latches with a pick
    G14822322Courtesy of TESLA, INC.
    G14822323Courtesy of TESLA, INC.

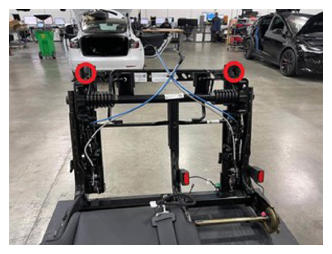

  40. Remove bolts securing 60 seat podium to seat tracks
    NOTE: 2x bolts, 11 mm, 37 N.m, Discard bolts after removal
    G14822324Courtesy of TESLA, INC.

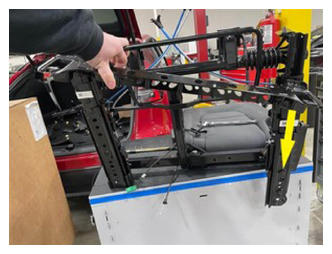

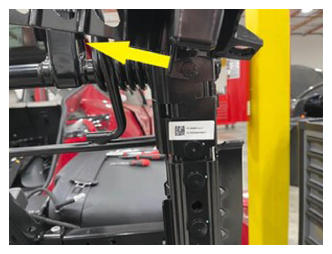

  41. Remove 60 seat podium from seat tracks
    NOTE: With one hand engage towel bar, Move outer seat track rearward with other hand until groove on 60 seat podium releases from outer seat track, Then lift 60 seat podium upward and remove from inner seat track
    G14822325Courtesy of TESLA, INC.
    G14822326Courtesy of TESLA, INC.
  42. Release 60 seat easy entry actuator cable from RH easy entry latch
    NOTE: 2x clips
    G14822327Courtesy of TESLA, INC.
  43. Remove nuts securing 60 seat inner seat track to seat frame assembly
    NOTE: 2x nuts, 13 mm, 37 N.m
    G14822328Courtesy of TESLA, INC.

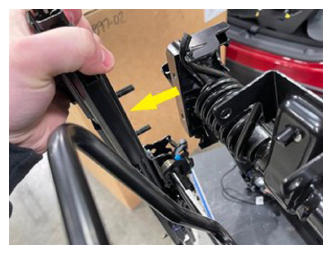

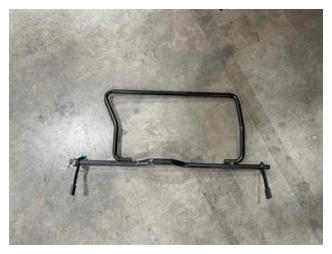

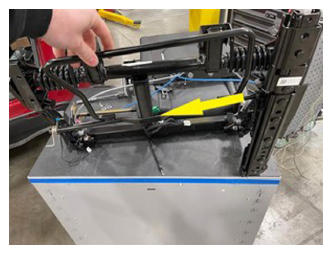

  44. Remove 60 Inner seat track with towel bar
    NOTE: Remove inner seat track and towel bar by pulling outwards
    G14822329Courtesy of TESLA, INC.
    G14822330Courtesy of TESLA, INC.
    G14822331Courtesy of TESLA, INC.

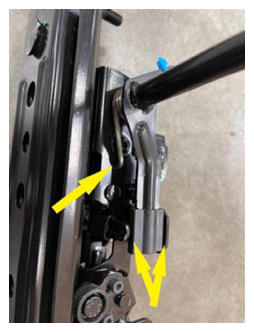

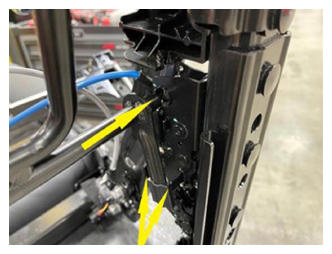

  45. Install towel bar to inner 60 seat track
    NOTE: Install the towel bar to the inner seat track ensuring the spring clip is seated and the towel bar lever is within the detents and install to seat frame
    G14822332Courtesy of TESLA, INC.
    G14822333Courtesy of TESLA, INC.

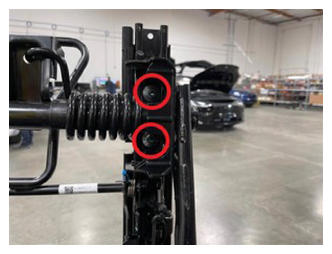

  46. Install 60 inner track and towel bar
    NOTE: 2x nuts, 13 mm, 37 N.m, Install outer seat track to seat frame
    G14822334Courtesy of TESLA, INC.
    G14822335Courtesy of TESLA, INC.

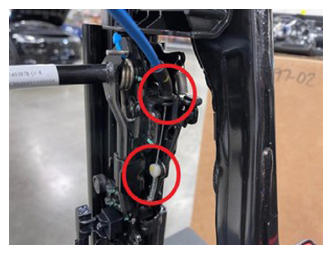

  47. Install 60 seat easy entry actuator cable from easy entry latch
    NOTE: 2x clips, Install cable back into place
    G14822336Courtesy of TESLA, INC.

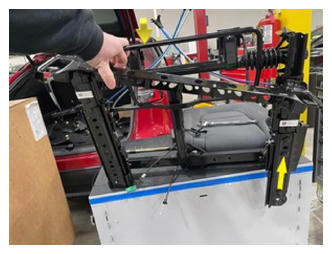

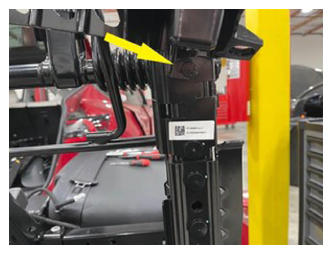

  48. Install 60 seat podium to seat tracks
    NOTE: Install groove on 60 seat podium to inner seat track, Then align groove on 60 seat podium to outer seat track, Engage towel bar with one hand, Then move outer seat track inward until groove on 60 seat podium engages to seat track
    G14822337Courtesy of TESLA, INC.
    G14822338Courtesy of TESLA, INC.
  49. Install bolts securing 60 seat podium to seat tracks
    NOTE: 2x bolts, 11 mm, 37 N.m, Install new bolts
    G14822339Courtesy of TESLA, INC.

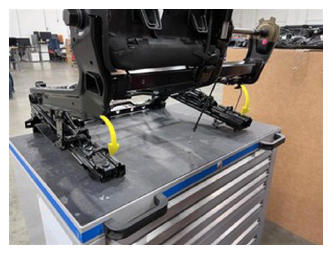

  50. Position 60 seat onto seat tracks and latch floor latches
    NOTE: Push downwards on seat frame assembly to latch floor latches
    G14822340Courtesy of TESLA, INC.

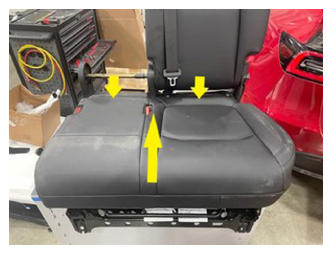

  51. Place 60 seat pan onto seat frame
    NOTE: Reinstall seat bottom onto seat frame by starting at the rear of the seat
    G14822341Courtesy of TESLA, INC.

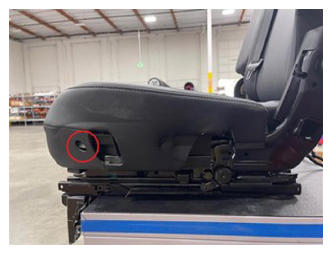

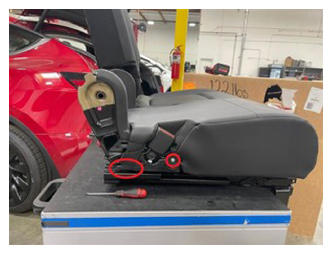

  52. Secure 60 seat bottom to seat frame
    NOTE: 4x fasteners, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Install remaining bolts attaching seat pan to seat frame
    G14822342Courtesy of TESLA, INC.
    G14822343Courtesy of TESLA, INC.
    G14822344Courtesy of TESLA, INC.

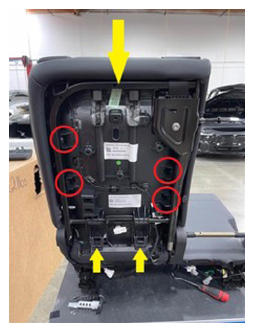

  53. Install 60 seat back into place
    NOTE: 4x clips, Slide seat back into place making sure the bottom retainers slide into place, Reinstall push clips to secure seat back
    G14822345Courtesy of TESLA, INC.
  54. Install headrest guides into 60 seat assembly
    NOTE: Install headrest guides by pressing downwards until lower tab is seated
    G14822346Courtesy of TESLA, INC.
  55. Install headrest onto 60 seat assembly
    NOTE: Push down to secure
    G14822347Courtesy of TESLA, INC.

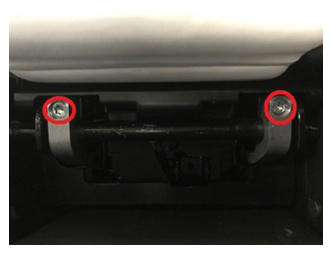

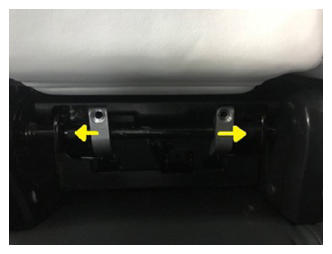

  56. Install center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Insert pivot clamp at center of center frame and slide outwards to install fasteners, When replacing pivot clamps they must be replaced in pairs
    G14822348Courtesy of TESLA, INC.

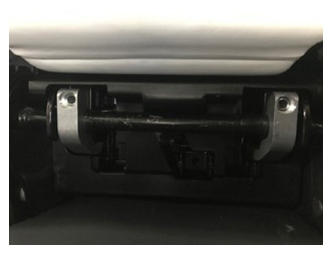

    G14822349Courtesy of TESLA, INC.
    G14822350Courtesy of TESLA, INC.

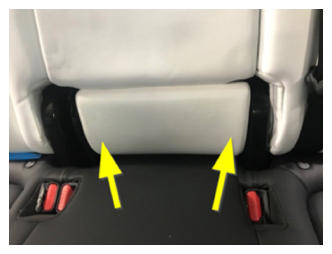

  57. Install center seatback lumbar bun
    NOTE: 2x clips, Press seatback lumbar bun into center frame
    G14822351Courtesy of TESLA, INC.
  58. Install center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14822352Courtesy of TESLA, INC.
    G14822353Courtesy of TESLA, INC.

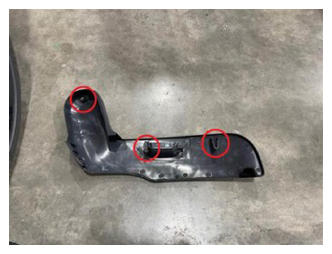

  59. Plug in connector and install trim to 60 seat
    NOTE: 1x connector, 1x clip, Plug in connector and install trim by hooking the front into place and seat clip at rear of trim.
    G14822354Courtesy of TESLA, INC.
    G14822355Courtesy of TESLA, INC.

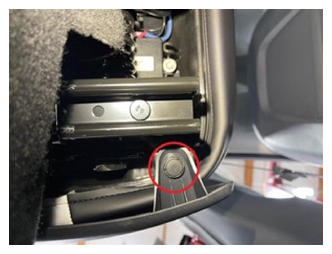

  60. Install push clip at front of outer 60 sideshield assembly
    NOTE: 1x clip, Install push clip at front bottom side of the trim
    G14822356Courtesy of TESLA, INC.
    G14822357Courtesy of TESLA, INC.

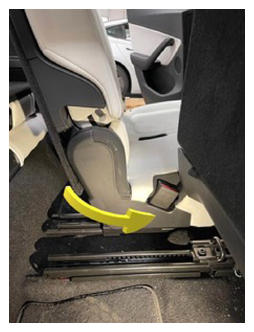

  61. Install inboard outer trim to 60 seat
    NOTE: Clips 3x, Install inboard outer trim and reseat 3x clips
    G14822358Courtesy of TESLA, INC.

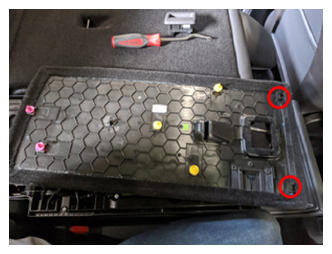

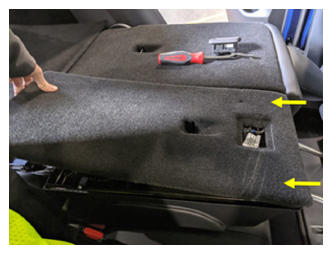

  62. Insert backpanel hooks into center seat back assembly
    NOTE: 2x hooks, Engage hooks and slide rearward into position, Early production have 4x hooks
    G14822359Courtesy of TESLA, INC.
    G14822360Courtesy of TESLA, INC.

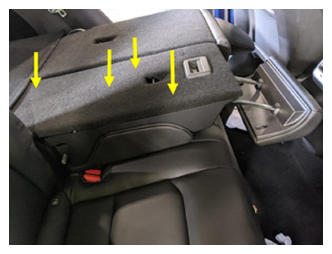

  63. Install center backpanel onto seat back
    NOTE: 5x clips
    G14822361Courtesy of TESLA, INC.

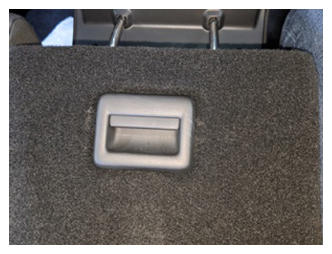

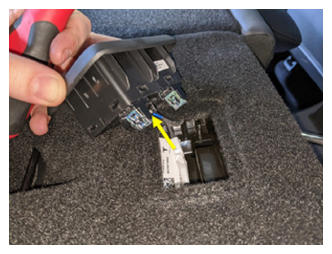

  64. Install 2nd row center seat switch
    NOTE: 1x connector, 2x clips
    G14822362Courtesy of TESLA, INC.

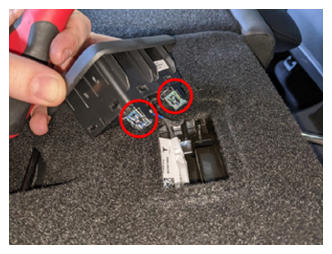

    G14822363Courtesy of TESLA, INC.
    G14822364Courtesy of TESLA, INC.

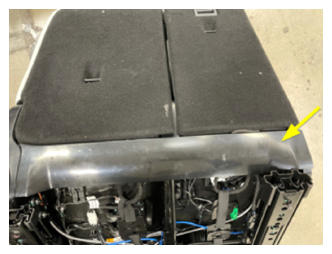

  65. Install 60 toe kick cover
    NOTE: 7x clips
    G14822365Courtesy of TESLA, INC.
    G14822366Courtesy of TESLA, INC.

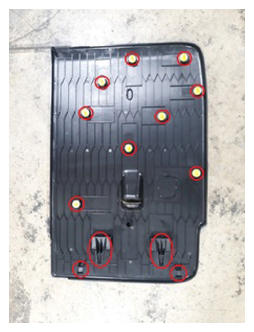

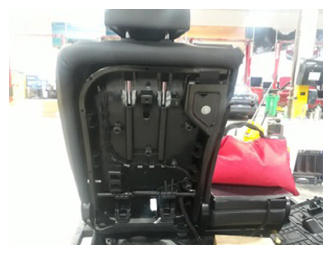

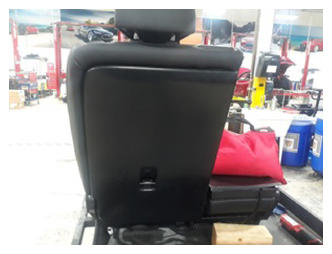

  66. Install LH seatback onto 60 seat assembly
    NOTE: 9x clips, 4 hooks, Attach hooks onto frame rail, Work upwards and fasten all the clips
    G14822367Courtesy of TESLA, INC.
    G14822368Courtesy of TESLA, INC.
    G14822369Courtesy of TESLA, INC.
  67. Install 2nd row 60 seat assembly
    NOTE: Recommend assistance
    G14822370Courtesy of TESLA, INC.
    G14822371Courtesy of TESLA, INC.

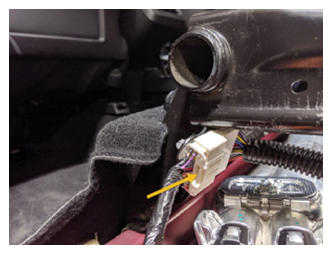

  68. Connect logic connector at LH 60 seat frame
    NOTE: 1x connector
    G14822372Courtesy of TESLA, INC.

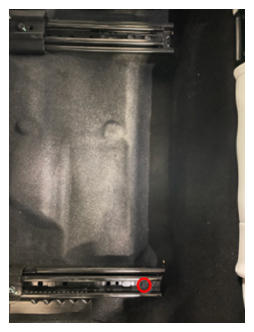

  69. Install fasteners securing 60 seat frame to body
    NOTE: 5x patch bolts, 11 mm, 37 N.m, Install new patch bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Both inboard rear -> Outboard rear -> Inboard front
    G14822373Courtesy of TESLA, INC.
    G14822374Courtesy of TESLA, INC.

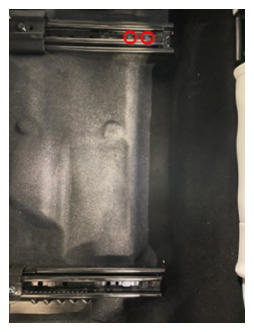

    G14822375Courtesy of TESLA, INC.
    G14822376Courtesy of TESLA, INC.

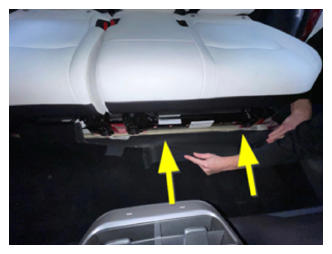

  70. Secure cabin carpet to 60 seat
    NOTE: Strap velcro on
    G14822377Courtesy of TESLA, INC.
    G14822378Courtesy of TESLA, INC.

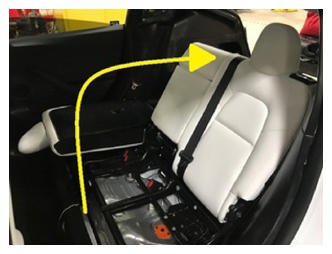

  71. Fold the 60 seat into vertical position
    NOTE: Remove seat back protection if necessary
    G14822379Courtesy of TESLA, INC.

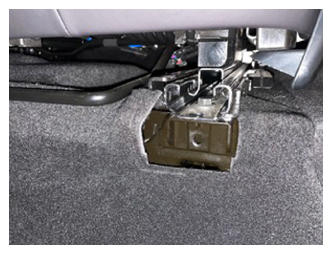

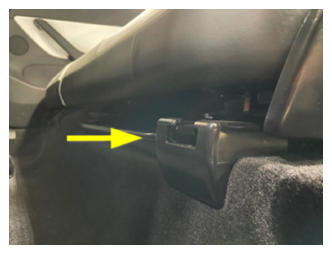

  72. Install 60 seat outboard track cover
    NOTE: 1x clip
    G14822380Courtesy of TESLA, INC.
    G14822381Courtesy of TESLA, INC.
    G14822382Courtesy of TESLA, INC.
  73. Install LH 7s Lower C-Pillar Trim

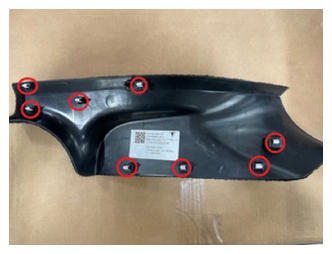

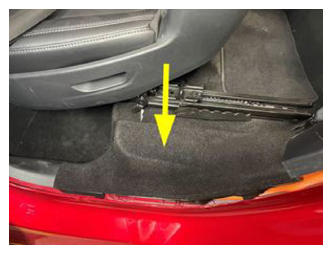

    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G14822383Courtesy of TESLA, INC.
    G14822384Courtesy of TESLA, INC.
  74. Move RH front seat to original position
  75. Move LH front seat to original position
  76. Raise all four windows
  77. Close all four doors
    NOTE: If 12 V is powered up, Unlatch rear doors before closing
scientia non olet · About LEMON Manuals
