Remove And Replace

  1. Open all four doors
  2. Lower all four windows
  3. Move LH front seat forward
  4. Move RH front seat forward

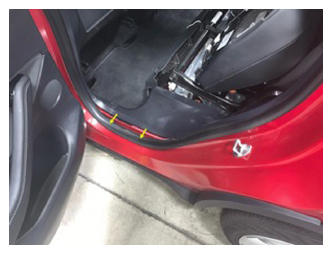

  5. Partially remove LH rear door seal
    G14822092Courtesy of TESLA, INC.

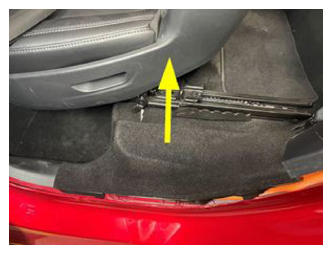

  6. Remove LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G14822093Courtesy of TESLA, INC.
    G14822094Courtesy of TESLA, INC.

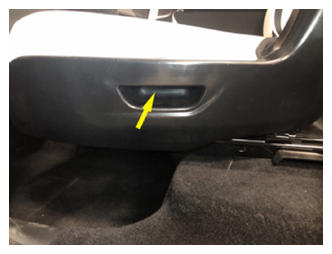

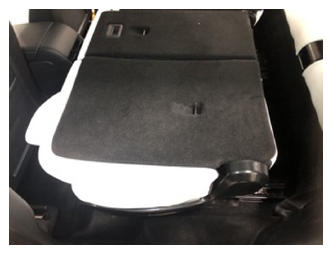

  7. Fold 60 seat into down position
    G14822095Courtesy of TESLA, INC.
    G14822096Courtesy of TESLA, INC.

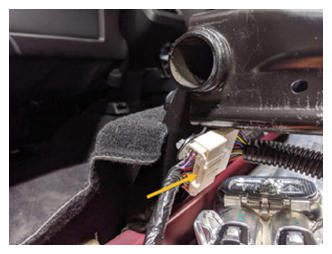

  8. Disconnect logic connector at LH seat frame
    NOTE: 1x connector
    G14822097Courtesy of TESLA, INC.

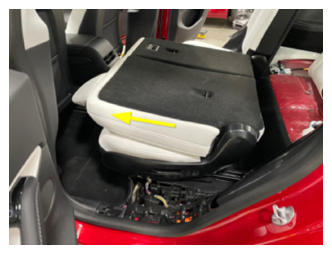

  9. Move 60 seat forward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14822098Courtesy of TESLA, INC.
    G14822099Courtesy of TESLA, INC.
  10. Remove 60 seat rear outboard track fastener
    NOTE: 1x patch bolt, 11 mm, 37 N.m, Discard after removal
    G14822100Courtesy of TESLA, INC.
  11. Remove 60 seat rear inboard track fasteners
    NOTE: 2x patch bolts, 11 mm, 37 N.m, Discard after removal
    G14822101Courtesy of TESLA, INC.

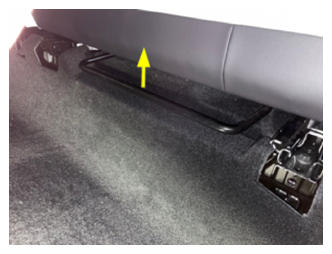

  12. Move 60 seat fully rearward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14822102Courtesy of TESLA, INC.

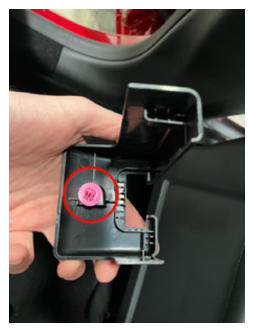

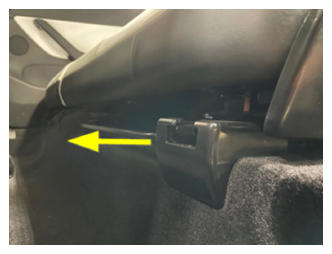

  13. Remove 60 seat outboard track cover
    NOTE: 1x clip, Slide covers forward to release from 60 seat tracks
    G14822103Courtesy of TESLA, INC.
    G14822104Courtesy of TESLA, INC.
    G14822105Courtesy of TESLA, INC.

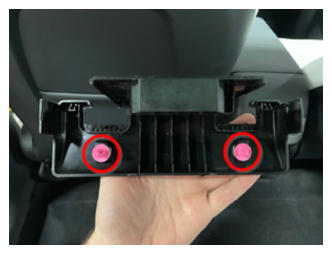

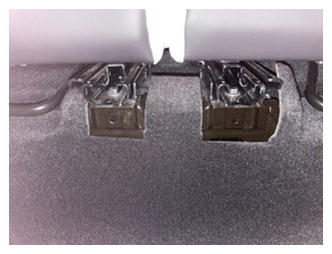

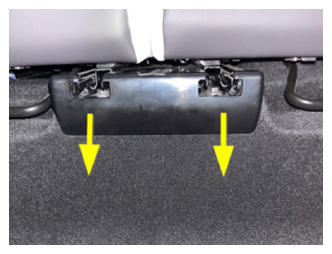

  14. Remove center track cover from 2nd row seats
    NOTE: 2x clips, Slide covers forward to release from 2nd row seat tracks
    G14822106Courtesy of TESLA, INC.
    G14822107Courtesy of TESLA, INC.
    G14822108Courtesy of TESLA, INC.

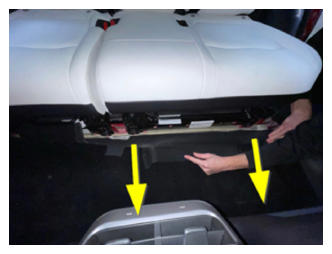

  15. Release cabin carpet from 60 seat
    NOTE: Pull cabin carpet towards front of vehicle
    G14822109Courtesy of TESLA, INC.
    G14822110Courtesy of TESLA, INC.
  16. Remove 60 seat front inboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14822111Courtesy of TESLA, INC.
  17. Remove 60 seat front outboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14822112Courtesy of TESLA, INC.
  18. Remove 2nd row 60 seat assembly from vehicle
    NOTE: Recommend assistance
    G14822113Courtesy of TESLA, INC.
    G14822114Courtesy of TESLA, INC.
  19. Remove front push clip from 60 outer sideshield assembly
    NOTE: 1x clip, Use pick to remove the push clip from the bottom side of the outboard cover
    G14822115Courtesy of TESLA, INC.
    G14822116Courtesy of TESLA, INC.

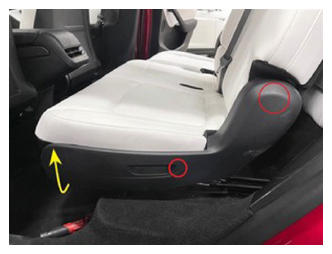

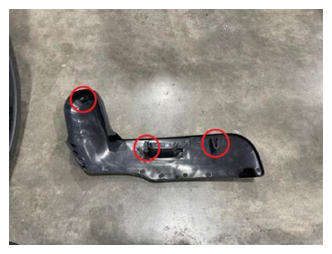

  20. Remove 60 outer sideshield assembly
    NOTE: 1x clip 1x connector, Remove outer sideshield assembly by pulling outwards and up at the front portion of the trim, Unclip remaining clip and unplug the connection
    G14822117Courtesy of TESLA, INC.
    G14822118Courtesy of TESLA, INC.

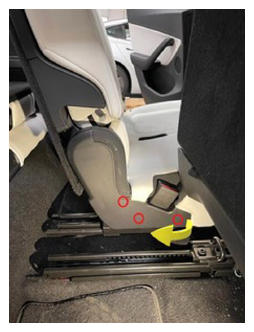

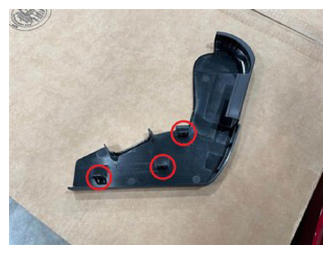

  21. Release clips and remove inboard outer trim from 60 seat
    NOTE: 3x clips, Use trim tool to unclip 3x clips and remove inboard outer trim towards rear of the vehicle
    G14822119Courtesy of TESLA, INC.
    G14822120Courtesy of TESLA, INC.

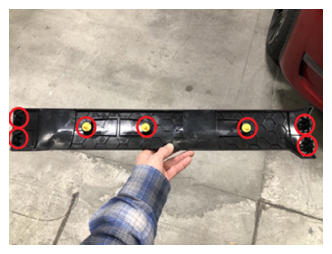

  22. Remove 60 seat toe kick cover
    NOTE: 7x clips, Pry up on LH side of 60 toe kick cover to release clips, Repeat on RH side to fully remove
    G14822121Courtesy of TESLA, INC.
    G14822122Courtesy of TESLA, INC.

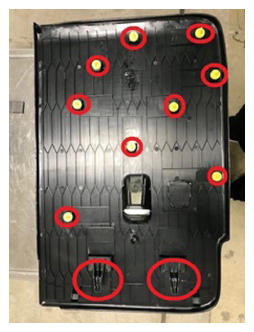

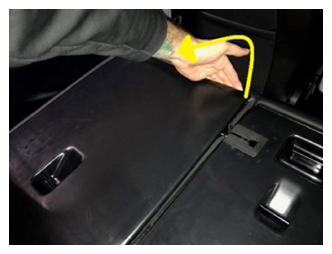

  23. Remove 60 seatback panel
    NOTE: 9x clips, 2x hooks, Release clips starting at the top of backpanel working your way down the lower backpanel, pull 60 backpanel towards front of vehicle to remove
    G14822123Courtesy of TESLA, INC.
    G14822124Courtesy of TESLA, INC.

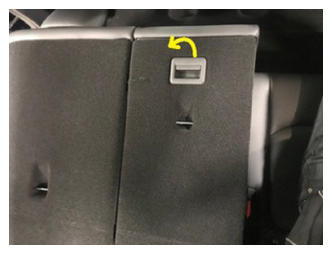

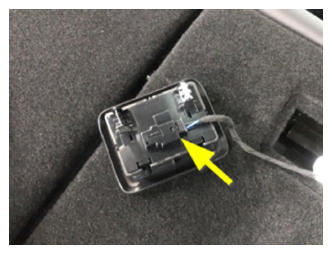

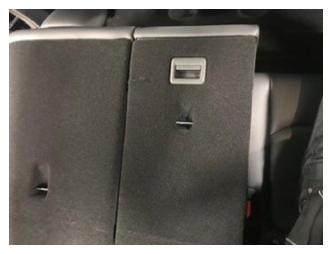

  24. Remove 2nd row center seat switch
    NOTE: 1x connector, 2x clips, Using plastic trim tool pry the top of the switch away from 20 backpanel to ease removal
    G14822125Courtesy of TESLA, INC.
    G14822126Courtesy of TESLA, INC.
    G14822127Courtesy of TESLA, INC.

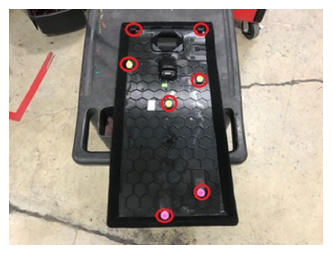

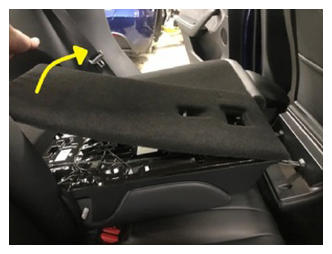

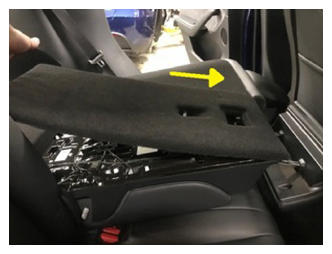

  25. Remove center backpanel from center seatback
    NOTE: 5x clips, 2 hooks, Lift up at the lower 20 backpanel and then slide forward to release
    G14822128Courtesy of TESLA, INC.
    G14822129Courtesy of TESLA, INC.
    G14822130Courtesy of TESLA, INC.

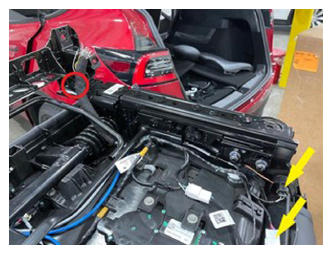

  26. Release 60 seat harness connectors and clip from seat from seat frame
    NOTE: 1x clip, 7x connectors
    G14822131Courtesy of TESLA, INC.
    G14822132Courtesy of TESLA, INC.

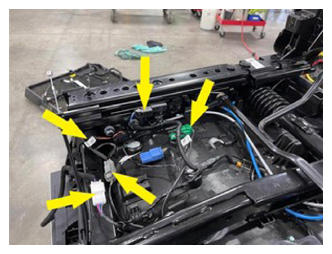

  27. Release 60 seat harness connectors and clip from seat from seat frame
    NOTE: 1x clip, 7x connectors
    G14822133Courtesy of TESLA, INC.
    G14822134Courtesy of TESLA, INC.

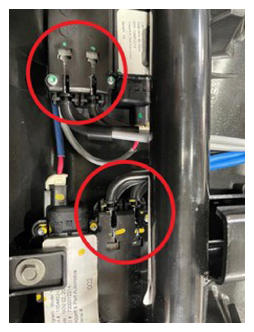

  28. Disconnect seat cables from easy entry actuators on 60 seat
    NOTE: 4x clips
    G14822135Courtesy of TESLA, INC.

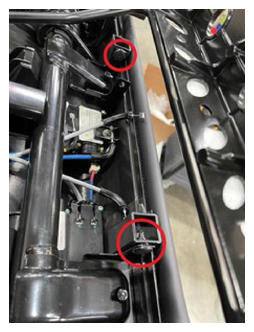

  29. Remove push clips for 60 bottom seat pan
    NOTE: 2x clips, Remove push clips from front of seat pan
    G14822136Courtesy of TESLA, INC.

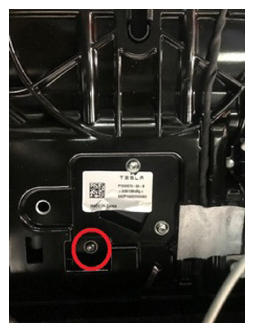

  30. Remove center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14822137Courtesy of TESLA, INC.
    G14822138Courtesy of TESLA, INC.

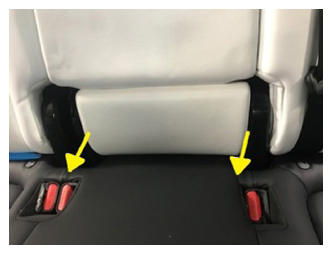

  31. Remove center seatback lumbar bun
    NOTE: 2x clips, Pull bolster outwards to release
    G14822139Courtesy of TESLA, INC.

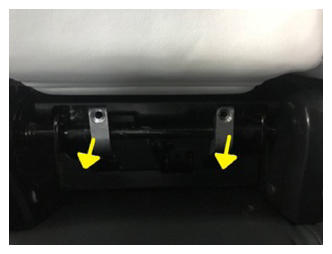

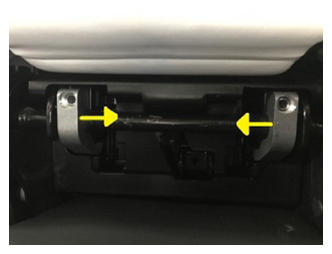

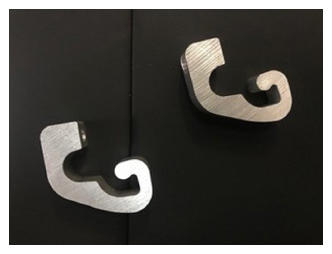

  32. Remove center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Once fasteners are removed slide pivot clamp towards the center of center seatback and pull each outwards to remove
    G14822140Courtesy of TESLA, INC.
    G14822141Courtesy of TESLA, INC.
    G14822142Courtesy of TESLA, INC.
    G14822143Courtesy of TESLA, INC.

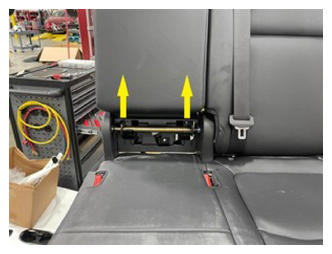

  33. Remove center seatback from 60 seat frame
    NOTE: Remove center seatback by lifting upwards
    G14822144Courtesy of TESLA, INC.

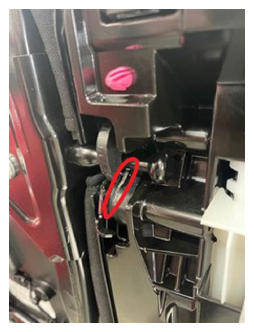

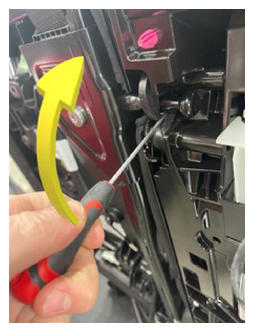

  34. Manually release the center seatback latch
    NOTE: Use small screwdriver to manipulate the center seatback latch to release
    G14822145Courtesy of TESLA, INC.
    G14822146Courtesy of TESLA, INC.

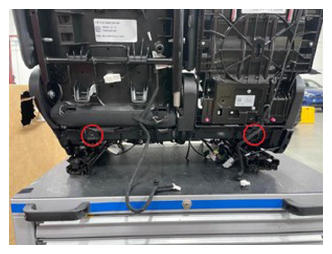

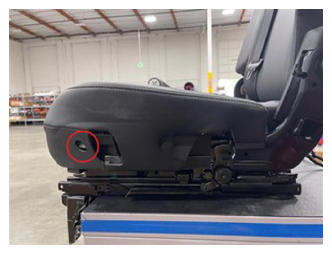

  35. Remove fasteners securing 60 seat pan to seat frame
    NOTE: 4x fastener, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Remove remaining bolts attaching seat pan to seat frame
    G14822147Courtesy of TESLA, INC.
    G14822148Courtesy of TESLA, INC.
    G14822149Courtesy of TESLA, INC.

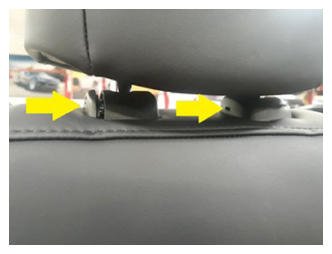

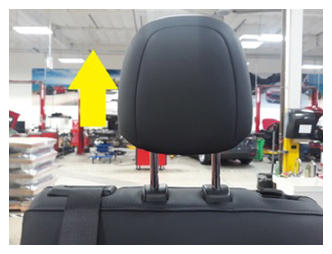

  36. Remove headrest from 60 seat assembly
    NOTE: Simultaneously depress the guide button and insert a 90 degree pick into the guide opening, Lift up while engaged
    G14822150Courtesy of TESLA, INC.
    G14822151Courtesy of TESLA, INC.

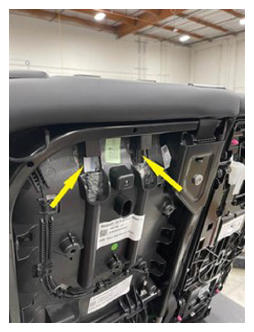

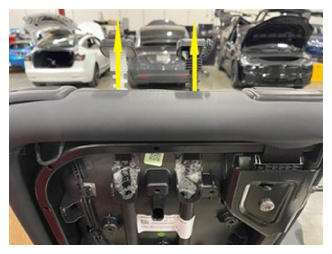

  37. Remove headrest guides from 60 seat
    NOTE: Pull back on lower portion of the headrest guide to release tab while also applying upward force to remove headrest guides
    G14822152Courtesy of TESLA, INC.
    G14822153Courtesy of TESLA, INC.

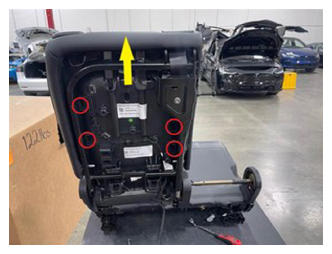

  38. Remove 60 seatback
    NOTE: 4x clips, Release clips securing 60 seatback and lift upwards
    G14822154Courtesy of TESLA, INC.

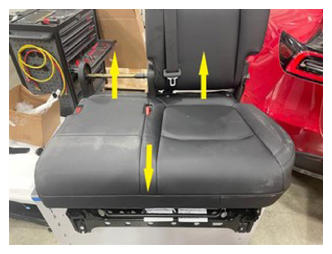

  39. Remove 60 seat bottom
    NOTE: Remove seat bottom by lifting the rear first and removing it towards front of the seat
    G14822155Courtesy of TESLA, INC.

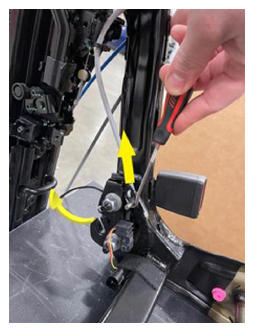

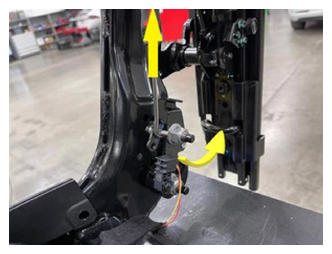

  40. Manually put 60 seat into easy entry
    NOTE: Put 60 seat into easy entry position by manually releasing latches with a pick
    G14822156Courtesy of TESLA, INC.
    G14822157Courtesy of TESLA, INC.

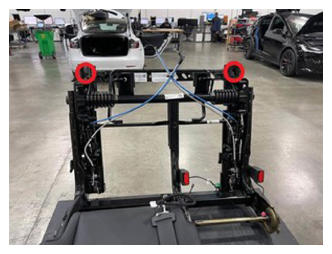

  41. Remove bolts securing 60 seat podium to seat tracks
    NOTE: 2x bolts, 11 mm, 37 N.m, Discard bolts after removal
    G14822158Courtesy of TESLA, INC.

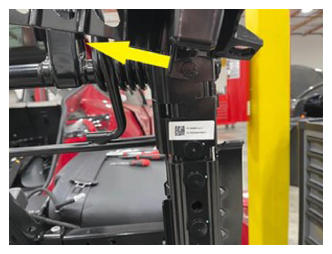

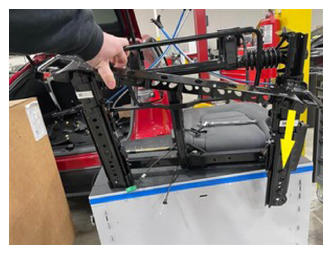

  42. Remove 60 seat podium from seat tracks
    NOTE: With one hand engage towel bar, Move outer seat track rearward with other hand until groove on 60 seat podium releases from outer seat track, Then lift 60 seat podium upward and remove from inner seat track
    G14822159Courtesy of TESLA, INC.
    G14822160Courtesy of TESLA, INC.

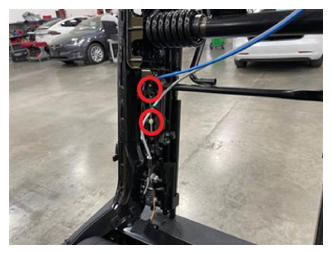

  43. Release 60 seat easy entry actuator cable from RH easy entry latch
    NOTE: 2x clips
    G14822161Courtesy of TESLA, INC.

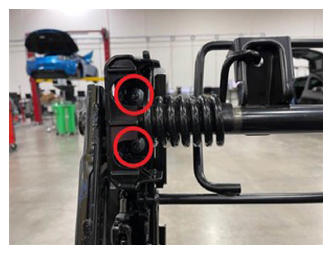

  44. Remove nuts securing 60 seat outer seat track to seat frame assembly
    NOTE: 2x nuts, 13 mm, 37 N.m
    G14822162Courtesy of TESLA, INC.

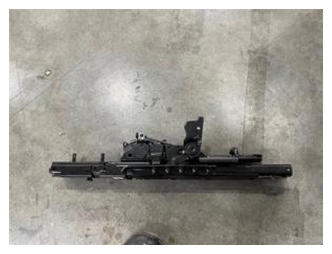

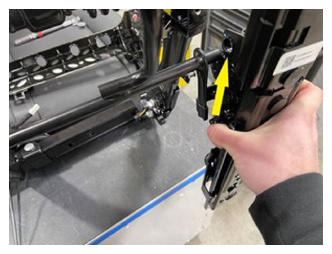

  45. Remove 60 seat outer seat track from towel bar
    NOTE: Slide outer seat track outwards away from towel bar
    G14822163Courtesy of TESLA, INC.
    G14822164Courtesy of TESLA, INC.

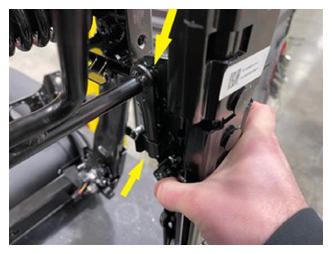

  46. Install 60 seat outer seat track to towel bar
    NOTE: 2x nuts, 13 mm, 37 N.m, Install outer seat track to towel bar making sure its properly seated, Install rail to seat frame
    G14822165Courtesy of TESLA, INC.
    G14822166Courtesy of TESLA, INC.

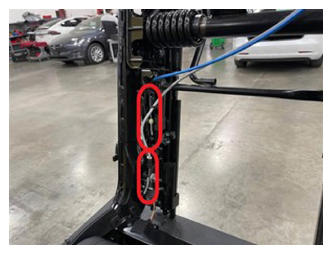

  47. Install 60 seat easy entry actuator cable from RH easy entry latch
    NOTE: 2x clips
    G14822167Courtesy of TESLA, INC.

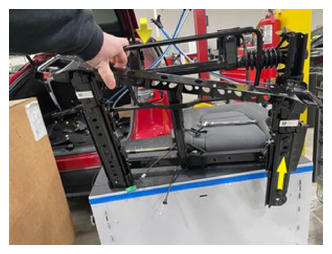

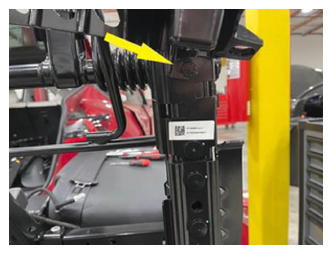

  48. Install 60 seat podium to seat tracks
    NOTE: Install groove on 60 seat podium to inner seat track, Then align groove on 60 seat podium to outer seat track, Engage towel bar with one hand, Then move outer seat track inward until groove on 60 seat podium engages to seat track
    G14822168Courtesy of TESLA, INC.
    G14822169Courtesy of TESLA, INC.
  49. Install bolts securing 60 seat podium to seat tracks
    NOTE: 2x bolts, 11 mm, 37 N.m, Install new bolts
    G14822170Courtesy of TESLA, INC.

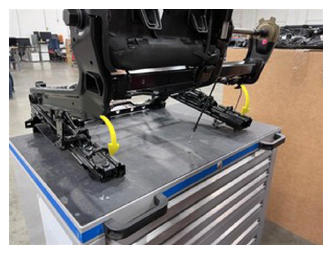

  50. Position 60 seat onto seat tracks and latch floor latches
    NOTE: Push downwards on seat frame assembly to latch floor latches
    G14822171Courtesy of TESLA, INC.

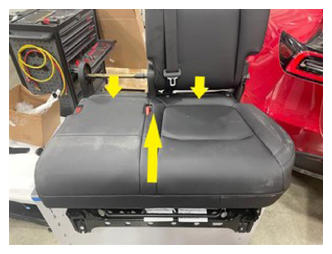

  51. Place 60 seat pan onto seat frame
    NOTE: Reinstall seat bottom onto seat frame by starting at the rear of the seat
    G14822172Courtesy of TESLA, INC.

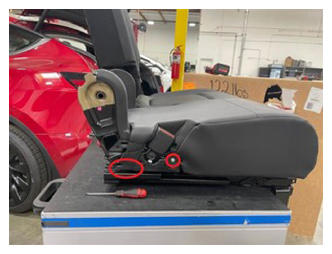

  52. Secure 60 seat bottom to seat frame
    NOTE: 4x fasteners, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Install remaining bolts attaching seat pan to seat frame
    G14822173Courtesy of TESLA, INC.
    G14822174Courtesy of TESLA, INC.
    G14822175Courtesy of TESLA, INC.

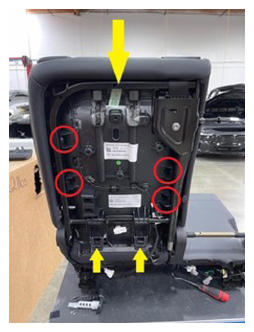

  53. Install 60 seat back into place
    NOTE: 4x clips, Slide seat back into place making sure the bottom retainers slide into place, Reinstall push clips to secure seat back
    G14822176Courtesy of TESLA, INC.
  54. Install headrest guides into 60 seat assembly
    NOTE: Install headrest guides by pressing downwards until lower tab is seated
    G14822177Courtesy of TESLA, INC.
  55. Install headrest onto 60 seat assembly
    NOTE: Push down to secure
    G14822178Courtesy of TESLA, INC.

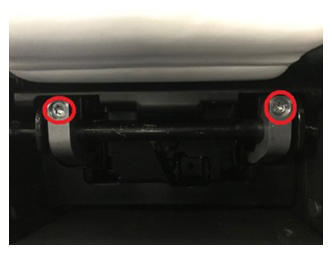

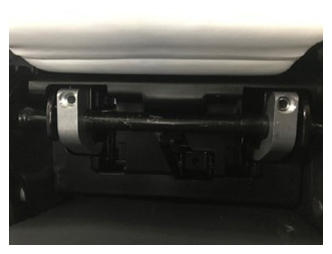

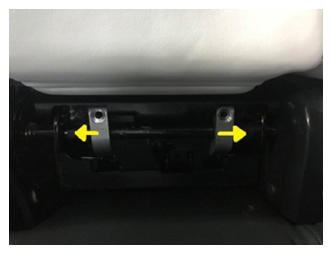

  56. Install center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Insert pivot clamp at center of center frame and slide outwards to install fasteners, When replacing pivot clamps they must be replaced in pairs
    G14822179Courtesy of TESLA, INC.
    G14822180Courtesy of TESLA, INC.
    G14822181Courtesy of TESLA, INC.

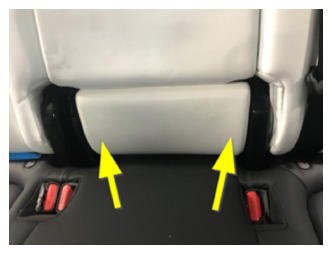

  57. Install center seatback lumbar bun
    NOTE: 2x clips, Press seatback lumbar bun into center frame
    G14822182Courtesy of TESLA, INC.

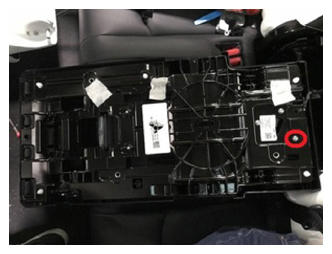

  58. Install center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14822183Courtesy of TESLA, INC.
    G14822184Courtesy of TESLA, INC.
  59. Plug in connector and install trim to 60 seat
    NOTE: 1x connector, 1x clip, Plug in connector and install trim by hooking the front into place and seat clip at rear of trim.
    G14822185Courtesy of TESLA, INC.
    G14822186Courtesy of TESLA, INC.

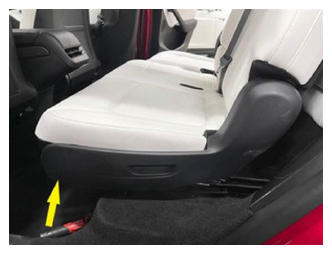

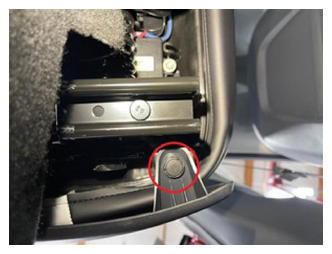

  60. Install push clip at front of outer 60 sideshield assembly
    NOTE: 1x clip, Install push clip at front bottom side of the trim
    G14822187Courtesy of TESLA, INC.
    G14822188Courtesy of TESLA, INC.

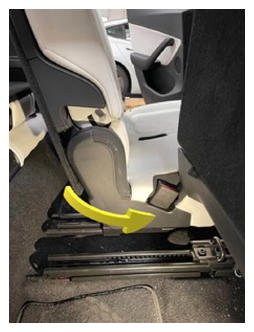

  61. Install inboard outer trim to 60 seat
    NOTE: Clips 3x, Install inboard outer trim and reseat 3x clips
    G14822189Courtesy of TESLA, INC.

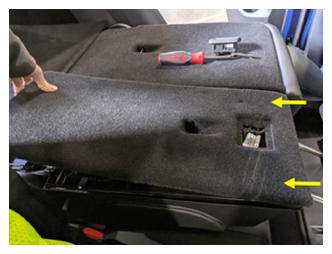

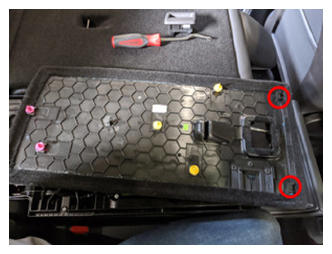

  62. Insert backpanel hooks into center seat back assembly
    NOTE: 2x hooks, Engage hooks and slide rearward into position, Early production have 4x hooks
    G14822190Courtesy of TESLA, INC.
    G14822191Courtesy of TESLA, INC.

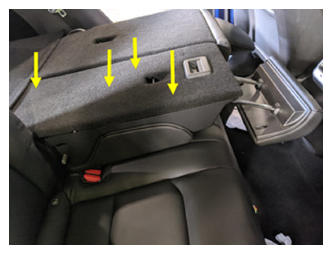

  63. Install center backpanel onto seat back
    NOTE: 5x clips
    G14822192Courtesy of TESLA, INC.

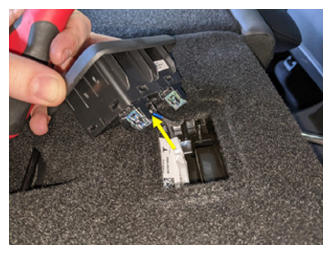

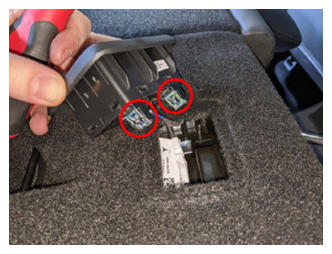

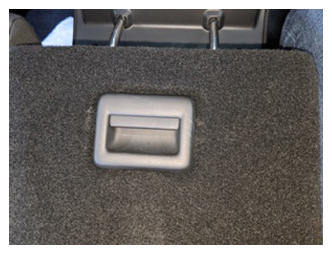

  64. Install 2nd row center seat switch
    NOTE: 1x connector, 2x clips
    G14822193Courtesy of TESLA, INC.
    G14822194Courtesy of TESLA, INC.
    G14822195Courtesy of TESLA, INC.

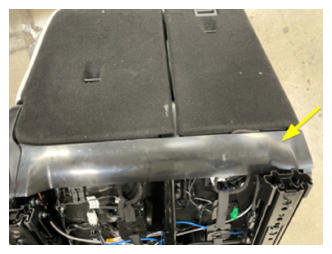

  65. Install 60 toe kick cover
    NOTE: 7x clips
    G14822196Courtesy of TESLA, INC.
    G14822197Courtesy of TESLA, INC.

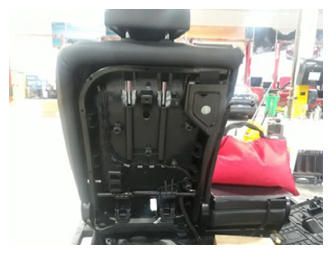

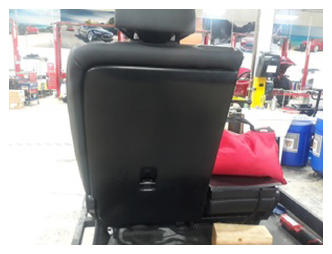

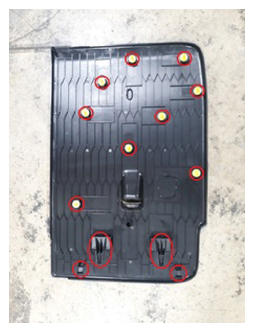

  66. Install LH seatback onto 60 seat assembly
    NOTE: 9x clips, 4 hooks, Attach hooks onto frame rail, Work upwards and fasten all the clips
    G14822198Courtesy of TESLA, INC.
    G14822199Courtesy of TESLA, INC.
    G14822200Courtesy of TESLA, INC.

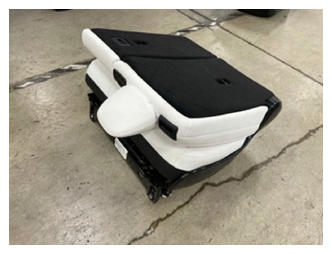

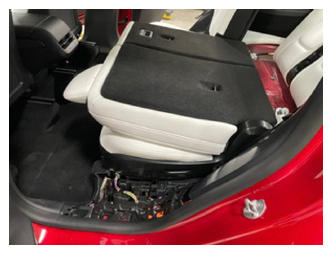

  67. Install 2nd row 60 seat assembly
    NOTE: Recommend assistance
    G14822201Courtesy of TESLA, INC.
    G14822202Courtesy of TESLA, INC.
  68. Connect logic connector at LH 60 seat frame
    NOTE: 1x connector
    G14822203Courtesy of TESLA, INC.

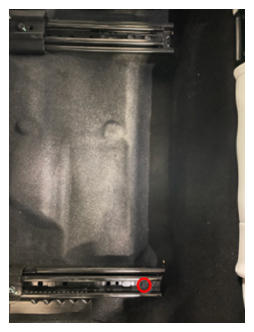

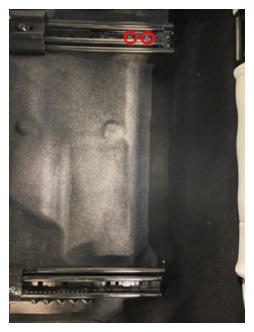

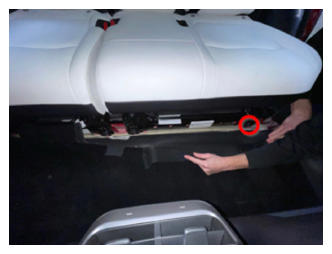

  69. Install fasteners securing 60 seat frame to body
    NOTE: 5x patch bolts, 11 mm, 37 N.m, Install new patch bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Both inboard rear -> Outboard rear -> Inboard front
    G14822204Courtesy of TESLA, INC.
    G14822205Courtesy of TESLA, INC.
    G14822206Courtesy of TESLA, INC.
    G14822207Courtesy of TESLA, INC.

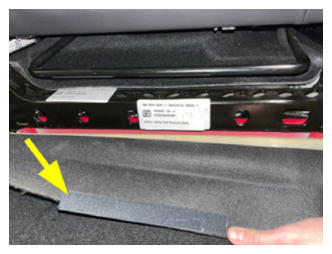

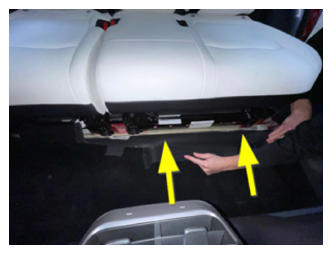

  70. Secure cabin carpet to 60 seat
    NOTE: Strap velcro on
    G14822208Courtesy of TESLA, INC.
    G14822209Courtesy of TESLA, INC.

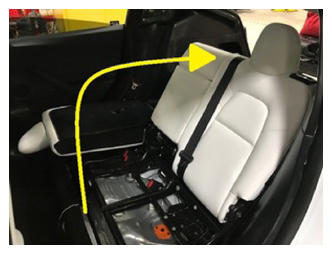

  71. Fold the 60 seat into vertical position
    NOTE: Remove seat back protection if necessary
    G14822210Courtesy of TESLA, INC.

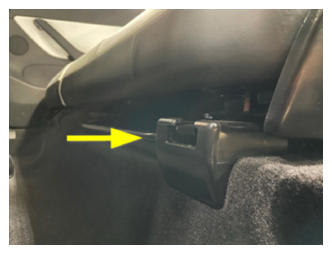

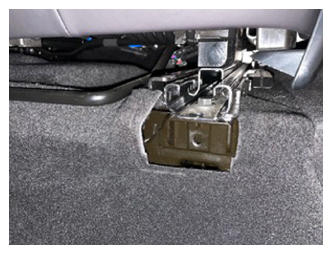

  72. Install 60 seat outboard track cover
    NOTE: 1x clip
    G14822211Courtesy of TESLA, INC.
    G14822212Courtesy of TESLA, INC.
    G14822213Courtesy of TESLA, INC.

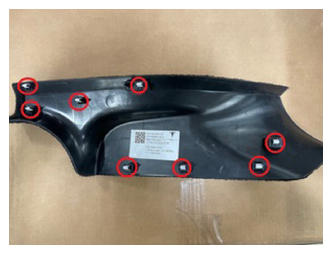

  73. Install LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G14822214Courtesy of TESLA, INC.

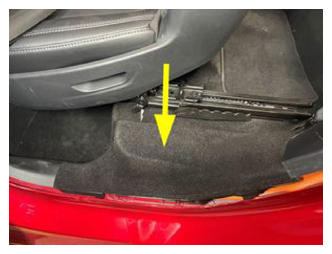

    G14822215Courtesy of TESLA, INC.

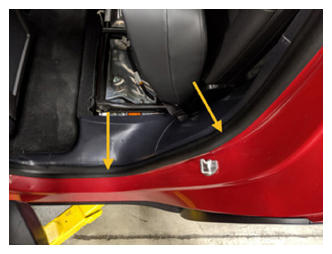

  74. Reseat LH rear door seal
    NOTE: Seat pillar and sill trim tabs underneath seal
    G14822216Courtesy of TESLA, INC.
  75. Move RH front seat to original position
  76. Move LH front seat to original position
  77. Raise all four windows
  78. Close all four doors
    NOTE: If 12 V is powered up, Unlatch rear doors before closing
scientia non olet · About LEMON Manuals
