Seat Track - Inner - 2nd Row Seat - RH (7-Seat) - Remove And Replace: Remove

Remove the RH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - RH (7-SEAT) (REMOVE AND REPLACE) .
Release the clips that attach the RH 2nd row seat toe kick cover to the seat assembly, and then remove the cover from the assembly.

Courtesy of TESLA, INC.

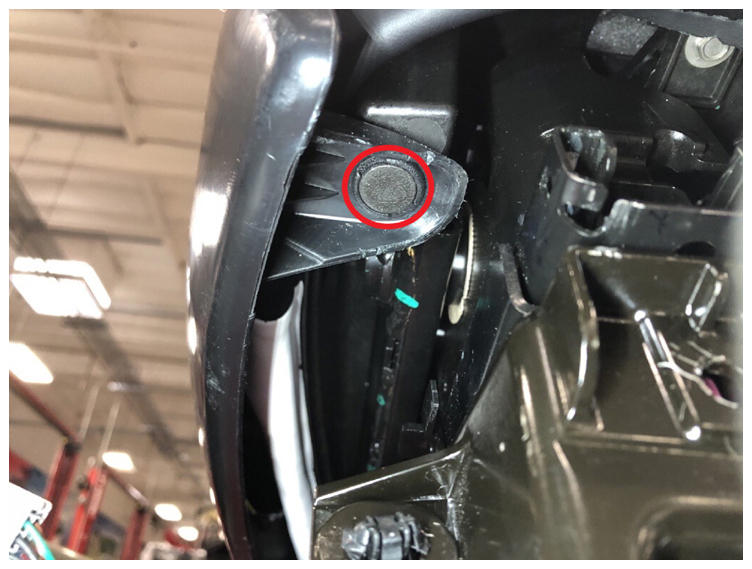

Remove the clip that attaches the RH 2nd row seat side shield to the cushion pan.

Courtesy of TESLA, INC.
Release the clip that attaches the RH 2nd row seat side shield to the RH 2nd row seat assembly, and then lift the shield up to release it from the assembly.
NOTE: Do not pull the shield away from the assembly as there is still an electrical connector connected

Courtesy of TESLA, INC.

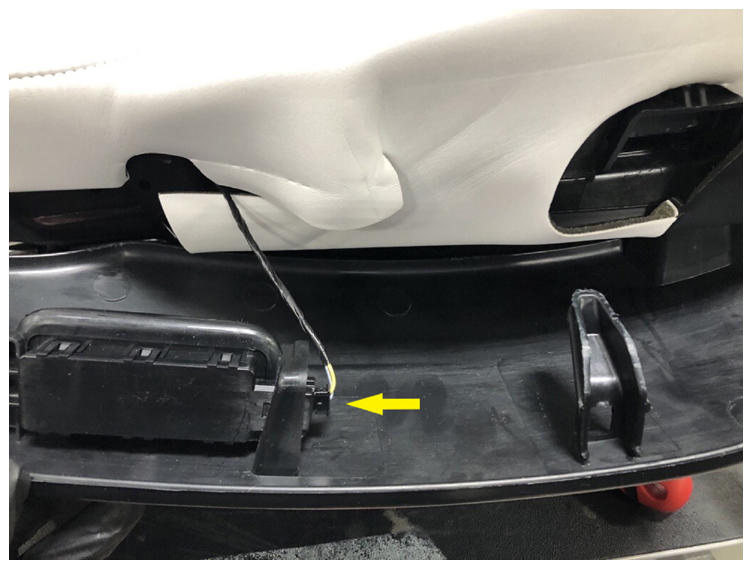

Disconnect the RH 2nd row seat side shield electrical connector, and then remove the shield from the assembly.

Courtesy of TESLA, INC.

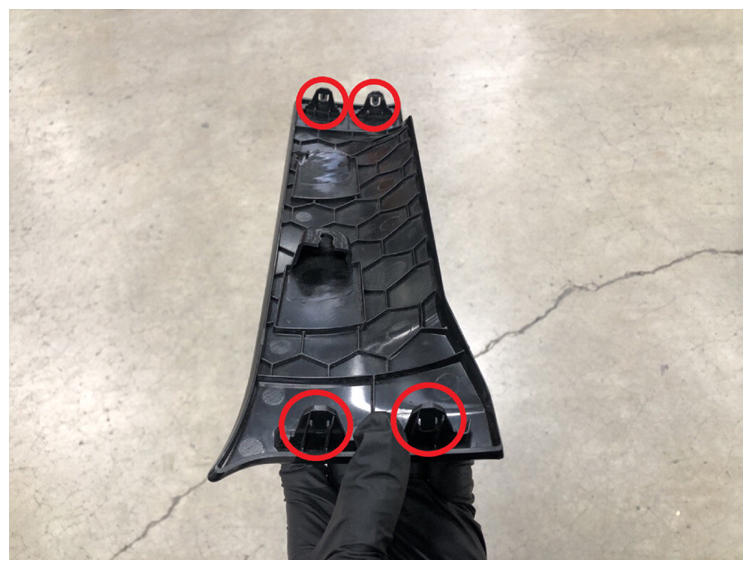

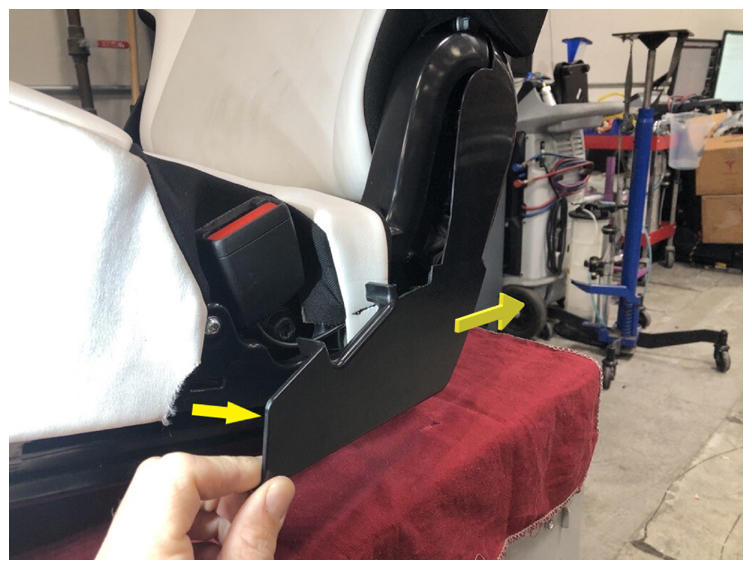

Release the clips (x4) that attach the RH 2nd row seat outer B-cover from the inner B-cover, and slide the cover towards the rear of the seat to remove it from the assembly.

Courtesy of TESLA, INC.
Fold the seat to the upright position.

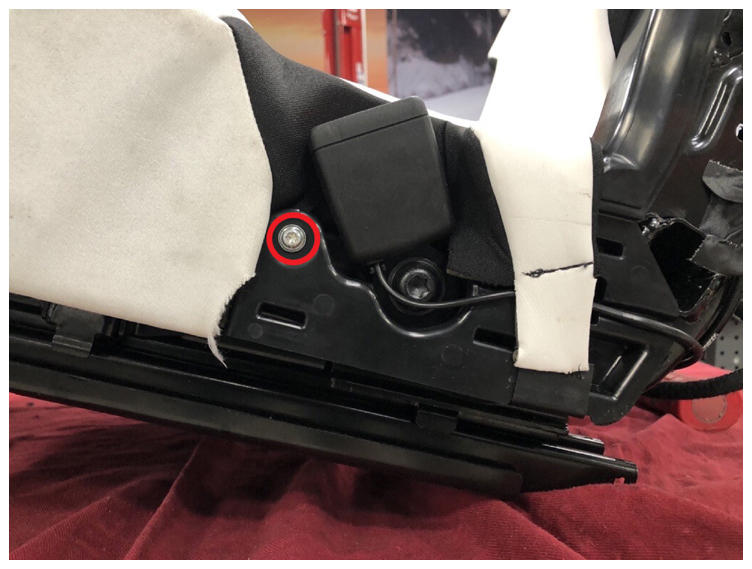

Remove the screw that attaches the RH 2nd row seat inner B-cover to the cushion pan.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

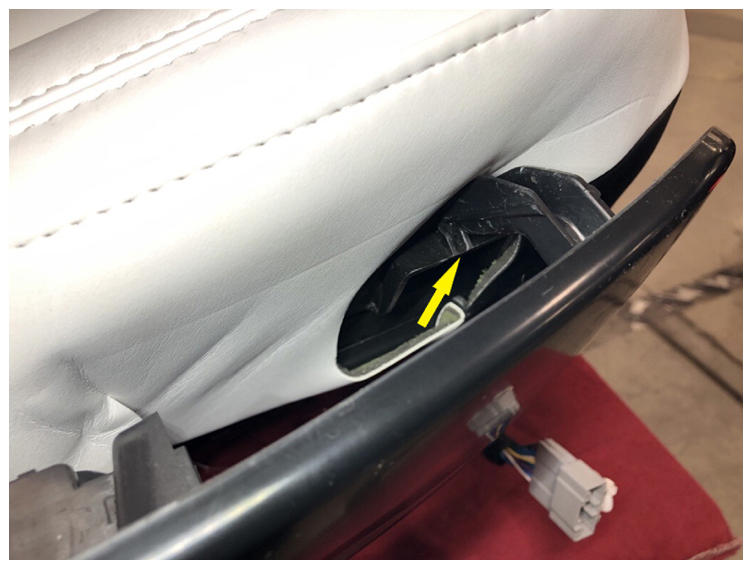

Release the hook that attaches the inner B-cover to the RH 2nd row seat assembly.

Courtesy of TESLA, INC.

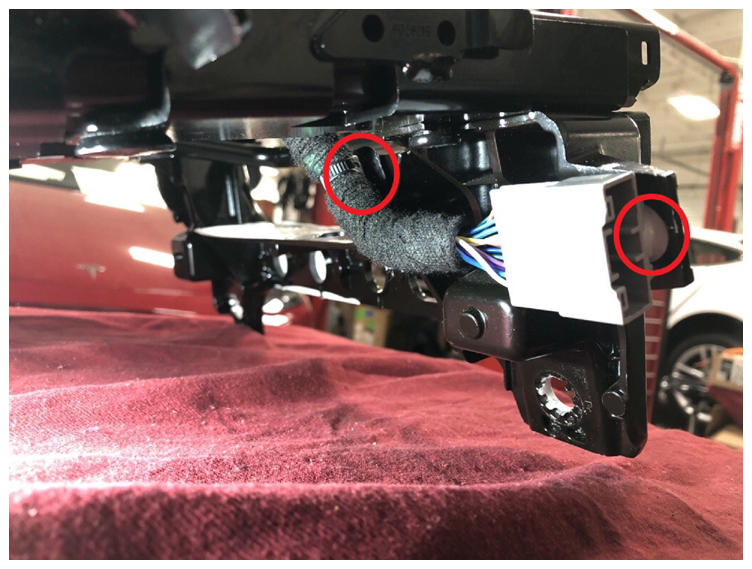

Release the clips that attach the RH 2nd row seat cushion harness to the seat podium.

Courtesy of TESLA, INC.

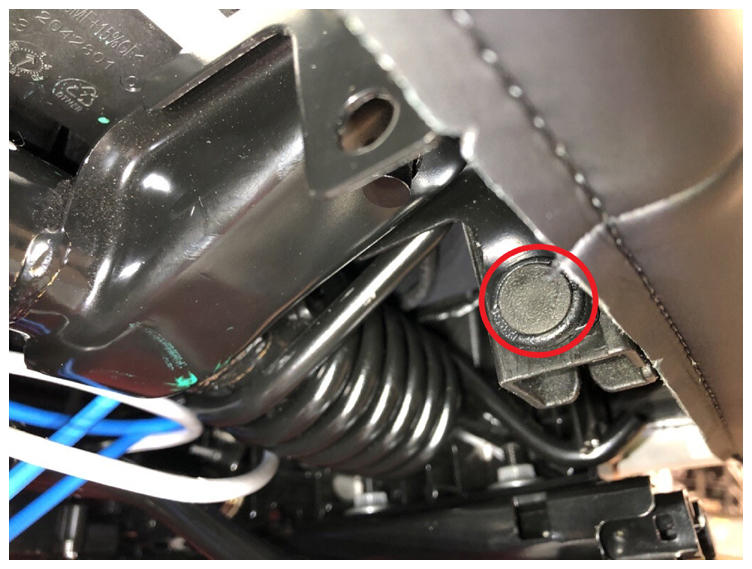

Remove the clip that attaches the RH 2nd row seat cushion pan to the seat frame.

Courtesy of TESLA, INC.

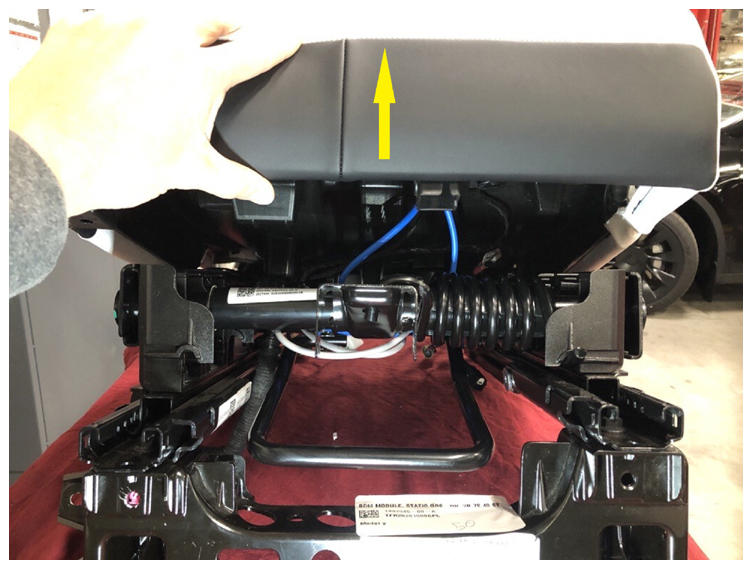

Slightly lift the RH 2nd row seat cushion pan upward, but do not fully remove the cushion at this time.

Courtesy of TESLA, INC.

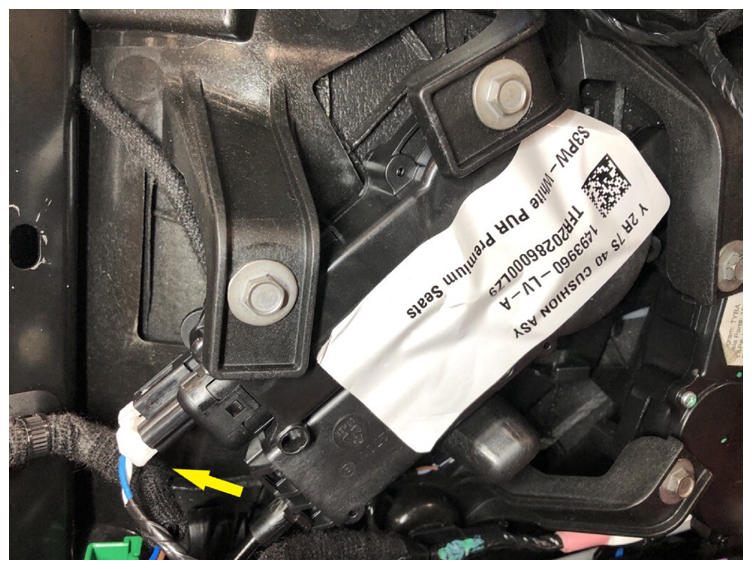

Disconnect the RH 2nd row seat recliner actuator electrical connector.

Courtesy of TESLA, INC.
Using the seat fold tool, connect the recliner actuator electrical connector into the recliner actuator, and then activate the switch to release the floor latches.
Disconnect the seat fold tool from the RH 2nd row seat.
Connect the RH 2nd row seat recliner actuator electrical connector.
Position the RH 2nd row seat on its RH side.
Remove the bolts that attach the RH 2nd row seat podium to the seat tracks.
37 N.m (27.3 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 11 mm socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

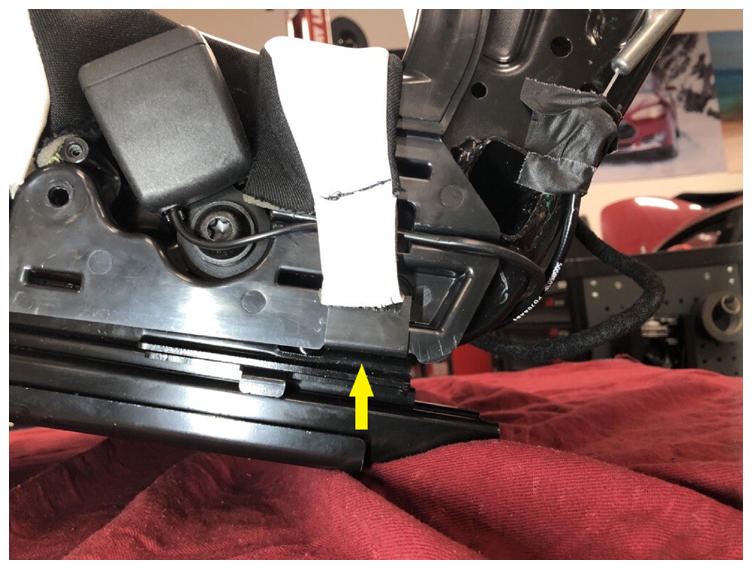

With assistance, remove the RH 2nd row seat podium from the seat track.
NOTE: Use one hand to engage the towel bar, and then move the inner seat track rearward with the other hand until the groove on the seat podium releases from the inner seat track. Lift the podium to remove it from the seat track.

Courtesy of TESLA, INC.

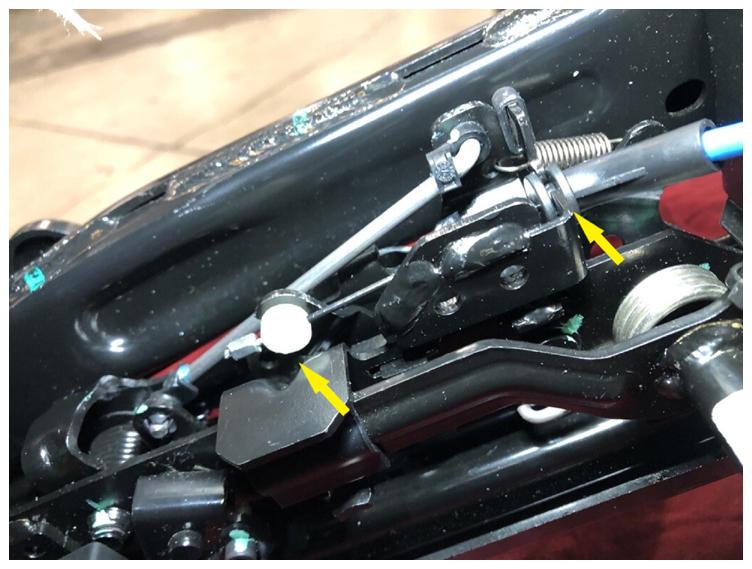

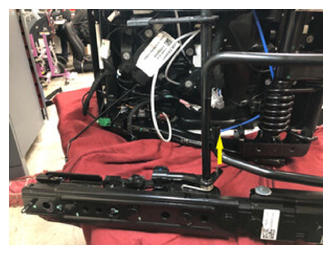

Release the RH 2nd row seat easy entry actuator cable from the LH easy entry latch.

Courtesy of TESLA, INC.

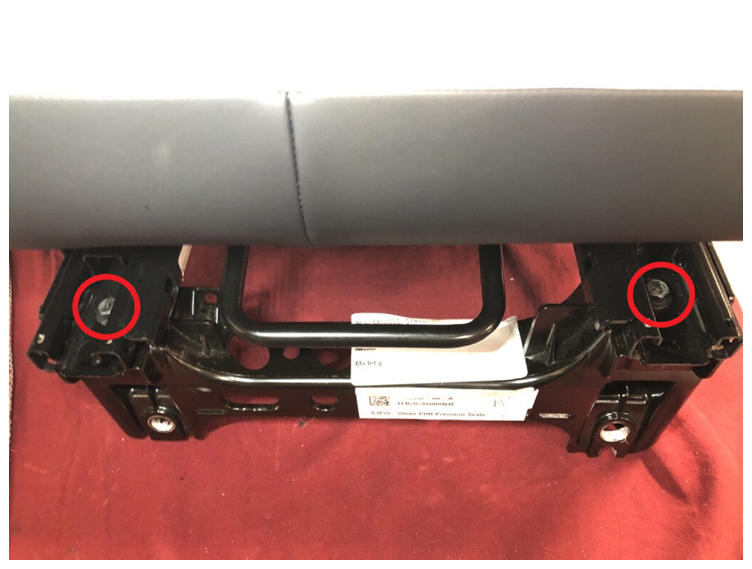

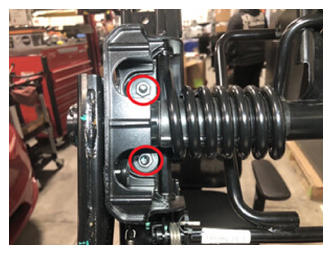

Remove the nuts that attach the RH 2nd row seat inner seat track to the seat frame assembly.
37 N.m (27.3 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 13 mm socket
- Flex head ratchet/flex head torque wrench
- 6 in extension
Courtesy of TESLA, INC.

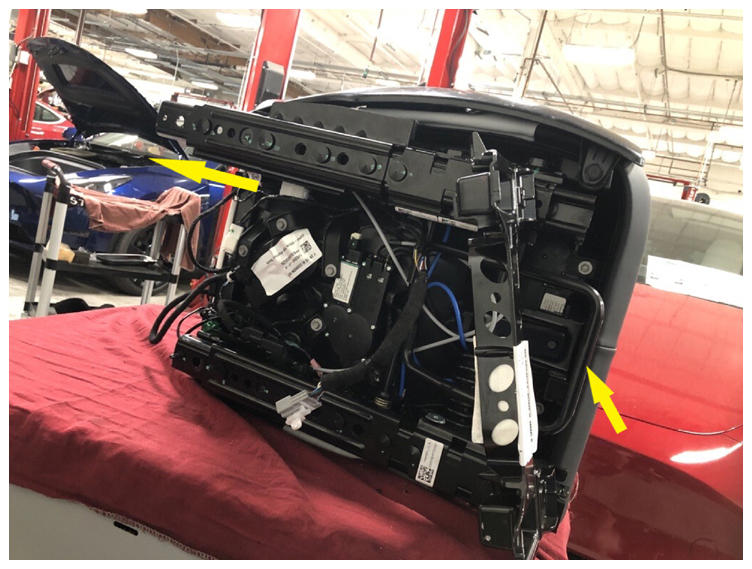

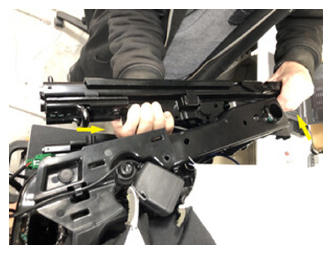

Remove the RH 2nd row seat inner seat track from the seat frame assembly, and then release the towel bar from the outer seat track.
NOTE: The inner seat track will be removed with the towel bar. The towel bar is spring loaded. Place one hand over the towel bar lever securing the towel bar to the inner seat track. Remove the inner seat track, and then lift the towel bar upwards to disengage it from the outer seat track.

Courtesy of TESLA, INC.
Remove the towel bar from the RH 2nd row seat inner seat track.

Courtesy of TESLA, INC.
