Seat Track - Inner - 2nd Row Seat - RH (7-Seat) - Remove And Replace: Install

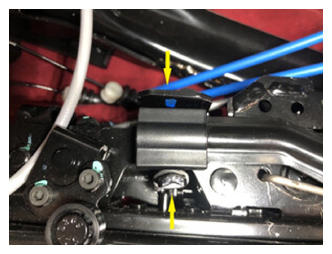

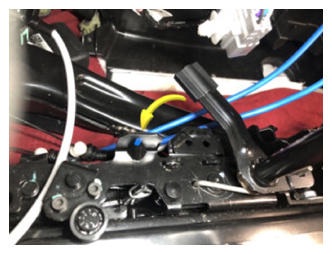

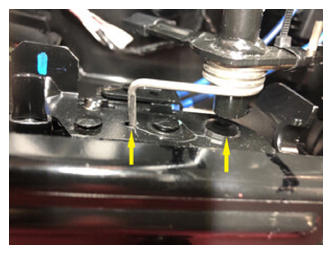

  1. Position the spring and towel bar into the seat track, and then rotate the towel bar until it is properly placed inside the holding tabs.
    G14822069Courtesy of TESLA, INC.
    G14822070Courtesy of TESLA, INC.
    G14822071Courtesy of TESLA, INC.

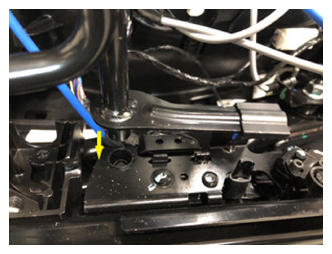

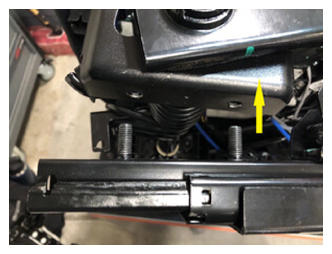

  2. Install the RH 2nd row towel bar into the RH 2nd row seat inner seat track, and then install the inner seat track into the seat frame assembly.
    G14822072Courtesy of TESLA, INC.
    G14822073Courtesy of TESLA, INC.

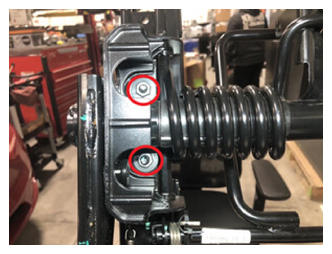

  3. Install the RH 2nd row seat inner seat track into the seat frame assembly, and then install the nuts.

    37 N.m (27.3 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    • Flex head ratchet/flex head torque wrench
    • 6 in extension
    G14822075Courtesy of TESLA, INC.

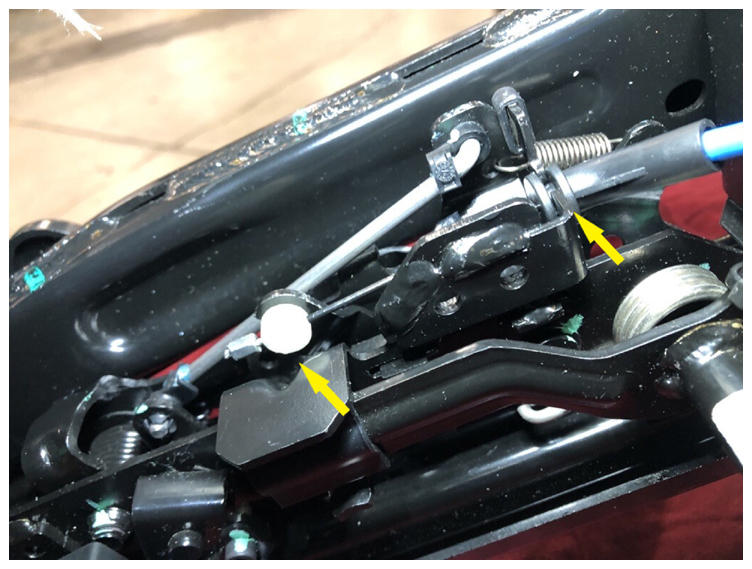

  4. Install the RH 2nd row seat easy entry actuator cable into the LH easy entry latch.
    G14822076Courtesy of TESLA, INC.

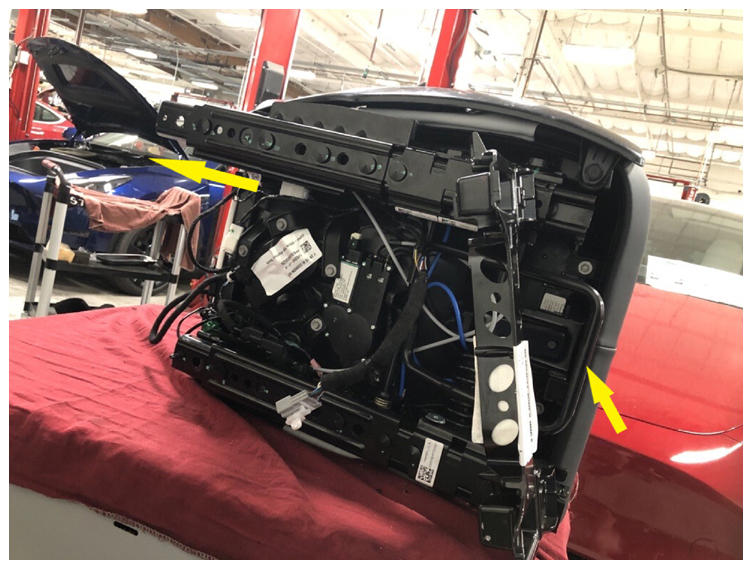

  5. With assistance, install the RH 2nd row seat podium onto the seat track.
    NOTE: Install the groove on the podium onto the outer seat track, and then align the groove on the podium onto the inner seat track. Engage the towel bar with one hand, and then move the inner seat track inward until the groove on the podium engages the seat track.
    G14822077Courtesy of TESLA, INC.

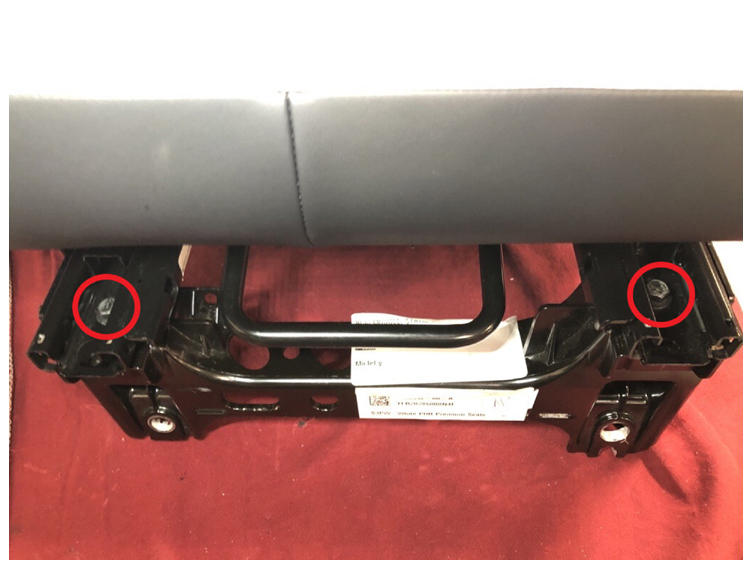

  6. Install the bolts that attach the RH 2nd row seat podium to the seat tracks.

    37 N.m (27.3 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 11 mm socket
    • Flex head ratchet/flex head torque wrench
    G14822079Courtesy of TESLA, INC.
  7. Position the RH 2nd row seat onto the seat tracks and floor latches.
    NOTE: Push downward on the seat frame assembly to latch the floor latches.
  8. Fully seat the RH 2nd row seat cushion assembly onto the seat frame.
    CAUTION: Be careful not to pinch the actuator cables or cushion harness.

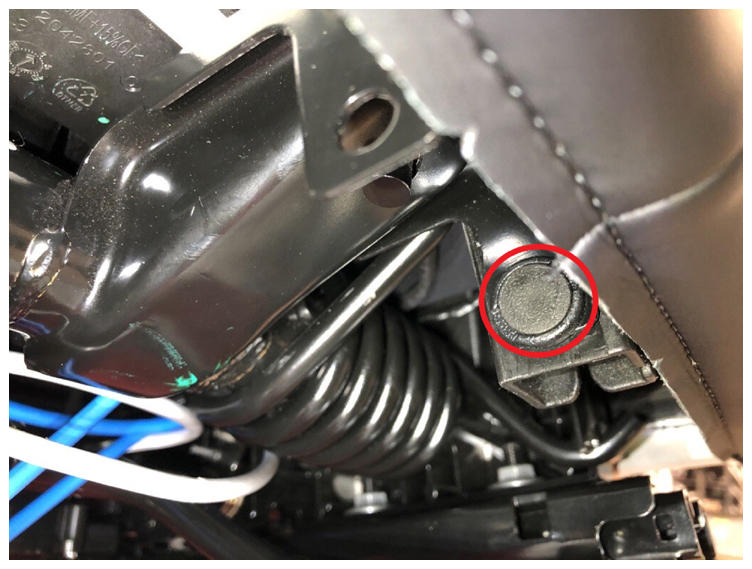

  9. Install the clip that attaches the RH 2nd row seat cushion pan to the seat frame.
    G14822080Courtesy of TESLA, INC.

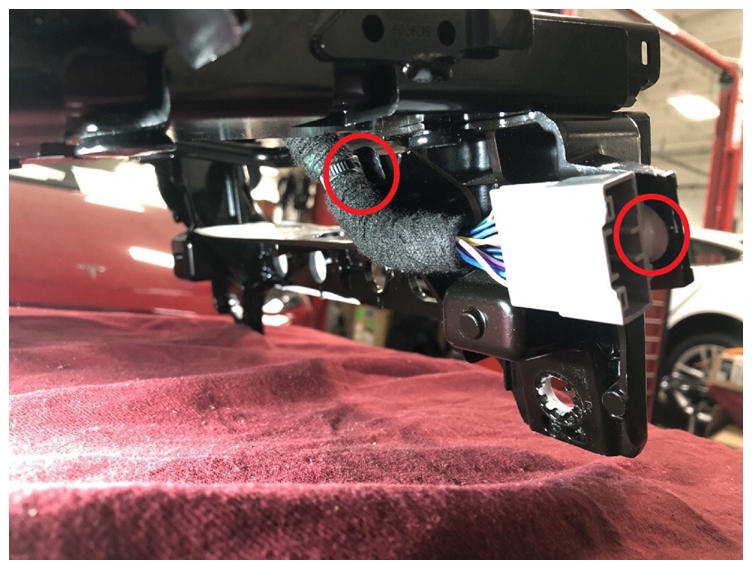

  10. Fasten the clips that attach the RH 2nd row seat cushion harness to the podium.
    G14822081Courtesy of TESLA, INC.

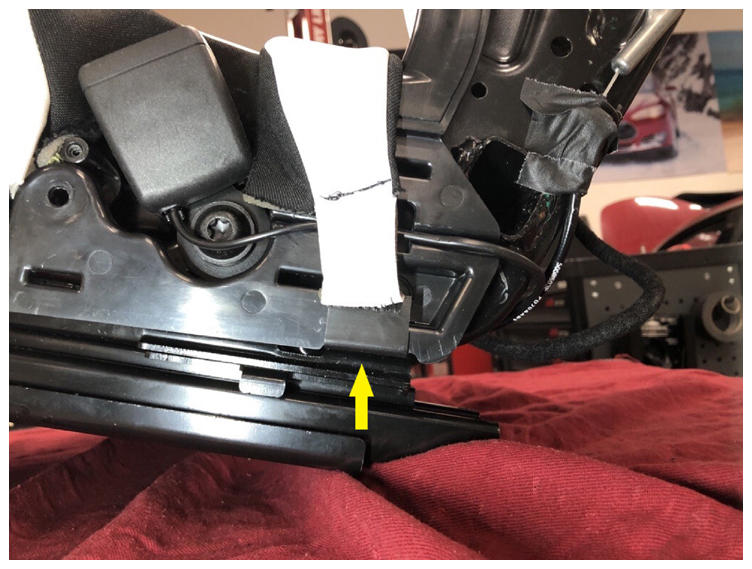

  11. Fasten the hook that attaches the inner B-cover to the RH 2nd row seat assembly.
    G14822082Courtesy of TESLA, INC.

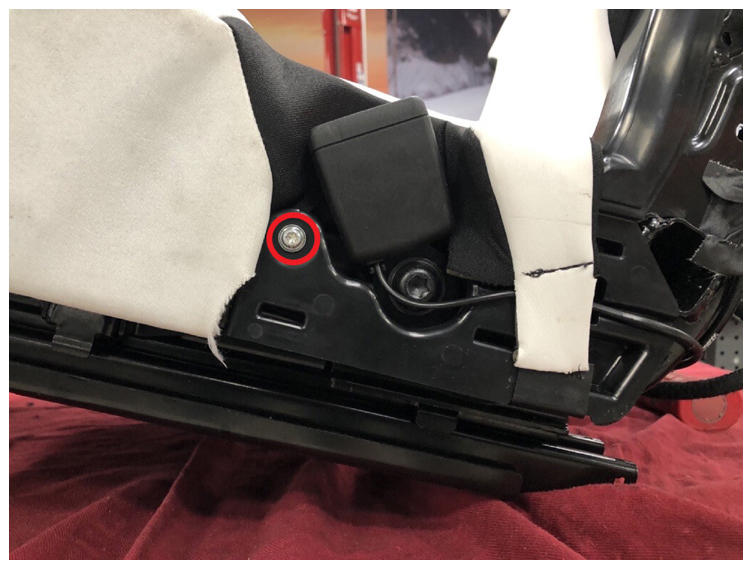

  12. Install the screw that attaches the RH 2nd row seat inner B-cover to the cushion pan.

    1.5 N.m (1.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    • Flex head ratchet/flex head torque wrench
    G14822084Courtesy of TESLA, INC.

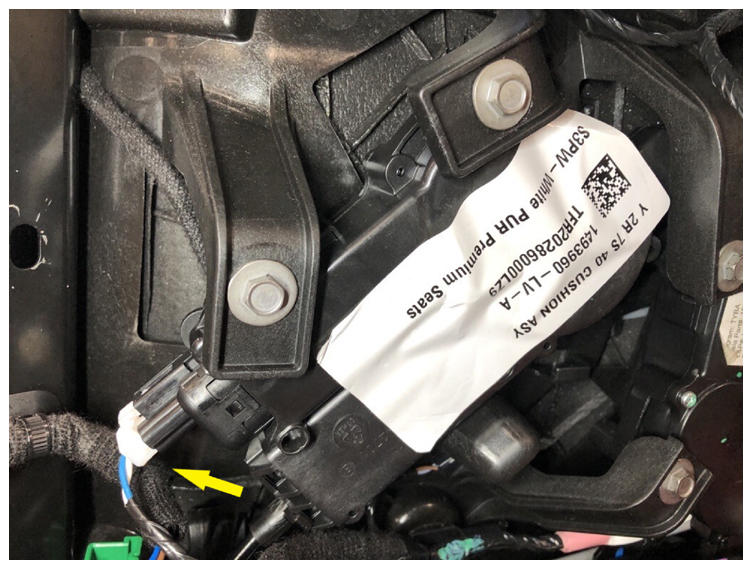

  13. Disconnect the RH 2nd row seat recliner actuator electrical connector.
    G14822085Courtesy of TESLA, INC.
  14. Using the seat fold tool, connect the recliner actuator electrical connector into the recliner actuator, and then activate the switch to fold the RH 2nd row seat down.
  15. Disconnect the seat fold tool from the RH 2nd row seat.
  16. Connect the RH 2nd row seat recliner actuator electrical connector.

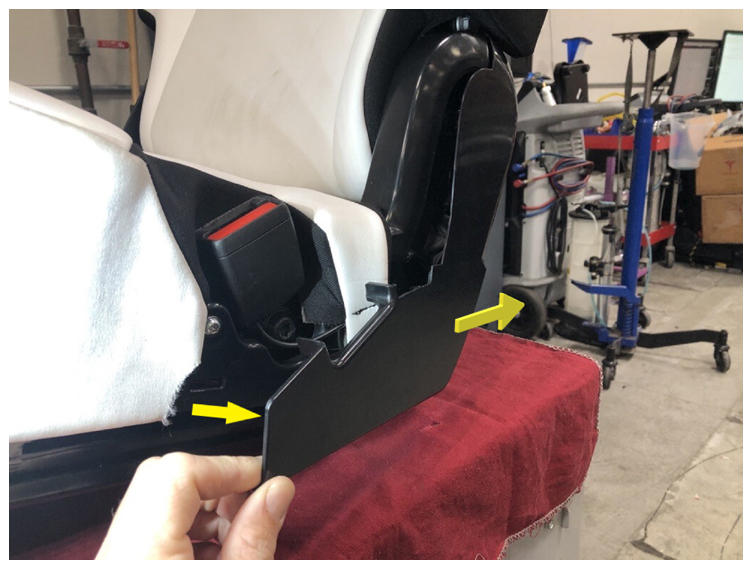

  17. Position the RH 2nd row seat outer B-cover onto the inner B-cover, and then install the clips (x4).
    G14822086Courtesy of TESLA, INC.

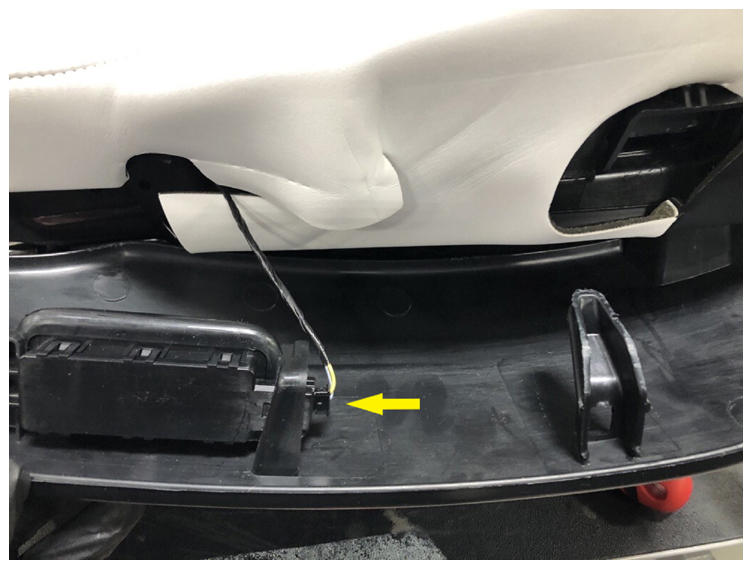

  18. Connect the RH 2nd row seat side shield electrical connector.
    G14822087Courtesy of TESLA, INC.

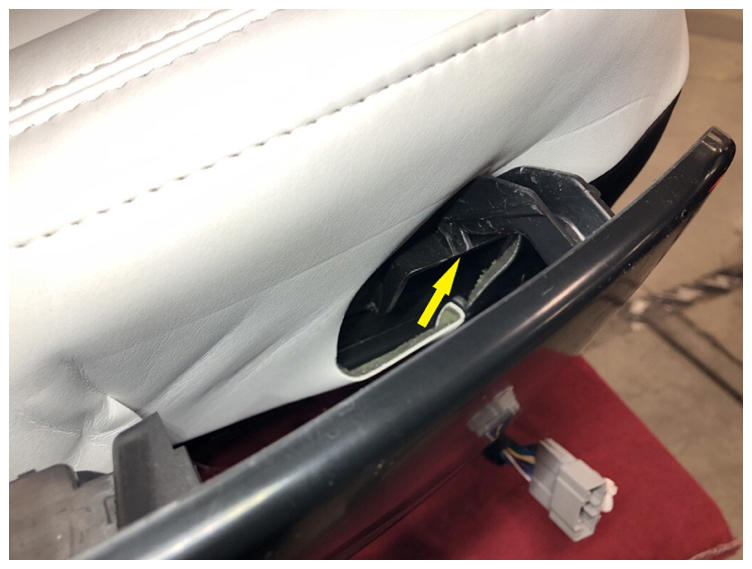

  19. Position the RH 2nd row seat side shield onto the RH 2nd row seat assembly, and then install the clip.
    G14822088Courtesy of TESLA, INC.

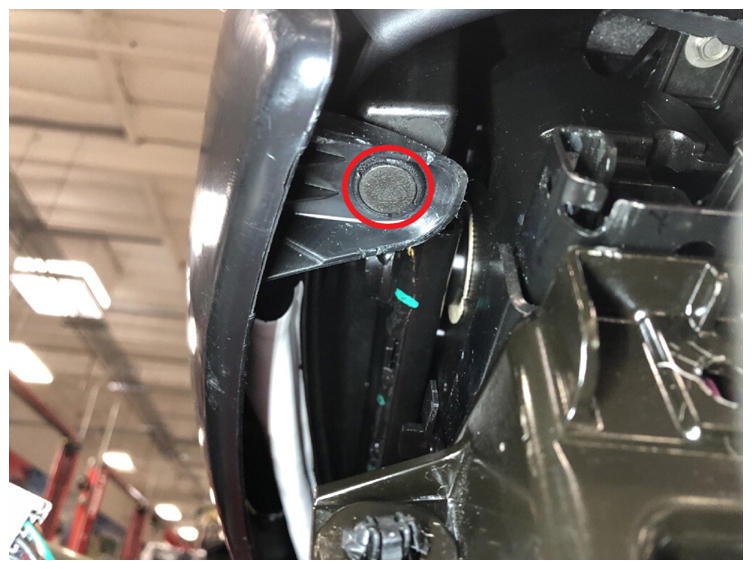

  20. Install the clip that attaches the RH 2nd row seat side shield to the cushion pan.
    G14822089Courtesy of TESLA, INC.

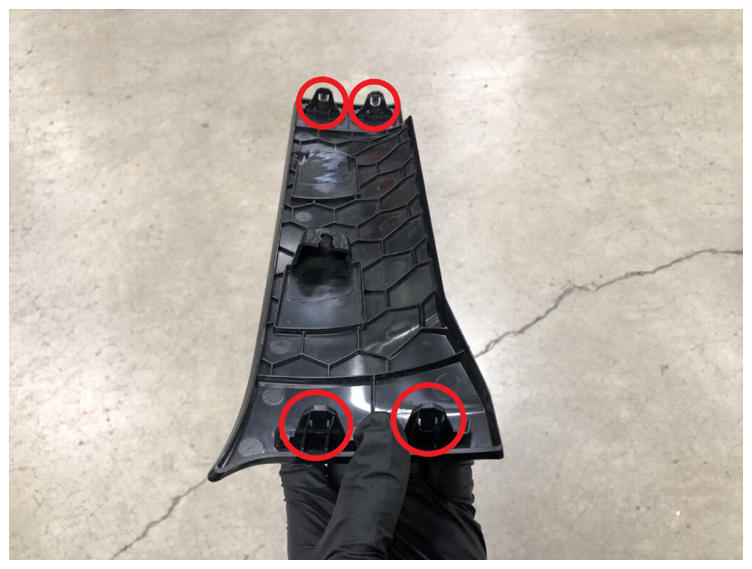

  21. Install the RH 2nd row seat toe kick cover.
    G14822090Courtesy of TESLA, INC.
  22. Install the RH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - RH (7-SEAT) (REMOVE AND REPLACE) .
