Remove And Replace

  1. Open all four doors
  2. Lower all four windows
  3. Move LH front seat forward
  4. Move RH front seat forward
  5. Partially remove LH rear door seal

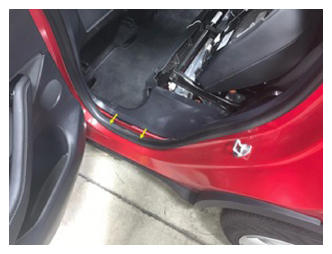

    G14821921Courtesy of TESLA, INC.

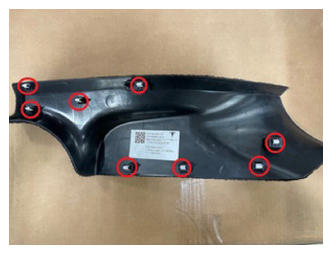

  6. Remove LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim

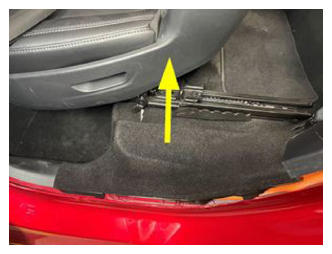

    G14821922Courtesy of TESLA, INC.
    G14821923Courtesy of TESLA, INC.
  7. Fold 60 seat into down position

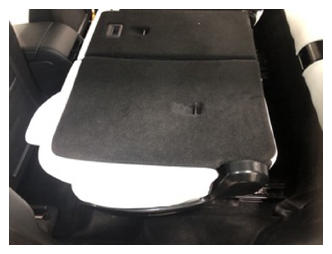

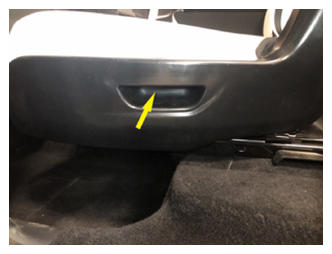

    G14821924Courtesy of TESLA, INC.
    G14821925Courtesy of TESLA, INC.

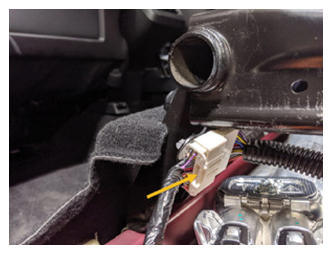

  8. Disconnect logic connector at LH seat frame
    NOTE: 1x connector
    G14821926Courtesy of TESLA, INC.

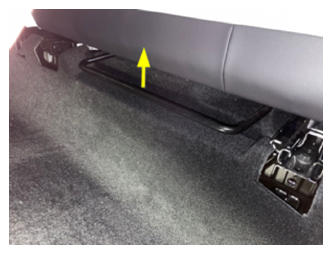

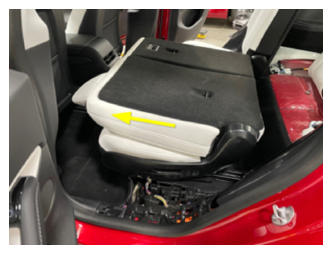

  9. Move 60 seat forward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14821927Courtesy of TESLA, INC.
    G14821928Courtesy of TESLA, INC.
  10. Remove 60 seat rear outboard track fastener
    NOTE: 1x patch bolt, 11 mm, 37 N.m, Discard after removal

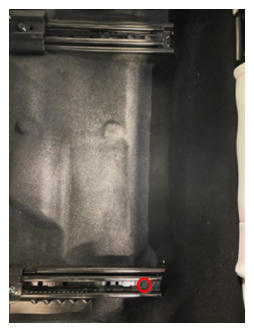

    G14821929Courtesy of TESLA, INC.
  11. Remove 60 seat rear inboard track fasteners
    NOTE: 2x patch bolts, 11 mm, 37 N.m, Discard after removal
    G14821930Courtesy of TESLA, INC.
  12. Move 60 seat fully rearward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14821931Courtesy of TESLA, INC.

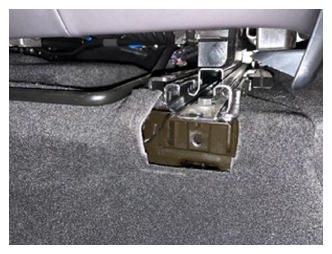

  13. Remove 60 seat outboard track cover
    NOTE: 1x clip, Slide covers forward to release from 60 seat tracks
    G14821932Courtesy of TESLA, INC.
    G14821933Courtesy of TESLA, INC.

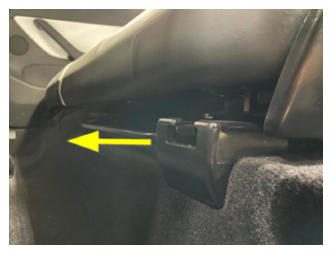

    G14821934Courtesy of TESLA, INC.

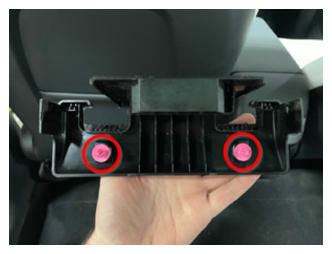

  14. Remove center track cover from 2nd row seats
    NOTE: 2x clips, Slide covers forward to release from 2nd row seat tracks

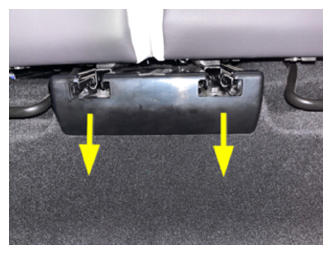

    G14821935Courtesy of TESLA, INC.

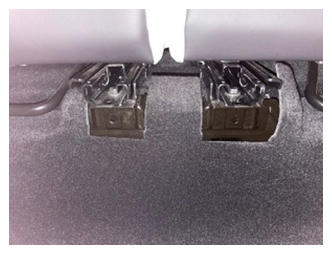

    G14821936Courtesy of TESLA, INC.
    G14821937Courtesy of TESLA, INC.

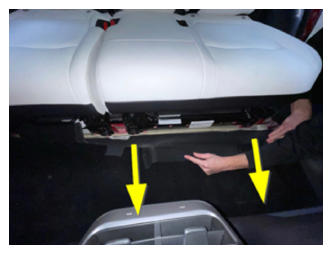

  15. Release cabin carpet from 60 seat
    NOTE: Pull cabin carpet towards front of vehicle
    G14821938Courtesy of TESLA, INC.
    G14821939Courtesy of TESLA, INC.

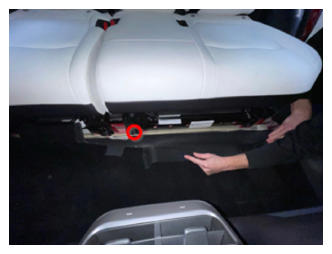

  16. Remove 60 seat front inboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14821940Courtesy of TESLA, INC.
  17. Remove 60 seat front outboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14821941Courtesy of TESLA, INC.
  18. Remove 2nd row 60 seat assembly from vehicle
    NOTE: Recommend assistance
    G14821942Courtesy of TESLA, INC.
    G14821943Courtesy of TESLA, INC.
  19. Remove front push clip from 60 outer sideshield assembly
    NOTE: 1x clip, Use pick to remove the push clip from the bottom side of the outboard cover
    G14821944Courtesy of TESLA, INC.
    G14821945Courtesy of TESLA, INC.

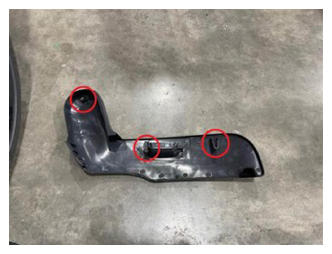

  20. Remove 60 outer sideshield assembly
    NOTE: 1x clip 1x connector, Remove outer sideshield assembly by pulling outwards and up at the front portion of the trim, Unclip remaining clip and unplug the connection
    G14821946Courtesy of TESLA, INC.

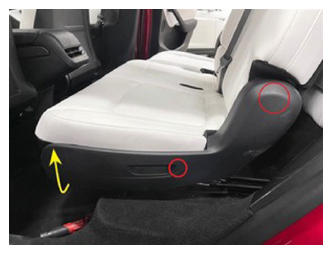

    G14821947Courtesy of TESLA, INC.

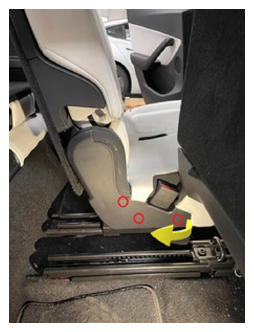

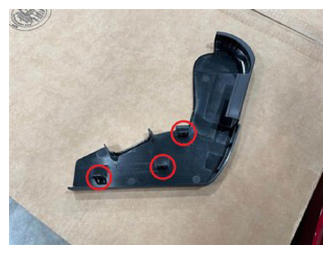

  21. Release clips and remove inboard outer trim from 60 seat
    NOTE: 3x clips, Use trim tool to unclip 3x clips and remove inboard outer trim towards rear of the vehicle
    G14821948Courtesy of TESLA, INC.
    G14821949Courtesy of TESLA, INC.

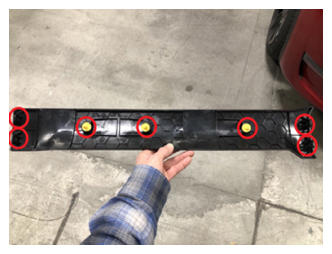

  22. Remove 60 seat toe kick cover
    NOTE: 7x clips, Pry up on LH side of 60 toe kick cover to release clips, Repeat on RH side to fully remove
    G14821950Courtesy of TESLA, INC.
    G14821951Courtesy of TESLA, INC.

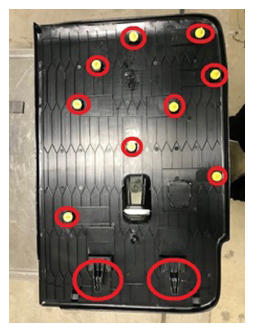

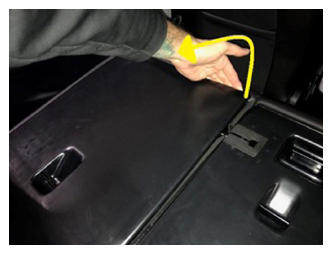

  23. Remove 60 seatback panel
    NOTE: 9x clips, 2x hooks, Release clips starting at the top of backpanel working your way down the lower backpanel, pull 60 backpanel towards front of vehicle to remove
    G14821952Courtesy of TESLA, INC.
    G14821953Courtesy of TESLA, INC.

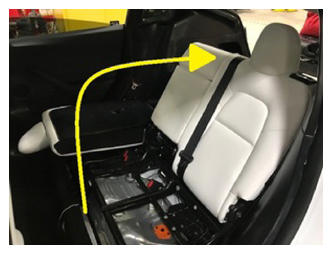

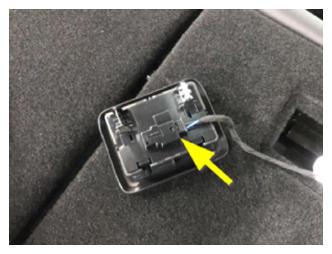

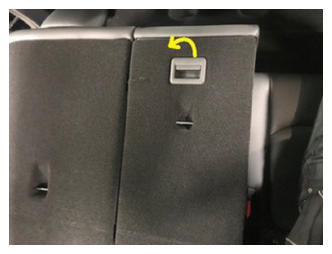

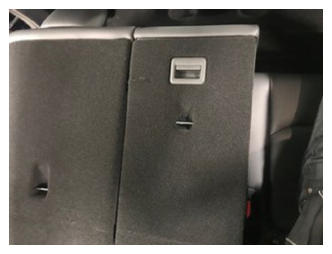

  24. Remove 2nd row center seat switch
    NOTE: 1x connector, 2x clips, Using plastic trim tool pry the top of the switch away from 20 backpanel to ease removal
    G14821954Courtesy of TESLA, INC.
    G14821955Courtesy of TESLA, INC.
    G14821956Courtesy of TESLA, INC.

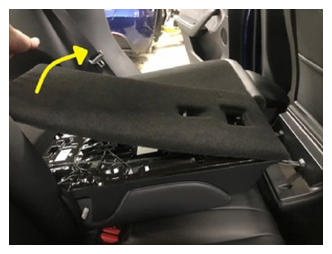

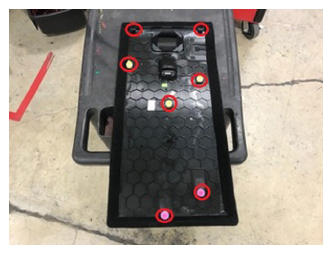

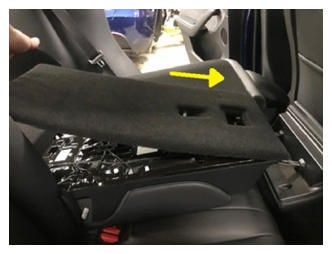

  25. Remove center backpanel from center seatback
    NOTE: 5x clips, 2 hooks, Lift up at the lower 20 backpanel and then slide forward to release
    G14821957Courtesy of TESLA, INC.
    G14821958Courtesy of TESLA, INC.
    G14821959Courtesy of TESLA, INC.

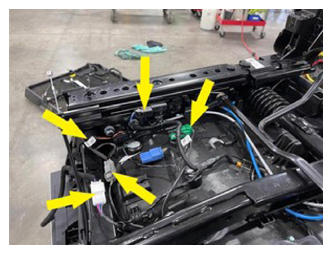

  26. Release 60 seat harness connectors and clip from seat from seat frame
    NOTE: 1x clip, 7x connectors

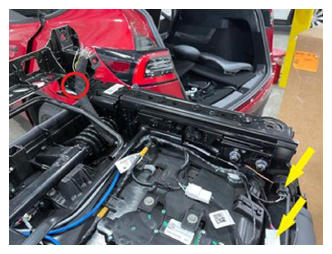

    G14821960Courtesy of TESLA, INC.
    G14821961Courtesy of TESLA, INC.
  27. Release 60 seat harness connectors and clip from seat from seat frame
    NOTE: 1x clip, 7x connectors
    G14821962Courtesy of TESLA, INC.
    G14821963Courtesy of TESLA, INC.

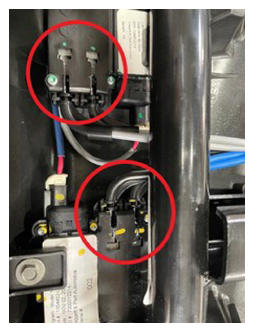

  28. Disconnect seat cables from easy entry actuators on 60 seat
    NOTE: 4x clips
    G14821964Courtesy of TESLA, INC.

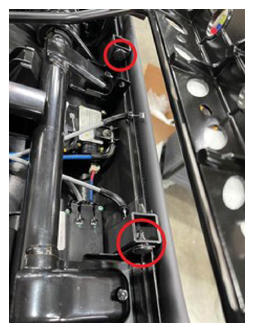

  29. Remove push clips for 60 bottom seat pan
    NOTE: 2x clips, Remove push clips from front of seat pan
    G14821965Courtesy of TESLA, INC.

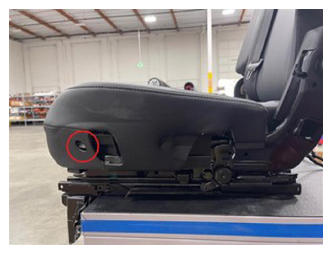

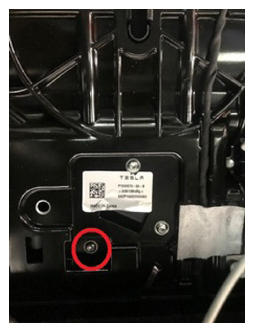

  30. Remove center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14821966Courtesy of TESLA, INC.
    G14821967Courtesy of TESLA, INC.

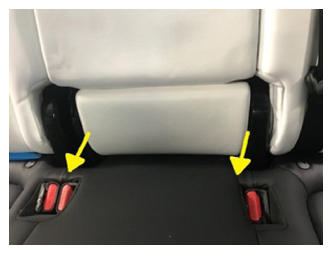

  31. Remove center seatback lumbar bun
    NOTE: 2x clips, Pull bolster outwards to release
    G14821968Courtesy of TESLA, INC.

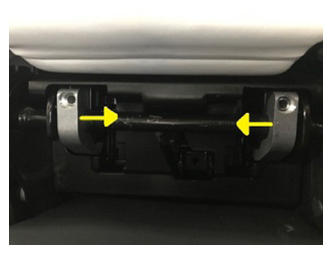

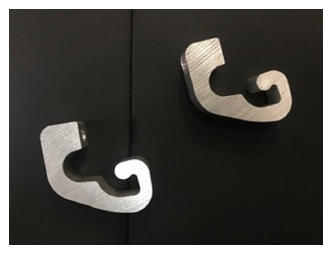

  32. Remove center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Once fasteners are removed slide pivot clamp towards the center of center seatback and pull each outwards to remove
    G14821969Courtesy of TESLA, INC.
    G14821970Courtesy of TESLA, INC.

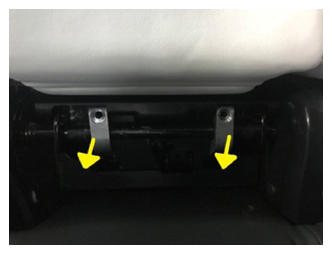

    G14821971Courtesy of TESLA, INC.
    G14821972Courtesy of TESLA, INC.

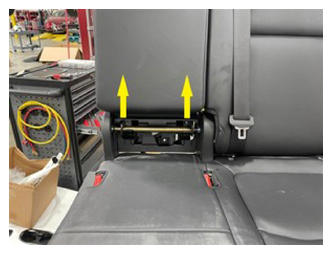

  33. Remove center seatback from 60 seat frame
    NOTE: Remove center seatback by lifting upwards
    G14821973Courtesy of TESLA, INC.

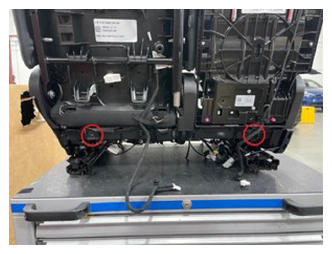

  34. Remove fasteners securing 60 seat pan to seat frame
    NOTE: 4x fastener, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Remove remaining bolts attaching seat pan to seat frame
    G14821974Courtesy of TESLA, INC.
    G14821975Courtesy of TESLA, INC.

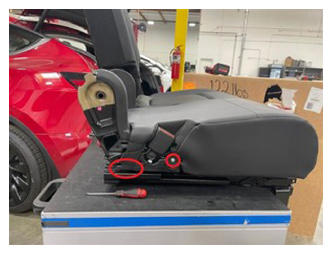

    G14821976Courtesy of TESLA, INC.
  35. Remove headrest from 60 seat assembly
    NOTE: Simultaneously depress the guide button and insert a 90 degree pick into the guide opening, Lift up while engaged
    G14821977Courtesy of TESLA, INC.
    G14821978Courtesy of TESLA, INC.

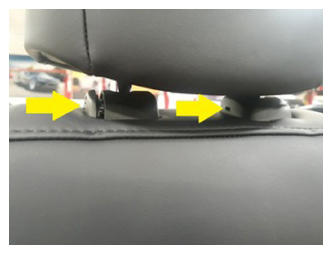

  36. Remove headrest from 60 seat assembly
    NOTE: Simultaneously depress the guide button and insert a 90 degree pick into the guide opening, Lift up while engaged
    G14821979Courtesy of TESLA, INC.
    G14821980Courtesy of TESLA, INC.

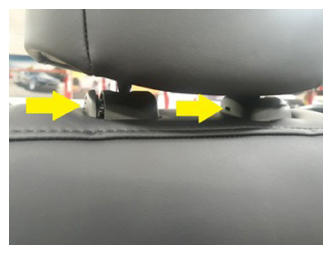

  37. Remove headrest from 60 seat assembly
    NOTE: Simultaneously depress the guide button and insert a 90 degree pick into the guide opening, Lift up while engaged
    G14821981Courtesy of TESLA, INC.
    G14821982Courtesy of TESLA, INC.

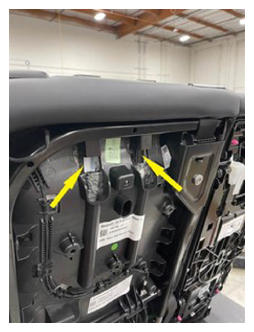

  38. Remove headrest guides from 60 seat
    NOTE: Pull back on lower portion of the headrest guide to release tab while also applying upward force to remove headrest guides

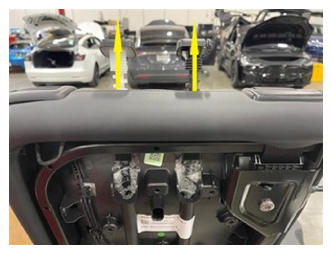

    G14821983Courtesy of TESLA, INC.
    G14821984Courtesy of TESLA, INC.

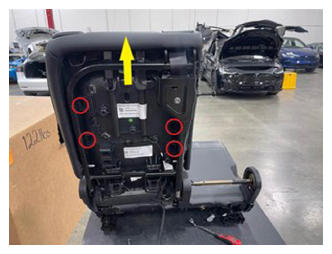

  39. Remove 60 seatback
    NOTE: 4x clips, Release clips securing 60 seatback and lift upwards
    G14821985Courtesy of TESLA, INC.

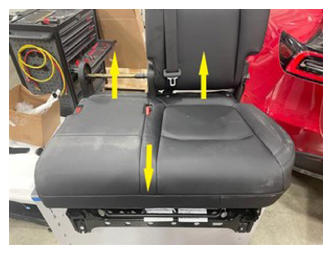

  40. Remove 60 seat bottom
    NOTE: Remove seat bottom by lifting the rear first and removing it towards front of the seat
    G14821986Courtesy of TESLA, INC.

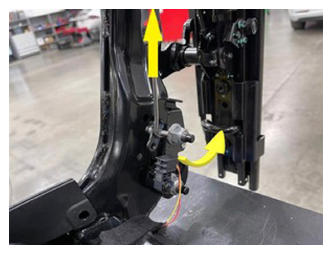

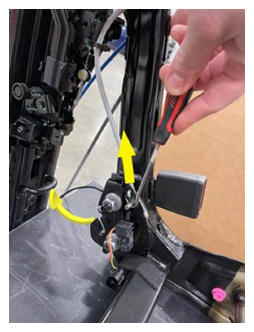

  41. Manually put 60 seat into easy entry
    NOTE: Put 60 seat into easy entry position by manually releasing latches with a pick
    G14821987Courtesy of TESLA, INC.
    G14821988Courtesy of TESLA, INC.
  42. Remove bolts securing 60 seat podium to seat tracks
    NOTE: 2x bolts, 11 mm, 37 N.m, Discard bolts after removal
    G14821989Courtesy of TESLA, INC.

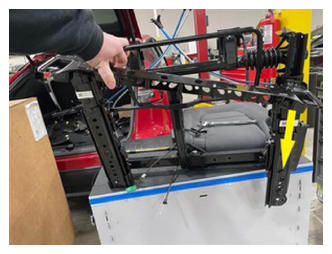

  43. Remove 60 seat podium from seat tracks

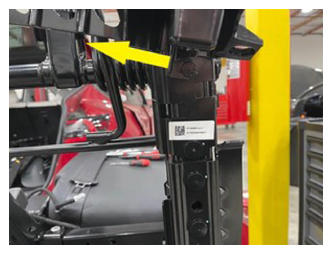

    NOTE: With one hand engage towel bar, Move outer seat track rearward with other hand until groove on 60 seat podium releases from outer seat track, Then lift 60 seat podium upward and remove from inner seat track
    G14821990Courtesy of TESLA, INC.
    G14821991Courtesy of TESLA, INC.
  44. Release 60 seat easy entry actuator cable from RH easy entry latch
    NOTE: 2x clips

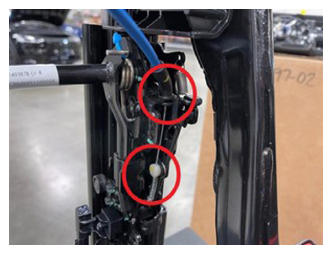

    G14821992Courtesy of TESLA, INC.
  45. Remove nuts securing 60 seat inner seat track to seat frame assembly
    NOTE: 2x nuts, 13 mm, 37 N.m

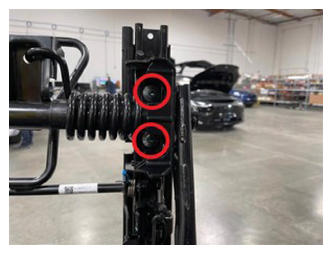

    G14821993Courtesy of TESLA, INC.
  46. Remove 60 seat inner seat track from towel bar
    NOTE: Slide outer seat track outwards away from towel bar

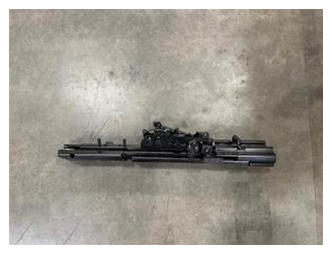

    G14821994Courtesy of TESLA, INC.
    G14821995Courtesy of TESLA, INC.

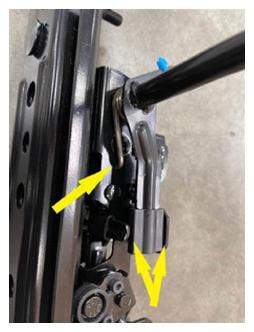

  47. Install 60 inner seat track to towel bar
    NOTE: Install 60 inner seat track making sure the towel bar spring is in place and the bar is sitting between the tabs
    G14821996Courtesy of TESLA, INC.

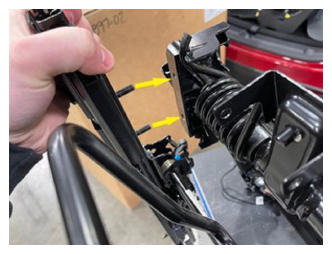

  48. Install 60 inner track and towel bar
    NOTE: 2x nuts, 13 mm, 37 N.m, Install outer seat track to seat frame
    G14821997Courtesy of TESLA, INC.
    G14821998Courtesy of TESLA, INC.
  49. Install 60 seat easy entry actuator cable from easy entry latch
    NOTE: 2x clips, Install cable back into place
    G14821999Courtesy of TESLA, INC.

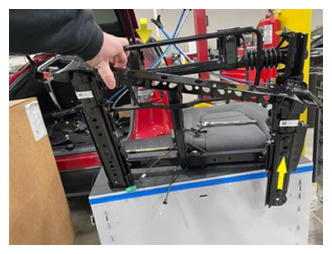

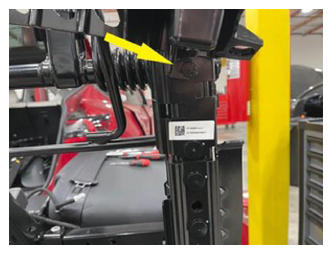

  50. Install 60 seat podium to seat tracks
    NOTE: Install groove on 60 seat podium to inner seat track, Then align groove on 60 seat podium to outer seat track, Engage towel bar with one hand, Then move outer seat track inward until groove on 60 seat podium engages to seat track
    G14822000Courtesy of TESLA, INC.
    G14822001Courtesy of TESLA, INC.

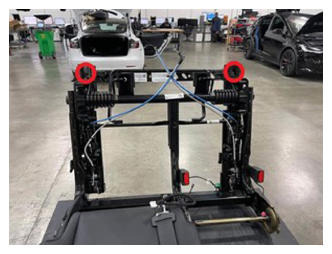

  51. Install bolts securing 60 seat podium to seat tracks
    NOTE: 2x bolts, 11 mm, 37 N.m, Install new bolts
    G14822002Courtesy of TESLA, INC.

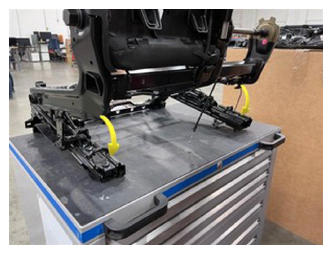

  52. Position 60 seat onto seat tracks and latch floor latches
    NOTE: Push downwards on seat frame assembly to latch floor latches
    G14822003Courtesy of TESLA, INC.
  53. Place 60 seat pan onto seat frame
    NOTE: Reinstall seat bottom onto seat frame by starting at the rear of the seat

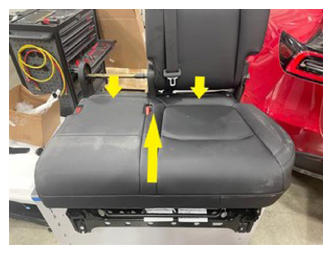

    G14822004Courtesy of TESLA, INC.
  54. Secure 60 seat bottom to seat frame
    NOTE: 4x fasteners, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Install remaining bolts attaching seat pan to seat frame
    G14822005Courtesy of TESLA, INC.
    G14822006Courtesy of TESLA, INC.
    G14822007Courtesy of TESLA, INC.

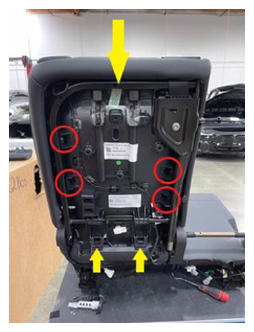

  55. Install 60 seat back into place
    NOTE: 4x clips, Slide seat back into place making sure the bottom retainers slide into place, Reinstall push clips to secure seat back
    G14822008Courtesy of TESLA, INC.
  56. Install headrest guides into 60 seat assembly
    NOTE: Install headrest guides by pressing downwards until lower tab is seated
    G14822009Courtesy of TESLA, INC.
  57. Install headrest onto 60 seat assembly

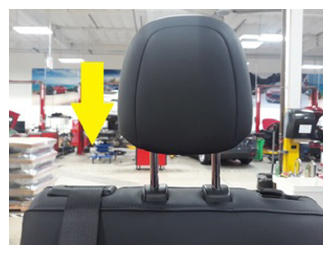

    NOTE: Push down to secure
    G14822010Courtesy of TESLA, INC.

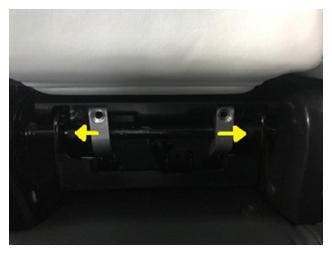

  58. Install center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Insert pivot clamp at center of center frame and slide outwards to install fasteners, When replacing pivot clamps they must be replaced in pairs
    G14822011Courtesy of TESLA, INC.

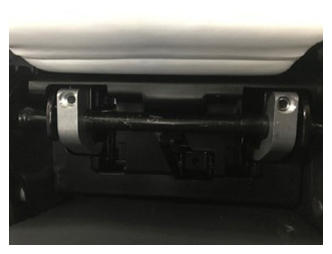

    G14822012Courtesy of TESLA, INC.

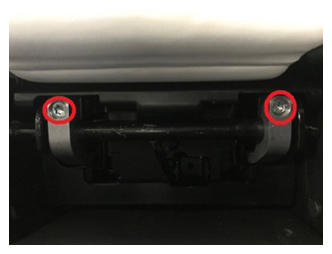

    G14822013Courtesy of TESLA, INC.

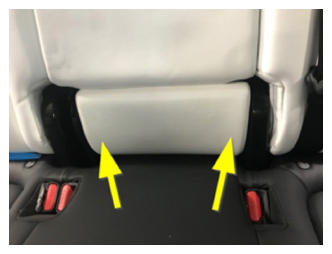

  59. Install center seatback lumbar bun
    NOTE: 2x clips, Press seatback lumbar bun into center frame
    G14822014Courtesy of TESLA, INC.

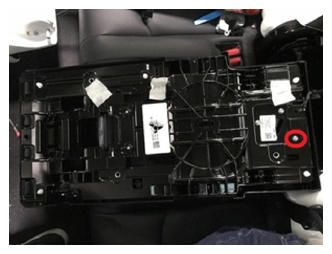

  60. Install center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14822015Courtesy of TESLA, INC.
    G14822016Courtesy of TESLA, INC.
  61. Plug in connector and install trim to 60 seat
    NOTE: 1x connector, 1x clip, Plug in connector and install trim by hooking the front into place and seat clip at rear of trim.
    G14822017Courtesy of TESLA, INC.
    G14822018Courtesy of TESLA, INC.

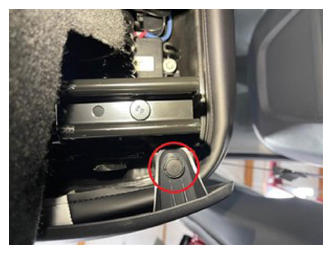

  62. Install push clip at front of outer 60 sideshield assembly
    NOTE: 1x clip, Install push clip at front bottom side of the trim

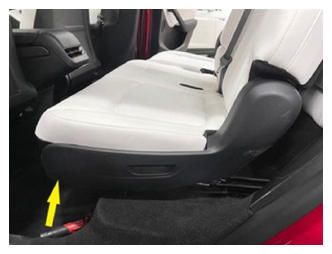

    G14822019Courtesy of TESLA, INC.
    G14822020Courtesy of TESLA, INC.

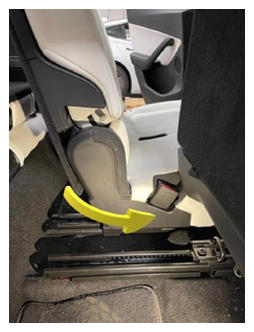

  63. Install inboard outer trim to 60 seat
    NOTE: Clips 3x, Install inboard outer trim and reseat 3x clips
    G14822021Courtesy of TESLA, INC.

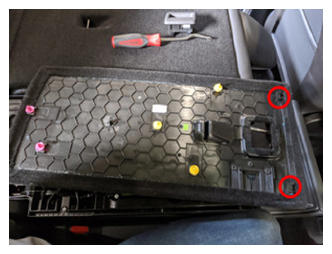

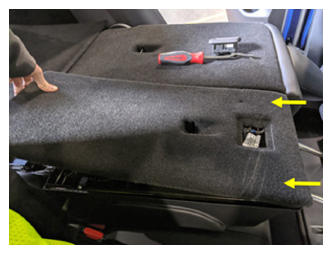

  64. Insert backpanel hooks into center seat back assembly
    NOTE: 2x hooks, Engage hooks and slide rearward into position, Early production have 4x hooks
    G14822022Courtesy of TESLA, INC.
    G14822023Courtesy of TESLA, INC.

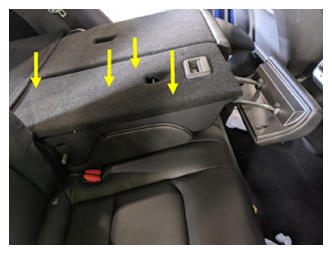

  65. Install center backpanel onto seat back
    NOTE: 5x clips
    G14822024Courtesy of TESLA, INC.

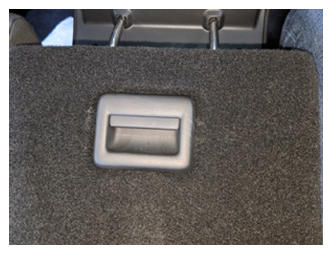

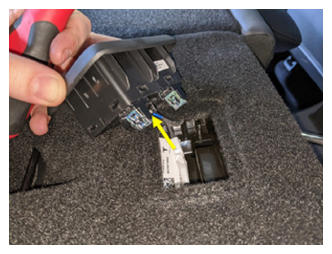

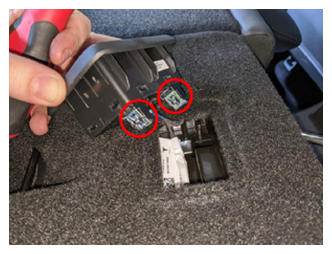

  66. Install 2nd row center seat switch
    NOTE: 1x connector, 2x clips
    G14822025Courtesy of TESLA, INC.
    G14822026Courtesy of TESLA, INC.
    G14822027Courtesy of TESLA, INC.
  67. Install 60 toe kick cover
    NOTE: 7x clips

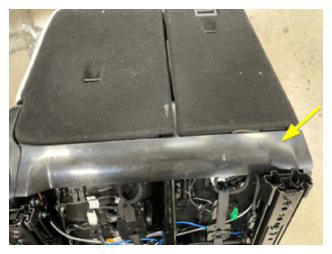

    G14822028Courtesy of TESLA, INC.
    G14822029Courtesy of TESLA, INC.

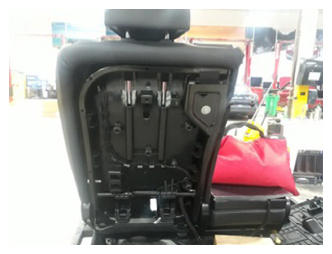

  68. Install LH seatback onto 60 seat assembly
    NOTE: 9x clips, 4 hooks, Attach hooks onto frame rail, Work upwards and fasten all the clips

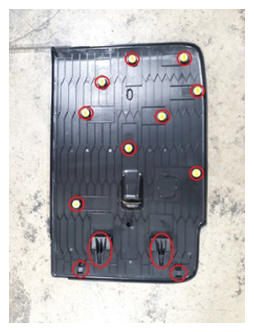

    G14822030Courtesy of TESLA, INC.
    G14822031Courtesy of TESLA, INC.

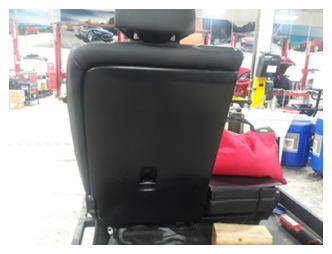

    G14822032Courtesy of TESLA, INC.

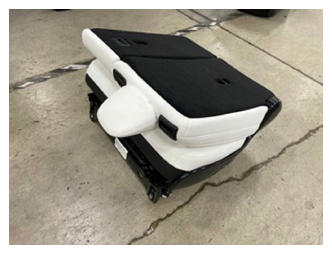

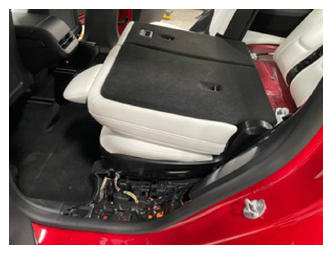

  69. Install 2nd row 60 seat assembly
    NOTE: Recommend assistance
    G14822033Courtesy of TESLA, INC.
    G14822034Courtesy of TESLA, INC.
  70. Connect logic connector at LH 60 seat frame
    NOTE: 1x connector
    G14822035Courtesy of TESLA, INC.

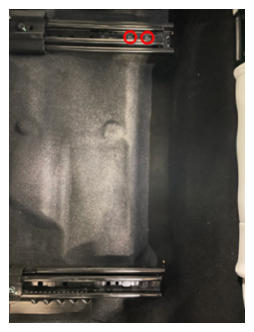

  71. Install fasteners securing 60 seat frame to body
    NOTE: 5x patch bolts, 11 mm, 37 N.m, Install new patch bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Both inboard rear -> Outboard rear -> Inboard front
    G14822036Courtesy of TESLA, INC.
    G14822037Courtesy of TESLA, INC.
    G14822038Courtesy of TESLA, INC.
    G14822039Courtesy of TESLA, INC.

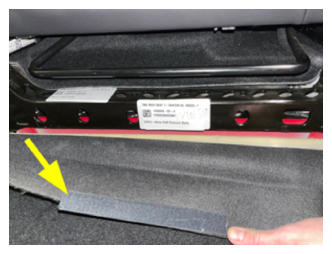

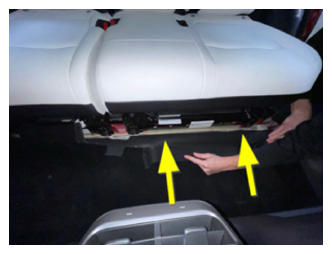

  72. Secure cabin carpet to 60 seat
    NOTE: Strap velcro on
    G14822040Courtesy of TESLA, INC.
    G14822041Courtesy of TESLA, INC.
  73. Fold the 60 seat into vertical position
    NOTE: Remove seat back protection if necessary
    G14822042Courtesy of TESLA, INC.
  74. Install 60 seat outboard track cover
    NOTE: 1x clip

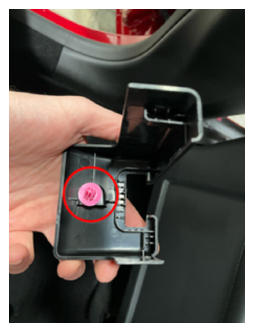

    G14822043Courtesy of TESLA, INC.
    G14822044Courtesy of TESLA, INC.

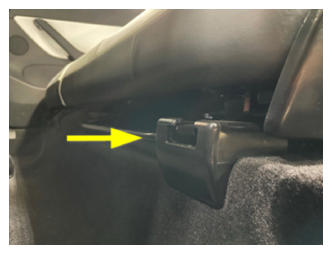

    G14822045Courtesy of TESLA, INC.
  75. Install LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G14822046Courtesy of TESLA, INC.

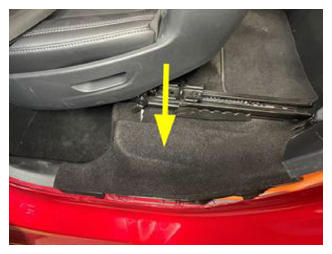

    G14822047Courtesy of TESLA, INC.
  76. Move RH front seat to original position
  77. Move LH front seat to original position
  78. Raise all four windows
  79. Close all four doors
    NOTE: If 12 V is powered up, Unlatch rear doors before closing
scientia non olet · About LEMON Manuals
