Podium - 2nd Row Seat - RH (7-Seat) - Remove And Replace: Remove

Remove the RH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - RH (7-SEAT) (REMOVE AND REPLACE) .

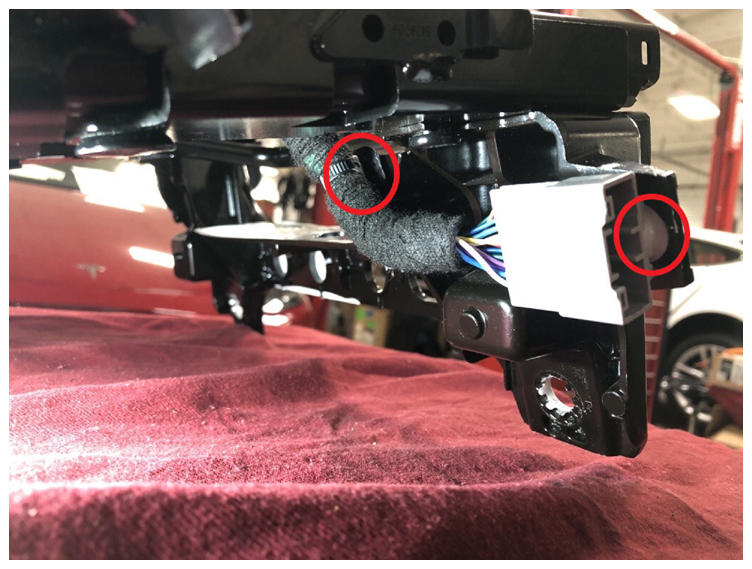

Release the clips that attach the RH 2nd row seat cushion harness to the podium.

Courtesy of TESLA, INC.

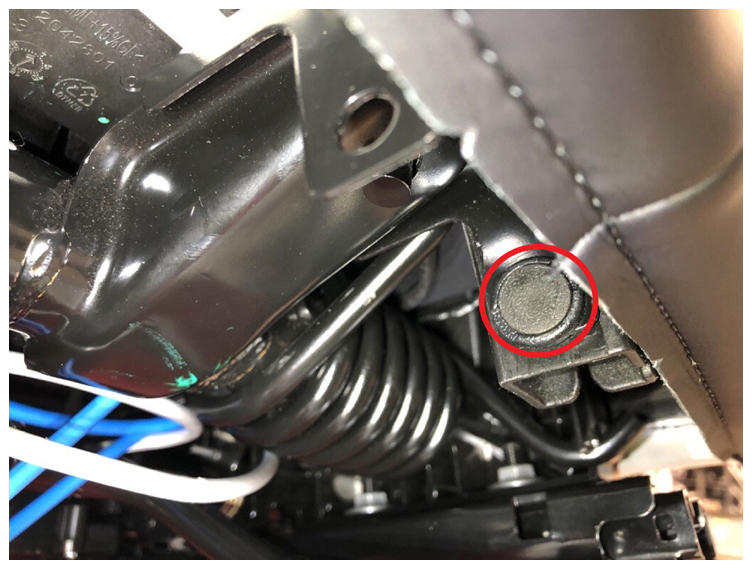

Remove the clip that attaches the RH 2nd row seat cushion pan to the seat frame.

Courtesy of TESLA, INC.

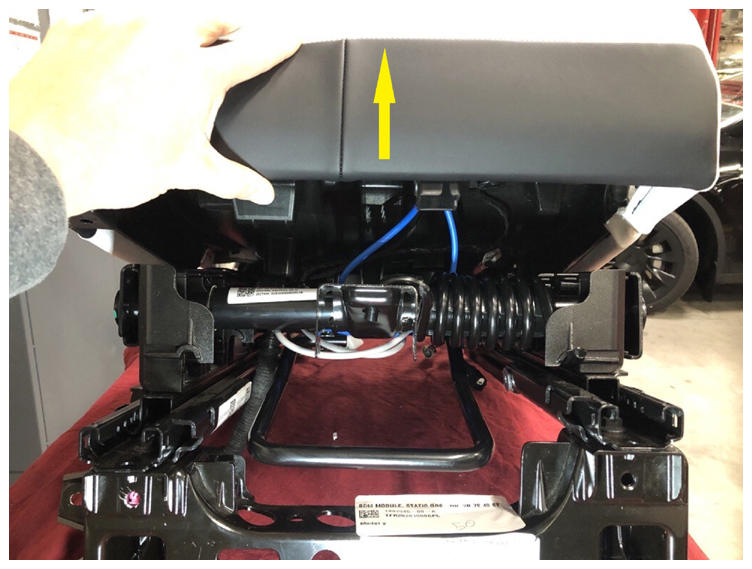

Slightly lift the RH 2nd row seat cushion pan upward, but do not fully remove the cushion at this time.

Courtesy of TESLA, INC.

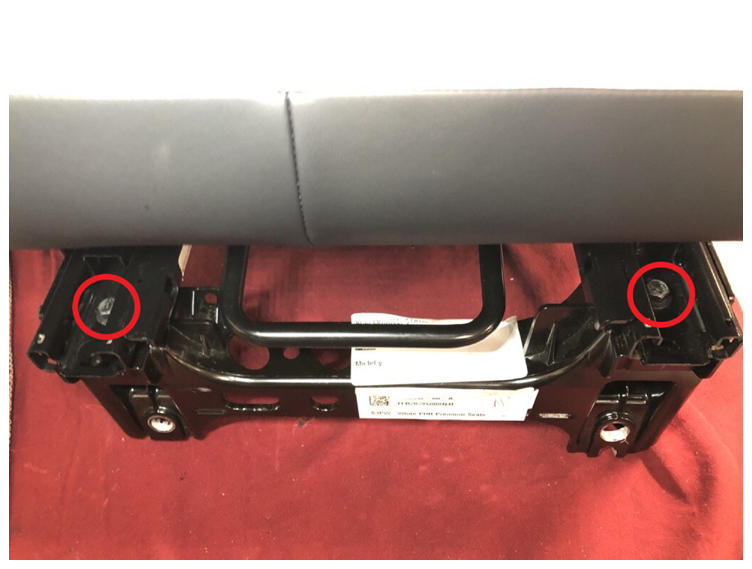

Remove the bolts that attach the RH 2nd row seat podium to the seat tracks.
37 N.m (27.3 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 11 mm socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

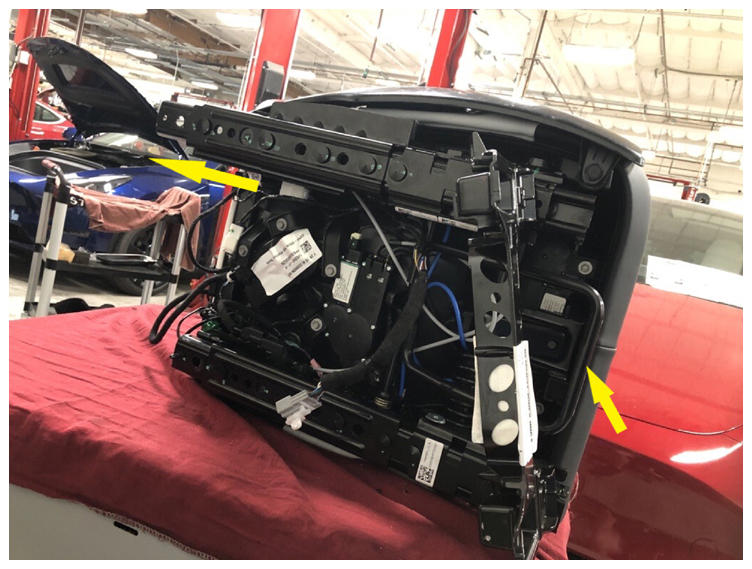

With assistance, remove the RH 2nd row seat podium from the seat track.
NOTE: Use one hand to engage the towel bar, and then move the inner seat track rearward with the other hand until the groove on the seat podium releases from the inner seat track. Lift the podium to remove it from the seat track.

Courtesy of TESLA, INC.
