Podium - 2nd Row Seat - RH (7-Seat) - Remove And Replace: Install

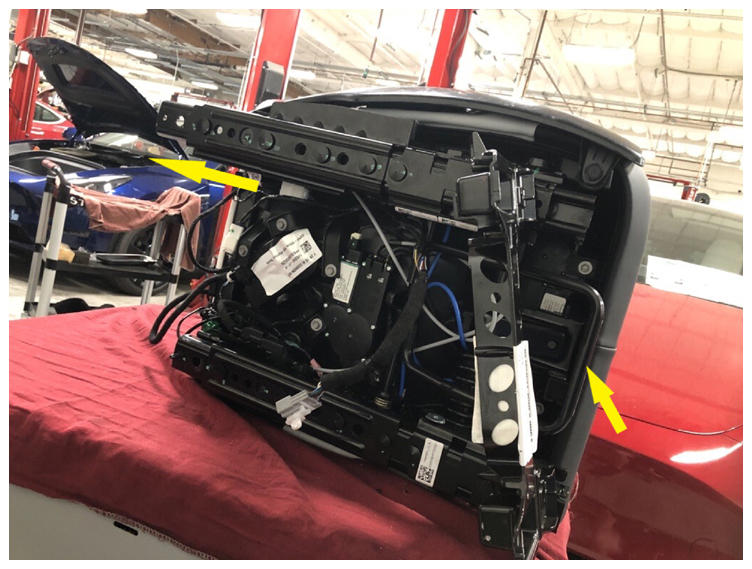

With assistance, install the RH 2nd row seat podium onto the seat track.
NOTE: Install the groove on the podium onto the outer seat track, and then align the groove on the podium onto the inner seat track. Engage the towel bar with one hand, and then move the inner seat track inward until the groove on the podium engages the seat track.

Courtesy of TESLA, INC.

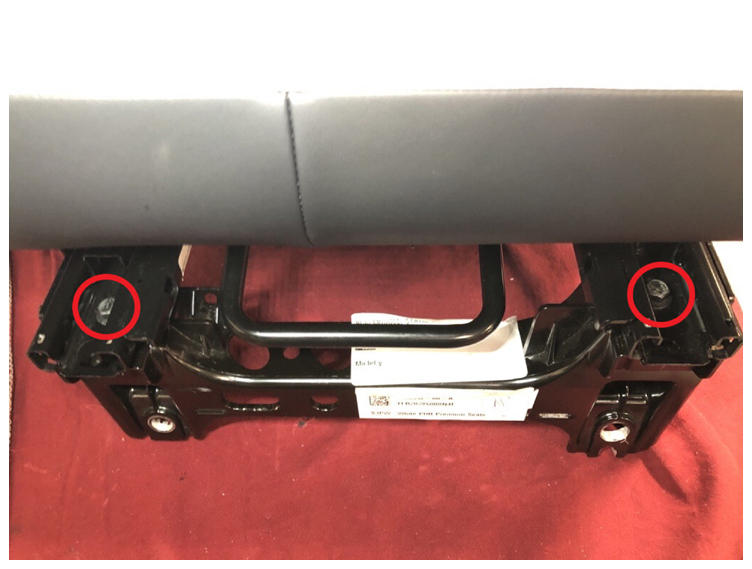

Install the bolts that attach the RH 2nd row seat podium to the seat tracks.
37 N.m (27.3 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 11 mm socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

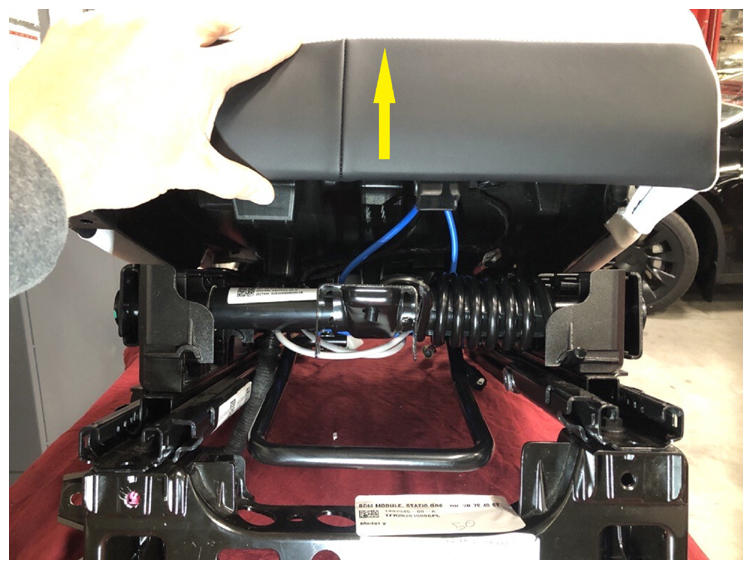

Push downward on the RH 2nd row seat cushion to fully seat the cushion to the frame.

Courtesy of TESLA, INC.

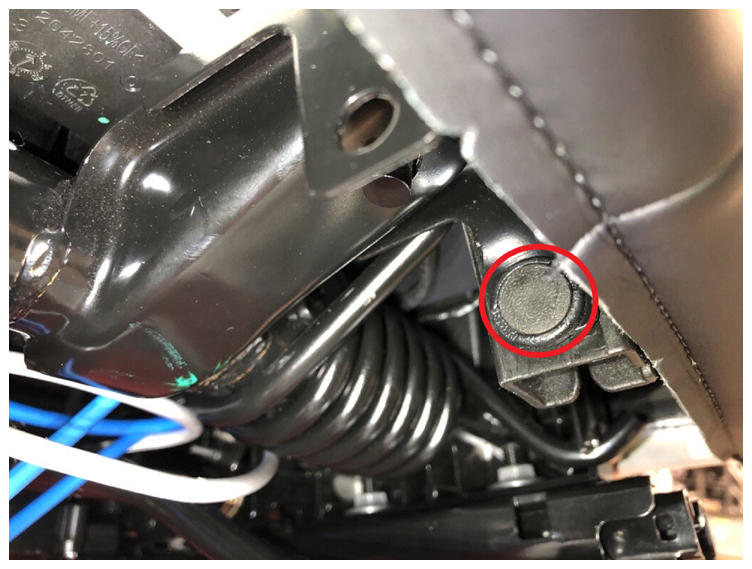

Install the clip that attaches the RH 2nd row seat cushion pan to the seat frame.

Courtesy of TESLA, INC.

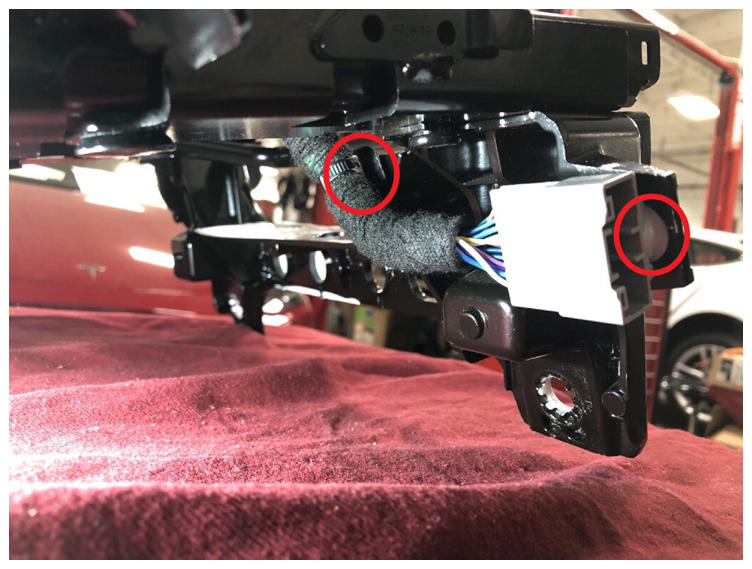

Fasten the clips that attach the RH 2nd row seat cushion harness to the podium.

Courtesy of TESLA, INC.
Install the RH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - RH (7-SEAT) (REMOVE AND REPLACE) .
