Cover - Seat Track - 2nd Row Seat - LH (7-Seat) - Remove And Replace: Remove

  1. Open the LH rear door and fully lower the LH rear window.

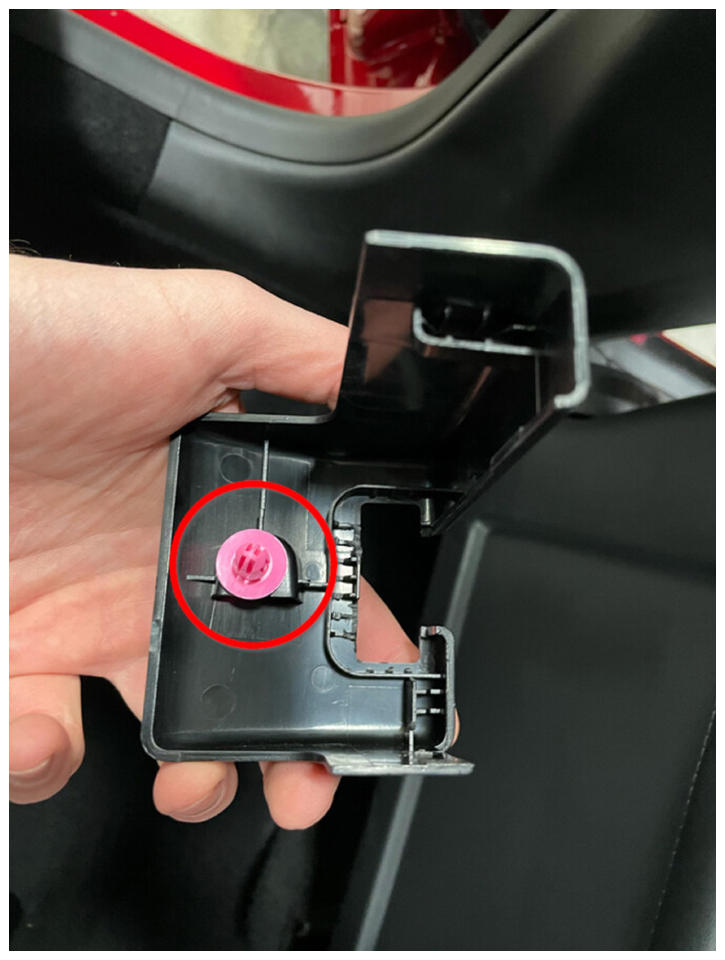

  2. Release the clip that attaches the LH 2nd row seat track cover to the seat track, and then slide the cover forward to release it from the seat track.
    G14821904Courtesy of TESLA, INC.
