Actuator - Floor Latch - 2nd Row Seat - RH (7-Seat) - Remove And Replace: Remove
- Remove the RH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - RH (7-SEAT) (REMOVE AND REPLACE) .
- Remove the RH 2nd row seat toe kick cover.
- Remove the clip that attaches the RH 2nd row seat side shield to the cushion pan.

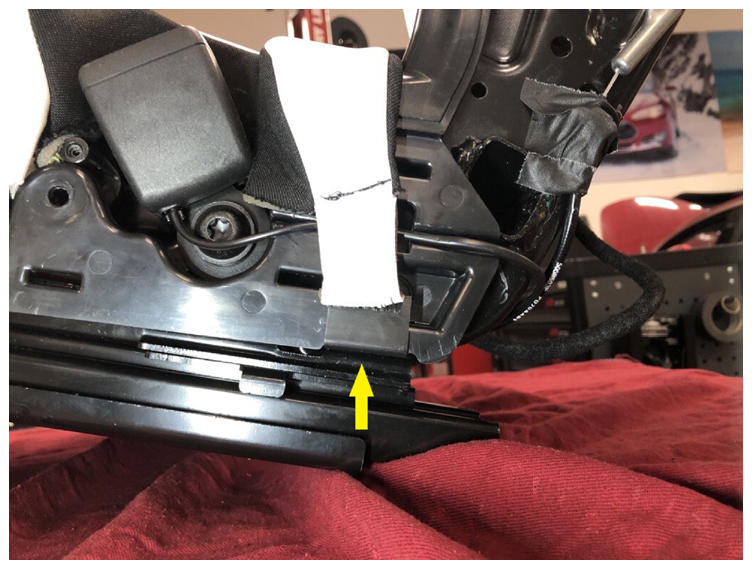

- Release the clip that attaches the RH 2nd row seat side shield to the RH 2nd row seat assembly, and then lift the shield up to release it from the assembly.NOTE: Do not pull the shield away from the assembly as there is still an electrical connector connected

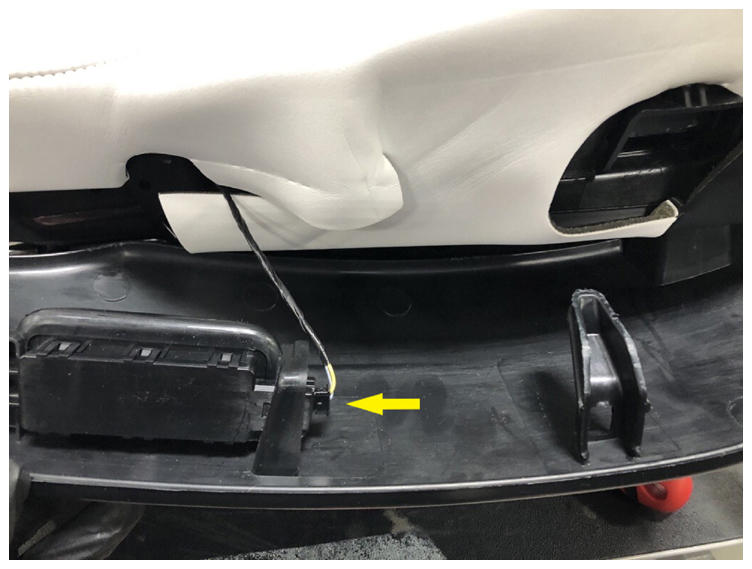

- Disconnect the RH 2nd row seat side shield electrical connector, and then remove the shield from the assembly.

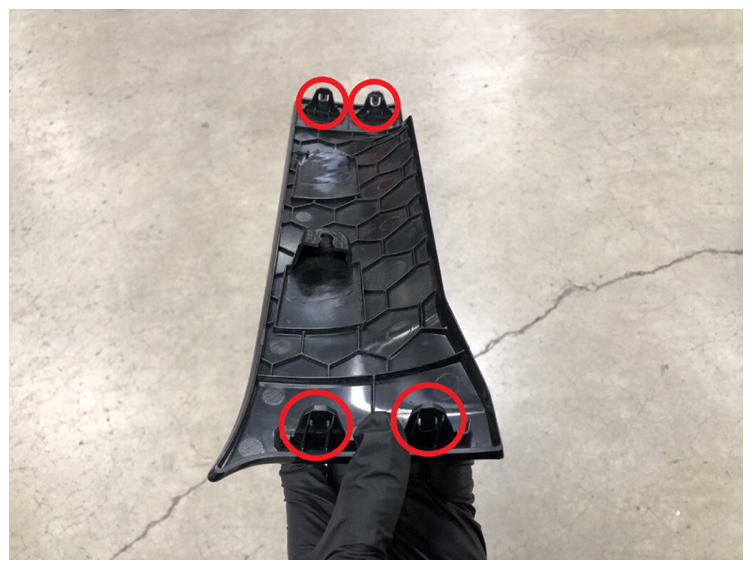

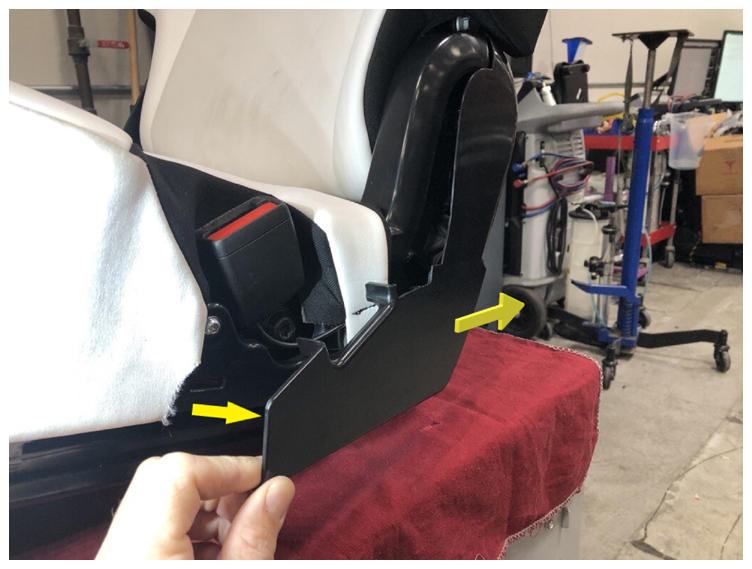

- Release the clips (x4) that attach the RH 2nd row seat outer B-cover from the inner B-cover, and slide the cover towards the rear of the seat to remove it from the assembly.
- Fold the seat to the upright position.

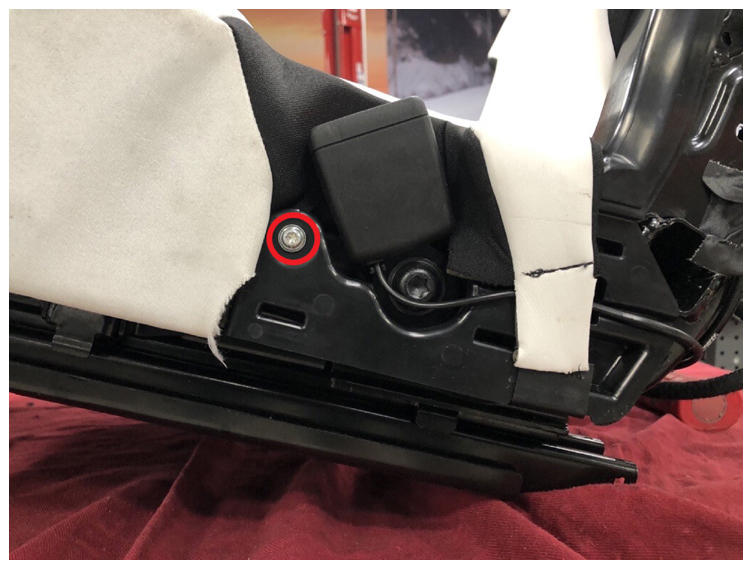

- Remove the screw that attaches the RH 2nd row seat inner B-cover to the cushion pan.
1.5 N.m (1.1 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench

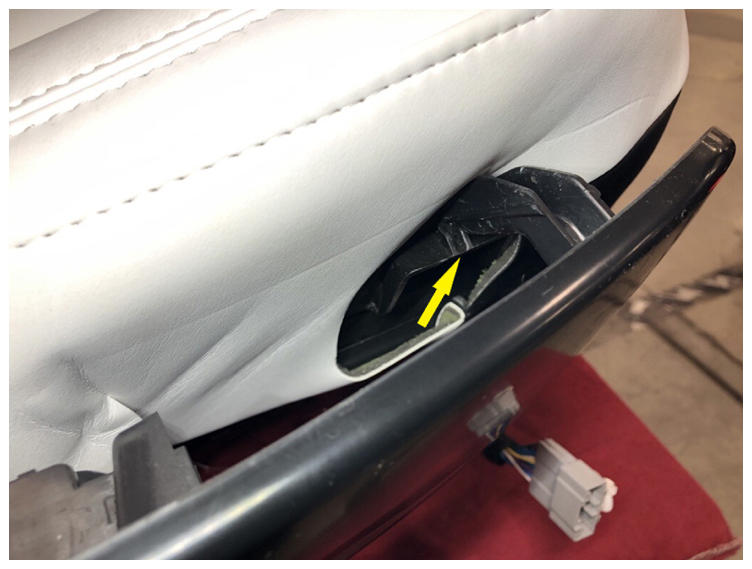

- Release the hook that attaches the inner B-cover to the RH 2nd row seat assembly.
- Release the clips that attach the RH 2nd row seat cushion harness to the podium.

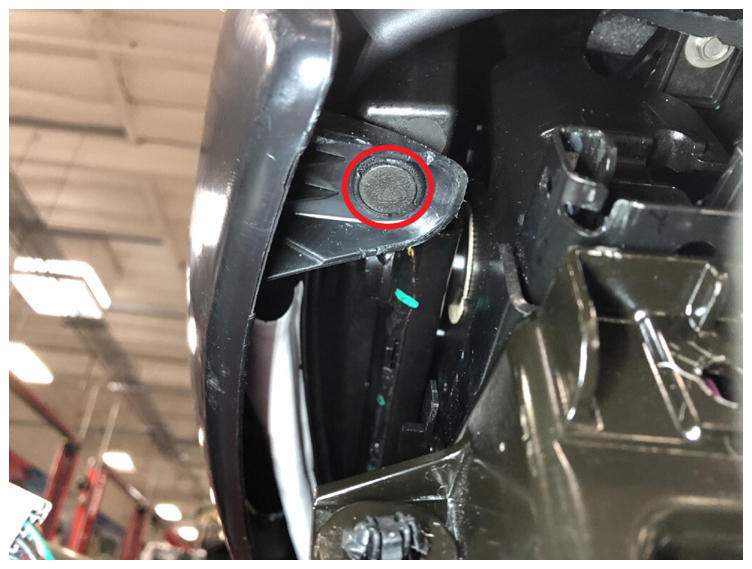

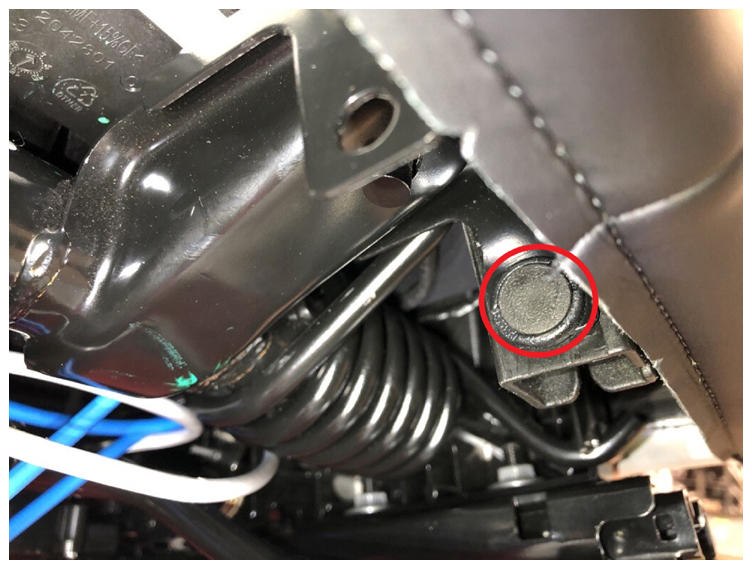

- Remove the clip that attaches the RH 2nd row seat cushion pan to the seat frame.

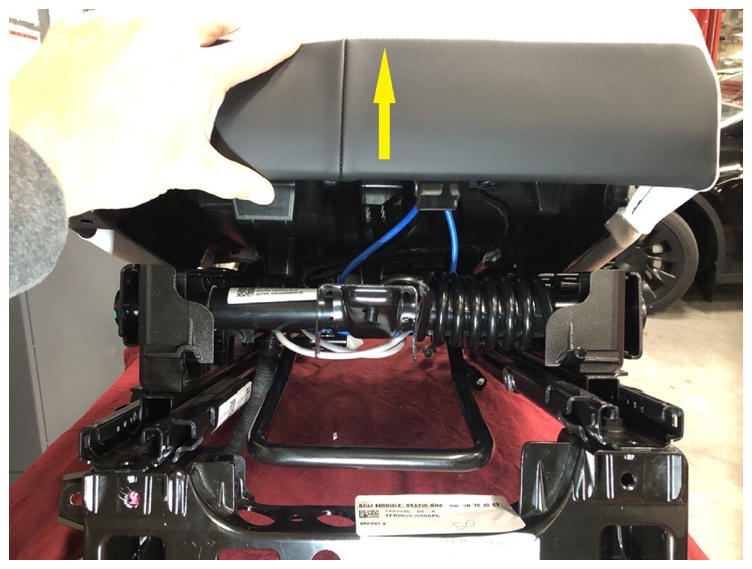

- Slightly lift the RH 2nd row seat cushion pan upward, but do not fully remove the cushion at this time.

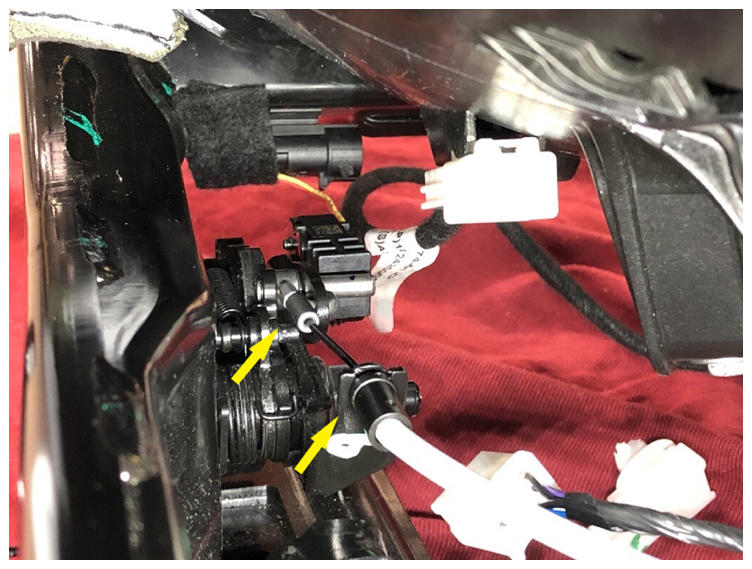

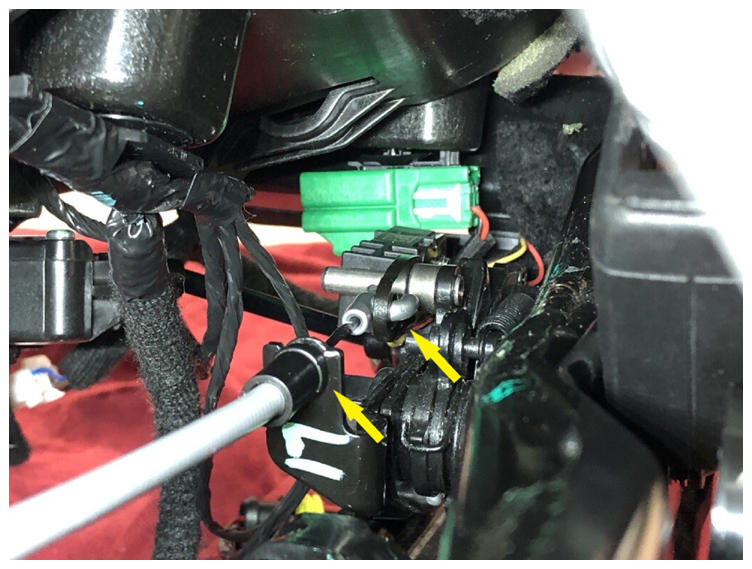

- Release the RH 2nd row seat floor latch actuator cable from the RH floor latch.
- Release the RH 2nd row seat floor latch actuator cable from the LH floor latch.

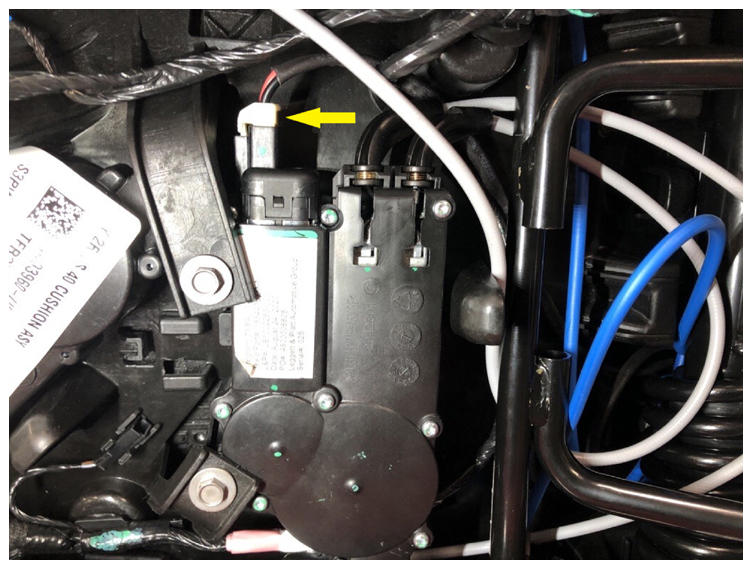

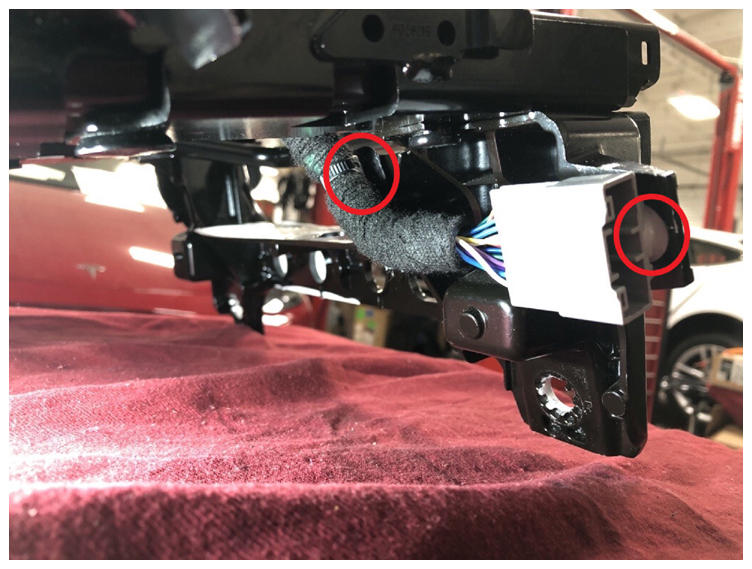

- Disconnect the RH 2nd row seat floor latch actuator electrical connector.

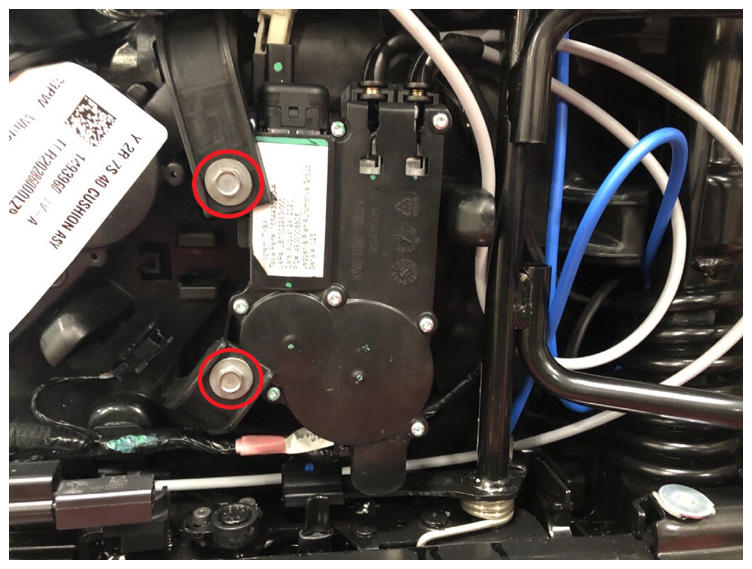

- Remove the bolts that attach the RH 2nd row seat floor latch actuator to the assembly, and then remove the actuator from the assembly.
2.5 N.m (1.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 8 mm hex
- Flex head ratchet/flex head torque wrench
- 4 in extension
