Actuator - Floor Latch - 2nd Row Seat - RH (7-Seat) - Remove And Replace: Install

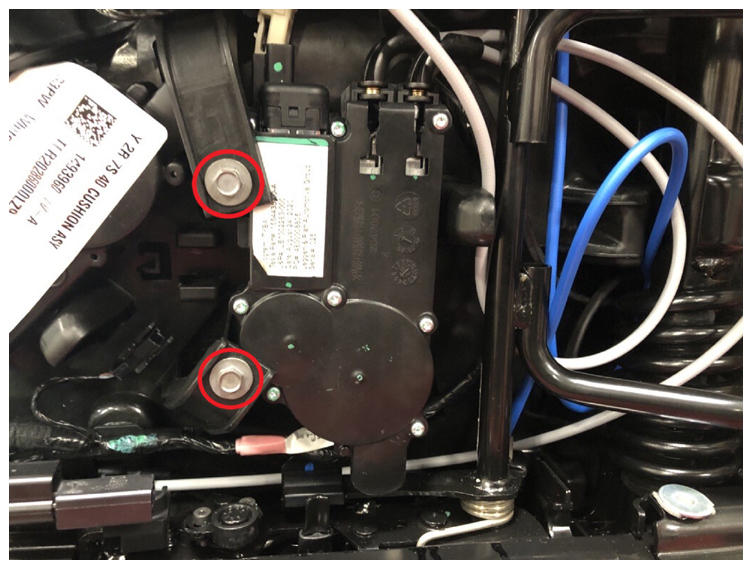

- Position the RH 2nd row seat onto the cushion pan, and then install the bolts.
2.5 N.m (1.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 8 mm hex
- Flex head ratchet/flex head torque wrench
- 4 in extension

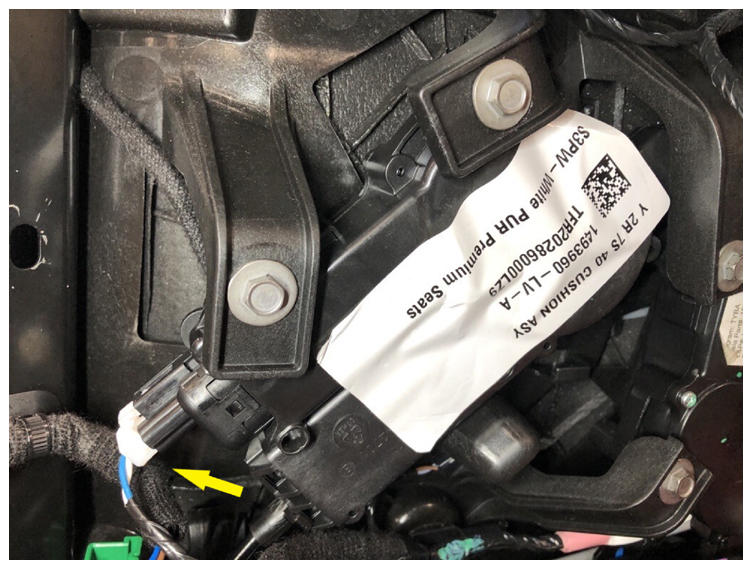

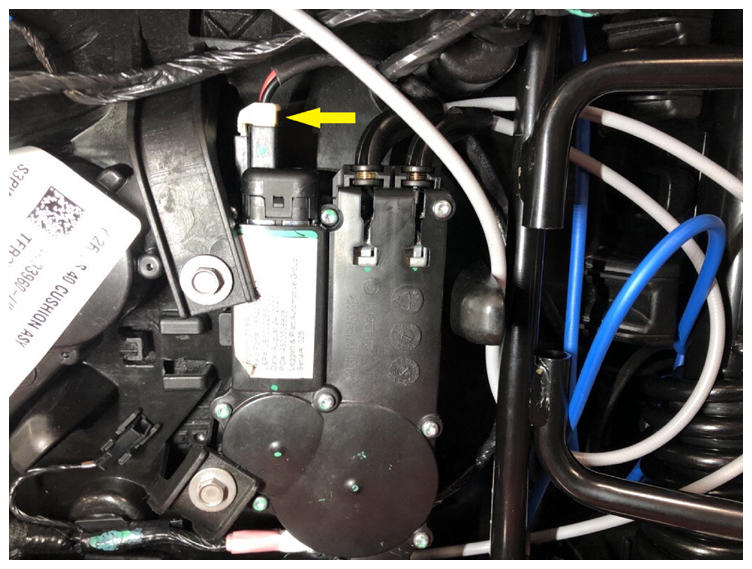

- Connect the RH 2nd row seat floor latch actuator electrical connector.

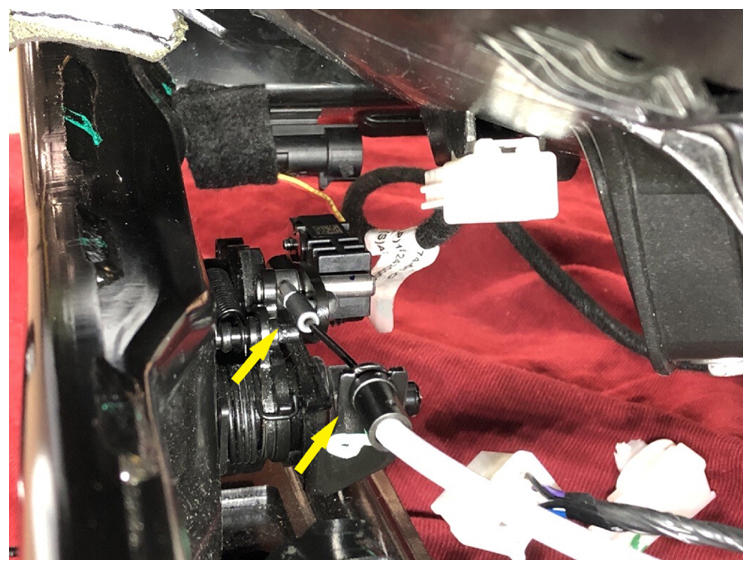

- Install the RH 2nd row seat floor latch actuator cable onto the LH floor latch.

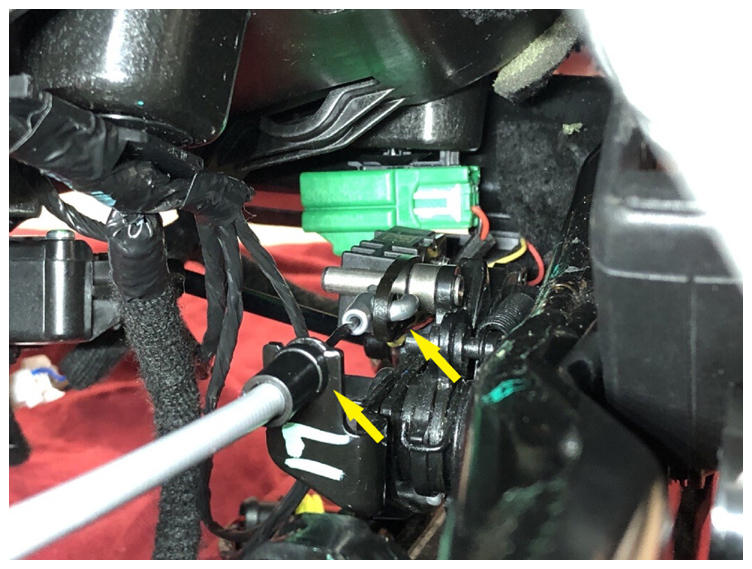

- Install the RH 2nd row seat floor latch actuator cable onto the RH floor latch.

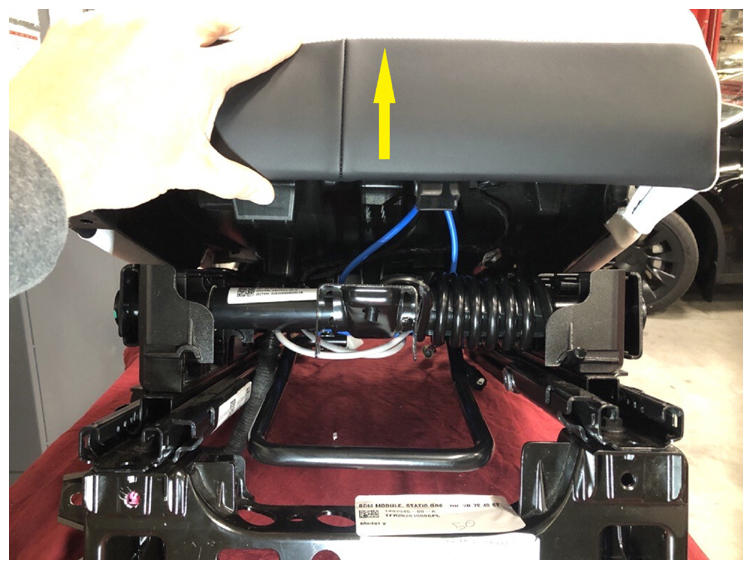

- Push downward on the RH 2nd row seat cushion to fully seat the cushion to the frame.

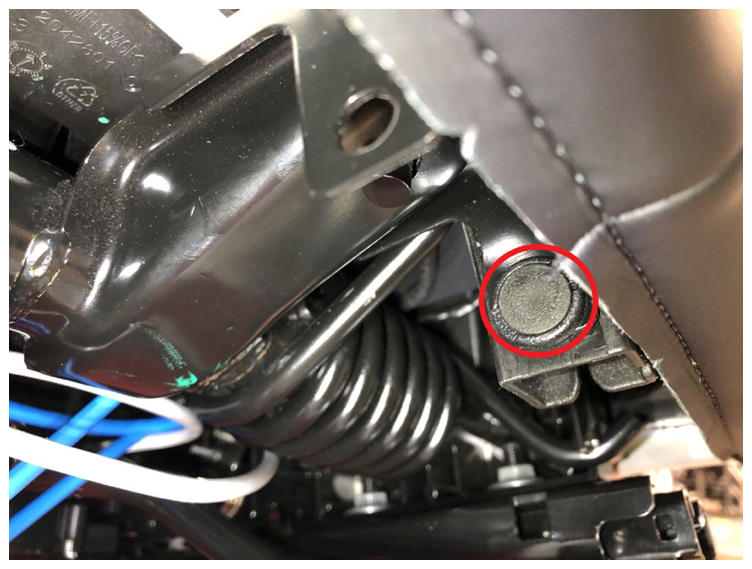

- Install the clip that attaches the RH 2nd row seat cushion pan to the seat frame.

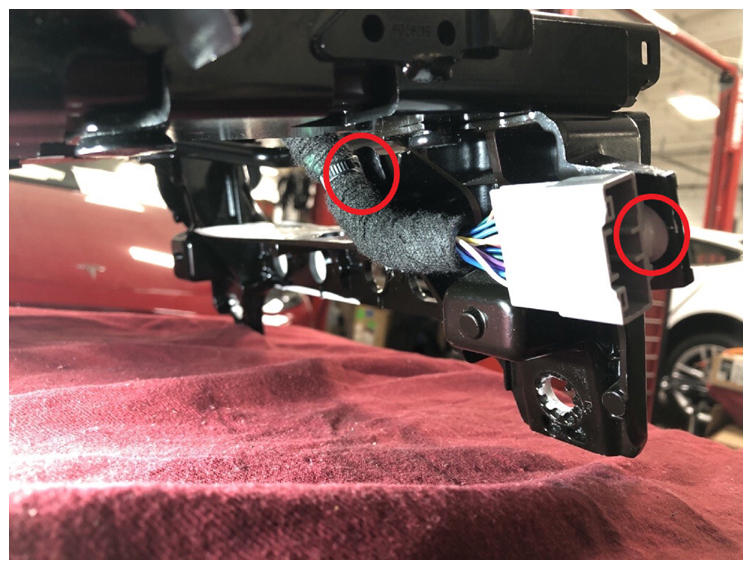

- Fasten the clips that attach the RH 2nd row seat cushion harness to the podium.

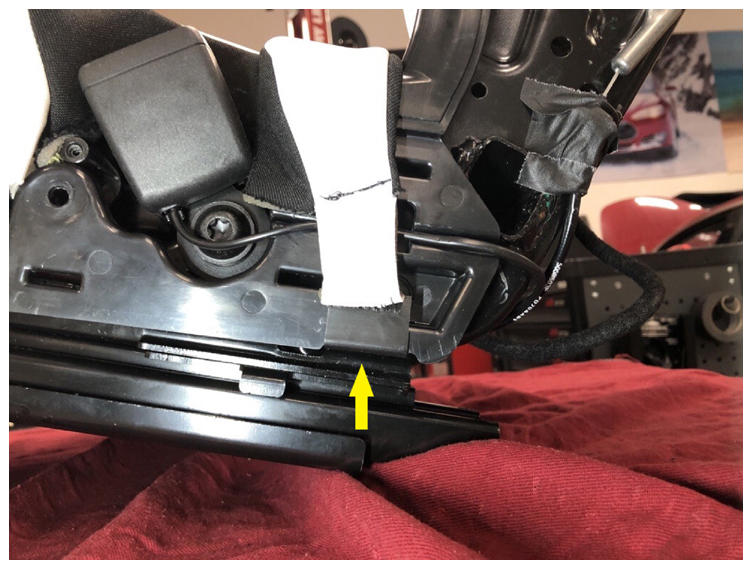

- Fasten the hook that attaches the inner B-cover to the RH 2nd row seat assembly.

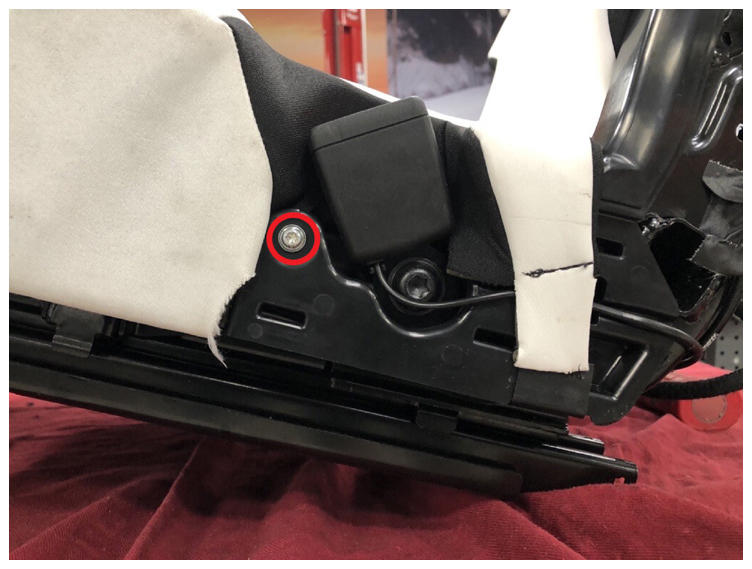

- Install the screw that attaches the RH 2nd row seat inner B-cover to the cushion pan.
1.5 N.m (1.1 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
- Disconnect the RH 2nd row seat recliner actuator electrical connector.
- Using the seat fold tool, connect the recliner actuator electrical connector into the recliner actuator, and then activate the switch to fold the RH 2nd row seat down.
- Disconnect the seat fold tool from the RH 2nd row seat.
- Connect the RH 2nd row seat recliner actuator electrical connector.

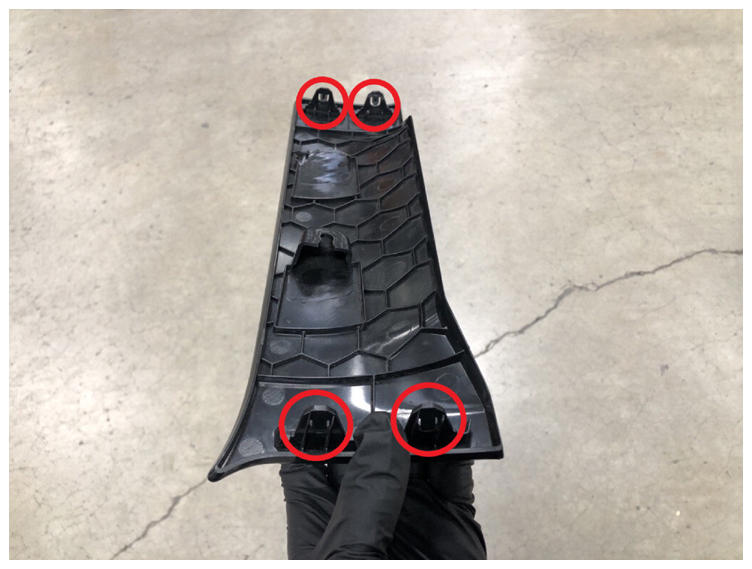

- Position the RH 2nd row seat outer B-cover onto the inner B-cover, and then install the clips (x4).

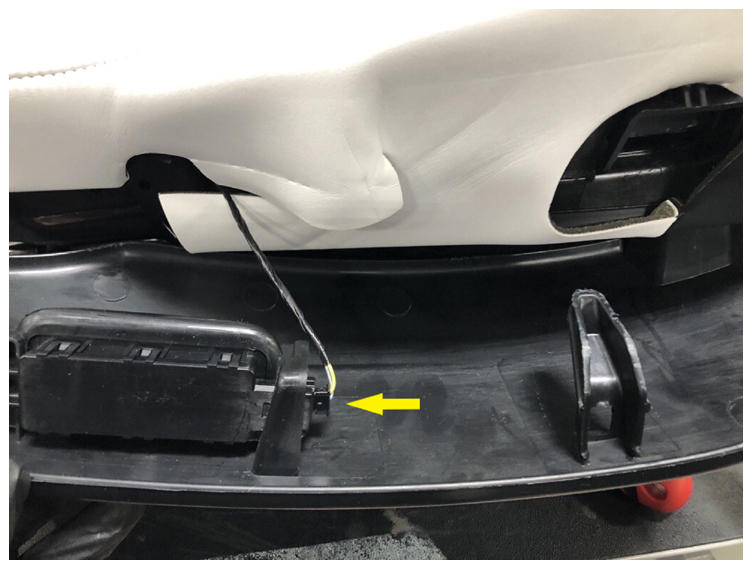

- Connect the RH 2nd row seat side shield electrical connector.

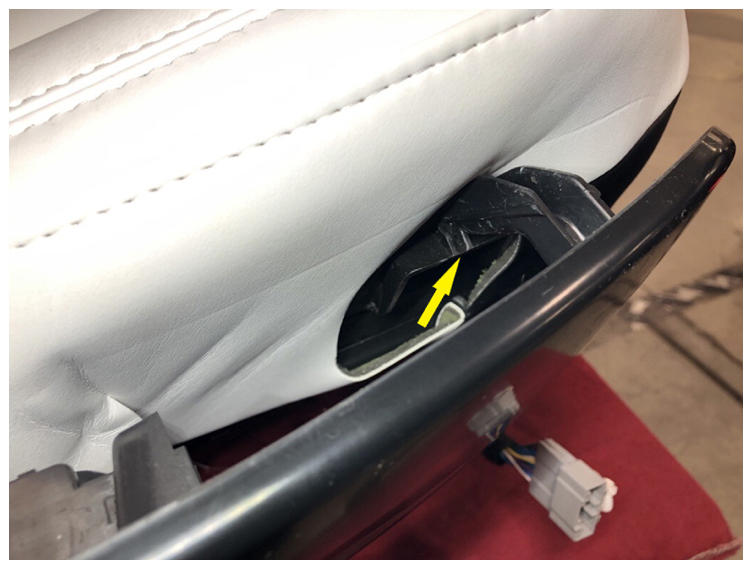

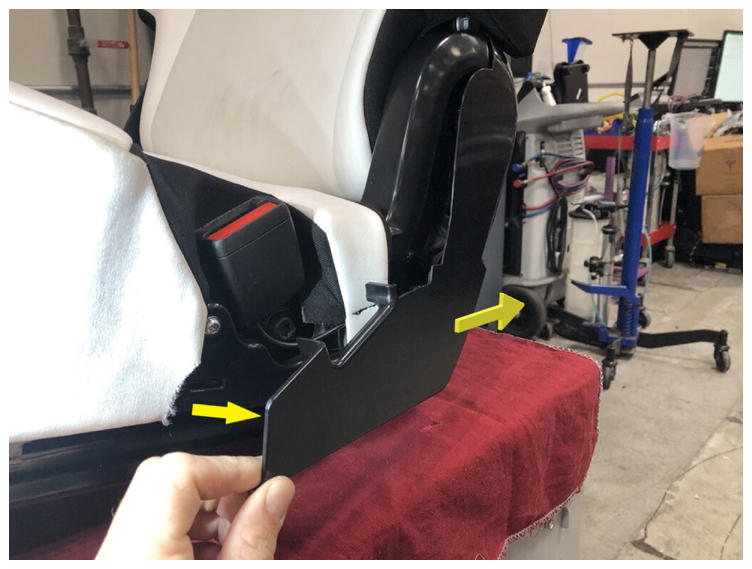

- Position the RH 2nd row seat side shield onto the RH 2nd row seat assembly, and then install the clip.

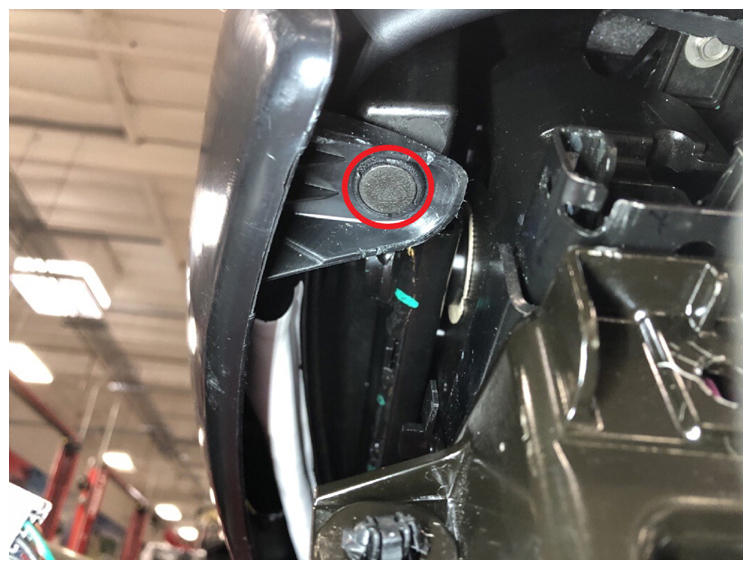

- Install the clip that attaches the RH 2nd row seat side shield to the cushion pan.
- Install the RH 2nd row seat toe kick cover.
- Install the RH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - RH (7-SEAT) (REMOVE AND REPLACE)
