Actuator - Floor Latch - 2nd Row Seat - LH (7-Seat) - Remove And Replace: Install

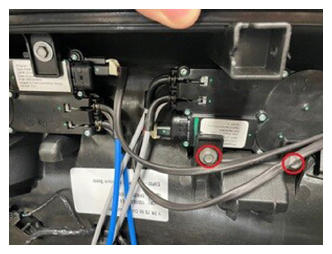

Install the LH 2nd row seat floor latch actuator to the cushion pan, and then install the screws.
2.5 N.m (1.8 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 8 mm socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

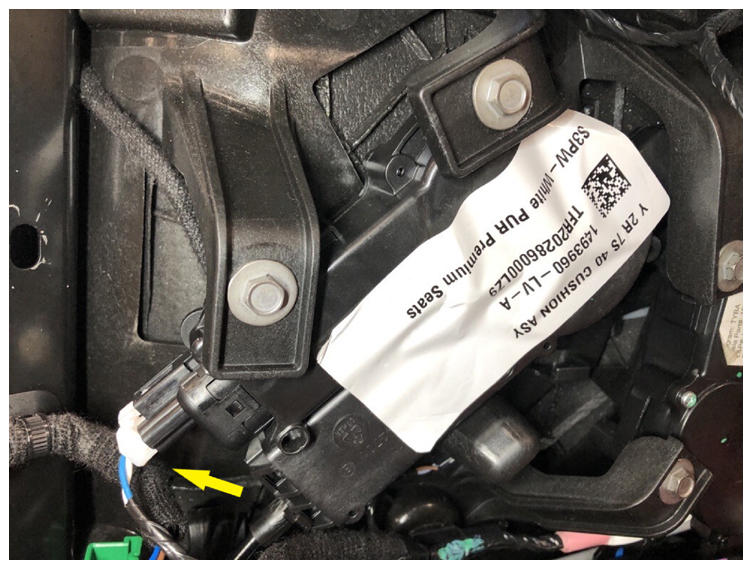

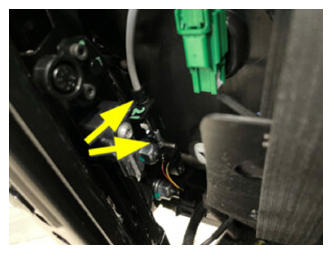

Connect the LH 2nd row seat floor latch actuator electrical connector.

Courtesy of TESLA, INC.

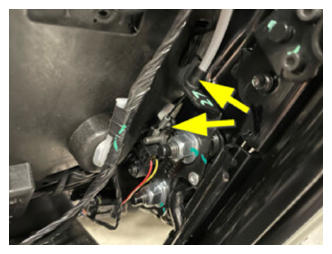

Install the LH 2nd row seat floor latch cable onto the outboard floor latch.

Courtesy of TESLA, INC.
Install the LH 2nd row seat floor latch cable onto the inboard floor latch.

Courtesy of TESLA, INC.
Lower the LH 2nd row seat cushion assembly.
NOTE: Ensure the cables and wiring harness are not pinched between the seat cushion assembly and seat frame.
Install the LH 2nd row seat cushion pan clips.

Courtesy of TESLA, INC.

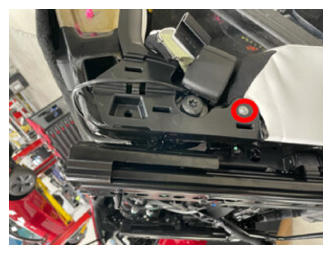

Install the LH 2nd row seat inboard inner assembly screw.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

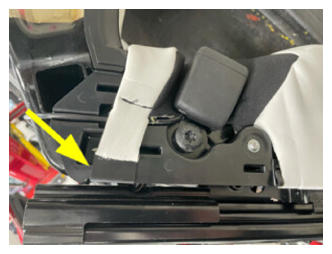

Hook the LH 2nd row seat strap to the inboard inner assembly.

Courtesy of TESLA, INC.
Install the LH 2nd row seat inboard outer cover onto the inboard inner assembly.

Courtesy of TESLA, INC.

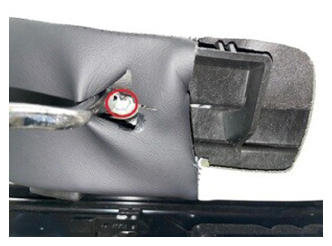

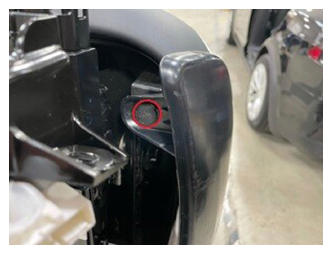

Gently pull the seat cushion trim aside to reveal the cushion pan fastener location, and then install the fastener.
6 N.m (4.4 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Flex head ratchet/flex head torque wrench
- 4 in extension
Courtesy of TESLA, INC.
Position the LH 2nd row seat side shield onto the seat assembly, and then connect the electrical connector.

Courtesy of TESLA, INC.

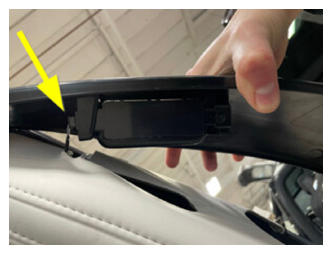

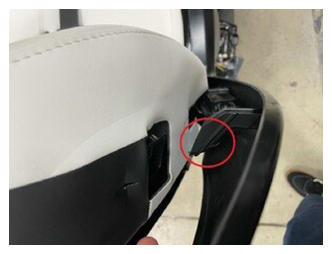

Lift up on the LH 2nd row seat side shield, and then hook the side shield onto the seat cushion assembly.

Courtesy of TESLA, INC.
Install the clip that attaches the LH 2nd row seat side shield to the seat assembly.

Courtesy of TESLA, INC.

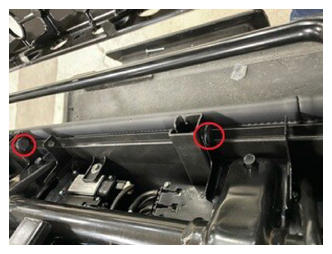

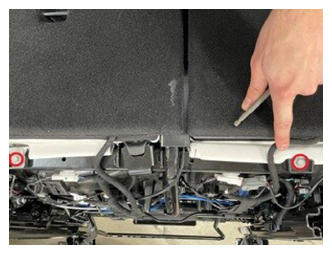

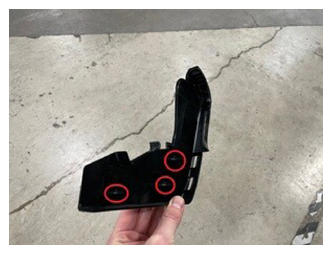

Install the bolts that attach the LH 2nd row seat rear cushion pan to the seat frame.
2.5 N.m (1.8 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

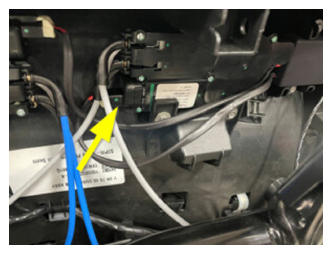

Disconnect the LH 2nd row seat recliner actuator electrical connector.

Courtesy of TESLA, INC.
Using the seat fold tool, connect the recliner actuator electrical connector into the recliner actuator, and then activate the switch to fold the LH 2nd row seat down.
Disconnect the seat fold tool from the LH 2nd row seat.
Connect the LH 2nd row seat recliner actuator electrical connector.
Install the LH 2nd row seat toe kick cover. See COVER - TOE KICK - 2ND ROW SEAT - LH (7-SEAT) (REMOVE AND REPLACE) .
Install the LH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - LH (7-SEAT) (REMOVE AND REPLACE) .
