Actuator - EZ Entry - 40 Track - 2nd Row Seat (7-Seat) - Remove And Replace: Remove

  1. Remove the RH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - RH (7-SEAT) (REMOVE AND REPLACE) .

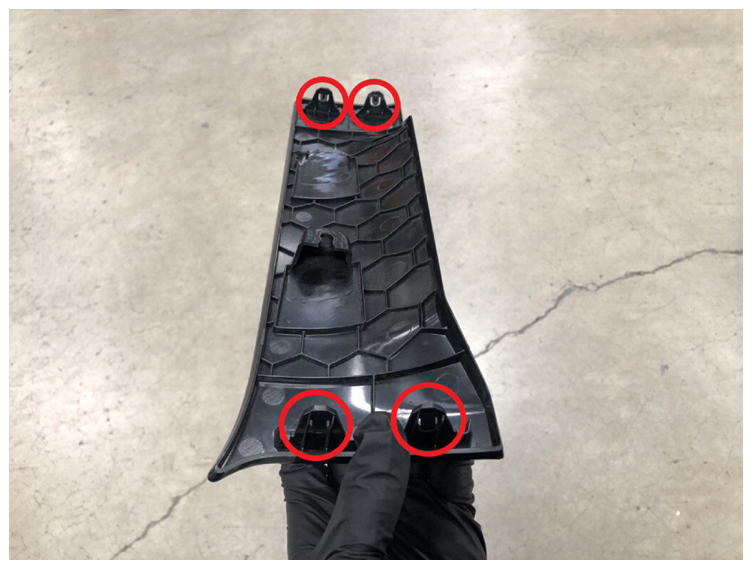

  2. Remove the RH 2nd row seat toe kick cover.
    G14821807Courtesy of TESLA, INC.

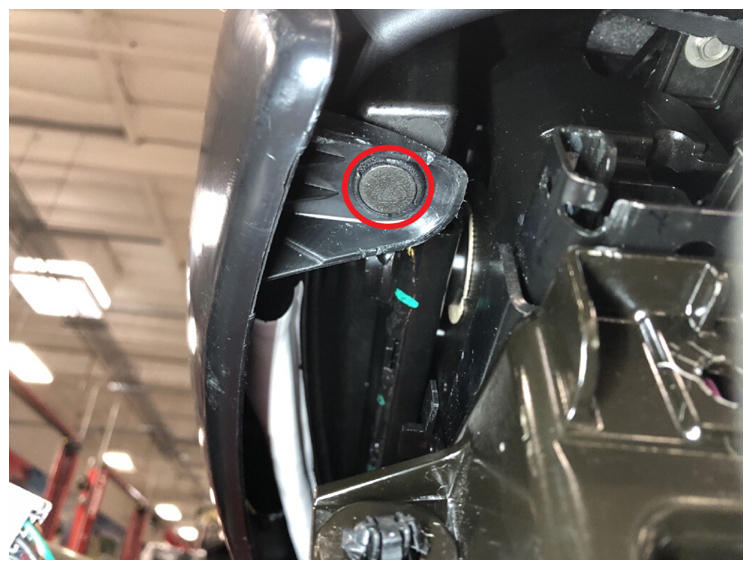

  3. Remove the clip that attaches the RH 2nd row seat side shield to the cushion pan.
    G14821808Courtesy of TESLA, INC.

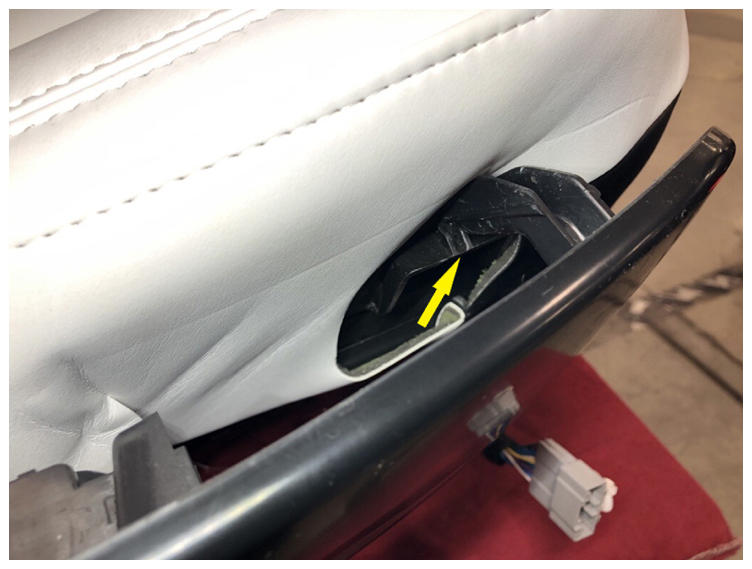

  4. Release the clip that attaches the RH 2nd row seat side shield to the RH 2nd row seat assembly, and then lift the shield up to release it from the assembly.
    NOTE: Do not pull the shield away from the assembly as there is still an electrical connector connected
    G14821809Courtesy of TESLA, INC.

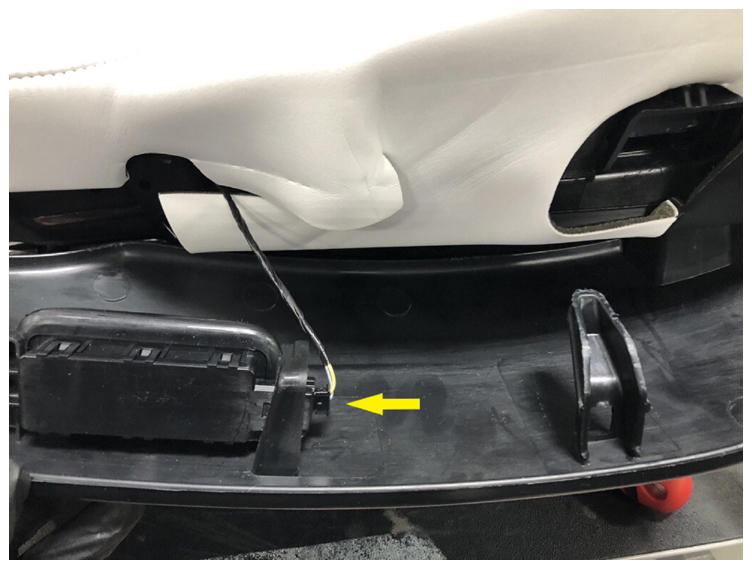

  5. Disconnect the RH 2nd row seat side shield electrical connector, and then remove the shield from the assembly.
    G14821810Courtesy of TESLA, INC.

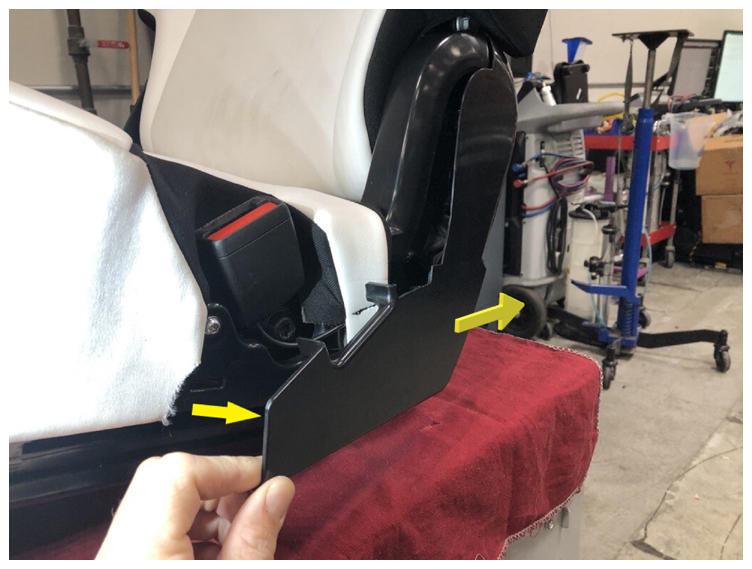

  6. Release the clips (x4) that attach the RH 2nd row seat outer B-cover from the inner B-cover, and slide the cover towards the rear of the seat to remove it from the assembly.
    G14821811Courtesy of TESLA, INC.
  7. Fold the seat to the upright position.

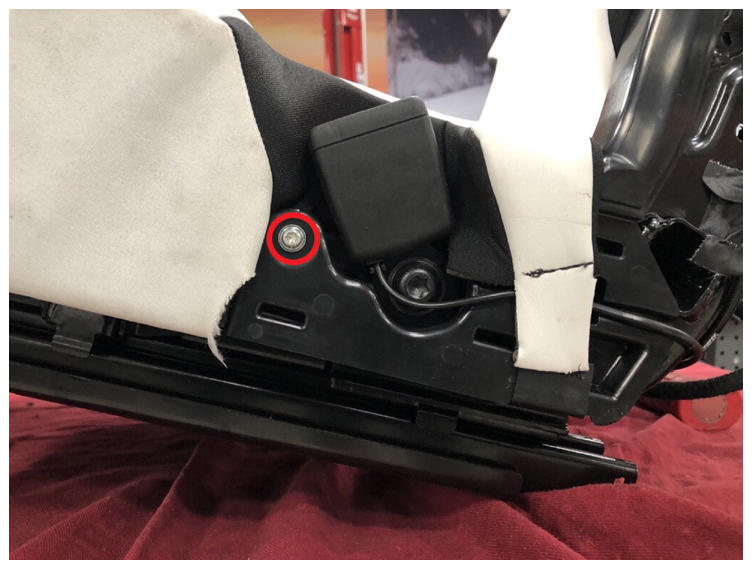

  8. Remove the screw that attaches the RH 2nd row seat inner B-cover to the cushion pan.

    1.5 N.m (1.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    • Flex head ratchet/flex head torque wrench
    G14821813Courtesy of TESLA, INC.

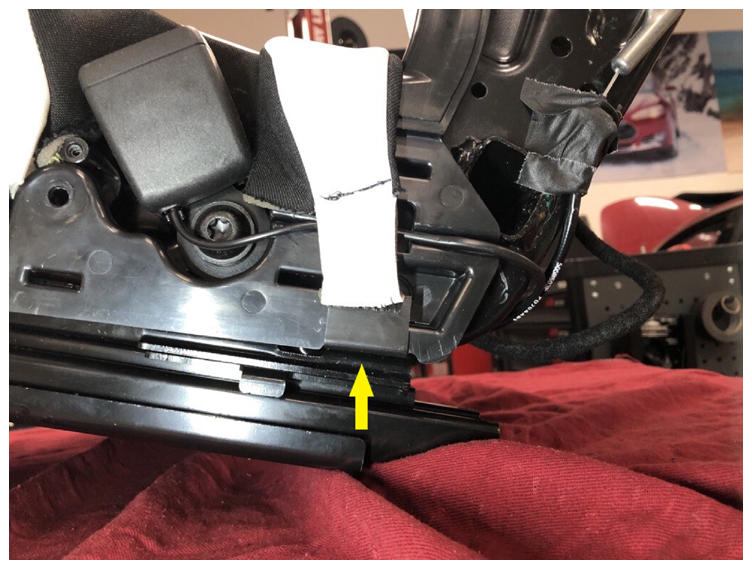

  9. Release the hook that attaches the inner B-cover to the RH 2nd row seat assembly.
    G14821814Courtesy of TESLA, INC.

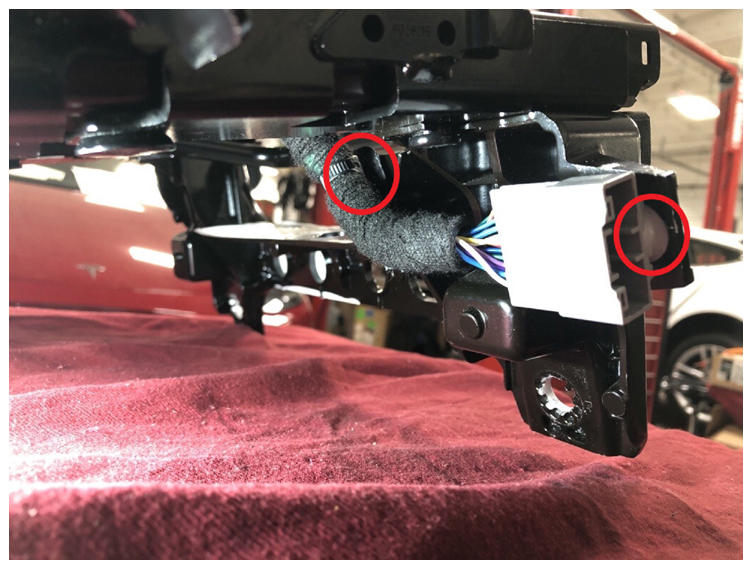

  10. Release the clips that attach the RH 2nd row seat cushion harness to the podium.
    G14821815Courtesy of TESLA, INC.

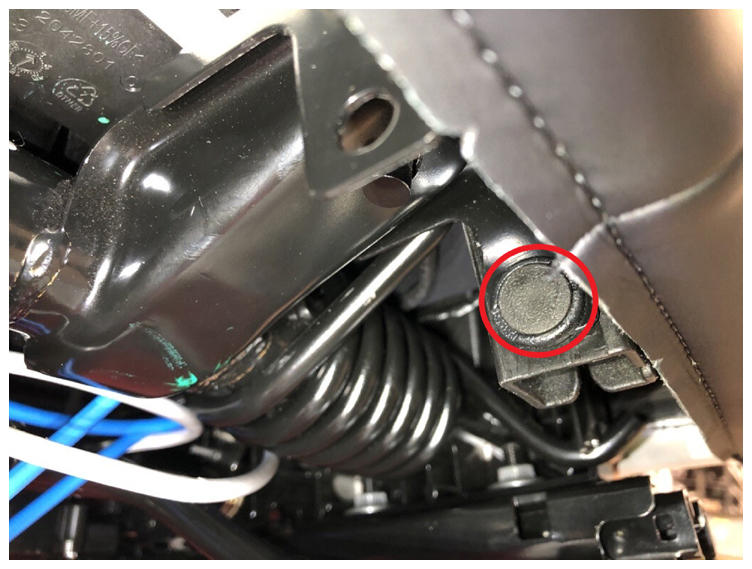

  11. Remove the clip that attaches the RH 2nd row seat cushion pan to the seat frame.
    G14821816Courtesy of TESLA, INC.

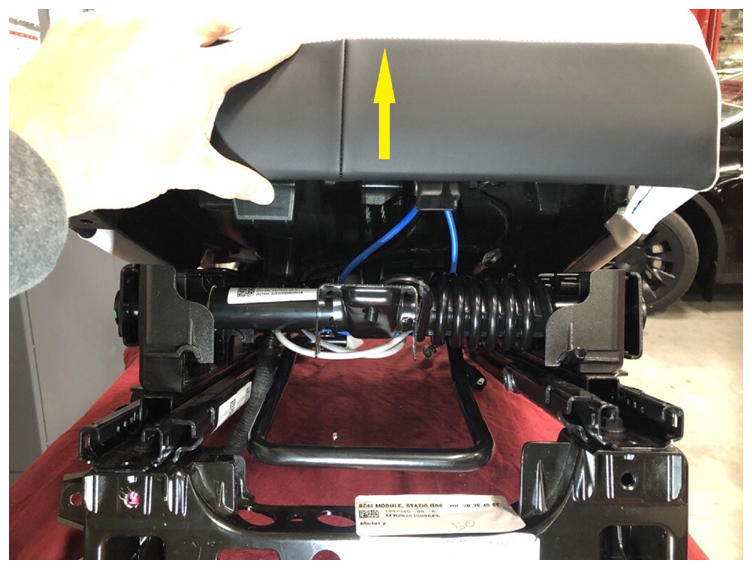

  12. Slightly lift the RH 2nd row seat cushion pan upward, but do not fully remove the cushion at this time.
    G14821817Courtesy of TESLA, INC.

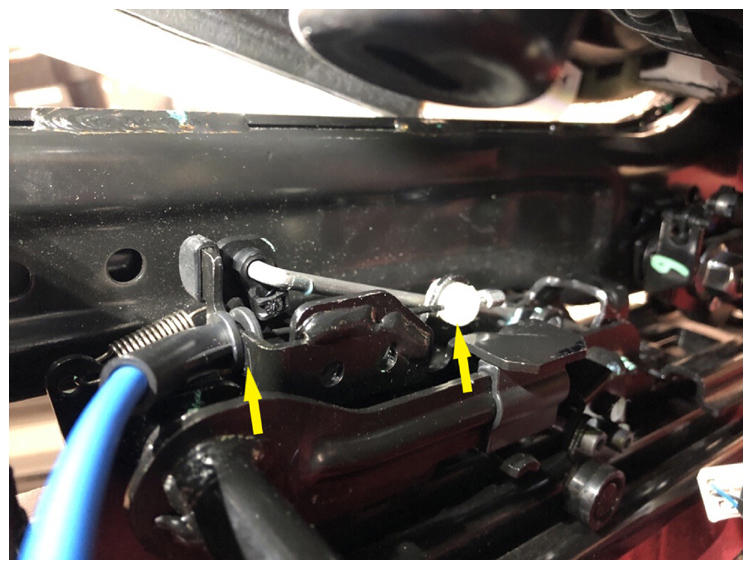

  13. Release the clips that attach the RH 2nd row seat easy entry actuator cable to the RH easy entry latch.
    G14821818Courtesy of TESLA, INC.

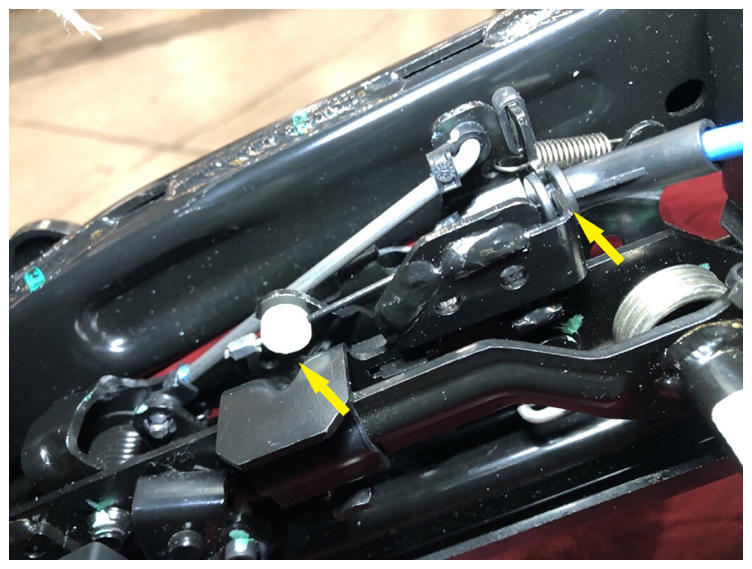

  14. Release the clips that attach the RH 2nd row seat easy entry actuator cable to the LH easy entry latch.
    G14821819Courtesy of TESLA, INC.

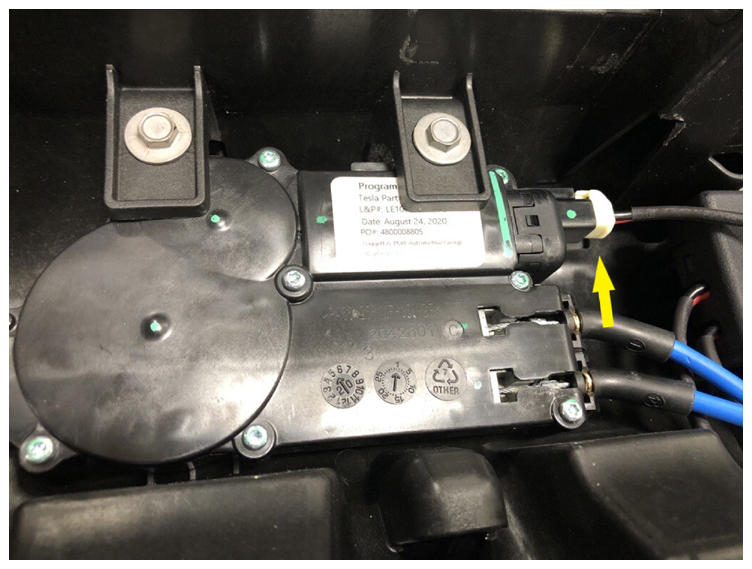

  15. Disconnect the RH 2nd row seat easy entry actuator electrical connector.
    G14821820Courtesy of TESLA, INC.

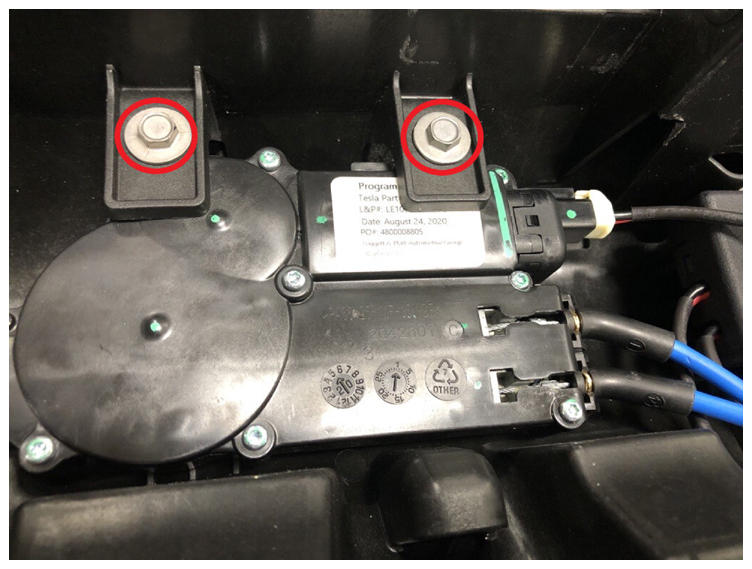

  16. Remove the bolts that attach the RH 2nd row seat easy entry actuator to the cushion pan, and then remove the actuator from the seat assembly.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket
    • Flex head ratchet/flex head torque wrench
    • 4 in extension
    G14821822Courtesy of TESLA, INC.
