Actuator - EZ Entry - 40 Track - 2nd Row Seat (7-Seat) - Remove And Replace: Install

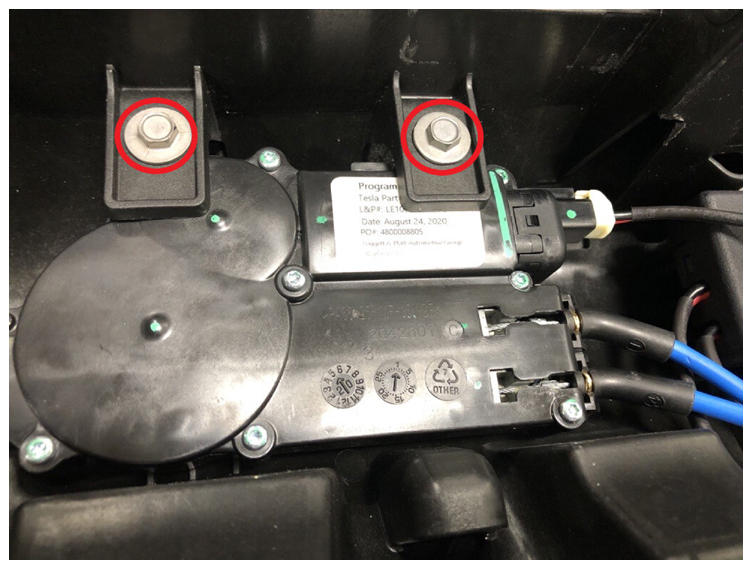

  1. Position the RH 2nd row seat easy entry actuator onto the RH second row seat assembly, and then install the bolts that attach the actuator to the assembly.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 8 mm socket
    • Flex head ratchet/flex head torque wrench
    • 4 in extension
    G14821824Courtesy of TESLA, INC.

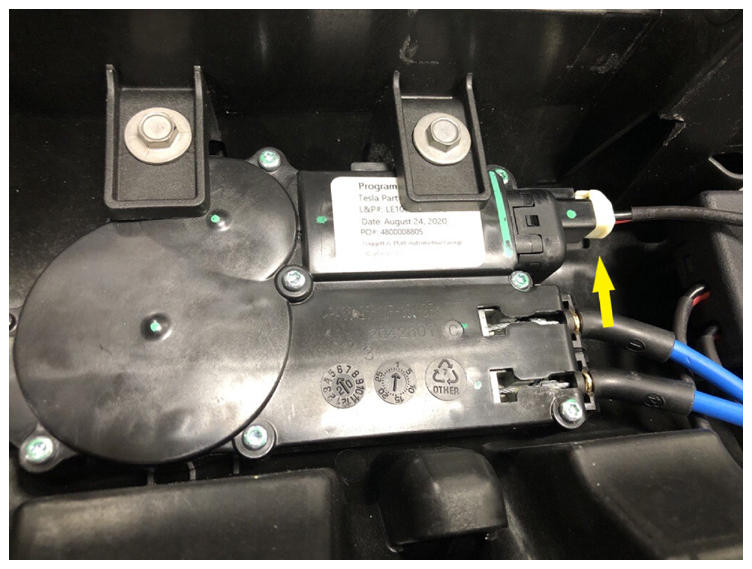

  2. Connect the RH 2nd row seat easy entry actuator electrical connector.
    G14821825Courtesy of TESLA, INC.

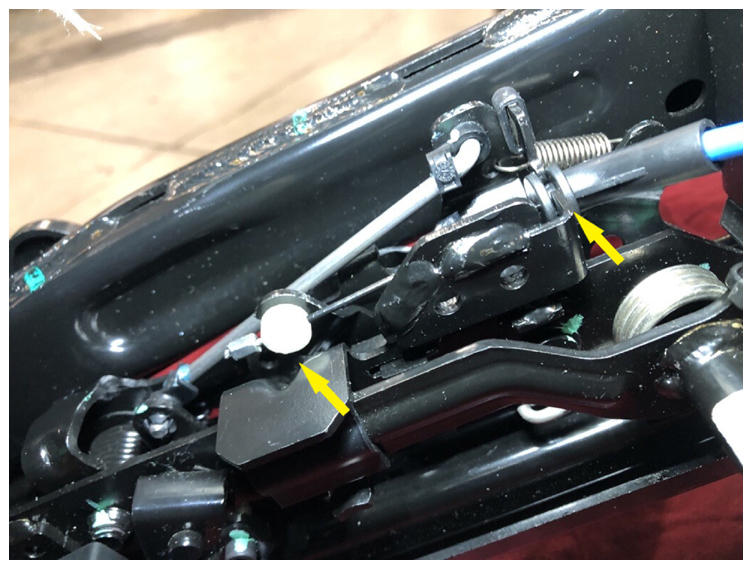

  3. Fasten the clips that attach the RH 2nd row seat easy entry actuator cable to the LH easy entry latch.
    G14821826Courtesy of TESLA, INC.

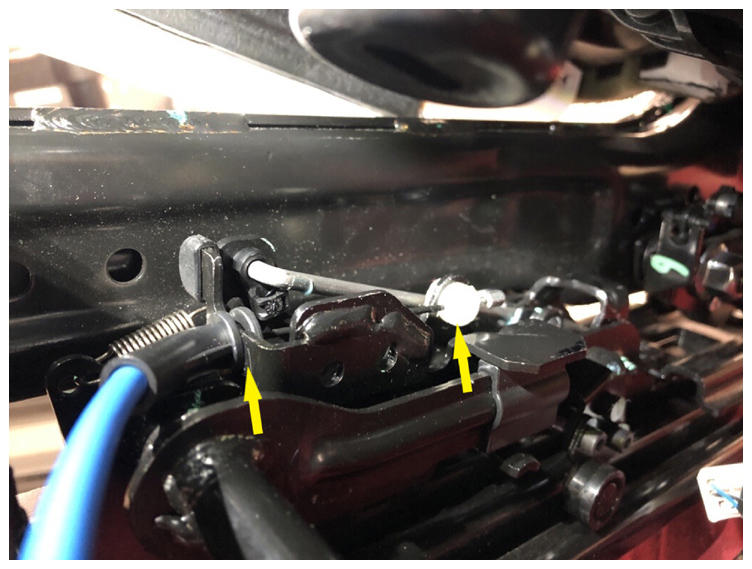

  4. Fasten the clips that attach the RH 2nd row seat easy entry actuator cable to the RH easy entry latch.
    G14821827Courtesy of TESLA, INC.

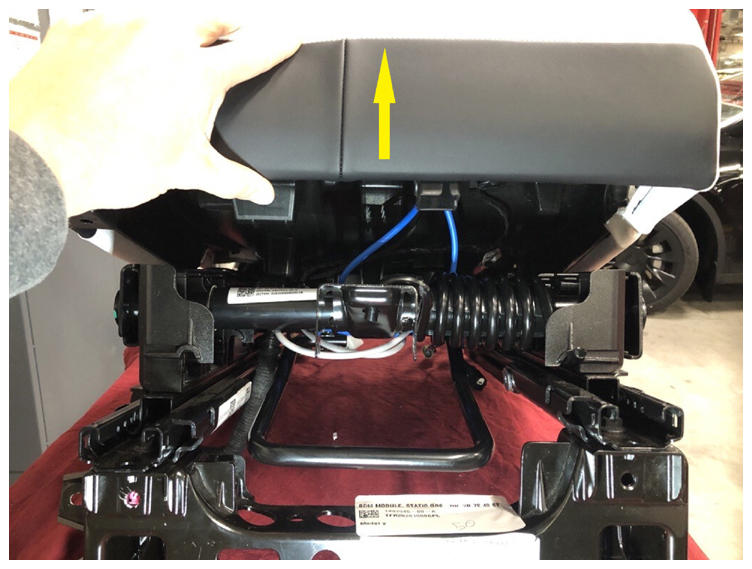

  5. Push downward on the RH 2nd row seat cushion to fully seat the cushion to the frame.
    G14821828Courtesy of TESLA, INC.

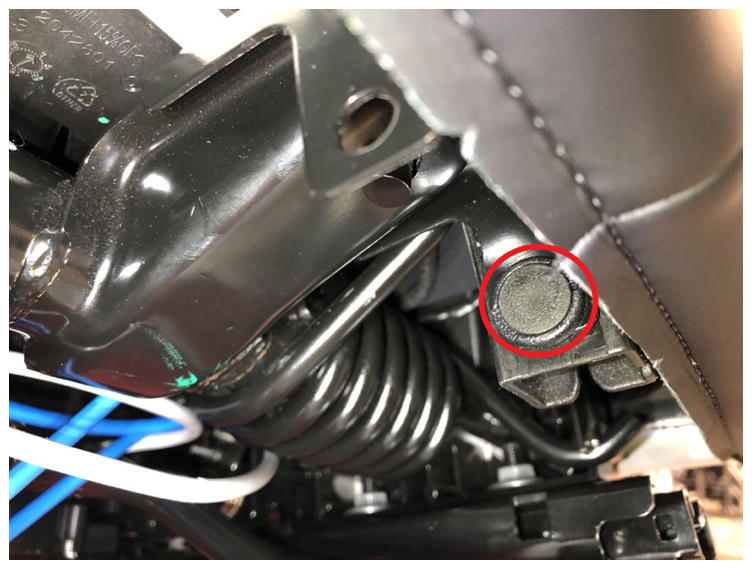

  6. Install the clip that attaches the RH 2nd row seat cushion pan to the seat frame.
    G14821829Courtesy of TESLA, INC.

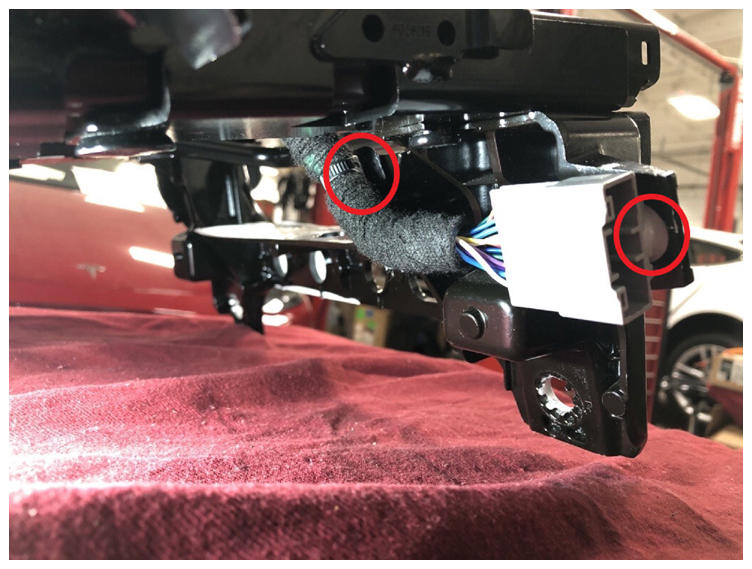

  7. Fasten the clips that attach the RH 2nd row seat cushion harness to the podium.
    G14821830Courtesy of TESLA, INC.

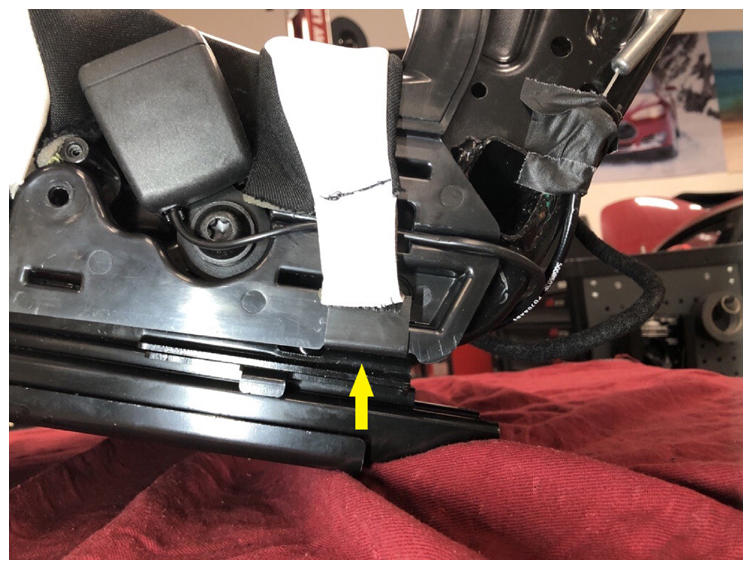

  8. Fasten the hook that attaches the inner B-cover to the RH 2nd row seat assembly.
    G14821831Courtesy of TESLA, INC.

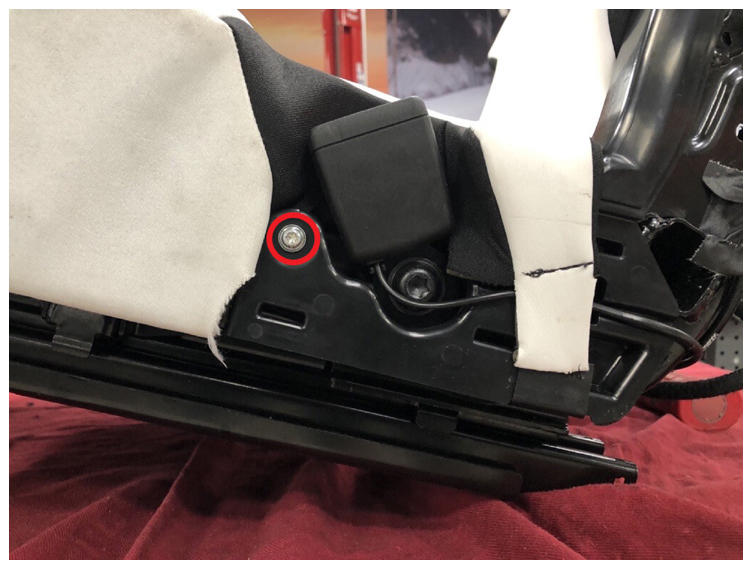

  9. Install the screw that attaches the RH 2nd row seat inner B-cover to the cushion pan.

    1.5 N.m (1.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    • Flex head ratchet/flex head torque wrench
    G14821833Courtesy of TESLA, INC.

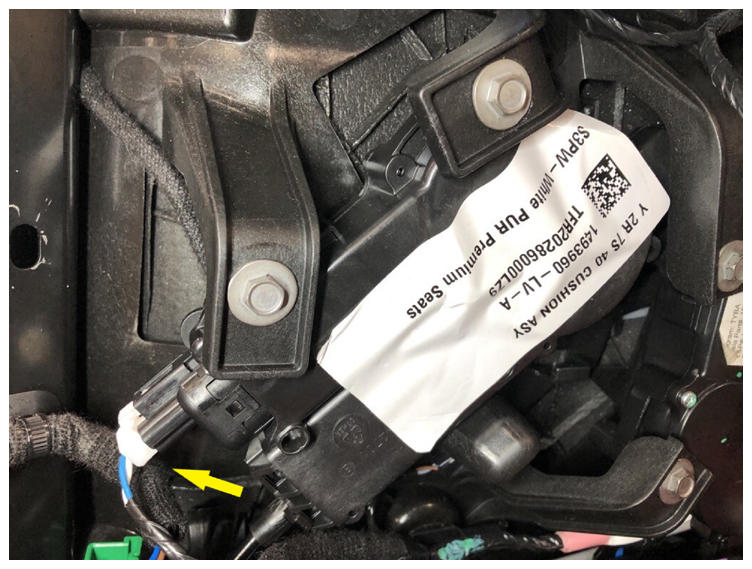

  10. Disconnect the RH 2nd row seat recliner actuator electrical connector.
    G14821834Courtesy of TESLA, INC.
  11. Using the seat fold tool, connect the recliner actuator electrical connector into the recliner actuator, and then activate the switch to fold the RH 2nd row seat down.
  12. Disconnect the seat fold tool from the RH 2nd row seat.
  13. Connect the RH 2nd row seat recliner actuator electrical connector.
  14. Position the RH 2nd row seat outer B-cover onto the inner B-cover, and then install the clips (x4).
    G14821835Courtesy of TESLA, INC.

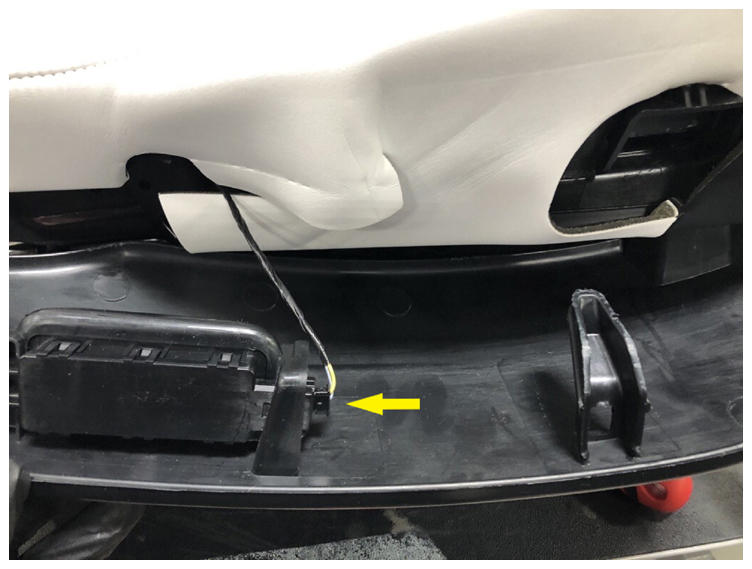

  15. Connect the RH 2nd row seat side shield electrical connector.
    G14821836Courtesy of TESLA, INC.

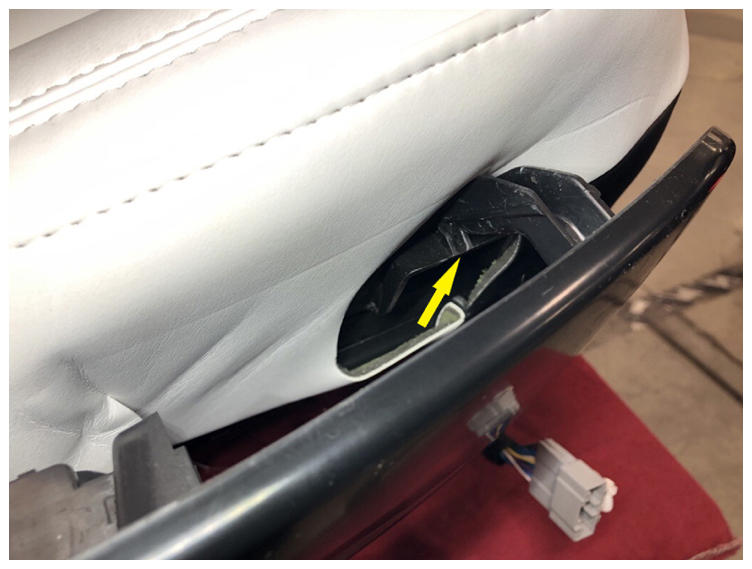

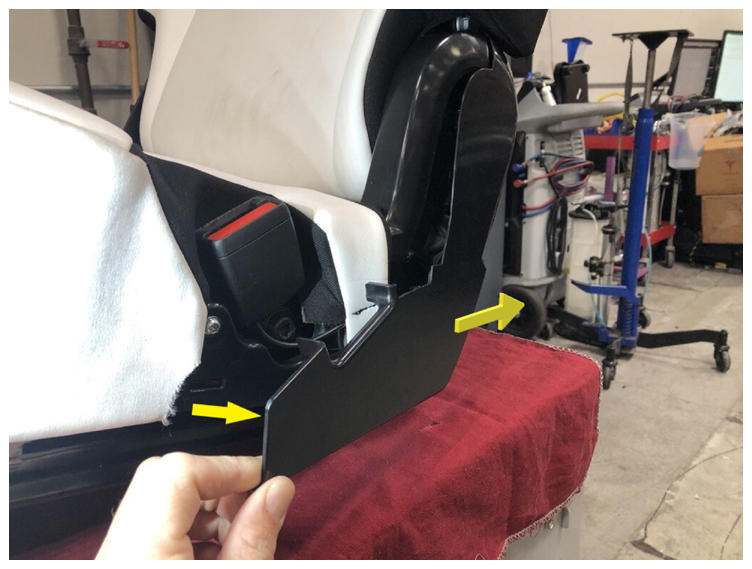

  16. Position the RH 2nd row seat side shield onto the RH 2nd row seat assembly, and then install the clip.
    G14821837Courtesy of TESLA, INC.

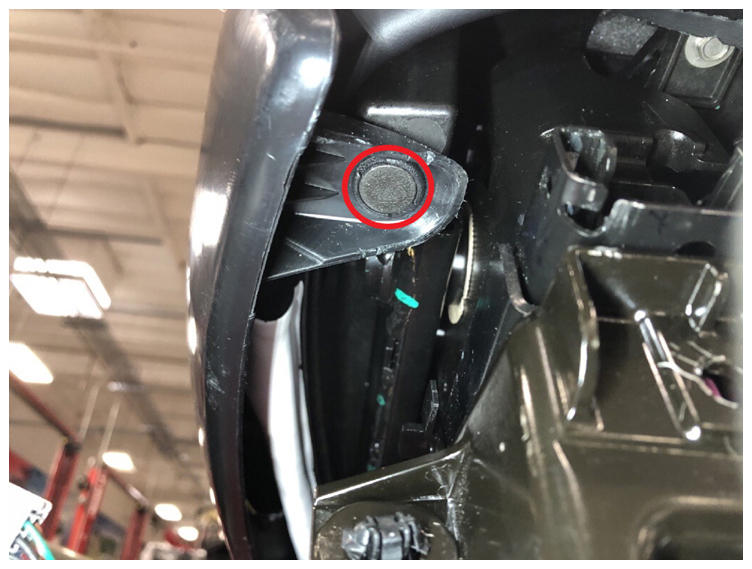

  17. Install the clip that attaches the RH 2nd row seat side shield to the cushion pan.
    G14821838Courtesy of TESLA, INC.

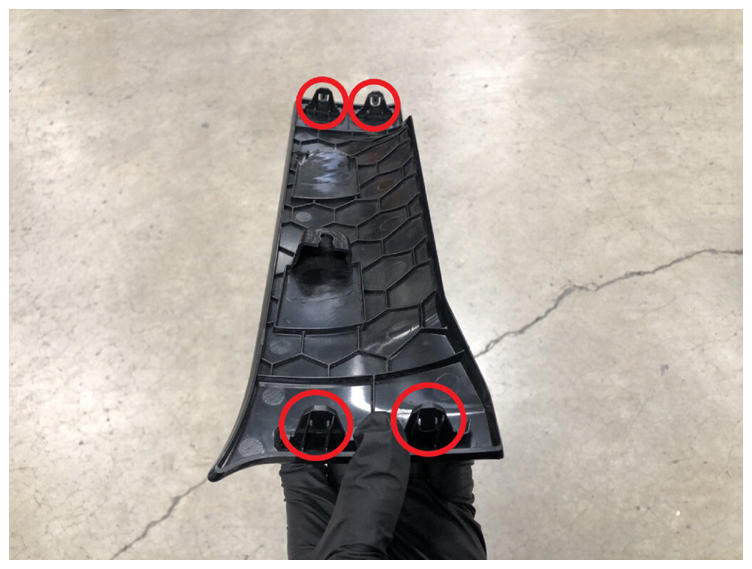

  18. Install the RH 2nd row seat toe kick cover.
    G14821839Courtesy of TESLA, INC.
  19. Install the RH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - RH (7-SEAT) (REMOVE AND REPLACE) .
