Side Shield Sub-Assembly - 2nd Row Seat (7-Seat) - Remove And Replace: Install

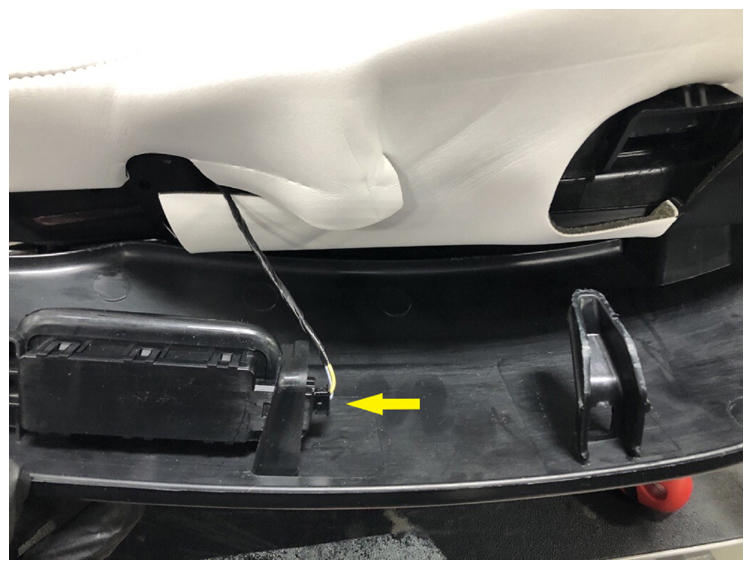

  1. Connect the RH 2nd row seat side shield electrical connector.
    G14823601Courtesy of TESLA, INC.

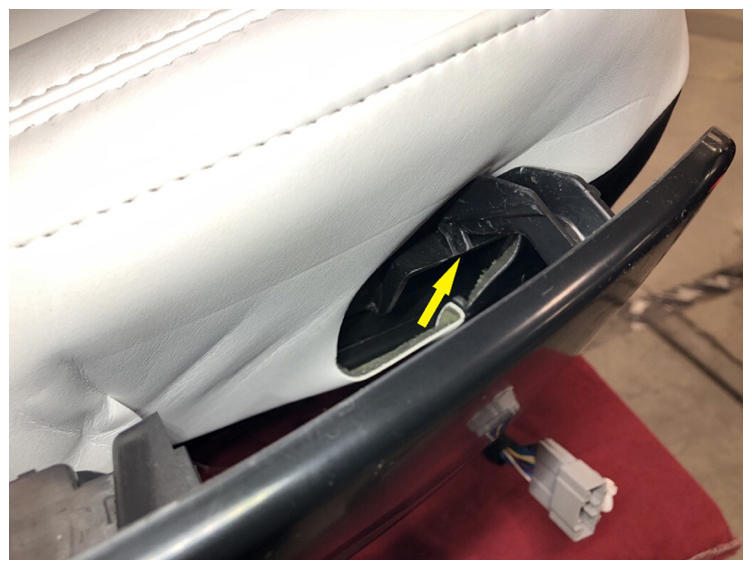

  2. Position the RH 2nd row seat side shield onto the RH 2nd row seat assembly, and then install the clip.
    G14823602Courtesy of TESLA, INC.

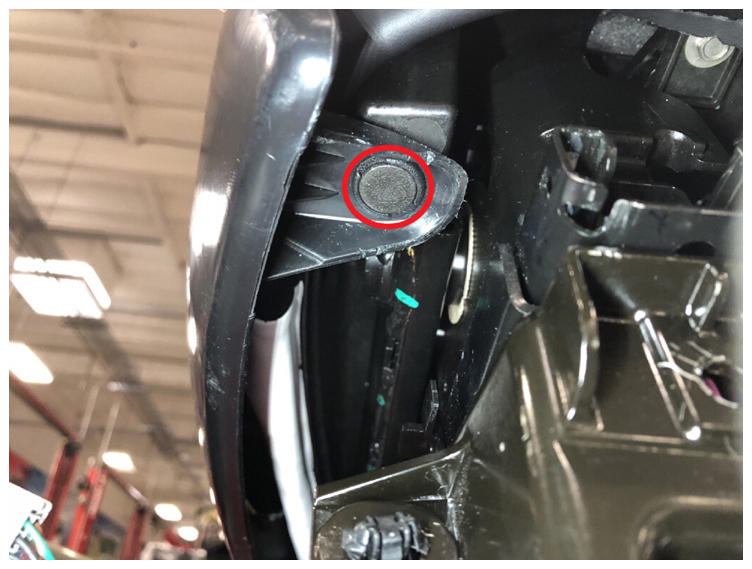

  3. Install the clip that attaches the RH 2nd row seat side shield to the cushion pan.
    G14823603Courtesy of TESLA, INC.
  4. Install the RH 2nd row seat toe kick cover. See COVER - TOE KICK - 2ND ROW SEAT - RH (7-SEAT) (REMOVE AND REPLACE) .
  5. Move the RH 2nd row seat to its original position.
  6. Move the passenger to its original position.
  7. Close the RH doors and raise the RH windows.
