Remove And Replace

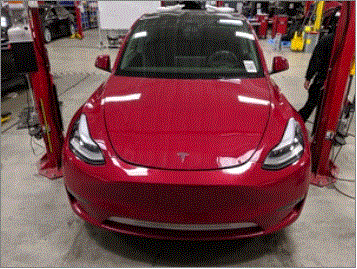

  1. Open all four doors
    G00649877Courtesy of TESLA, INC.

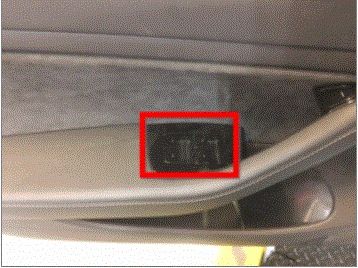

  2. Lower all four windows
    G00649881Courtesy of TESLA, INC.

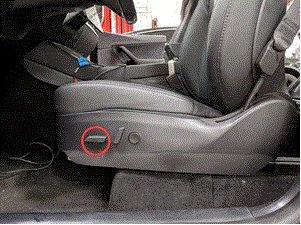

  3. Move LH front seat forward
    G00649885Courtesy of TESLA, INC.

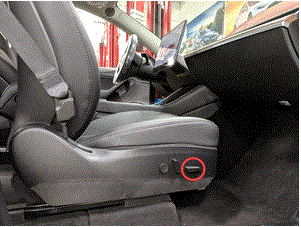

  4. Move RH front seat forward
    G00649889Courtesy of TESLA, INC.

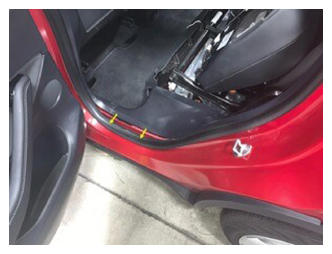

  5. Partially remove LH rear door seal
    G14823605Courtesy of TESLA, INC.

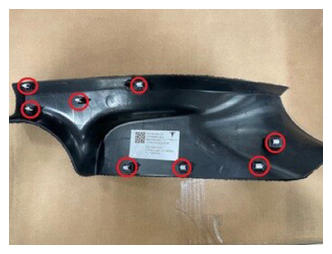

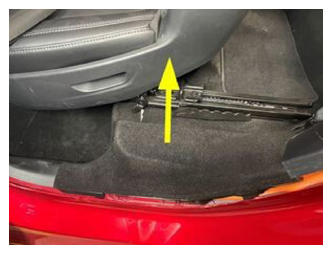

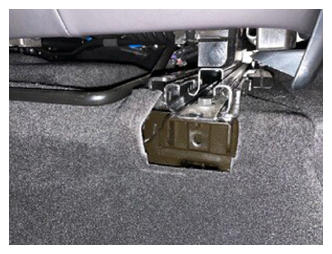

  6. Remove LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G14823606Courtesy of TESLA, INC.
    G14823607Courtesy of TESLA, INC.

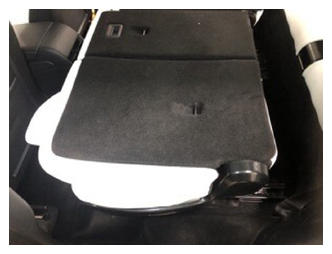

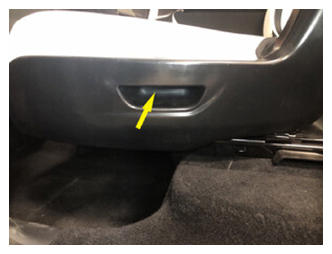

  7. Fold down 2nd row 60 seatback assembly
    NOTE: Press button, fold forwards
    G14823608Courtesy of TESLA, INC.
    G14823609Courtesy of TESLA, INC.

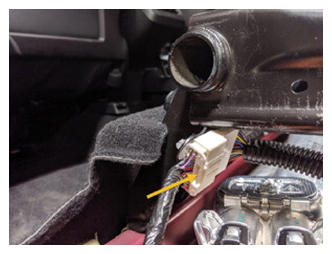

  8. Disconnect 2nd row 60 seat connector
    NOTE: 1x connector
    G14823610Courtesy of TESLA, INC.

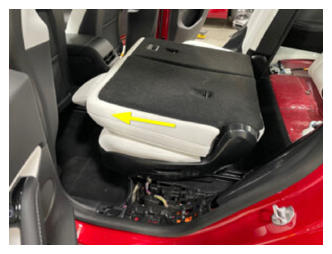

  9. Move 60 seat forward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14823611Courtesy of TESLA, INC.
    G14823612Courtesy of TESLA, INC.

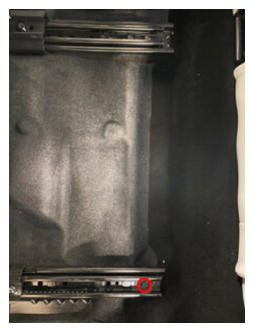

  10. Remove 60 seat rear outboard track fastener
    NOTE: 1x patch bolt, 11 mm, 37 N.m, Discard after removal
    G14823613Courtesy of TESLA, INC.

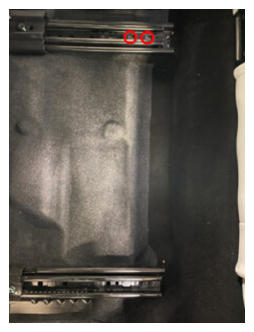

  11. Remove 60 seat rear inboard track fasteners
    NOTE: 2x patch bolts, 11 mm, 37 N.m, Discard after removal
    G14823614Courtesy of TESLA, INC.

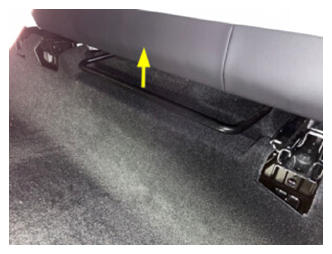

  12. Move 60 seat fully rearward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14823615Courtesy of TESLA, INC.

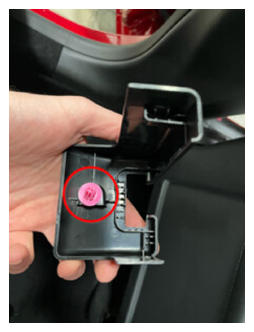

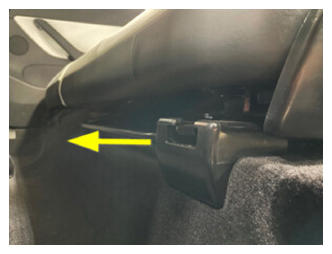

  13. Remove 60 seat outboard track cover
    NOTE: 1x clip, Slide covers forward to release from 60 seat tracks
    G14823616Courtesy of TESLA, INC.
    G14823617Courtesy of TESLA, INC.
    G14823618Courtesy of TESLA, INC.

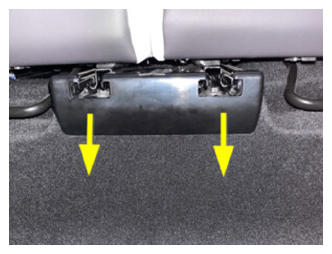

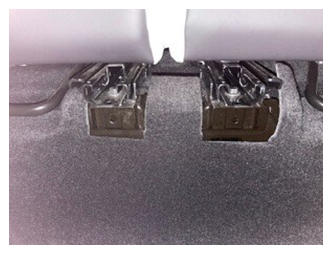

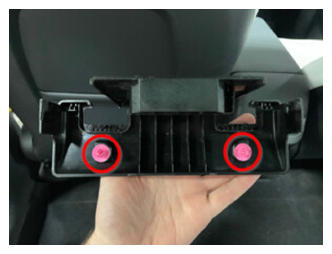

  14. Remove center track cover from 2nd row seats
    NOTE: 2x clips, Slide covers forward to release from 2nd row seat tracks
    G14823619Courtesy of TESLA, INC.
    G14823620Courtesy of TESLA, INC.
    G14823621Courtesy of TESLA, INC.

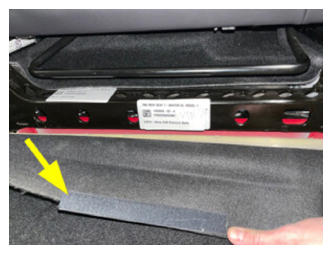

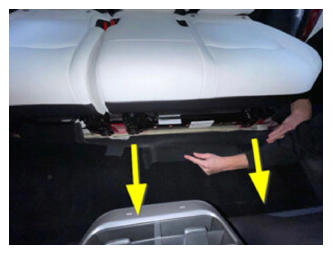

  15. Release cabin carpet from 60 seat
    NOTE: Pull cabin carpet towards front of vehicle
    G14823622Courtesy of TESLA, INC.
    G14823623Courtesy of TESLA, INC.

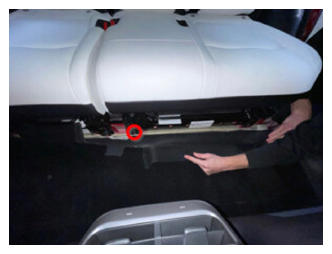

  16. Remove 60 seat front inboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14823624Courtesy of TESLA, INC.
  17. Remove 60 seat front outboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14823625Courtesy of TESLA, INC.

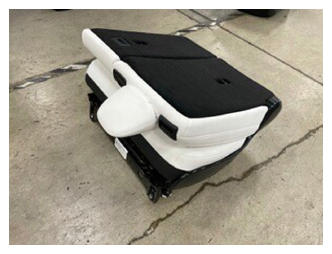

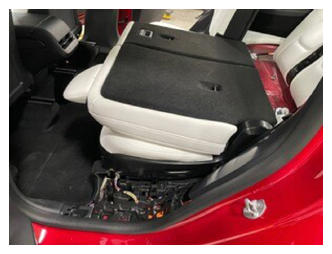

  18. Remove 2nd row 60 seat assembly from vehicle
    NOTE: Recommend assistance
    G14823626Courtesy of TESLA, INC.
    G14823627Courtesy of TESLA, INC.

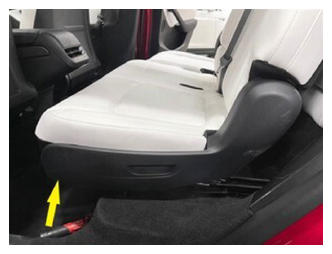

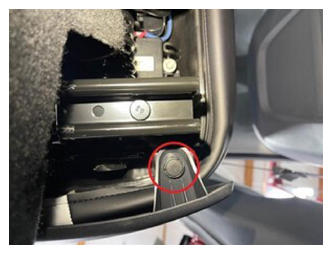

  19. Remove front push clip from 60 outer sideshield assembly outer side shield
    NOTE: 1x clip, Use pick to remove the push clip from the bottom side of the outboard cover
    G14823628Courtesy of TESLA, INC.
    G14823629Courtesy of TESLA, INC.

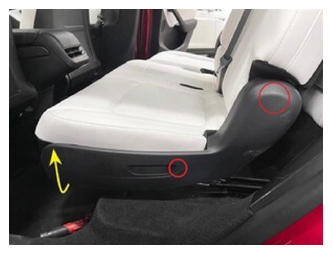

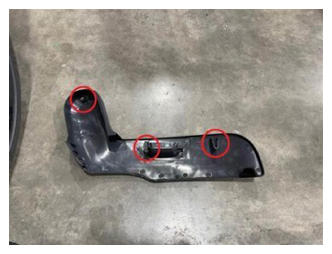

  20. Remove 2nd row 60 cushion assembly outer side shield
    NOTE: 1x clip 1x connector, Remove outer sideshield assembly by pulling outwards and up at the front portion of the trim, Unclip remaining clip and unplug the connection
    G14823630Courtesy of TESLA, INC.
    G14823631Courtesy of TESLA, INC.

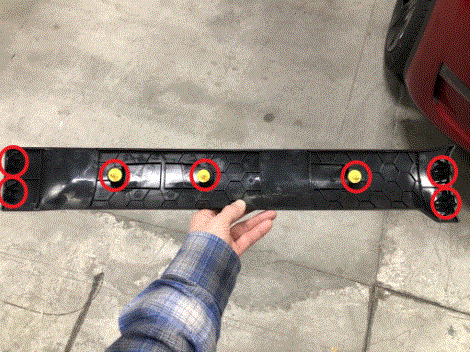

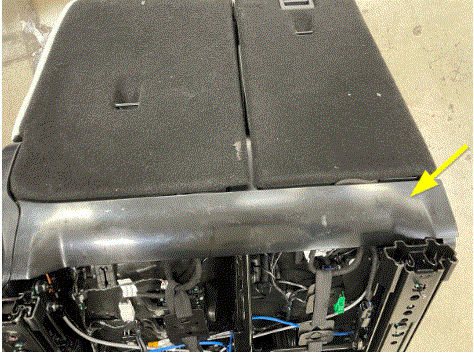

  21. Remove 2nd row 60 seatback assembly toe kick panel
    NOTE: 7x clips, Pry up on LH side of 60 toe kick cover to release clips, Repeat on RH side to fully remove
    G00639422Courtesy of TESLA, INC.
    G00639426Courtesy of TESLA, INC.

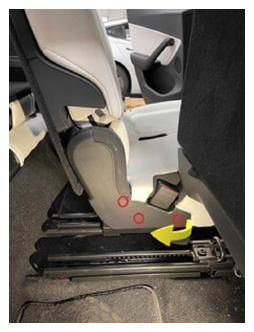

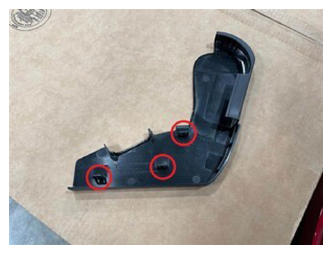

  22. Release clips and remove inboard outer trim from 2nd row 60 seat cushion assembly
    NOTE: 3x clips, Use trim tool to unclip 3x clips and remove inboard outer trim towards rear of the vehicle
    G14823632Courtesy of TESLA, INC.
    G14823633Courtesy of TESLA, INC.

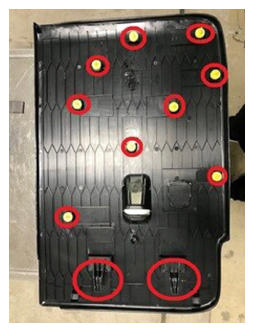

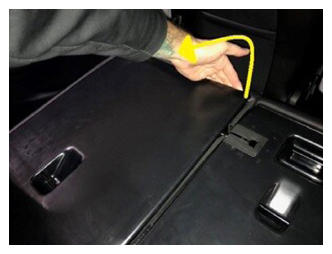

  23. Remove 60 seatback panel
    NOTE: 9x clips, 2x hooks, Release clips starting at the top of backpanel working your way down the lower backpanel, pull 60 backpanel towards front of vehicle to remove
    G14823636Courtesy of TESLA, INC.
    G14823637Courtesy of TESLA, INC.

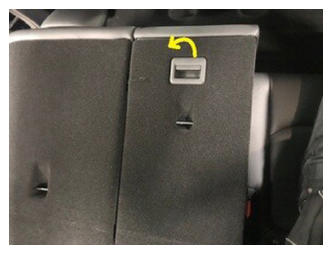

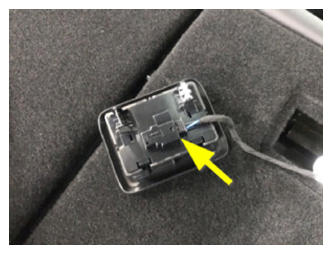

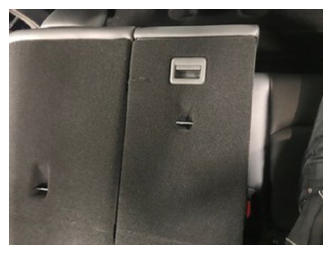

  24. Remove 2nd row center seat switch
    NOTE: 1x connector, 2x clips, Using plastic trim tool pry the top of the switch away from 20 backpanel to ease removal
    G14823638Courtesy of TESLA, INC.
    G14823639Courtesy of TESLA, INC.
    G14823640Courtesy of TESLA, INC.

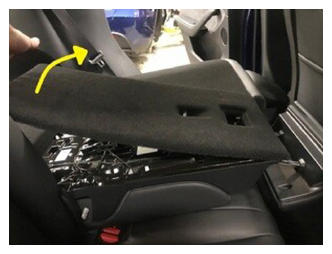

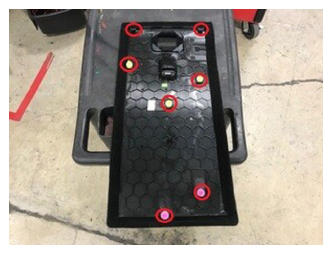

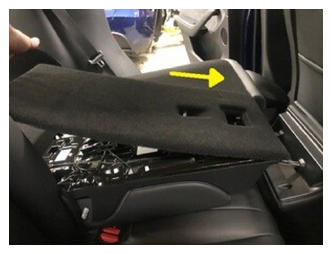

  25. Remove center back panel from 2nd row center seatback
    NOTE: 5x clips, 2 hooks, Lift up at the lower 20 backpanel and then slide forward to release
    G14823641Courtesy of TESLA, INC.
    G14823642Courtesy of TESLA, INC.
    G14823643Courtesy of TESLA, INC.
  26. Release 2nd row 60 seat harness connectors and clip from seat from seat frame
    NOTE: 1x clip, 7x connectors
    G14823644Courtesy of TESLA, INC.
    G14823645Courtesy of TESLA, INC.

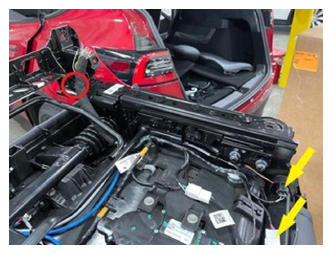

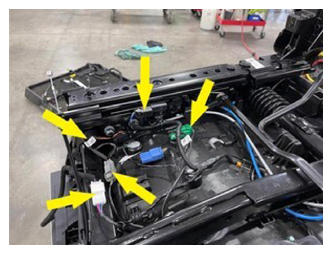

  27. Release 2nd row 60 seat harness connectors and clip from seat from seat frame
    NOTE: 1x clip, 7x connectors
    G14823646Courtesy of TESLA, INC.
    G14823647Courtesy of TESLA, INC.

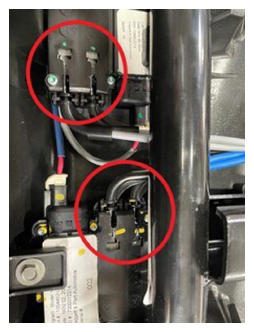

  28. Disconnect seat cables from easy entry actuators on 60 seat
    NOTE: 4x clips
    G14823648Courtesy of TESLA, INC.
  29. Remove cable from 60 fold actuator
    NOTE: 1x clip, Remove cable from 60 fold actuator
    G00639430Courtesy of TESLA, INC.

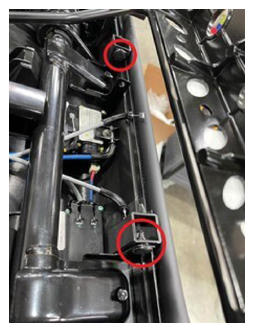

  30. Remove push clips for 2nd row 60 bottom seat pan
    NOTE: 2x clips, Remove push clips from front of seat pan
    G14823649Courtesy of TESLA, INC.

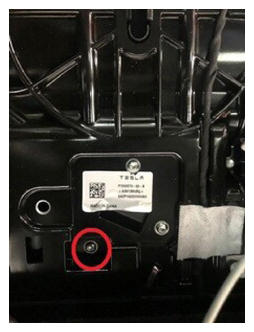

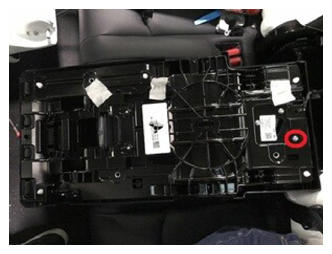

  31. Remove center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14823650Courtesy of TESLA, INC.
    G14823651Courtesy of TESLA, INC.

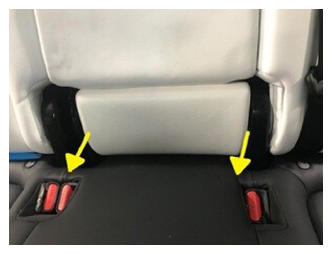

  32. Remove center seatback lumbar bun
    NOTE: 2x clips, Pull bolster outwards to release
    G14823652Courtesy of TESLA, INC.

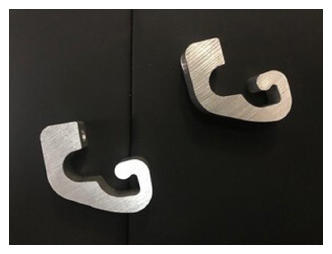

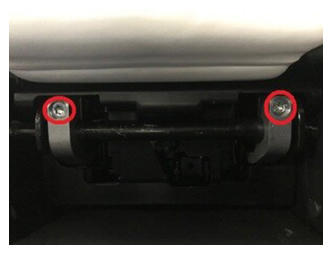

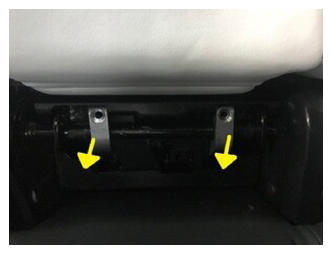

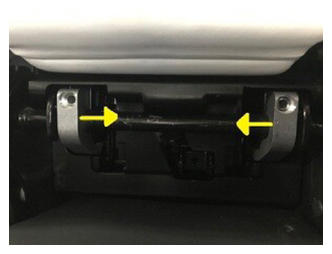

  33. Remove center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Once fasteners are removed slide pivot clamp towards the center of center seatback and pull each outwards to remove
    G14823653Courtesy of TESLA, INC.
    G14823654Courtesy of TESLA, INC.
    G14823655Courtesy of TESLA, INC.
    G14823656Courtesy of TESLA, INC.

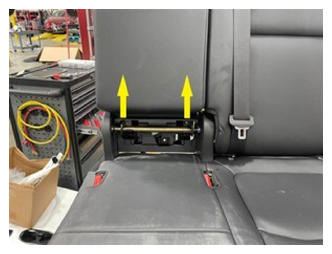

  34. Remove center seatback from 60 seat frame
    NOTE: Remove center seatback by lifting upwards
    G14823657Courtesy of TESLA, INC.

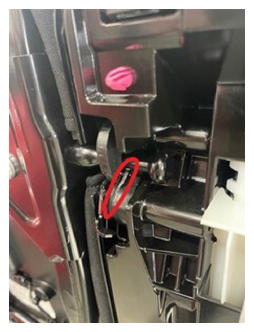

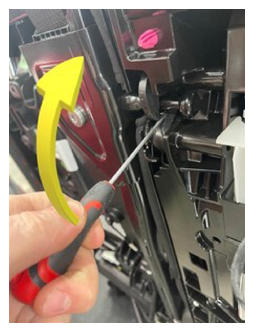

  35. Manually release the center seatback latch
    NOTE: Use small screwdriver to manipulate the center seatback latch to release
    G14823658Courtesy of TESLA, INC.
    G14823659Courtesy of TESLA, INC.

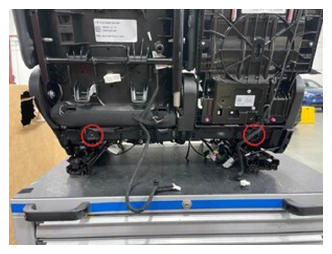

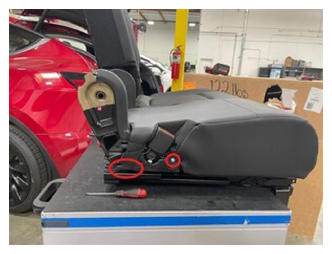

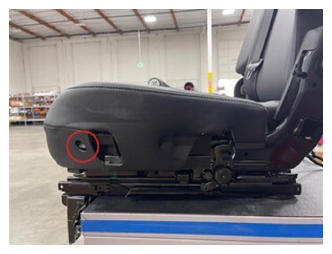

  36. Remove fasteners securing 60 seat pan to seat frame
    NOTE: 4x fastener, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Remove remaining bolts attaching seat pan to seat frame
    G14823660Courtesy of TESLA, INC.
    G14823661Courtesy of TESLA, INC.
    G14823662Courtesy of TESLA, INC.

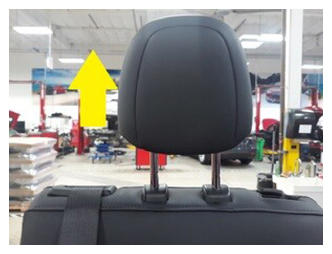

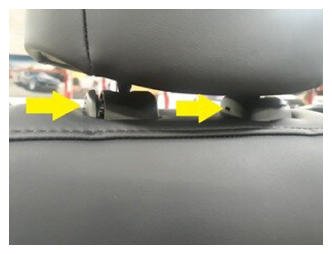

  37. Remove headrest from 2nd row 60 seat assembly
    NOTE: Simultaneously depress the guide button and insert a 90 degree pick into the guide opening, Lift up while engaged
    G14823663Courtesy of TESLA, INC.
    G14823664Courtesy of TESLA, INC.

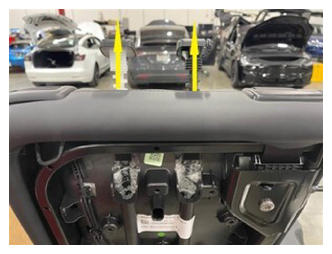

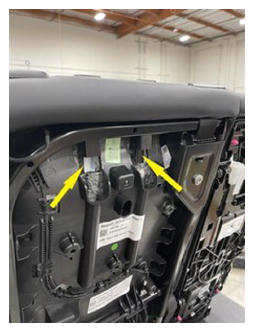

  38. Remove headrest guides from 2nd row 60 seatback assembly
    NOTE: Pull back on lower portion of the headrest guide to release tab while also applying upward force to remove headrest guides
    G14823665Courtesy of TESLA, INC.
    G14823666Courtesy of TESLA, INC.

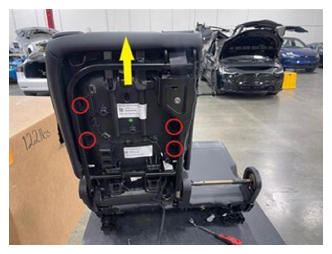

  39. Remove 2nd row 60 seatback assembly
    NOTE: 4x clips, Release clips securing 60 seatback and lift upwards, Seat belt will be removed in a later step
    G14823667Courtesy of TESLA, INC.

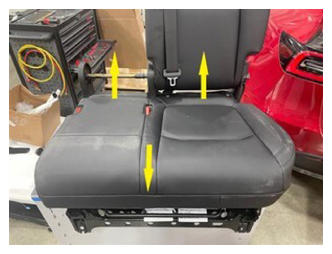

  40. Remove 2nd row 60 seat cushion assembly
    NOTE: Remove seat bottom by lifting the rear first and removing it towards front of the seat
    G14823668Courtesy of TESLA, INC.

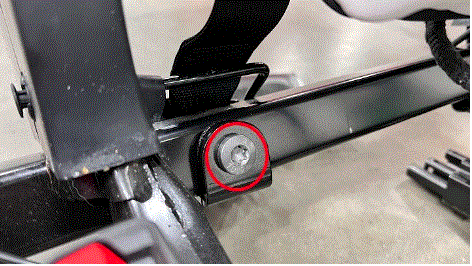

  41. Remove 2nd row center seat belt anchor
    NOTE: 1x bolt, T50, 40 N.m, Discard after removal
    G00639434Courtesy of TESLA, INC.

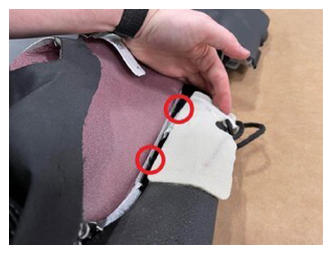

  42. Remove 2nd row center seat belt guide
    NOTE: 2x clips, 2x datums
    G00639438Courtesy of TESLA, INC.
    G14823671Courtesy of TESLA, INC.
  43. Remove 2nd row center seat belt from 2nd row 60 seatback assembly
    NOTE: Pass seat belt through opening
    G00639446Courtesy of TESLA, INC.

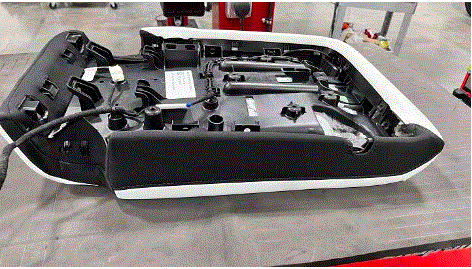

  44. Place 2nd row 60 seatback assembly on a suitable working surface
    NOTE: Avoid damage to seat cover
    G00639450Courtesy of TESLA, INC.

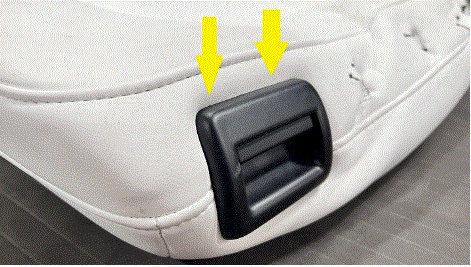

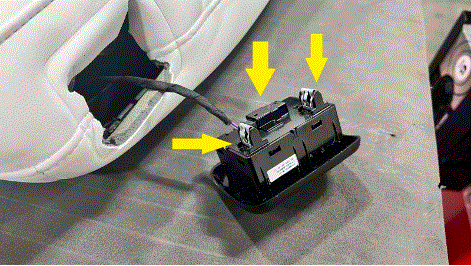

  45. Remove easy-entry switch
    NOTE: 2x clips, 1x connector
    G00639454Courtesy of TESLA, INC.
    G00639458Courtesy of TESLA, INC.
  46. Disconnect seat heating connector
    NOTE: 1x connector
    G00639462Courtesy of TESLA, INC.

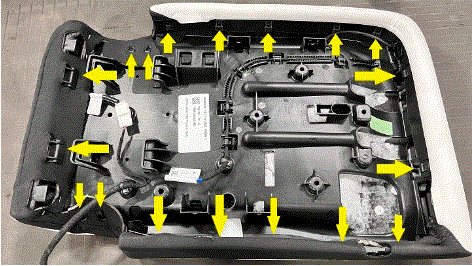

  47. Release 2nd row 60 seatback cover
    NOTE: 16x tabs, Pull materials downward to release
    G00639466Courtesy of TESLA, INC.

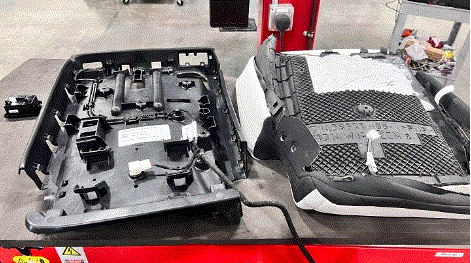

  48. Remove backrest shell from 2nd row 60 seatback cover
    NOTE: Early production models may have staples holding materials to shell in some areas
    G00639470Courtesy of TESLA, INC.

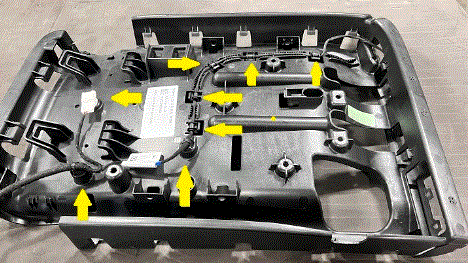

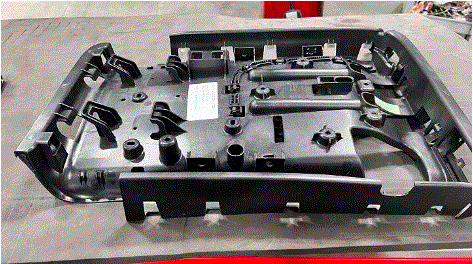

  49. Removing wiring harness from backrest shell
    NOTE: 3x harness clips, 5x tabs
    G00649811Courtesy of TESLA, INC.
    G00649815Courtesy of TESLA, INC.
  50. Install wiring harness to backrest shell
    NOTE: 3x harness clips, 5x tabs
    G00649815Courtesy of TESLA, INC.
    G00649811Courtesy of TESLA, INC.
  51. Install 2nd row 60 seatback cover to backrest shell
    NOTE: 16x hooks, Pull materials downward to attach, Ensure material is distributed correctly on visible face
    G00649819Courtesy of TESLA, INC.

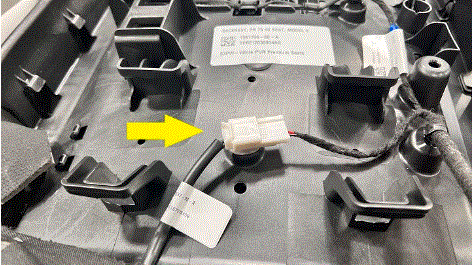

  52. Connect heating pad connector
    NOTE: 1x connector
    G00649823Courtesy of TESLA, INC.
  53. Install easy-entry switch
    NOTE: 2x tabs, 1x connector
    G00649827Courtesy of TESLA, INC.

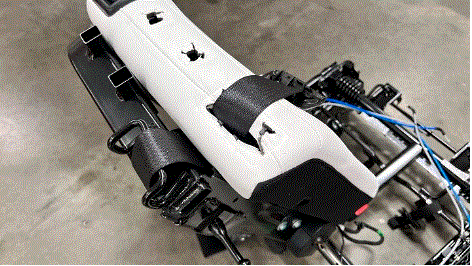

  54. Install 2nd row center seat belt to 2nd 60 seatbelt assembly
    NOTE: Pass seat belt through opening
    G00649831Courtesy of TESLA, INC.

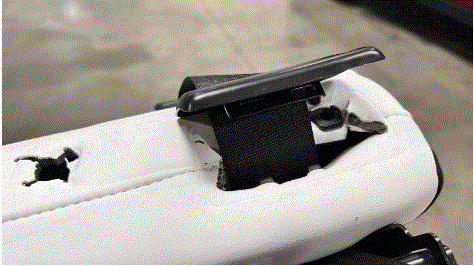

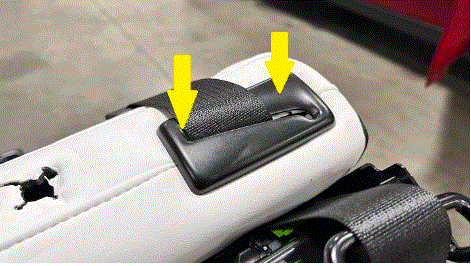

  55. Install 2nd row center seat belt guide
    NOTE: 2x clips, 2x datums
    G00649835Courtesy of TESLA, INC.
    G00649839Courtesy of TESLA, INC.

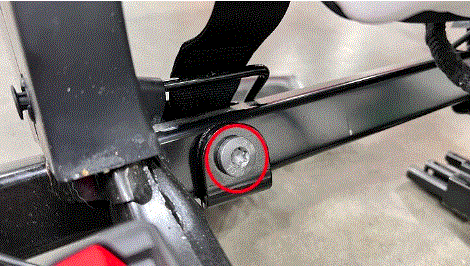

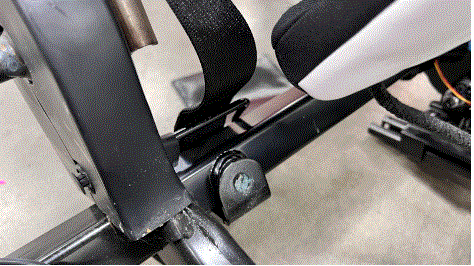

  56. Install 2nd row center seat belt anchor
    NOTE: 1x bolt, T50, 40 N.m
    G00649843Courtesy of TESLA, INC.
    G00649847Courtesy of TESLA, INC.
  57. Place 60 seat pan onto seat frame
    NOTE: Reinstall seat bottom onto seat frame by starting at the rear of the seat
    G00649851Courtesy of TESLA, INC.

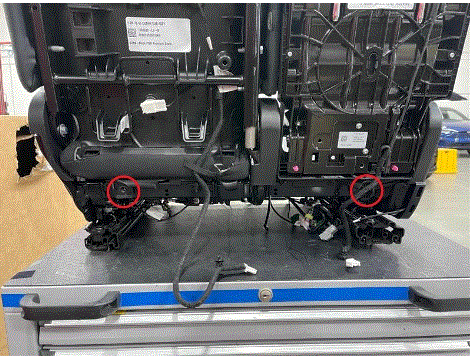

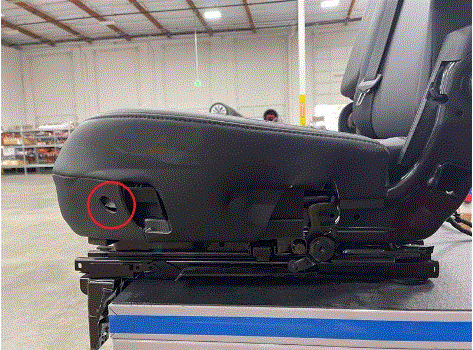

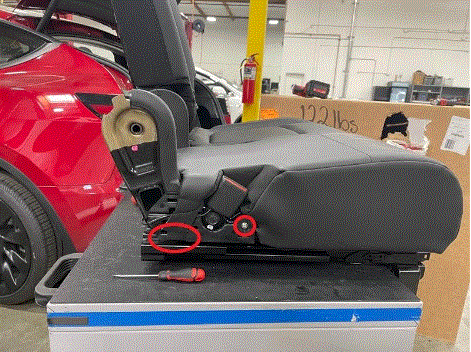

  58. Secure 60 seat bottom to seat frame
    NOTE: 4x fastener, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Install remaining bolts attaching seat pan to seat frame
    G00649855Courtesy of TESLA, INC.
    G00649859Courtesy of TESLA, INC.
    G00649863Courtesy of TESLA, INC.

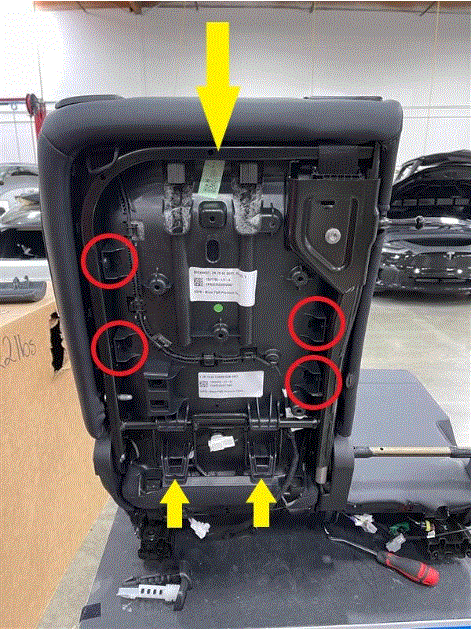

  59. Install 2nd row 60 seatback into place
    NOTE: 4x clips, Slide seat back into place making sure the bottom retainers slide into place, Reinstall push clips to secure seat back
    G00649867Courtesy of TESLA, INC.

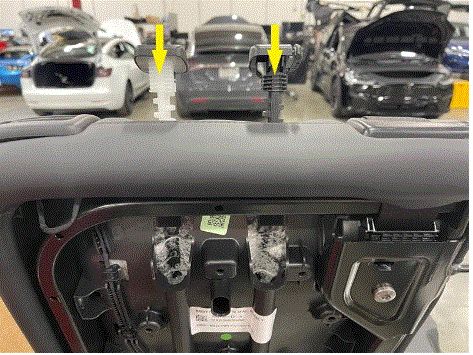

  60. Install headrest guides into 60 seat assembly
    NOTE: Install headrest guides by pressing downwards until lower tab is seated
    G00649871Courtesy of TESLA, INC.

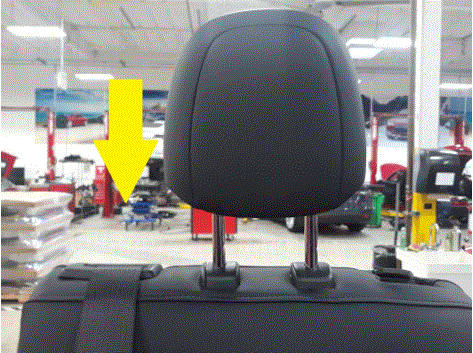

  61. Install headrest onto 60 seat assembly
    NOTE: Push down to secure
    G00649875Courtesy of TESLA, INC.

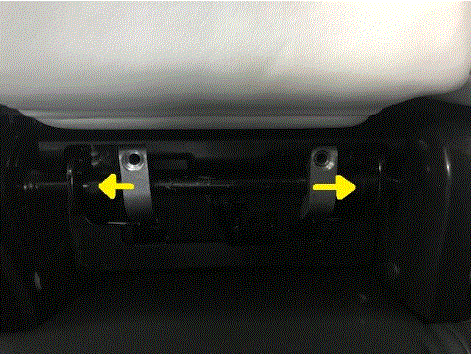

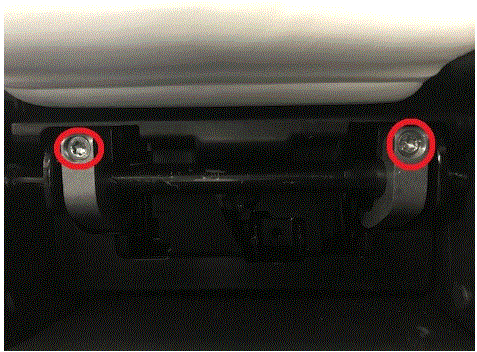

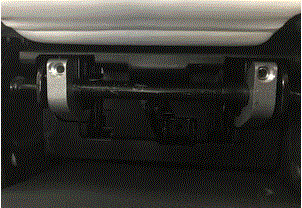

  62. Install center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Insert pivot clamp at center of center frame and slide outwards to install fasteners, When replacing pivot clamps they must be replaced in pairs
    G00649879Courtesy of TESLA, INC.
    G00649883Courtesy of TESLA, INC.
    G00649887Courtesy of TESLA, INC.

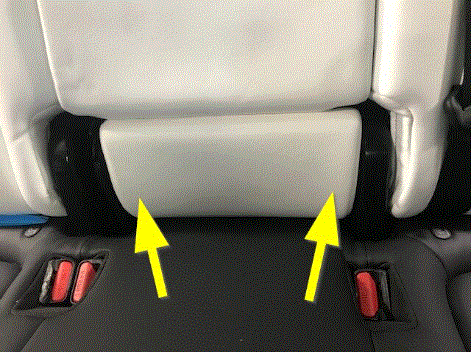

  63. Install center seatback lumbar bun
    NOTE: 2x clips, Press seatback lumbar bun into center frame
    G00649812Courtesy of TESLA, INC.

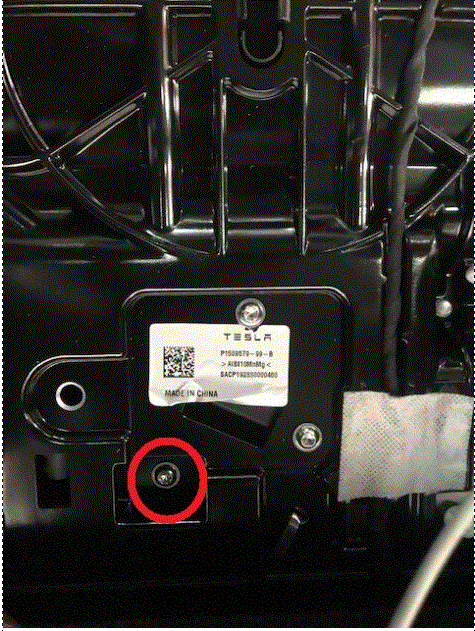

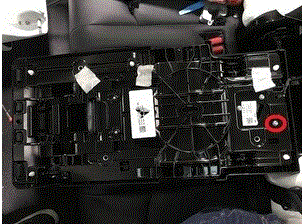

  64. Install center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G00649816Courtesy of TESLA, INC.
    G00649820Courtesy of TESLA, INC.

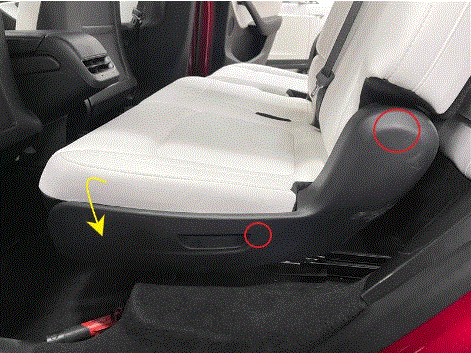

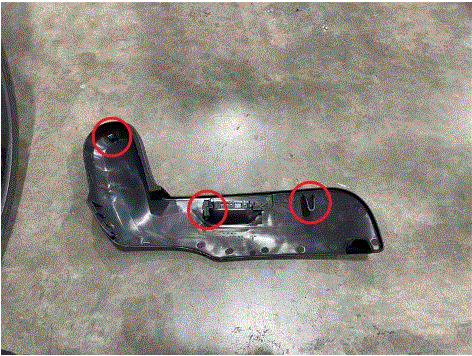

  65. Plug in connector and install trim to 60 seat
    NOTE: 1x connector, 1x clip, Plug in connector and install trim by hooking the front into place and seat clip at rear of trim.
    G00649824Courtesy of TESLA, INC.
    G00649828Courtesy of TESLA, INC.

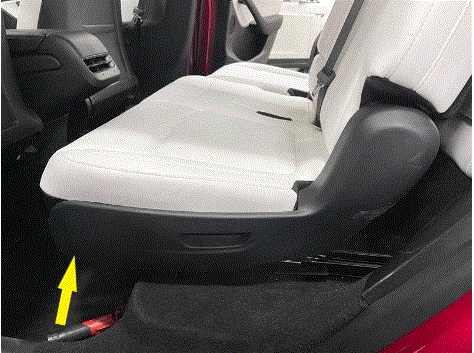

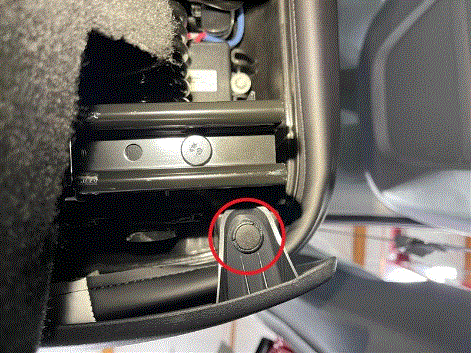

  66. Install push clip at front of outer 60 side shield assembly
    NOTE: 1x clip, Install push clip at front bottom side of the trim
    G00649832Courtesy of TESLA, INC.
    G00649836Courtesy of TESLA, INC.

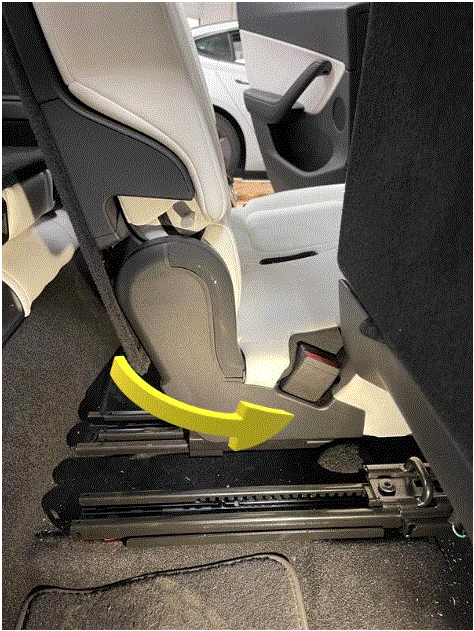

  67. Install inboard outer trim to 60 seat
    NOTE: Clip 3x, Install inboard outer trim and re-seat 3x clips
    G00649840Courtesy of TESLA, INC.

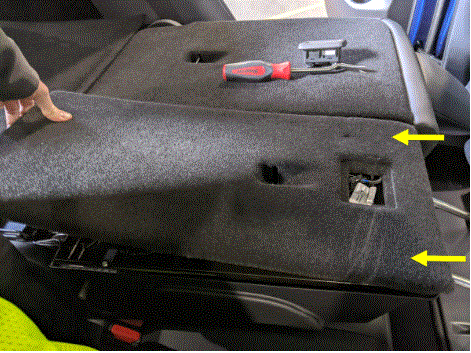

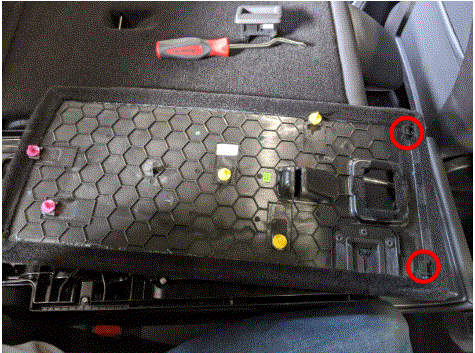

  68. Insert back panel hooks into center seat back assembly
    NOTE: 2x hooks, Engage hoooks and slide rearward into position, Early production have 4x hooks
    G00649844Courtesy of TESLA, INC.
    G00649848Courtesy of TESLA, INC.

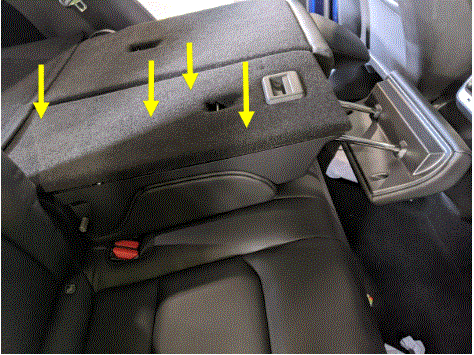

  69. Install center back panel onto seat back
    NOTE: 5x clips
    G00649852Courtesy of TESLA, INC.

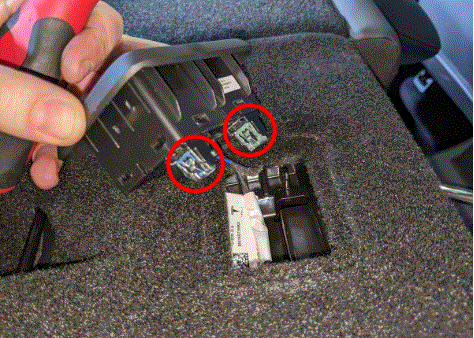

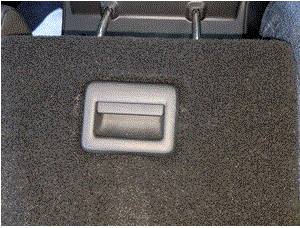

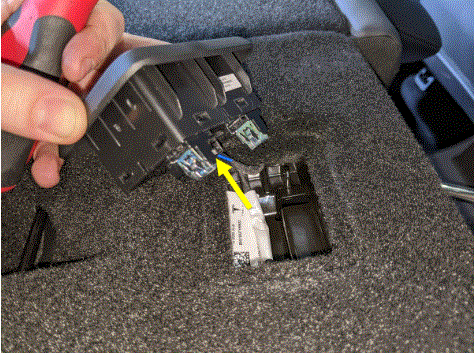

  70. Install 2nd row center seat switch
    NOTE: 1x connector, 2x clips
    G00649814Courtesy of TESLA, INC.
    G00649818Courtesy of TESLA, INC.
    G00649864Courtesy of TESLA, INC.
  71. Install 60 toe kick cover
    NOTE: 7x clips
    G00649868Courtesy of TESLA, INC.
    G00649872Courtesy of TESLA, INC.

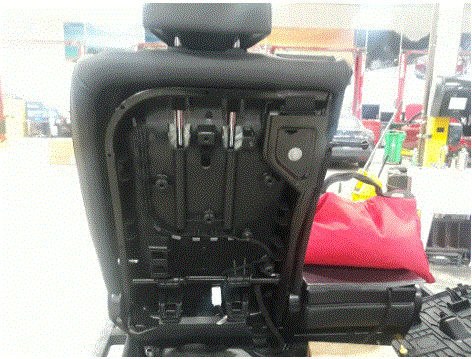

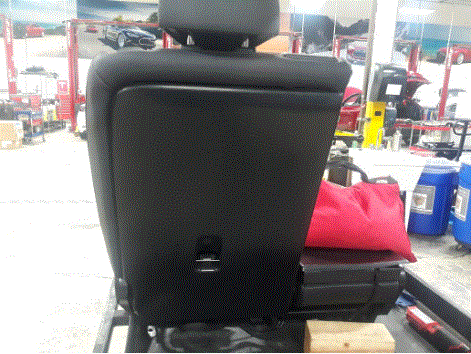

  72. Install LH seatback onto 60 seat assembly

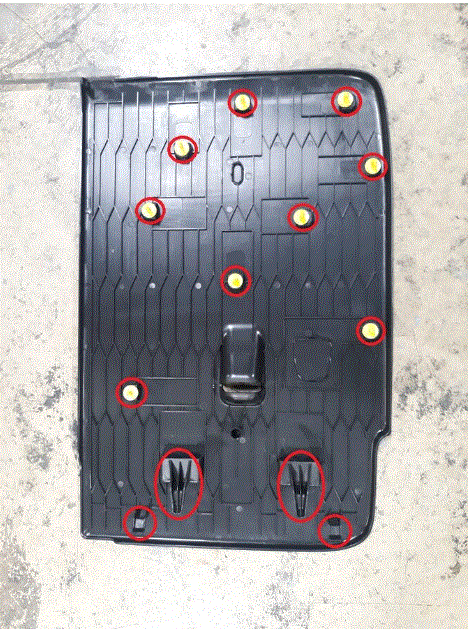

    NOTE: 9x clips, 4 hooks, Attach hooks onto frame rail, Work upwards and fasten all the clips
    G00649876Courtesy of TESLA, INC.
    G00649880Courtesy of TESLA, INC.
    G00649884Courtesy of TESLA, INC.

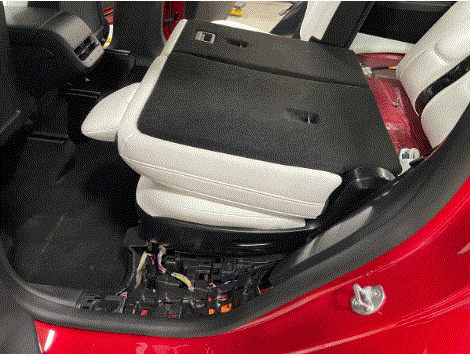

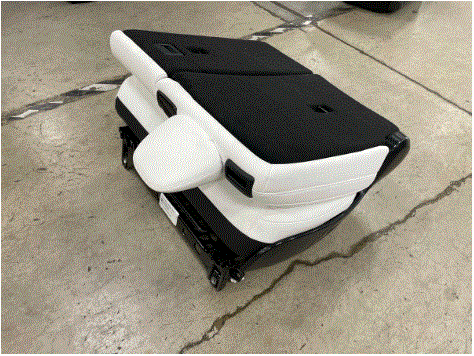

  73. Install 2nd row 60 seat assembly
    NOTE: Recommend assistance
    G00649888Courtesy of TESLA, INC.
    G00649813Courtesy of TESLA, INC.
  74. Connect 2nd row 60 seat connector

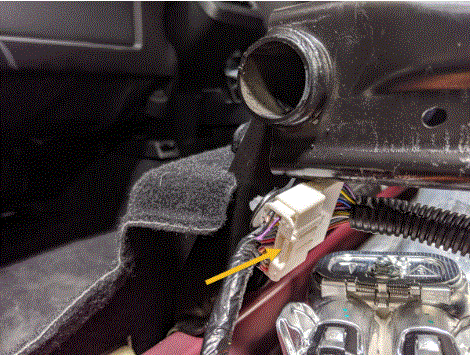

    NOTE: 1x connector
    G00649817Courtesy of TESLA, INC.

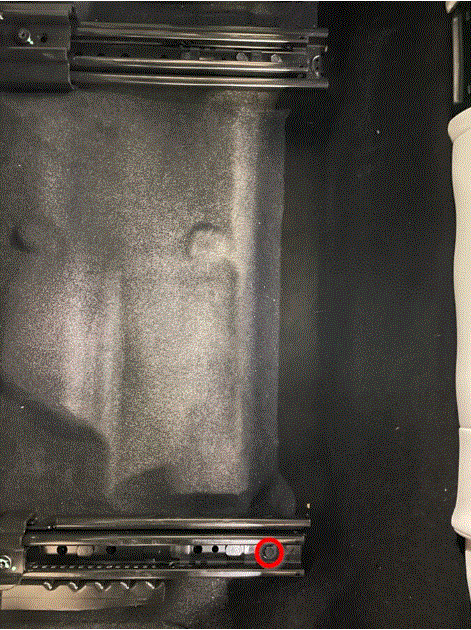

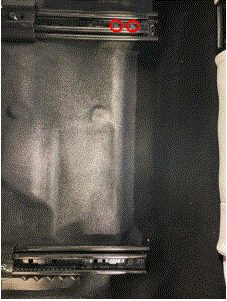

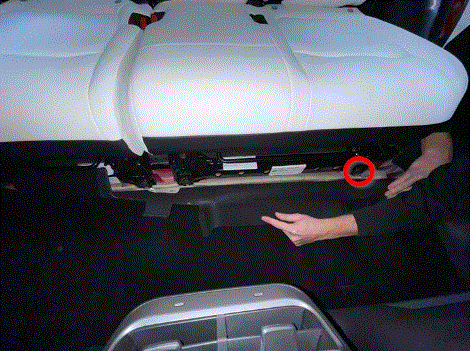

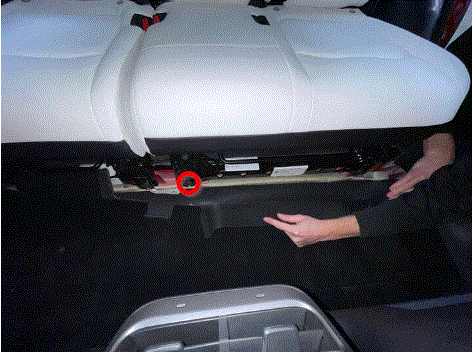

  75. Install fasteners securing 60 seat frame to body
    NOTE: 5x patch bolts, 11 mm, 37 N.m, Install new patch bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Both inboard rear -> Outboard rear -> Inboard front
    G00649821Courtesy of TESLA, INC.
    G00649825Courtesy of TESLA, INC.
    G00649829Courtesy of TESLA, INC.
    G00649833Courtesy of TESLA, INC.

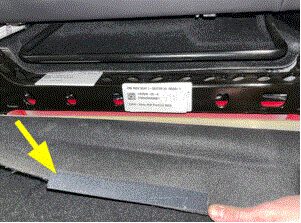

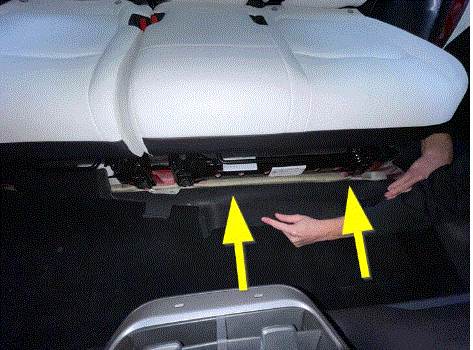

  76. Secure cabin carpet to 60 seat
    NOTE: Strap velcro on
    G00649837Courtesy of TESLA, INC.
    G00649841Courtesy of TESLA, INC.

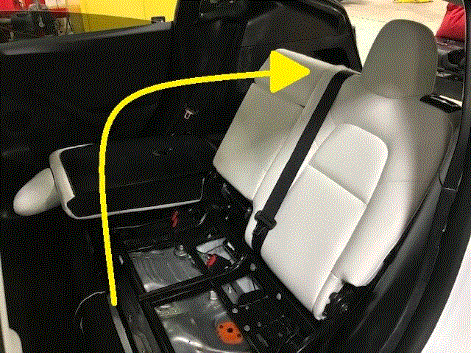

  77. Move 2nd roe 60 seatback to vertical position
    NOTE: Remove seat back protection if necessary
    G00649845Courtesy of TESLA, INC.

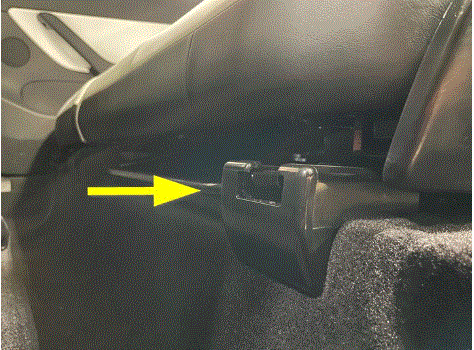

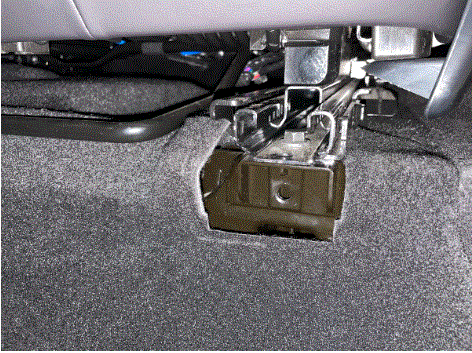

  78. Install 60 seat outboard track cover
    NOTE: 1x clip
    G00649849Courtesy of TESLA, INC.
    G00649853Courtesy of TESLA, INC.
    G00649857Courtesy of TESLA, INC.

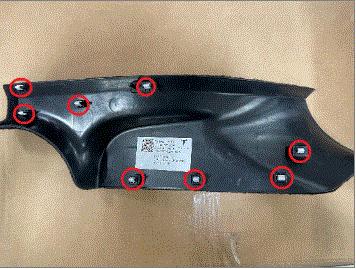

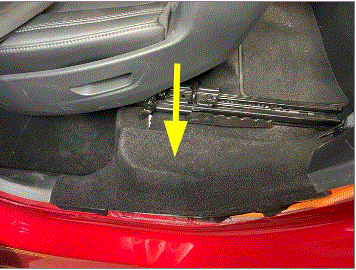

  79. Install LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G00649861Courtesy of TESLA, INC.
    G00649865Courtesy of TESLA, INC.

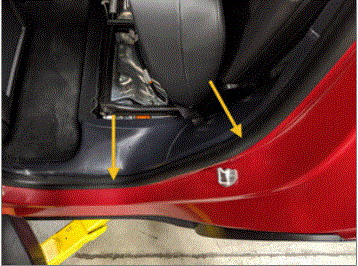

  80. Re-seat LH rear door seal
    NOTE: Seat pillar and sill trim tabs underneath seal
    G00649869Courtesy of TESLA, INC.
  81. Move the RH front seat to its original position

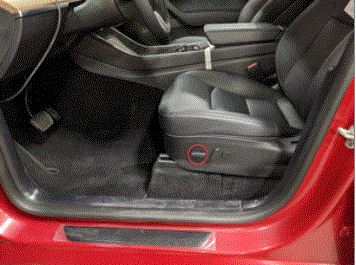

  82. Move LH front seat to original position
    NOTE: This can also be achieved by selecting driver profile via UI
    G00649873Courtesy of TESLA, INC.
  83. Raise all four windows
    G00649881Courtesy of TESLA, INC.
  84. Close all four doors
    NOTE: If 12V is powered up, Unlatch rear doors before closing
    G00649877Courtesy of TESLA, INC.
scientia non olet · About LEMON Manuals
