Cover - Toe Kick - 2nd Row Seat - LH (7-Seat) - Remove And Replace: Remove

  1. Open the LH front door and fully lower the LH windows.
  2. Move the driver seat fully forward.
  3. Open the LH rear door.
  4. Move the LH 2nd row seat to easy entry mode.
  5. Release the clips (x7) that attach the LH 2nd row seat toe kick cover to the seat assembly, and then remove the cover from the vehicle.

    Tip: Pry up on the LH side of the cover to release the clips, and then pry up on the RH side to fully remove it.

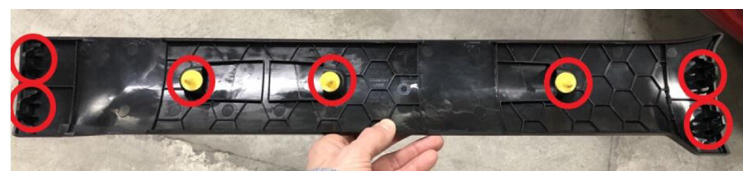

    G14823472Courtesy of TESLA, INC.

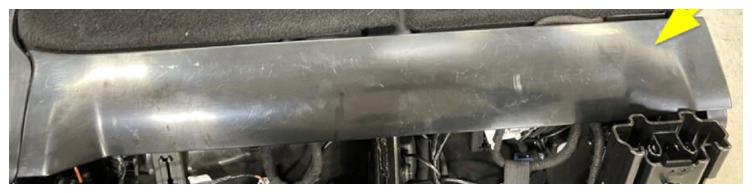

    G14823473Courtesy of TESLA, INC.
