Back Panel - 2nd Row Seat - Center/20 (7-Seat) - Remove and Replace: Remove

  1. Open the LH rear door and lower the LH rear window.
  2. Move the LH 2nd row seat back forward.
  3. Release the center 2nd row seat switch, disconnect the switch connector, and then remove the switch from the seat assembly.
    NOTE: Tip: Use a plastic trim tool pry the top of the switch away from center seat back panel.

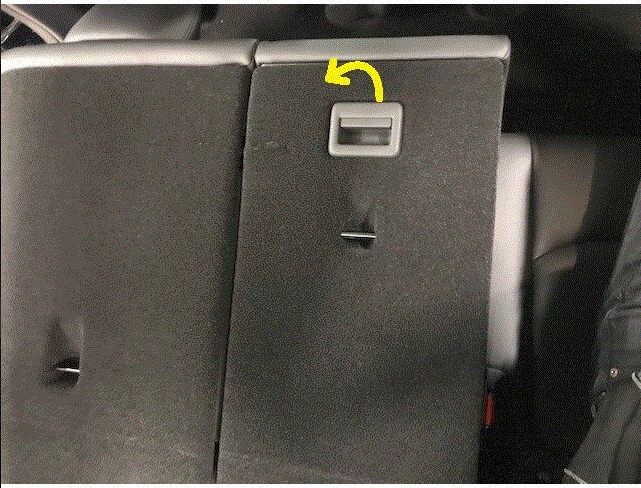

    G00645956Courtesy of TESLA, INC.

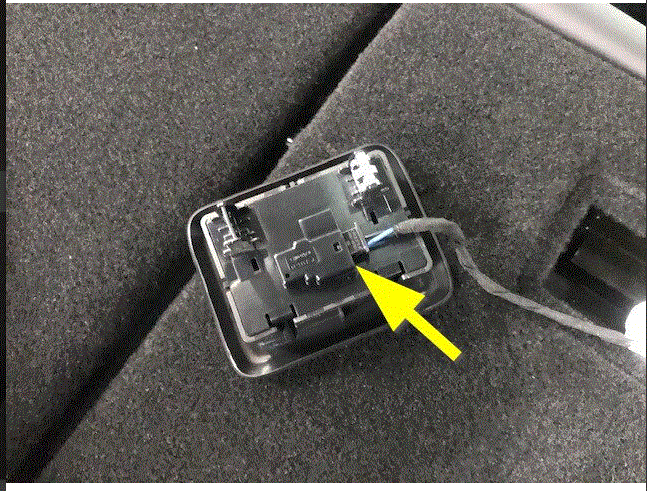

    G00645957Courtesy of TESLA, INC.
  4. Release the clips (x5) that attach the center 2nd row seat back panel to the center seat assembly, slide the panel forward to release the hooks (x2), and then remove the panel from the vehicle.
    NOTE: Early production vehicles may have 4 hooks.

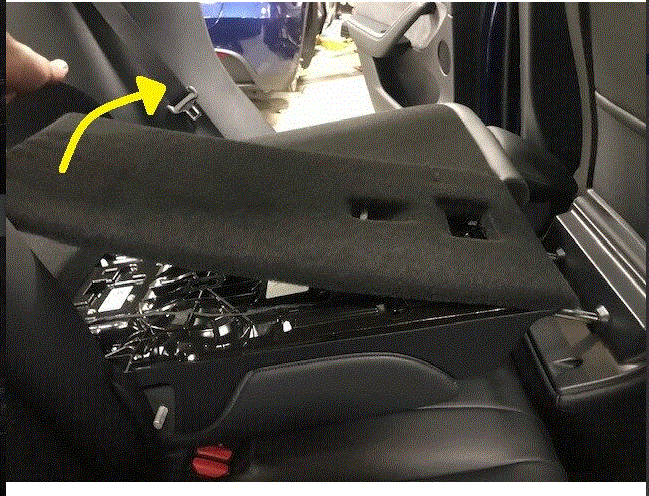

    G00645958Courtesy of TESLA, INC.

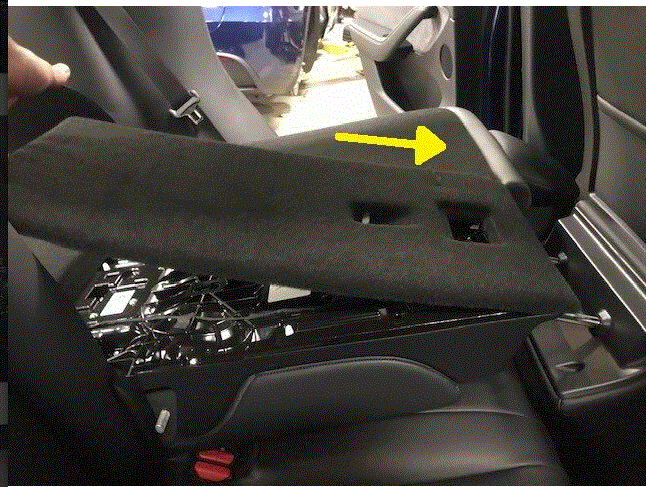

    G00645959Courtesy of TESLA, INC.

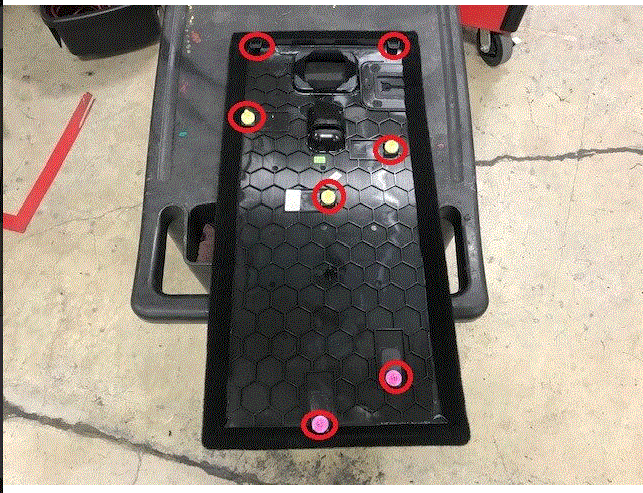

    G00645960Courtesy of TESLA, INC.
