Back Panel - 2nd Row Seat - Center/20 (7-Seat) - Remove and Replace: Install

  1. Insert the center 2nd row seat back panel hooks (x2) into the center seat back assembly, and then slide the panel rearward into position.
    NOTE: Early production vehicles may have 4 hooks.

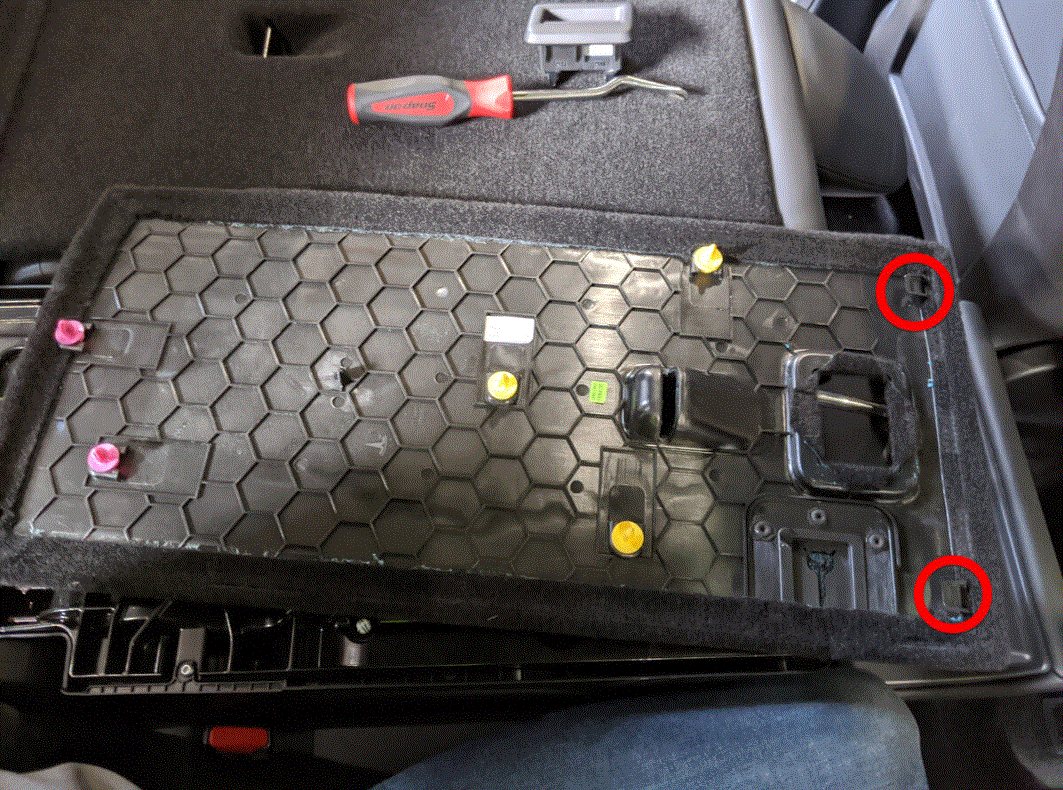

    G00645961Courtesy of TESLA, INC.

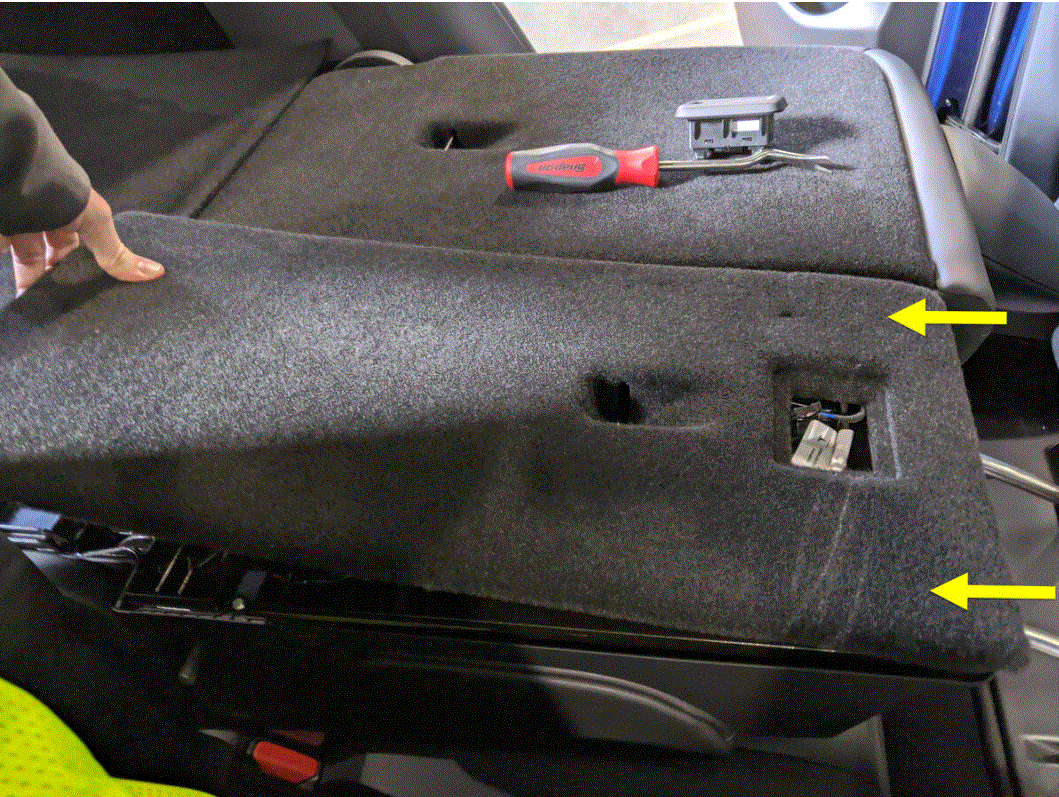

    G00645962Courtesy of TESLA, INC.
  2. Secure the clips (x5) that attach the center 2nd row seat back panel to the center seat back assembly.

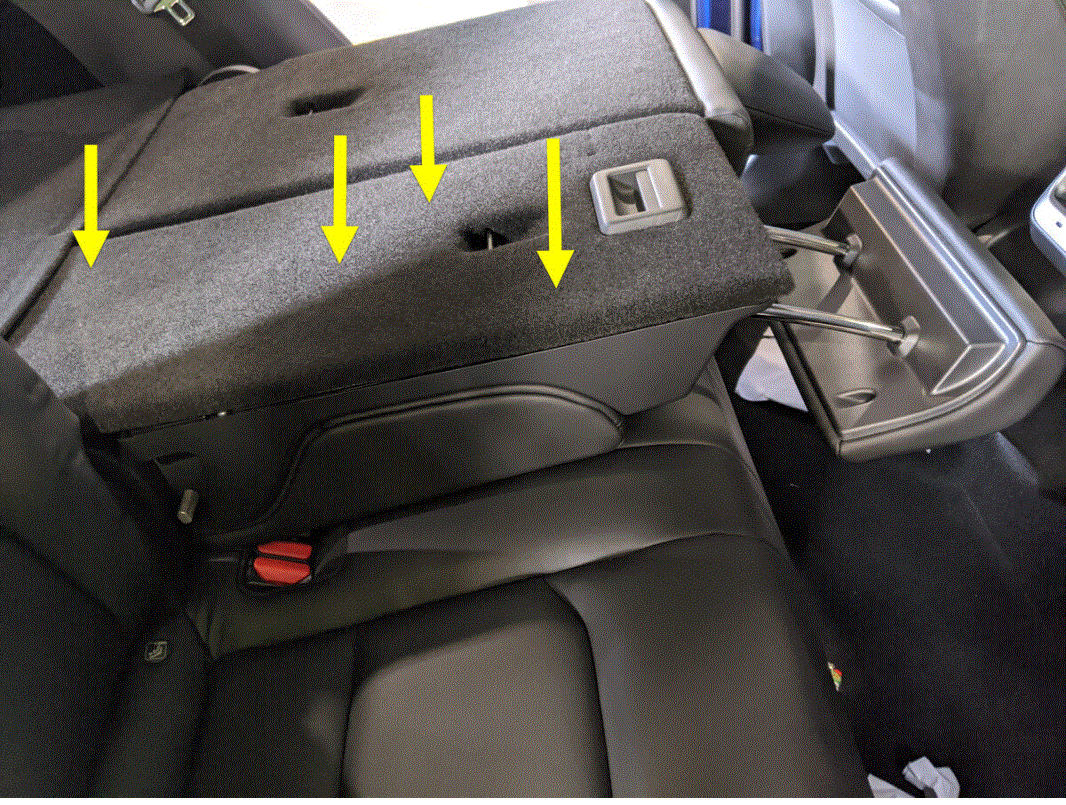

    G00645963Courtesy of TESLA, INC.
  3. Position the center 2nd row seat switch into the vehicle, connect the switch connector, and then install the switch into the seat assembly.
    G00645964Courtesy of TESLA, INC.

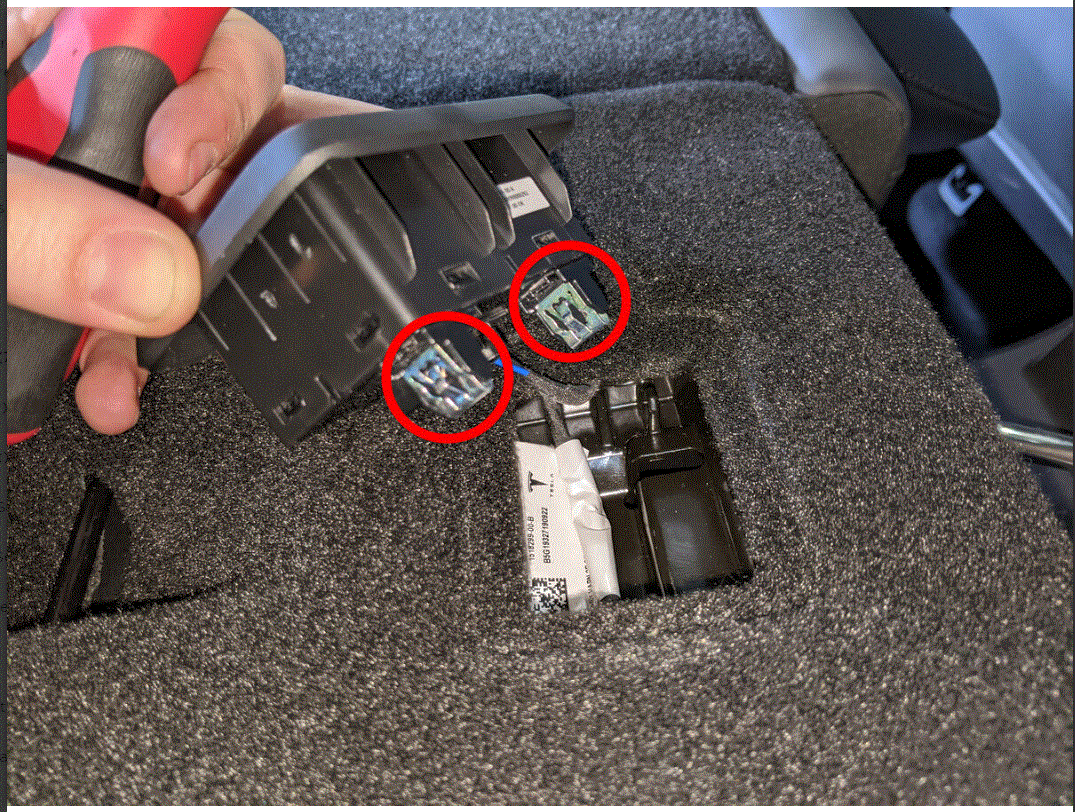

    G00645965Courtesy of TESLA, INC.

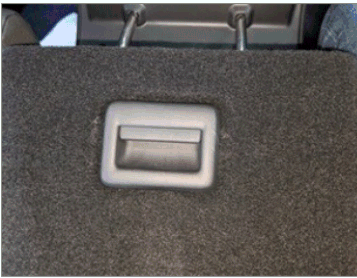

    G00645966Courtesy of TESLA, INC.
  4. Move the LH 2nd row seat back into the original position.
  5. Raise the LH rear window and close the LH front door.
