Remove And Replace

  1. Open RH front and rear doors
  2. Lower all four windows
  3. Move LH front seat forward
  4. Move RH front seat forward

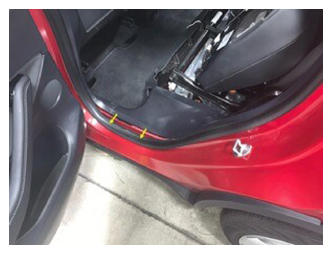

  5. Partially remove LH rear door seal
    G14823350Courtesy of TESLA, INC.

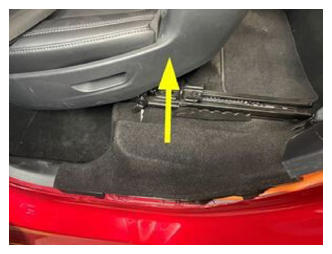

  6. Remove LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G14823351Courtesy of TESLA, INC.
    G14823352Courtesy of TESLA, INC.

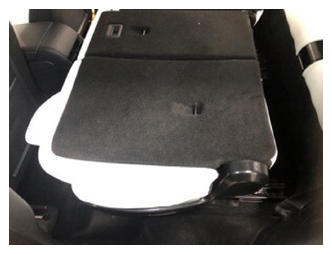

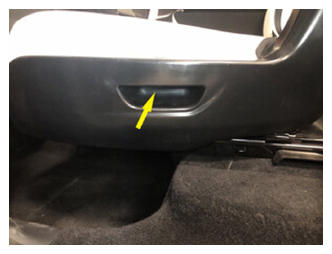

  7. Fold 60 seat into down position
    G14823353Courtesy of TESLA, INC.
    G14823354Courtesy of TESLA, INC.
  8. Disconnect logic connector at LH seat frame
    NOTE: 1x connector
    G14823355Courtesy of TESLA, INC.

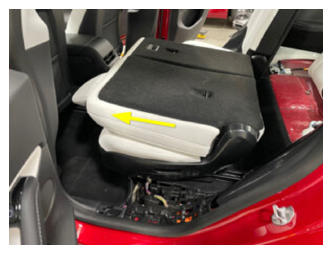

  9. Move 60 seat forward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14823356Courtesy of TESLA, INC.
    G14823357Courtesy of TESLA, INC.

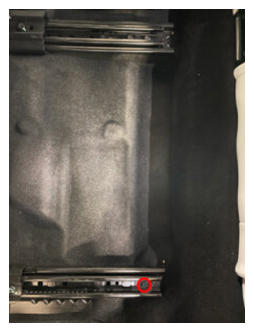

  10. Remove 60 seat rear outboard track fastener
    NOTE: 1x patch bolt, 11 mm, 37 N.m, Discard after removal
    G14823358Courtesy of TESLA, INC.
  11. Remove 60 seat rear inboard track fasteners
    NOTE: 2x patch bolts, 11 mm, 37 N.m, Discard after removal
    G14823359Courtesy of TESLA, INC.

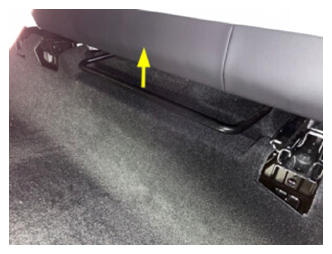

  12. Move 60 seat fully rearward using towel bar
    NOTE: With one hand on towel bar pull up and slide the seat forward with your other hand
    G14823360Courtesy of TESLA, INC.

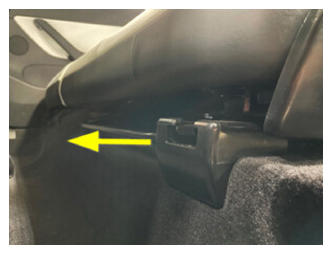

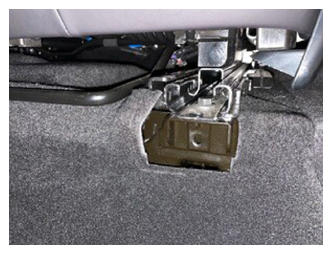

  13. Remove 60 seat outboard track cover
    NOTE: 1x clip, Slide covers forward to release from 60 seat tracks
    G14823361Courtesy of TESLA, INC.
    G14823362Courtesy of TESLA, INC.
    G14823363Courtesy of TESLA, INC.

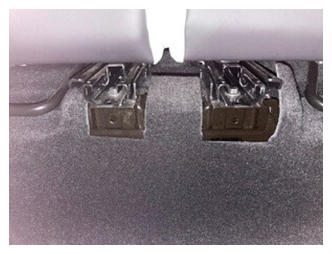

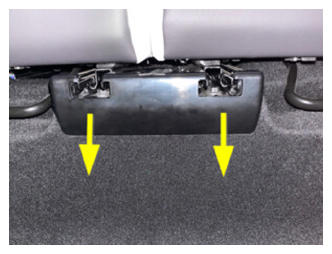

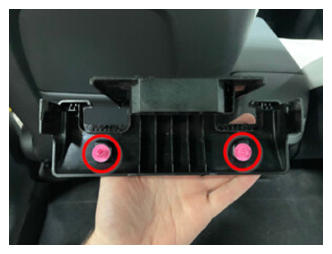

  14. Remove center track cover from 2nd row seats
    NOTE: 2x clips, Slide covers forward to release from 2nd row seat tracks
    G14823364Courtesy of TESLA, INC.
    G14823365Courtesy of TESLA, INC.
    G14823366Courtesy of TESLA, INC.

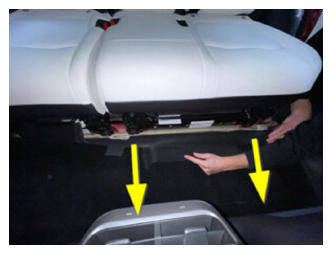

  15. Release cabin carpet from 60 seat
    NOTE: Pull cabin carpet towards front of vehicle
    G14823367Courtesy of TESLA, INC.
    G14823368Courtesy of TESLA, INC.
  16. Remove 60 seat front inboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14823369Courtesy of TESLA, INC.
  17. Remove 60 seat front outboard track fasteners
    NOTE: 1x bolts, 11 mm, 37 N.m, Discard after removal
    G14823370Courtesy of TESLA, INC.

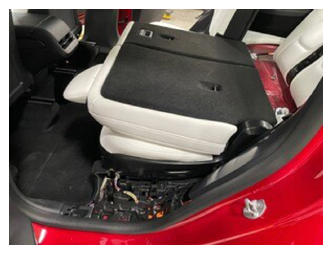

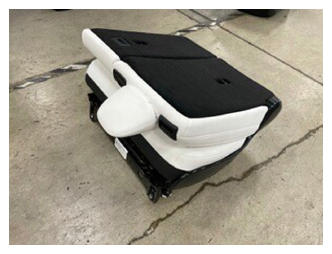

  18. Remove 2nd row 60 seat assembly from vehicle
    NOTE: Recommend assistance
    G14823371Courtesy of TESLA, INC.
    G14823372Courtesy of TESLA, INC.

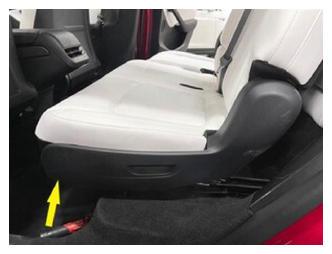

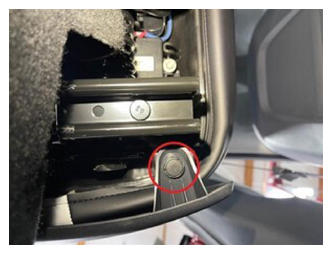

  19. Remove front push clip from 60 outer sideshield assembly
    NOTE: 1x clip, Use pick to remove the push clip from the bottom side of the outboard cover
    G14823373Courtesy of TESLA, INC.
    G14823374Courtesy of TESLA, INC.

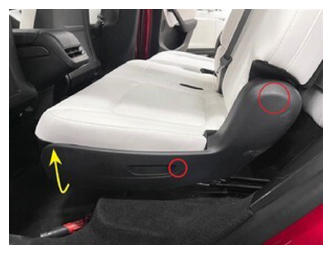

  20. Remove 60 outer sideshield assembly
    NOTE: 1x clip 1x connector, Remove outer sideshield assembly by pulling outwards and up at the front portion of the trim, Unclip remaining clip and unplug the connection
    G14823375Courtesy of TESLA, INC.
    G14823376Courtesy of TESLA, INC.

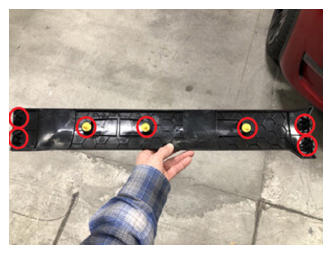

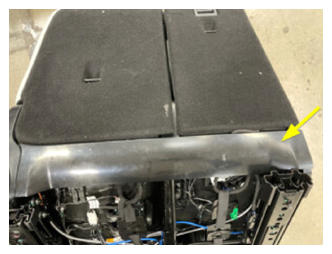

  21. Remove 60 seat toe kick cover
    NOTE: 7x clips, Pry up on LH side of 60 toe kick cover to release clips, Repeat on RH side to fully remove
    G14823377Courtesy of TESLA, INC.
    G14823378Courtesy of TESLA, INC.

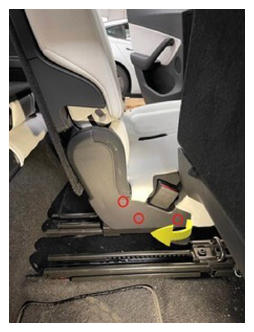

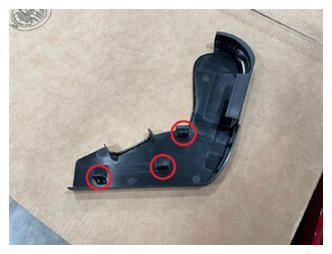

  22. Release clips and remove inboard outer trim from 60 seat
    NOTE: 3x clips, Use trim tool to unclip 3x clips and remove inboard outer trim towards rear of the vehicle
    G14823379Courtesy of TESLA, INC.
    G14823380Courtesy of TESLA, INC.

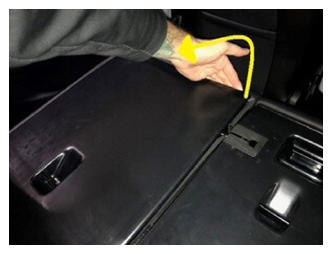

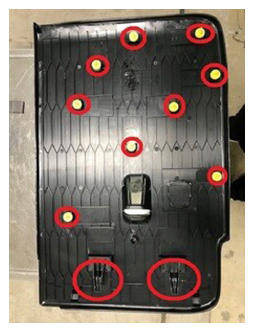

  23. Remove 60 seatback panel
    NOTE: 9x clips, 2x hooks, Release clips starting at the top of backpanel working your way down the lower backpanel, pull 60 backpanel towards front of vehicle to remove
    G14823381Courtesy of TESLA, INC.
    G14823382Courtesy of TESLA, INC.

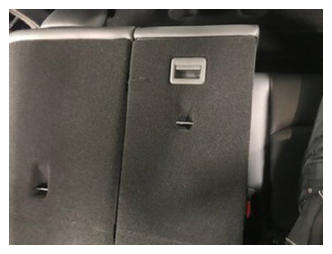

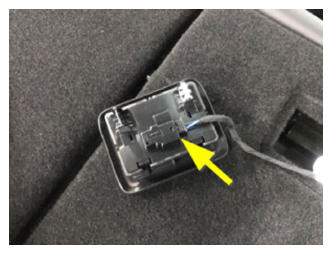

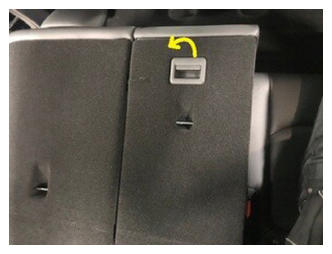

  24. Remove 2nd row center seat switch
    NOTE: 1x connector, 2x clips, Using plastic trim tool pry the top of the switch away from 20 backpanel to ease removal
    G14823383Courtesy of TESLA, INC.
    G14823384Courtesy of TESLA, INC.
    G14823385Courtesy of TESLA, INC.

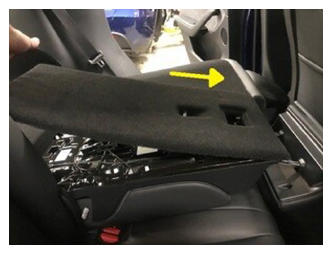

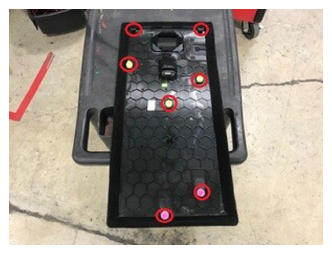

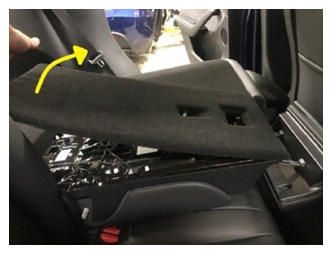

  25. Remove center backpanel from center seatback
    NOTE: 5x clips, 2 hooks, Lift up at the lower 20 backpanel and then slide forward to release
    G14823386Courtesy of TESLA, INC.
    G14823387Courtesy of TESLA, INC.
    G14823388Courtesy of TESLA, INC.

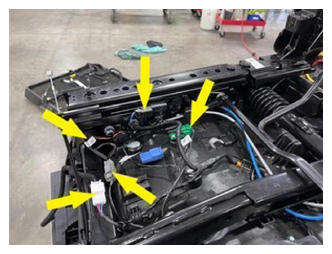

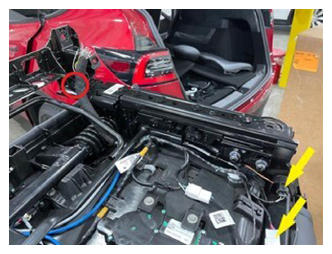

  26. Release 60 seat harness connectors and clip from seat from seat frame
    NOTE: 1x clip, 7x connectors
    G14823389Courtesy of TESLA, INC.
    G14823390Courtesy of TESLA, INC.

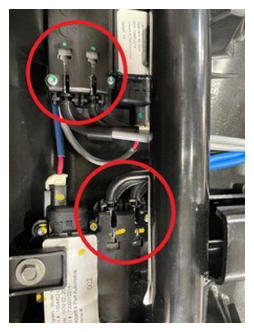

  27. Disconnect seat cables from easy entry actuators on 60 seat
    NOTE: 4x clips
    G14823391Courtesy of TESLA, INC.

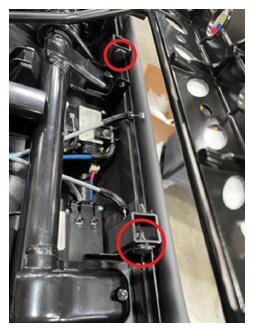

  28. Remove push clips for 60 bottom seat pan
    NOTE: 2x clips, Remove push clips from front of seat pan
    G14823392Courtesy of TESLA, INC.

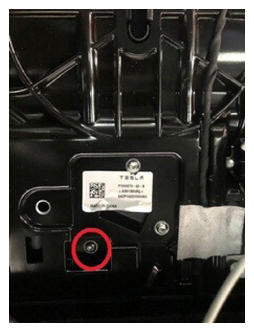

  29. Remove center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14823393Courtesy of TESLA, INC.
    G14823394Courtesy of TESLA, INC.

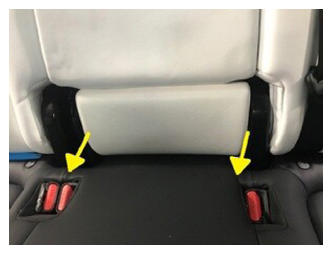

  30. Remove center seatback lumbar bun
    NOTE: 2x clips, Pull bolster outwards to release
    G14823395Courtesy of TESLA, INC.

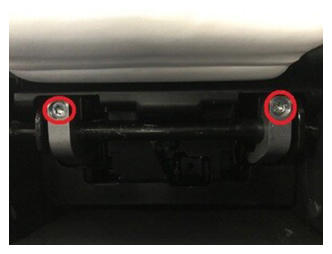

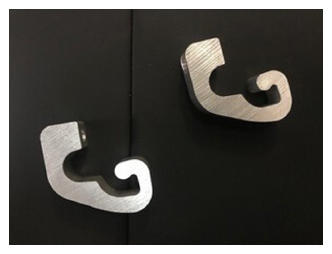

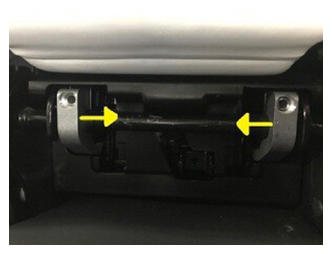

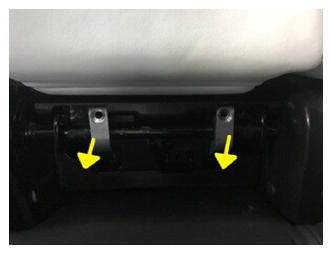

  31. Remove center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Once fasteners are removed slide pivot clamp towards the center of center seatback and pull each outwards to remove
    G14823396Courtesy of TESLA, INC.
    G14823397Courtesy of TESLA, INC.
    G14823398Courtesy of TESLA, INC.
    G14823399Courtesy of TESLA, INC.

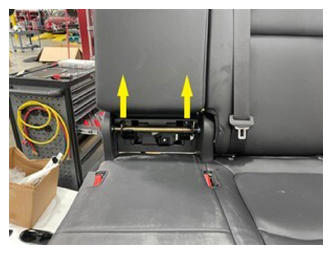

  32. Remove center seatback from 60 seat frame
    NOTE: Remove center seatback by lifting upwards
    G14823400Courtesy of TESLA, INC.

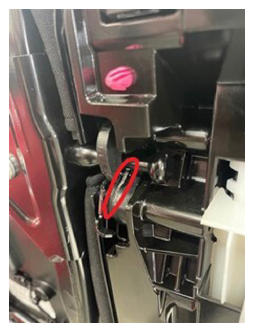

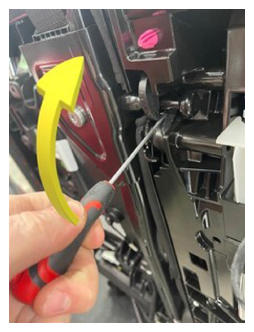

  33. Manually release the center seatback latch
    NOTE: Use small screwdriver to manipulate the center seatback latch to release
    G14823401Courtesy of TESLA, INC.
    G14823402Courtesy of TESLA, INC.

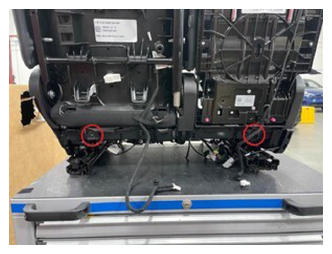

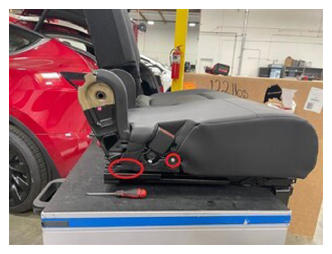

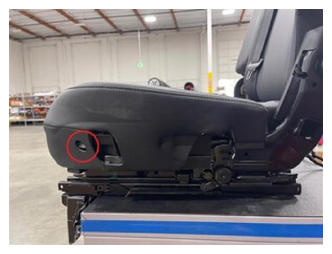

  34. Remove fasteners securing 60 seat pan to seat frame
    NOTE: 4x fastener, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Remove remaining bolts attaching seat pan to seat frame
    G14823403Courtesy of TESLA, INC.
    G14823404Courtesy of TESLA, INC.
    G14823405Courtesy of TESLA, INC.

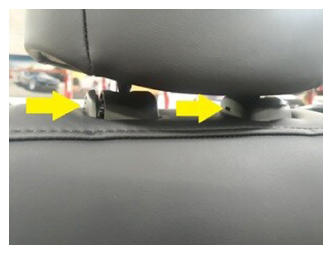

  35. Remove headrest from 60 seat assembly
    NOTE: Simultaneously depress the guide button and insert a 90 degree pick into the guide opening, Lift up while engaged
    G14823406Courtesy of TESLA, INC.
    G14823407Courtesy of TESLA, INC.

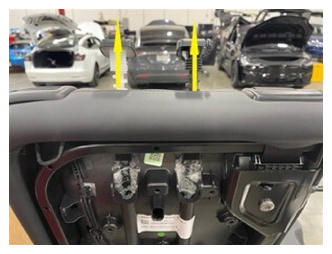

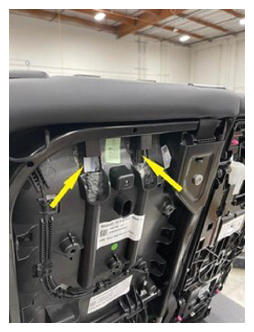

  36. Remove headrest guides from 60 seat
    NOTE: Pull back on lower portion of the headrest guide to release tab while also applying upward force to remove headrest guides
    G14823408Courtesy of TESLA, INC.
    G14823409Courtesy of TESLA, INC.

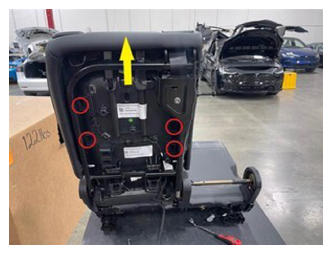

  37. Remove 60 seatback
    NOTE: 4x clips, Release clips securing 60 seatback and lift upwards
    G14823410Courtesy of TESLA, INC.

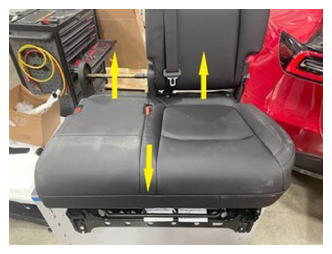

  38. Remove 60 seat bottom
    NOTE: Remove seat bottom by lifting the rear first and removing it towards front of the seat
    G14823411Courtesy of TESLA, INC.

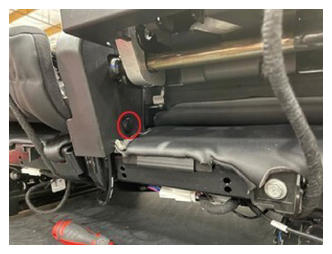

  39. Remove push clip from trim
    NOTE: 1x clip, Remove trim clip from cover
    G14823412Courtesy of TESLA, INC.

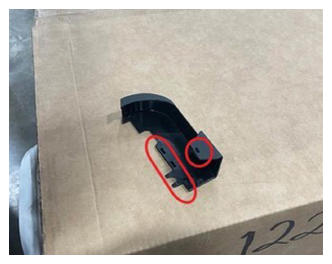

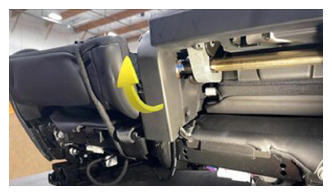

  40. Remove center inner cover
    NOTE: 2x clips, Pry center inner cover back to disengage clips, Remove by lifting up while pulling back
    G14823413Courtesy of TESLA, INC.
    G14823414Courtesy of TESLA, INC.

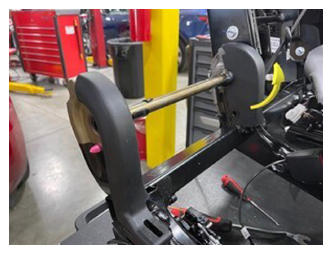

  41. Remove 60 B-Cover I/B Inner
    G14823415Courtesy of TESLA, INC.

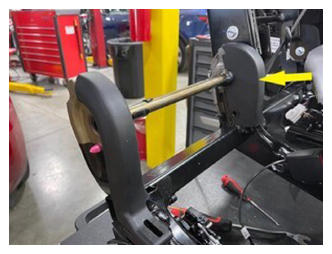

  42. Install 60 B-Cover I/B Inner trim
    G14823416Courtesy of TESLA, INC.

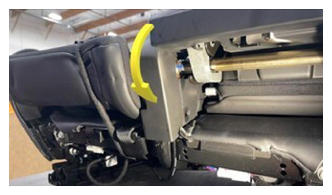

  43. Install center inner cover
    NOTE: 2x clips, Install inner cover ensuring the clips seat to outer cover
    G14823417Courtesy of TESLA, INC.
  44. Install push clip to trim
    NOTE: 1x clip
    G14823418Courtesy of TESLA, INC.

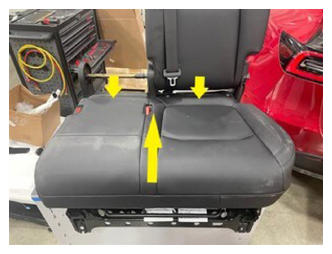

  45. Place 60 seat pan onto seat frame
    NOTE: Reinstall seat bottom onto seat frame by starting at the rear of the seat
    G14823419Courtesy of TESLA, INC.
  46. Secure 60 seat bottom to seat frame
    NOTE: 4x fasteners, 3x 10 mm, 6 N.m, 1x T25, 1.5 N.m, 1x clip, Install remaining bolts attaching seat pan to seat frame
    G14823420Courtesy of TESLA, INC.
    G14823421Courtesy of TESLA, INC.
    G14823422Courtesy of TESLA, INC.
  47. Install headrest guides into 60 seat assembly
    NOTE: Install headrest guides by pressing downwards until lower tab is seated
    G14823423Courtesy of TESLA, INC.

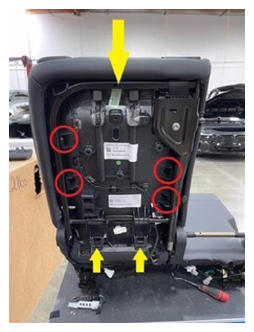

  48. Install 60 seat back into place
    NOTE: 4x clips, Slide seat back into place making sure the bottom retainers slide into place, Reinstall push clips to secure seat back
    G14823424Courtesy of TESLA, INC.

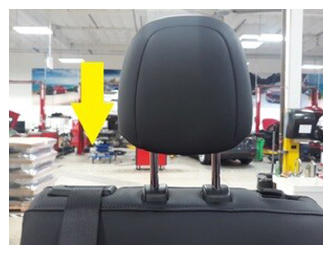

  49. Install headrest onto 60 seat assembly
    NOTE: Push down to secure
    G14823425Courtesy of TESLA, INC.

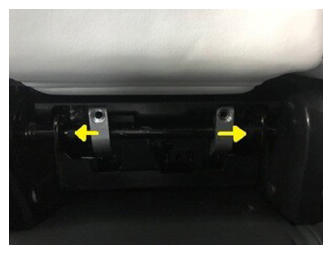

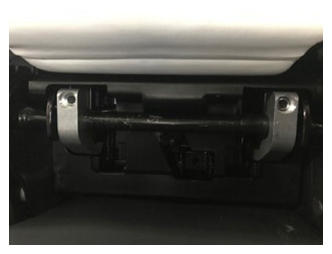

  50. Install center seatback pivot clamps
    NOTE: 2x bolts, T40, 22 N.m, Insert pivot clamp at center of center frame and slide outwards to install fasteners, When replacing pivot clamps they must be replaced in pairs
    G14823426Courtesy of TESLA, INC.
    G14823427Courtesy of TESLA, INC.
    G14823428Courtesy of TESLA, INC.

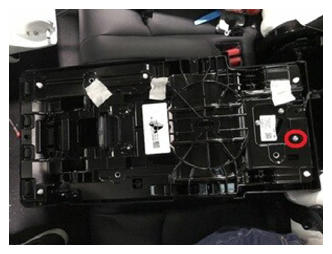

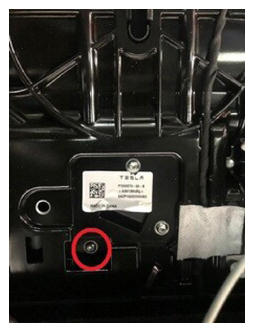

  51. Install center seatback lumbar bun fastener
    NOTE: 1x screw, T20, 1.5 N.m
    G14823429Courtesy of TESLA, INC.
    G14823430Courtesy of TESLA, INC.

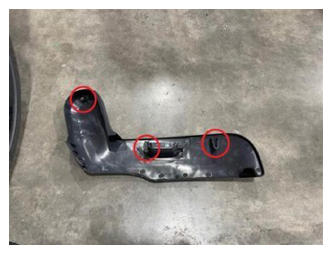

  52. Plug in connector and install trim to 60 seat
    NOTE: 1x connector, 1x clip, Plug in connector and install trim by hooking the front into place and seat clip at rear of trim.
    G14823431Courtesy of TESLA, INC.
    G14823432Courtesy of TESLA, INC.
  53. Install push clip at front of outer 60 sideshield assembly
    NOTE: 1x clip, Install push clip at front bottom side of the trim
    G14823433Courtesy of TESLA, INC.
    G14823434Courtesy of TESLA, INC.

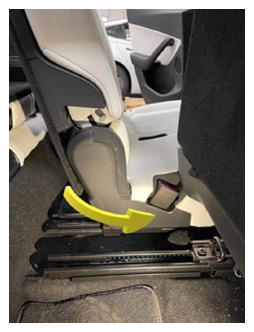

  54. Install inboard outer trim to 60 seat
    NOTE: Clips 3x, Install inboard outer trim and reseat 3x clips
    G14823435Courtesy of TESLA, INC.

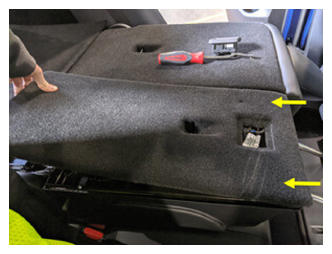

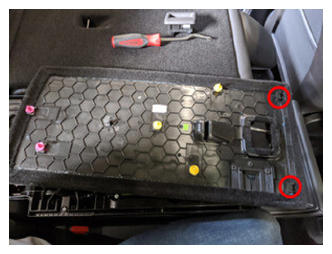

  55. Insert backpanel hooks into center seat back assembly
    NOTE: 2x hooks, Engage hooks and slide rearward into position, Early production have 4x hooks
    G14823436Courtesy of TESLA, INC.
    G14823437Courtesy of TESLA, INC.

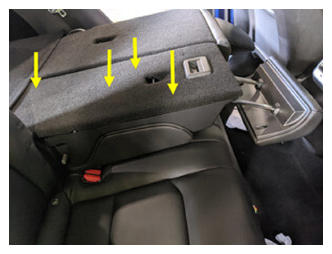

  56. Install center backpanel onto seat back
    NOTE: 5x clips
    G14823438Courtesy of TESLA, INC.

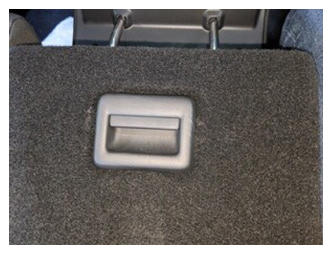

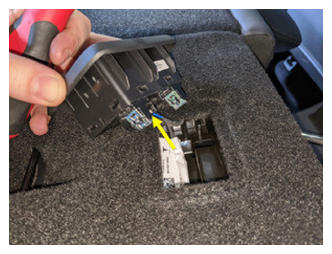

  57. Install 2nd row center seat switch
    NOTE: 1x connector, 2x clips
    G14823439Courtesy of TESLA, INC.
    G14823440Courtesy of TESLA, INC.
    G14823441Courtesy of TESLA, INC.
  58. Install 60 toe kick cover
    NOTE: 7x clips
    G14823442Courtesy of TESLA, INC.
    G14823443Courtesy of TESLA, INC.

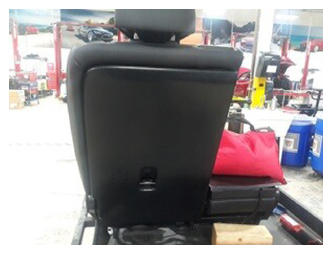

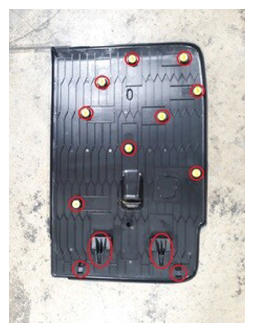

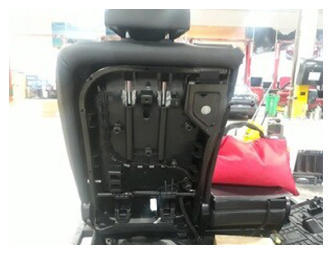

  59. Install LH seatback onto 60 seat assembly
    NOTE: 9x clips, 4 hooks, Attach hooks onto frame rail, Work upwards and fasten all the clips
    G14823444Courtesy of TESLA, INC.
    G14823445Courtesy of TESLA, INC.
    G14823446Courtesy of TESLA, INC.

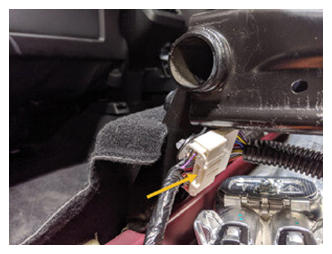

  60. Connect logic connector at LH 60 seat frame
    NOTE: 1x connector
    G14823447Courtesy of TESLA, INC.

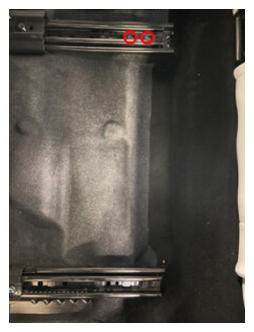

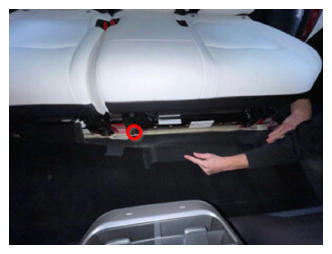

  61. Install fasteners securing 60 seat frame to body
    NOTE: 5x patch bolts, 11 mm, 37 N.m, Install new patch bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Both inboard rear -> Outboard rear -> Inboard front
    G14823448Courtesy of TESLA, INC.
    G14823449Courtesy of TESLA, INC.
    G14823450Courtesy of TESLA, INC.
    G14823451Courtesy of TESLA, INC.

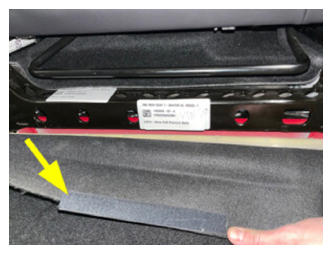

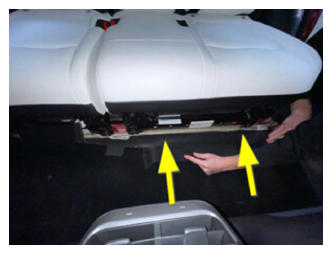

  62. Secure cabin carpet to 60 seat
    NOTE: Strap velcro on
    G14823452Courtesy of TESLA, INC.
    G14823453Courtesy of TESLA, INC.

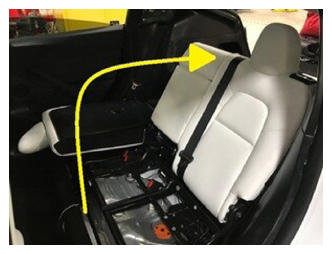

  63. Fold the 60 seat into vertical position
    NOTE: Remove seat back protection if necessary
    G14823454Courtesy of TESLA, INC.
  64. Install 60 seat outboard track cover
    NOTE: 1x clip
    G14823455Courtesy of TESLA, INC.
    G14823456Courtesy of TESLA, INC.
    G14823457Courtesy of TESLA, INC.

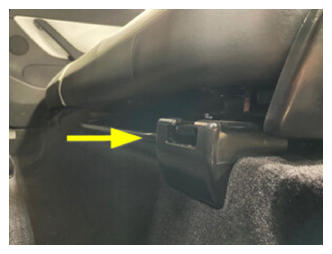

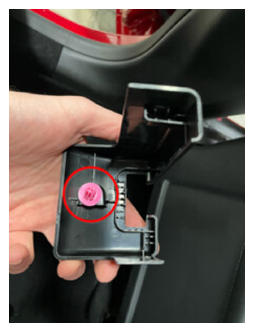

  65. Install 60 seat outboard track cover
    NOTE: 1x clip
    G14823458Courtesy of TESLA, INC.
    G14823459Courtesy of TESLA, INC.
    G14823460Courtesy of TESLA, INC.

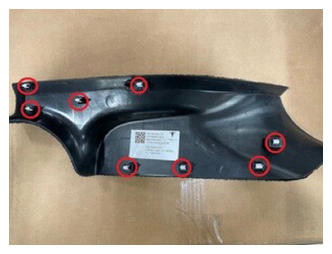

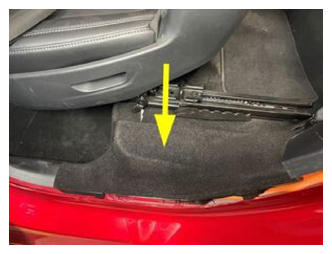

  66. Install LH 7s Lower C-Pillar Trim
    NOTE: 8x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim
    G14823461Courtesy of TESLA, INC.
    G14823462Courtesy of TESLA, INC.

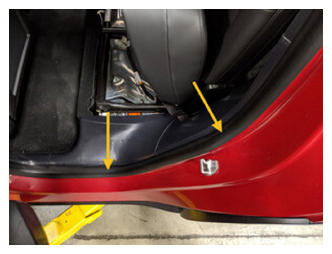

  67. Reseat LH rear door seal
    NOTE: Seat pillar and sill trim tabs underneath seal
    G14823463Courtesy of TESLA, INC.
  68. Move RH front seat to original position
  69. Raise all four windows
  70. Close all four doors
    NOTE: If 12 V is powered up, Unlatch rear doors before closing
