Cover - Seat Back - 2nd Row Seat - RH - 5-Seat | Remove And Replace: Remove

  1. Remove the RH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  2. Remove the RH 2nd row seat back. See SEAT BACK - 2ND ROW - RH (REMOVE AND REPLACE) .
  3. Fold the seatback to the upright position, and place the assembly on a safe and stable work area.
  4. Remove the RH 2nd row headrest. See HEADREST - 2ND ROW - OUTER - LH (REMOVE AND REPLACE) .
  5. Remove the RH 2nd row headrest guide adjustment. See ADJUSTMENT GUIDE - HEADREST - 2ND ROW (REMOVE AND REPLACE) .
  6. Remove the RH 2nd row headrest guide lock. See GUIDE LOCK - HEADREST - 2ND ROW (REMOVE AND REPLACE) .
  7. Remove the RH 2nd row seat back shoulder switch. See SHOULDER SWITCH - SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  8. Remove the RH 2nd row seatback panel. See BACK PANEL - 2ND ROW SEAT - RH (REMOVE AND REPLACE) .
  9. Remove the clips that attaches the upholstery support to the RH 2nd row seat frame.

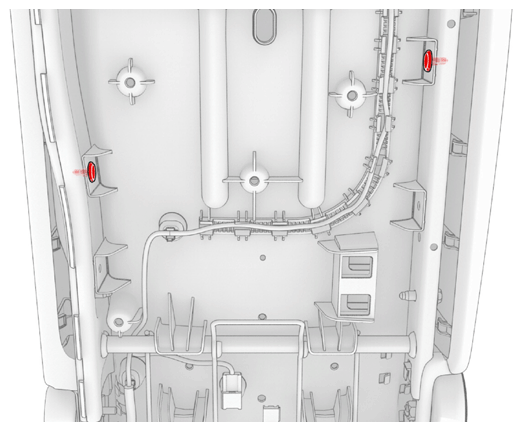

    G14823749Courtesy of TESLA, INC.
  10. Disconnect the RH 2nd row seat heater electrical connector, and then remove the clip that attaches the connector to the seat.

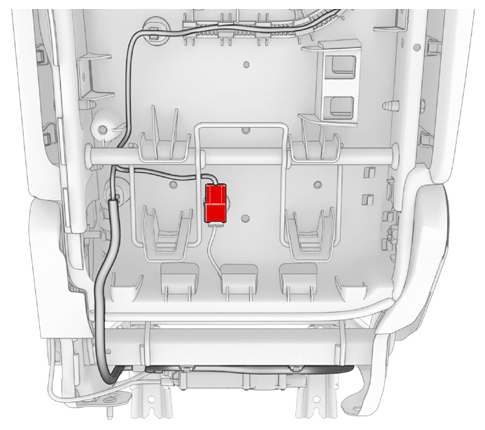

    G14823750Courtesy of TESLA, INC.
  11. Lift the upholstery support up to unhook it from the RH 2nd row seat rail.

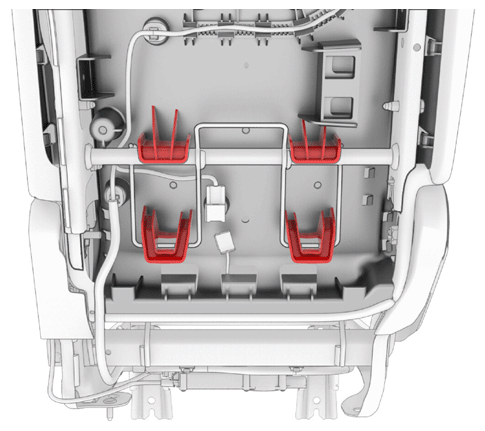

    G14823751Courtesy of TESLA, INC.
  12. Release the clips that attach the shoulder switch harness to the RH seat upholstery support, and then remove the harness from the assembly.

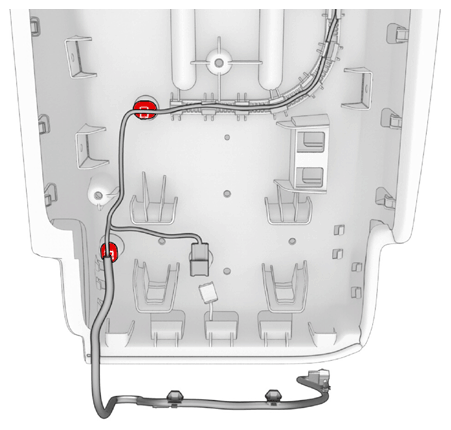

    G14823752Courtesy of TESLA, INC.
  13. Release the hook and tabs (x20) that attach the RH 2nd row seat back upholstery trim flaps from the upholstery support.

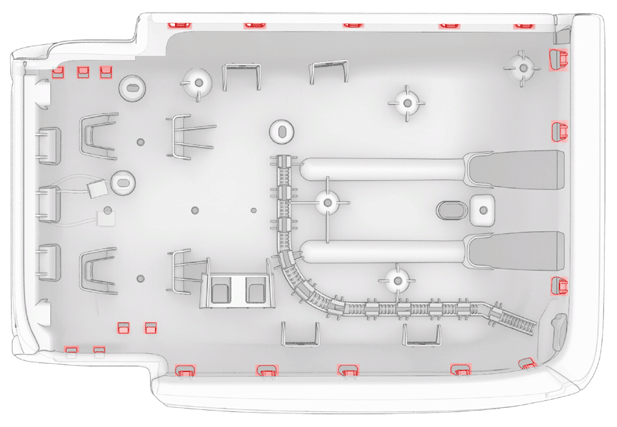

    G14823753Courtesy of TESLA, INC.
  14. Gently separate the upholstery from the foam backing starting from the bottom of the lower seat back working upward.
    NOTE: Make sure the velcro does not tear off the cushion.

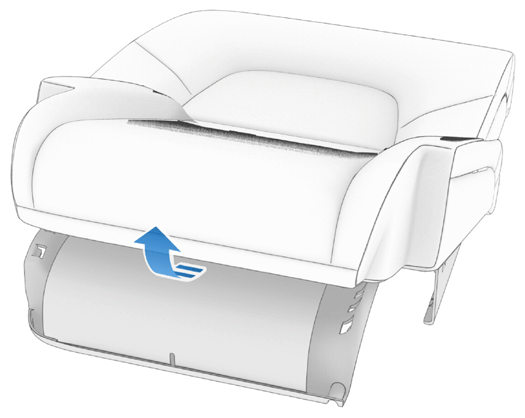

    G14823754Courtesy of TESLA, INC.
  15. Use diagonal cutters to cut the hog rings (x3) at the center of the seat back, and then release the cover from the hog rings.

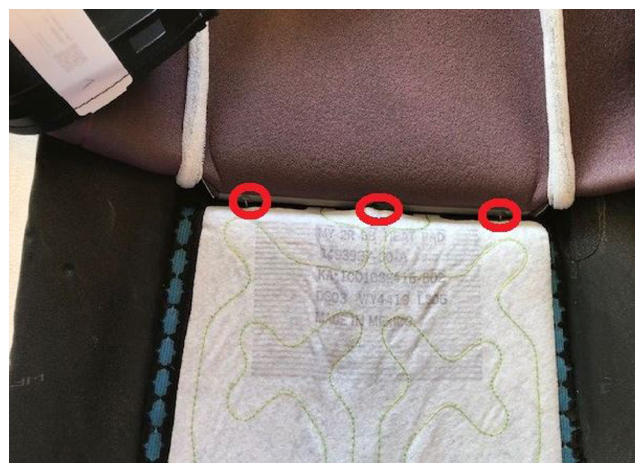

    G14823755Courtesy of TESLA, INC.
  16. Separate the remaining portion of the RH seat back upholstery trim cover from the seat.

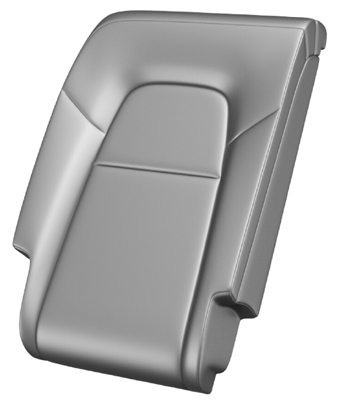

    G14823756Courtesy of TESLA, INC.
