Cover - Seat Back - 2nd Row - LH - 5-Seat | Remove And Replace: Install

  1. Starting from the upper seat back, install the LH seat back upholstery trim cover.
    NOTE: Massage the velcro while working downward toward the center of the seat back.

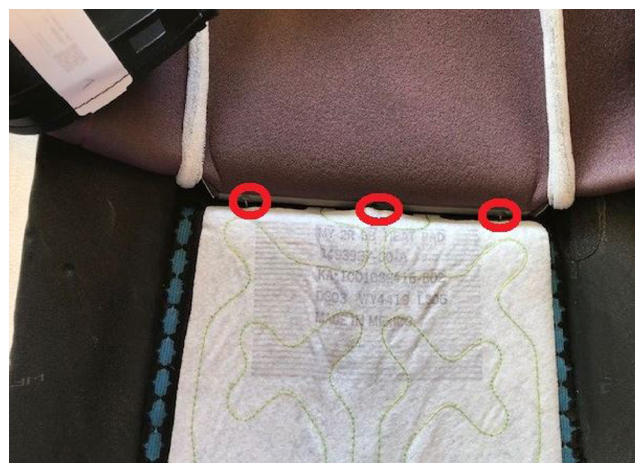

  2. Use hog ring pliers to crimp new hog rings (1566544-00-A X3) to the LH seat back upholstery trim cover at the center of the seat back.
    G14823742Courtesy of TESLA, INC.
  3. Attach the remaining portion of the LH seat back upholstery trim cover to the seat.

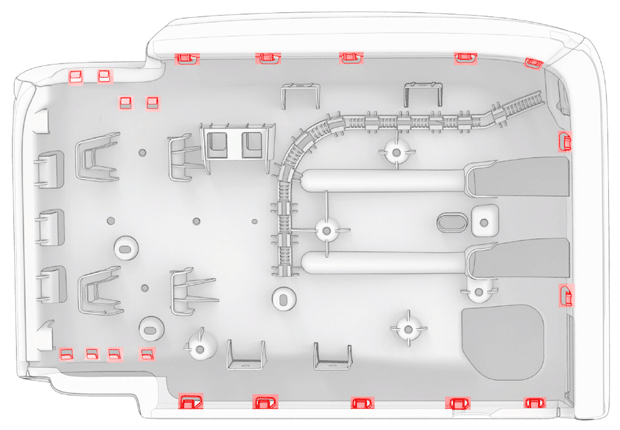

  4. Install the hook and tabs (x20) that attach the LH 2nd row seat back upholstery trim flaps to the upholstery support.
    G14823743Courtesy of TESLA, INC.
  5. Feed the center retractor seat belt through the upholstery.

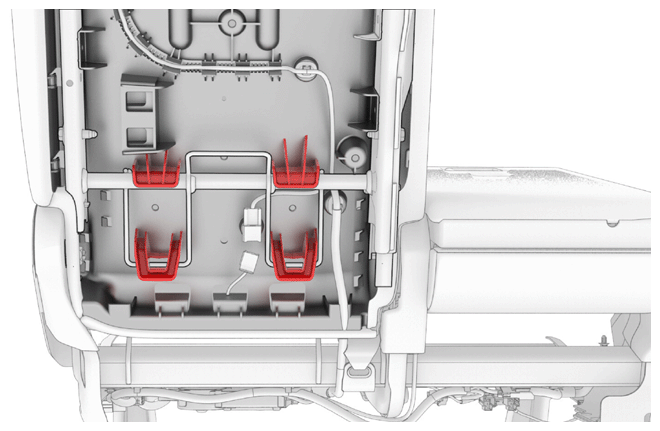

  6. Install the upholstery support onto the LH 2nd row seat rail.
    G14823744Courtesy of TESLA, INC.

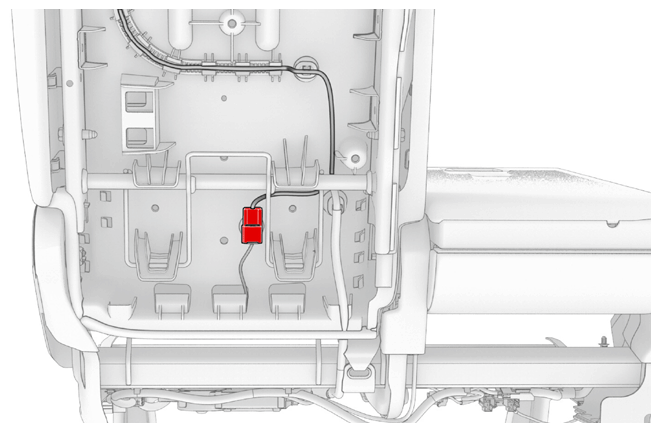

  7. Attach the connector clip, and then connect the LH 2nd row seat heater electrical connector.
    G14823745Courtesy of TESLA, INC.

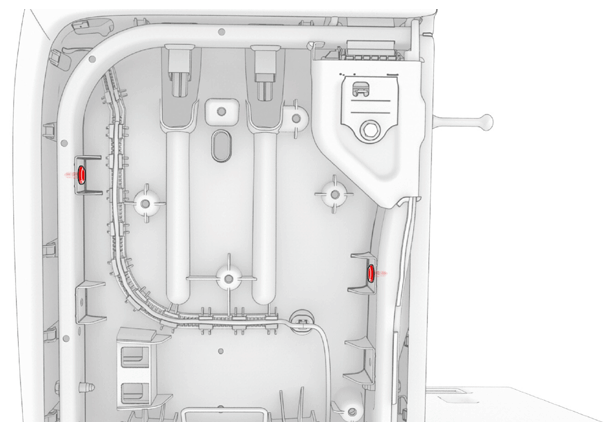

  8. Attach the clips that attach the upholstery support to the LH 2nd row seat rail.
    G14823746Courtesy of TESLA, INC.
  9. Install the LH 2nd row outer B-cover. See B-COVER - OUTER - 2ND ROW - LH (REMOVE AND REPLACE) .

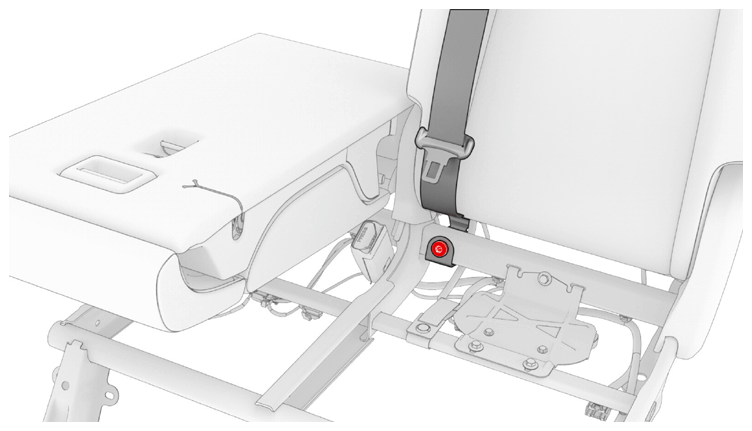

  10. Install a new lower anchor bolt that attaches the seat belt to the lower seat frame.

    Torque 40 N.m

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    • Flex head ratchet/flex head torque wrench
    • 6 in extension
    G14823747Courtesy of TESLA, INC.
  11. Install the LH 2nd row seatback panel. See BACK PANEL - 2ND ROW SEAT - RH (REMOVE AND REPLACE) .
  12. Install the LH 2nd row seat back shoulder switch. See SHOULDER SWITCH - SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  13. Install the LH 2nd row escutcheon. See ESCUTCHEON - 2ND ROW - LH (REMOVE AND REPLACE) .
  14. Install the LH 2nd row headrest guide lock. See GUIDE LOCK - HEADREST - 2ND ROW (REMOVE AND REPLACE) .
  15. Install the LH 2nd row headrest guide adjustment. See ADJUSTMENT GUIDE - HEADREST - 2ND ROW (REMOVE AND REPLACE) .
  16. Install the LH 2nd row headrest. See HEADREST - 2ND ROW - OUTER - LH (REMOVE AND REPLACE) .
  17. Fold down the LH 2nd row seat back.
  18. Install the LH 2nd row seatback. See SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  19. Install the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  20. Install the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
