Back Panel -- 2nd Row Seat -- RH - 5-Seat | Remove And Replace: Remove

  1. Move the front passenger seat fully forward, and then open the RH rear door and lower the RH rear window.
  2. Fold down the rear RH/40 seat.

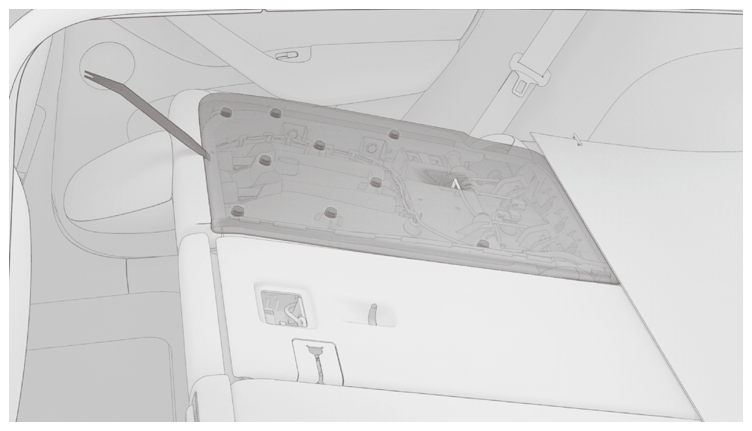

  3. Use a trim tool to release the clips that attach the back panel to the seat, working from the top of the seat towards the bottom.
    G14823797Courtesy of TESLA, INC.
  4. Maneuver the back panel towards the front of the vehicle to release the guiding tabs from the seat.
  5. Remove the back panel from the vehicle.
