Back Panel -- 2nd Row Seat -- RH - 5-Seat | Remove And Replace: Install

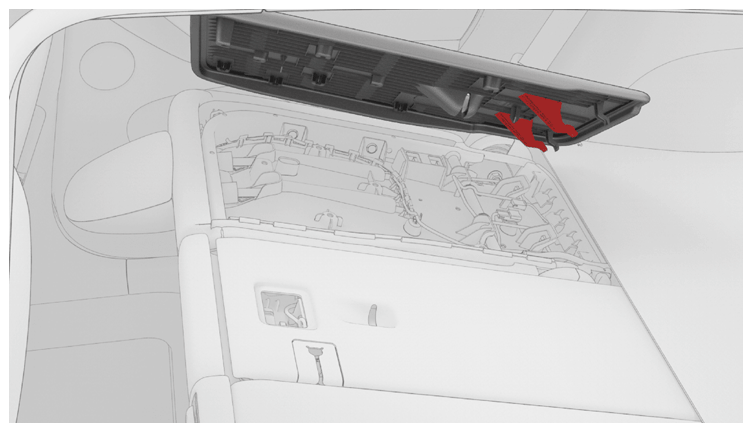

  1. Insert the guiding tabs on the back panel into the slots on the seatback assembly.
    G14823798Courtesy of TESLA, INC.
  2. Starting from the bottom and working your way up, install the back panel by pressing on the back panel to engage all clips into the seatback assembly.
  3. Raise the RH/40 seat.
  4. Raise the window, move the front passenger seat to its starting position, and then close all doors.
