Back Panel -- 2nd Row Seat -- LH - 5-Seat | Remove And Replace: Remove

  1. Move the driver seat fully forward, and then open the LH rear door and lower the LH rear window.
  2. Fold down the rear LH/60 seat.

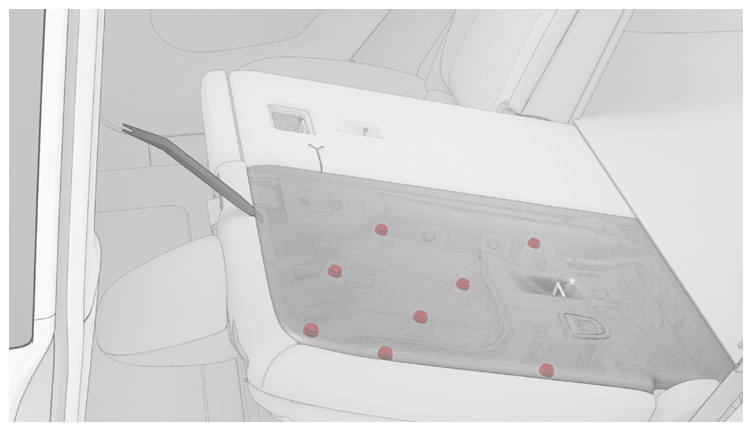

  3. Use a trim tool to release the clips that attach the LH back panel to the seat, working from the top of the seat towards the bottom.
    G14823794Courtesy of TESLA, INC.
  4. Maneuver the back panel towards the front of the vehicle to release the guiding tabs from the seat.
  5. Remove the back panel from the vehicle.
