Back Panel -- 2nd Row Seat -- Center/20 - 5-Seat | Remove And Replace: Remove

  1. Move the driver seat fully forward, and then open the LH rear door and lower the LH rear window.
  2. Fold down the rear LH/60 seat.
  3. Fully raise the headrest on the 2nd row center seat.
  4. Remove the center 2nd row backrest switch. See REMOVE .

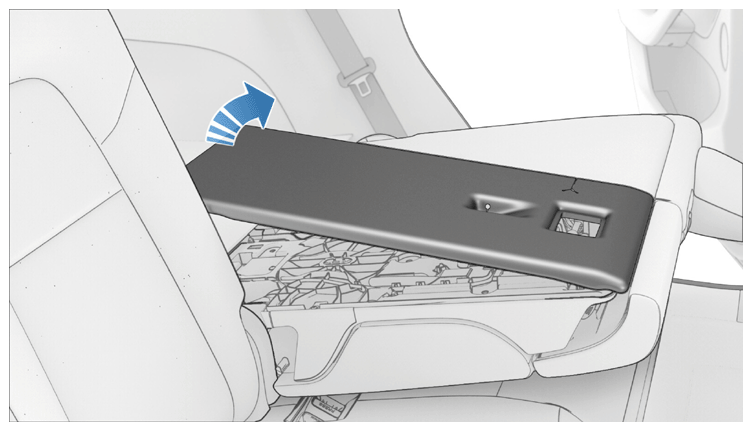

  5. Use a trim tool to release the clips that attach the center back panel to the seat, working from the bottom of the seat towards the top.
    G14823791Courtesy of TESLA, INC.
  6. Maneuver the back panel towards the front of the vehicle to release the guiding tabs from the seat.
  7. Remove the back panel from the vehicle.
