Back Panel -- 2nd Row Seat -- Center/20 - 5-Seat | Remove And Replace: Install

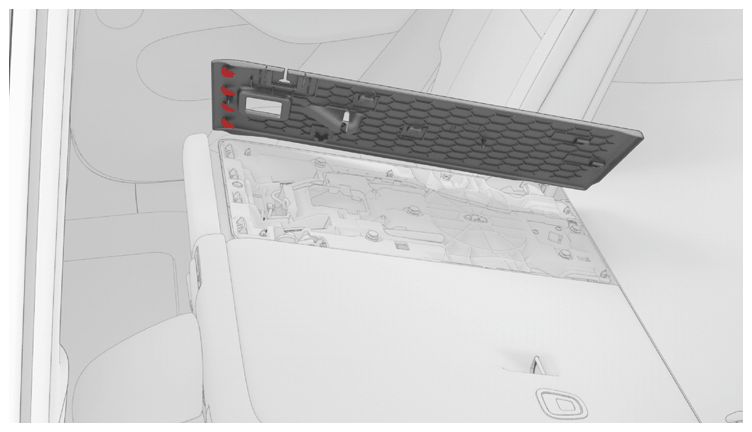

  1. Insert the guiding tabs on the back panel into the slots on the seatback assembly.
    G14823792Courtesy of TESLA, INC.
  2. Starting from the bottom and working your way up, install the back panel by pressing on the back panel to engage all clips into the seatback assembly.
  3. Install the center 2nd row backrest switch. See INSTALL .
  4. Lower the headrest on the 2nd row center seat.
  5. Raise the LH/60 seat.
  6. Raise the window, move the driver seat to its starting position, and then close all doors.
