B-Cover - Outer - 2nd Row - LH - 5-Seat | Remove And Replace: Remove

  1. Open all doors and fully lower all windows.
  2. Move the front seats fully forward.
  3. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  4. Release the clips that attach the LH outer 2nd row B-cover to the seat, and then pull the trim forward to remove it from the seat frame.

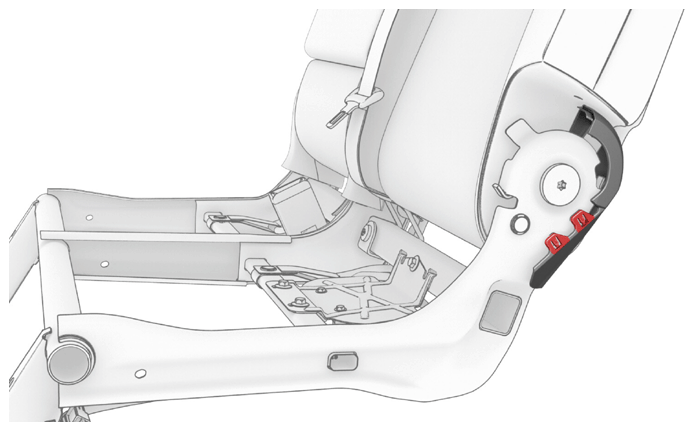

    G14823779Courtesy of TESLA, INC.

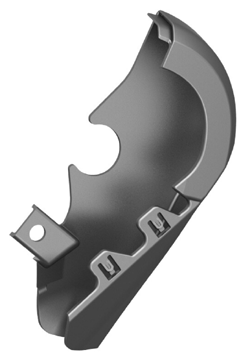

    G14823780Courtesy of TESLA, INC.
