B-Cover - Inner - 2nd Row - RH - 5-Seat | Remove And Replace: Remove

  1. Remove the RH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  2. Remove the RH 2nd row seat back. See SEAT BACK - 2ND ROW - RH (REMOVE AND REPLACE) .
  3. Fold the seatback to the upright position, and place the assembly on a safe and stable work area.
  4. Release the clips that attach the RH 2nd row inner B-cover to the seat, and then pull the trim forward to remove it from the seat frame.

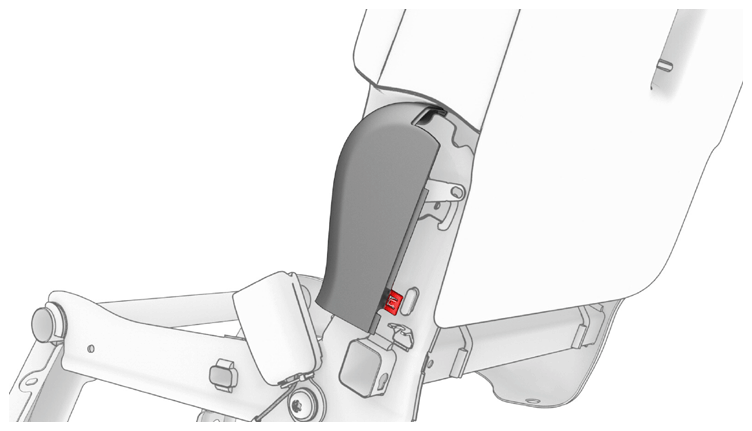

    G14823776Courtesy of TESLA, INC.

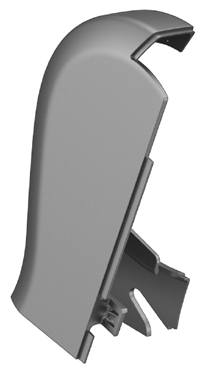

    G14823777Courtesy of TESLA, INC.
