B-Cover - Inner - 2nd Row - Center - 5-Seat | Remove And Replace: Remove

  1. Open all the doors and fully lower all the windows.
  2. Move the front seats fully forward.
  3. Fold the center 2nd row seat down.
  4. Extend the center 2nd row seat headrest.
  5. Remove the center 2nd row seat back backrest switch. See BACKREST SWITCH - SEAT BACK - 2ND ROW - CENTER (REMOVE AND REPLACE) .
  6. Remove the center 2nd row back panel trim. See BACK PANEL - 2ND ROW SEAT - CENTER/20 (REMOVE AND REPLACE) .
  7. Remove the center 2nd row lumbar bun. See LUMBAR BUN - 2ND ROW - CENTER/20 (REMOVE AND REPLACE) .
  8. Remove the center 2nd row outer B-cover. See B-COVER - OUTER - 2ND ROW - CENTER (REMOVE AND REPLACE) .

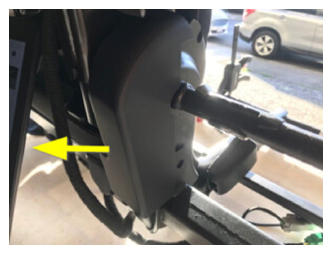

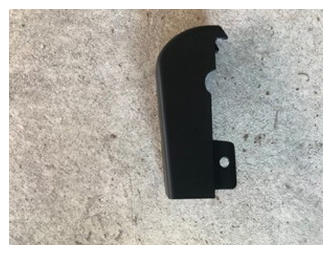

  9. Pull the center 2nd row inner B-cover away from the seat frame to release it from the assembly.
    G14823770Courtesy of TESLA, INC.
    G14823771Courtesy of TESLA, INC.
