Seat Assembly - 2nd Row - RH (7-Seat) - Remove And Replace: Remove

Open the RH doors and fully lower the RH windows.
Move the passenger seat fully forward.
Remove the RH rear sill panel trim. See TRIM - C-PILLAR - LOWER - LH (7 SEAT) (REMOVE AND REPLACE)

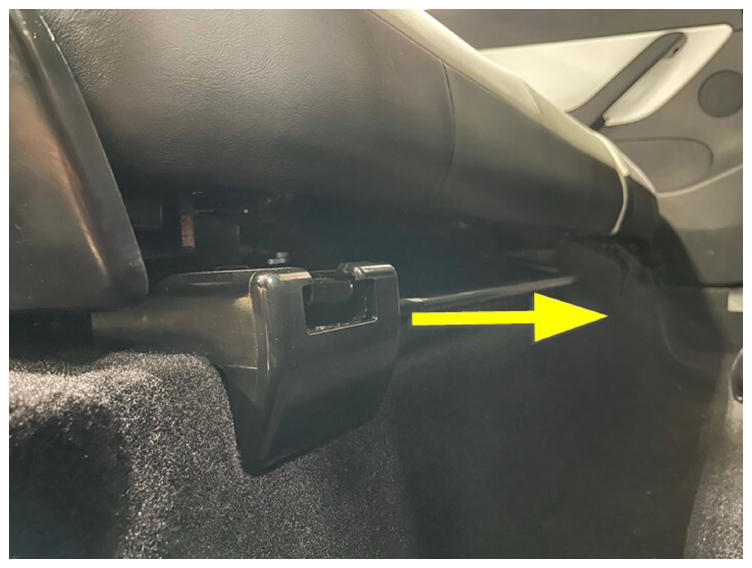

Release the clip that attaches the RH 2nd row seat outboard track cover to the RH 2nd row seat track, and then slide it forward to remove it from the assembly.
Tip: Wedge a trim tool between the carpet and trim, and then pull the trim tool upward and forward to release the trim.

multimedia:A supplement to the article is available.

Courtesy of TESLA, INC.

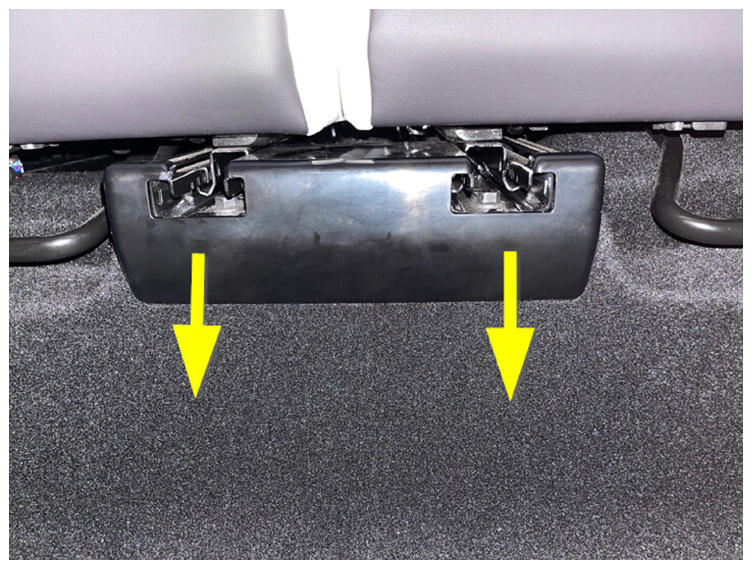

Release the clips that attach the 2nd row center track cover to the 2nd row center seat track, and then slide the cover forward to release it from the seat assembly.

Courtesy of TESLA, INC.

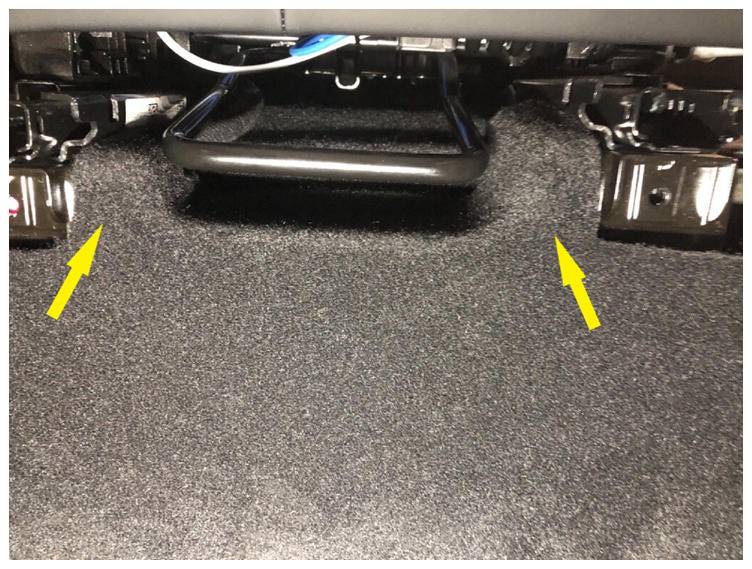

Pull the cabin carpet towards the front of the vehicle to release it from the RH 2nd row seat.

Courtesy of TESLA, INC.

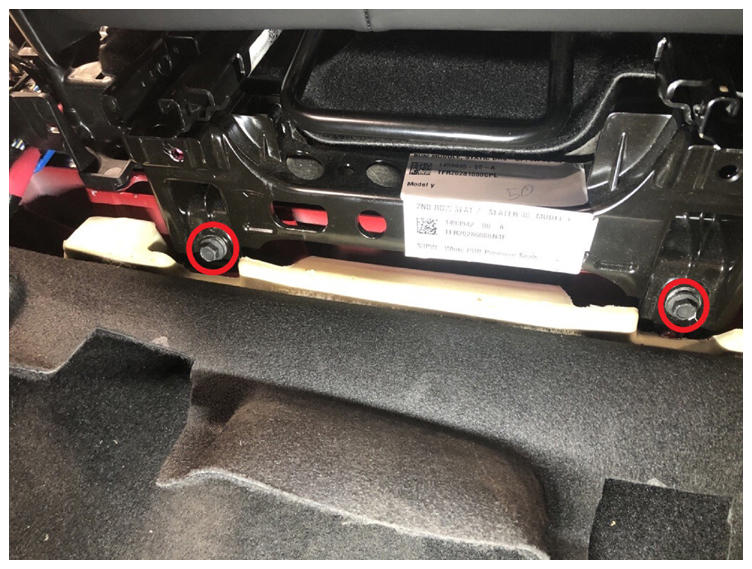

Remove and discard the bolts that attach the RH 2nd row seat podium to the vehicle.
Torque 37 N.m

Tip: Use of the following tool(s) is recommended:
- 11 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.
Fold the RH 2nd row seat down.
Move the RH 2nd row seat fully forward.

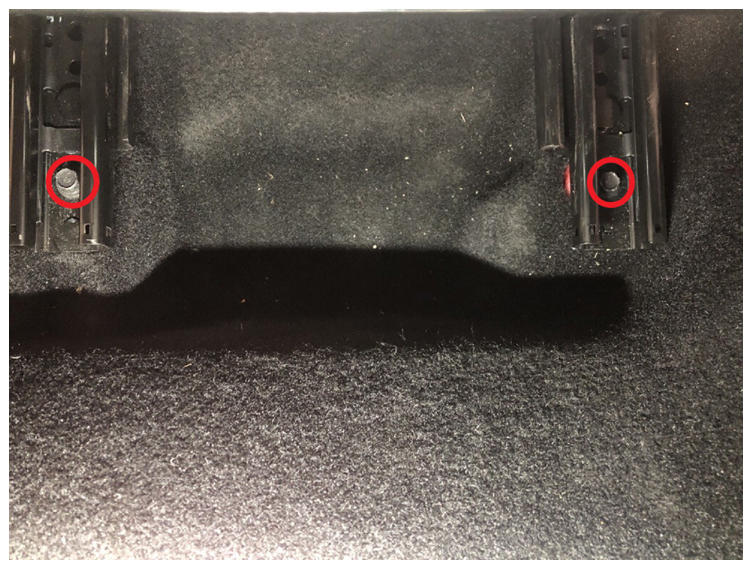

Remove and discard the bolts that attach the RH 2nd row seat inner and outer tracks to the vehicle.
Torque 37 N.m

Tip: Use of the following tool(s) is recommended:
- 11 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.
Move the RH 2nd row seat fully rearward.

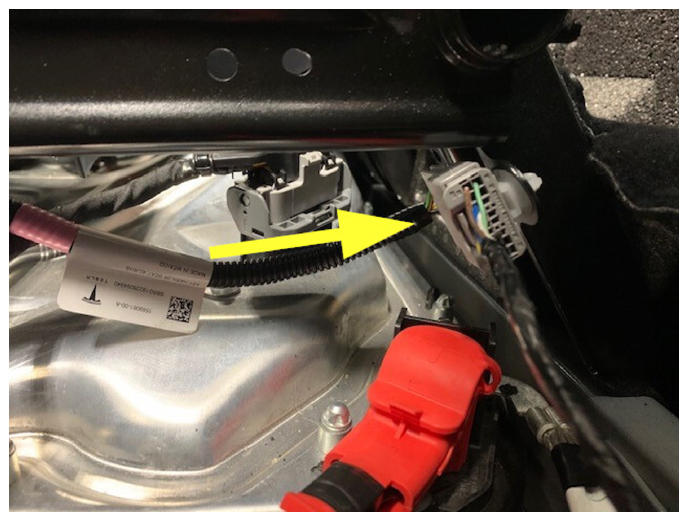

Disconnect the RH 2nd row seat electrical connector.

Courtesy of TESLA, INC.

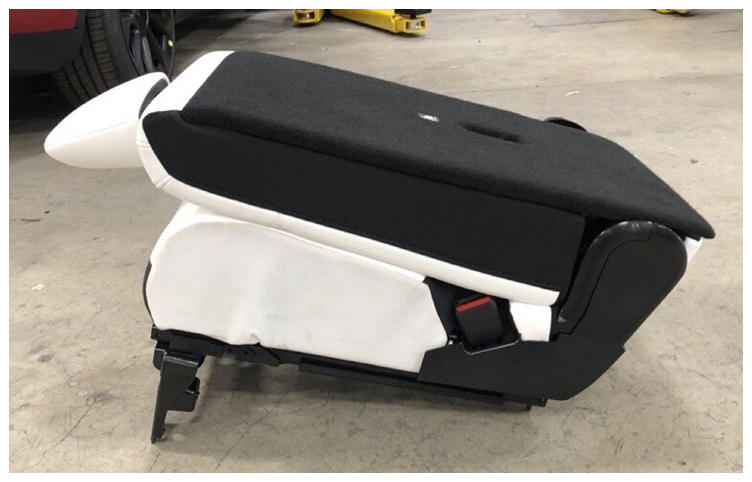

With assistance, remove the RH 2nd row seat assembly from the vehicle.

Courtesy of TESLA, INC.
