Seat Assembly - 2nd Row - RH (7-Seat) - Remove And Replace: Install

With assistance, position the RH 2nd row seat assembly into the vehicle.
CAUTION: Do not support the seat assembly by the cushion pan; support the seat assembly by the podium.

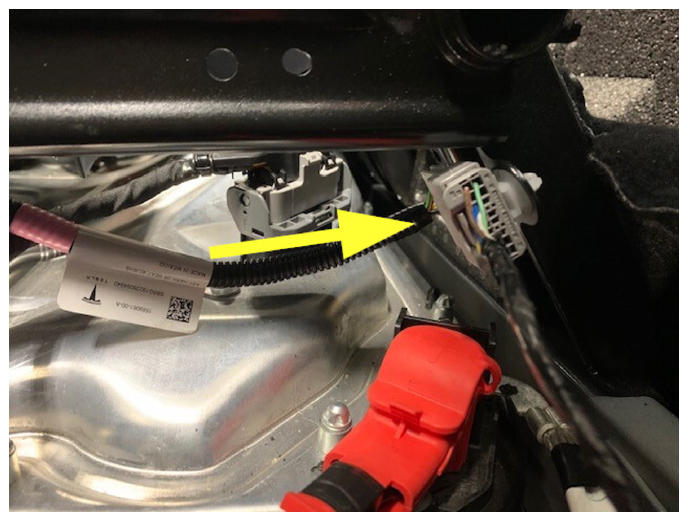

Connect the RH 2nd row seat electrical connector.

Courtesy of TESLA, INC.

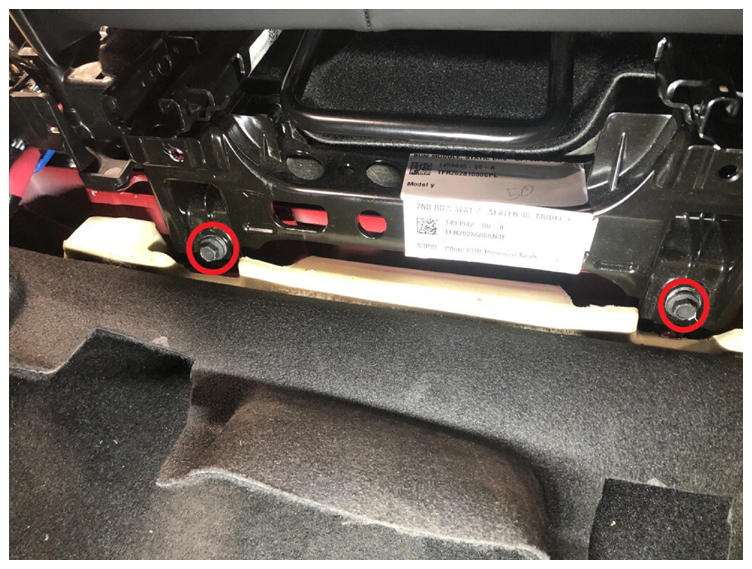

Install and hand tighten new bolts that attach the RH 2nd row seat podium to the vehicle.

Courtesy of TESLA, INC.
Move the RH 2nd row seat fully forward.

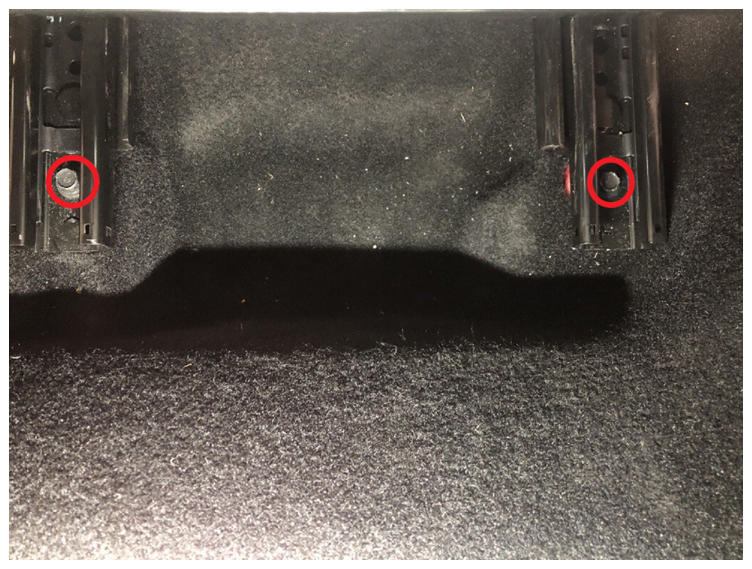

Install new bolts that attach the RH 2nd row seat inner and outer tracks to the vehicle.
Torque 37 N.m

Tip: Use of the following tool(s) is recommended:
- 11 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.
Move the RH 2nd row seat to its original position.
Tighten the new bolts that attach the RH 2nd row seat podium to the vehicle.
Torque 37 N.m

Tip: Use of the following tool(s) is recommended:
- 11 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

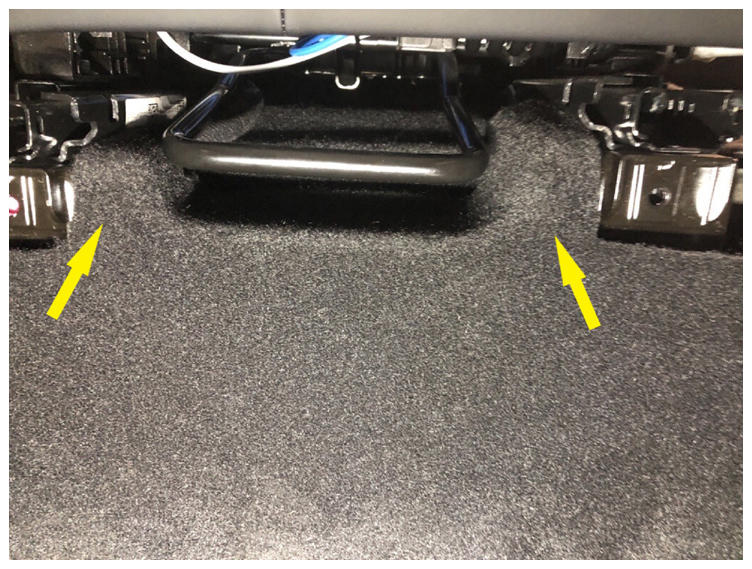

Fold the cabin carpet to its original position.

Courtesy of TESLA, INC.

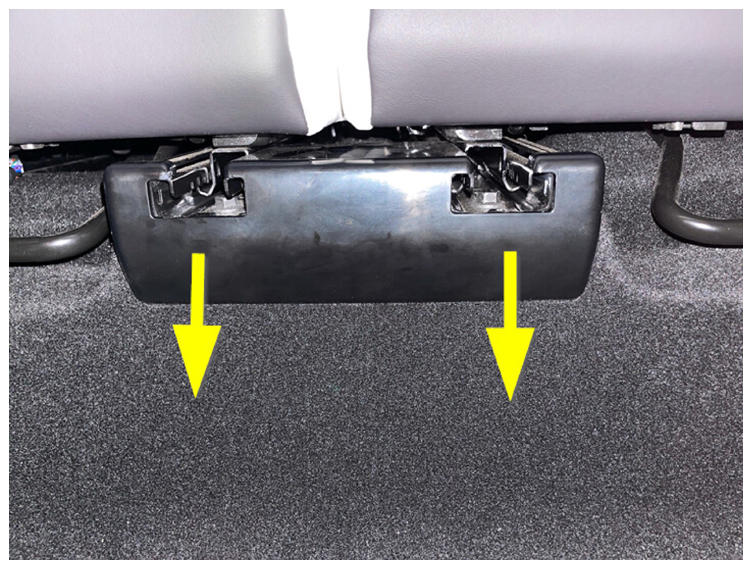

Position the center 2nd row seat track cover onto the 2nd row center seat track, and then fasten the clips that attach the cover to the assembly.

Courtesy of TESLA, INC.

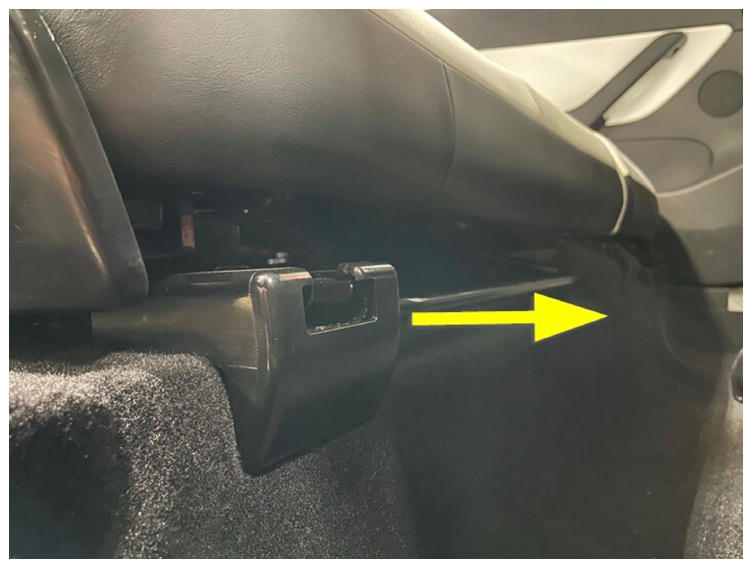

Position the RH 2nd row seat outboard track cover onto the RH 2nd row seat track, and then fasten the clips that attach the cover to the assembly.

Courtesy of TESLA, INC.
Install the RH rear sill panel trim. See TRIM - C-PILLAR - LOWER - LH (7 SEAT) (REMOVE AND REPLACE)
Move the passenger seat to its original position.
Close the RH doors and raise the RH windows.
