Seat Assembly - 2nd Row - LH (7-Seat) - Remove And Replace: Remove

Open all doors and fully lower all windows.
Move the front seats fully forward.
Remove the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
Fold the LH 2nd row seat down.

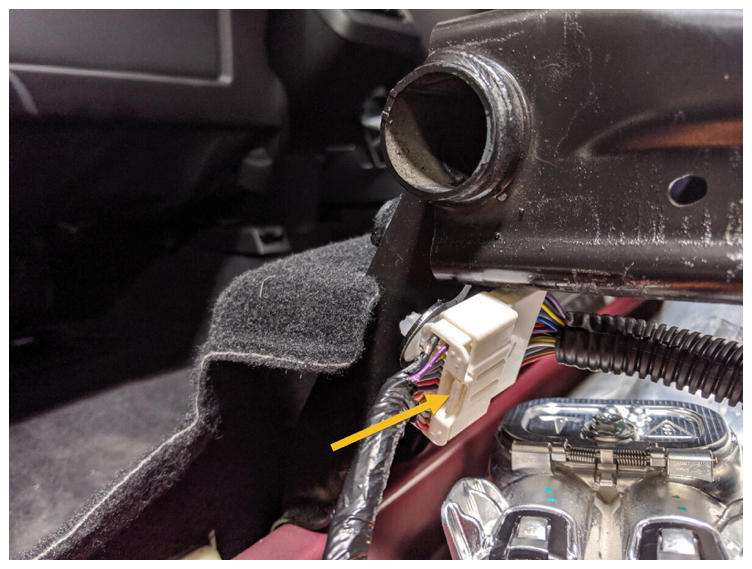

Disconnect the logic electrical connector at the LH seat frame.

Courtesy of TESLA, INC.
Move the LH 2nd row seat fully forward.
Remove and discard the bolt that attaches the LH 2nd row seat rear outboard track fastener to the vehicle.
Torque 37 N.m

Tip: Use of the following tool(s) is recommended:
- 11 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

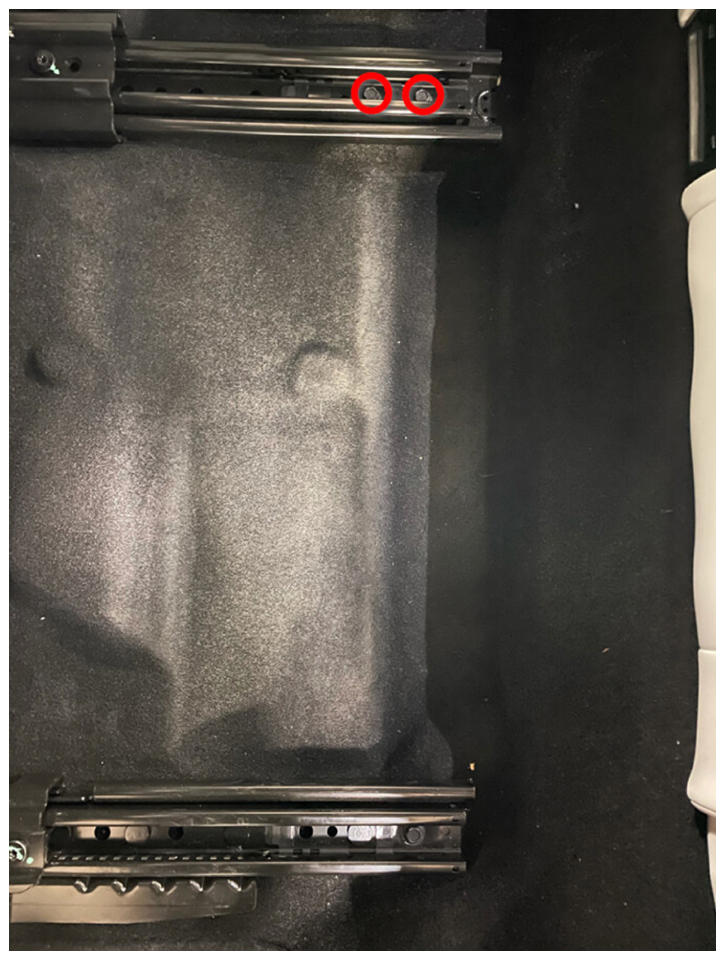

Remove and discard the bolts that attach the LH 2nd row seat rear inboard track fastener to the vehicle.
Torque 37 N.m

Tip: Use of the following tool(s) is recommended:
- 11 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.
Move the LH 2nd row seat fully rearward.

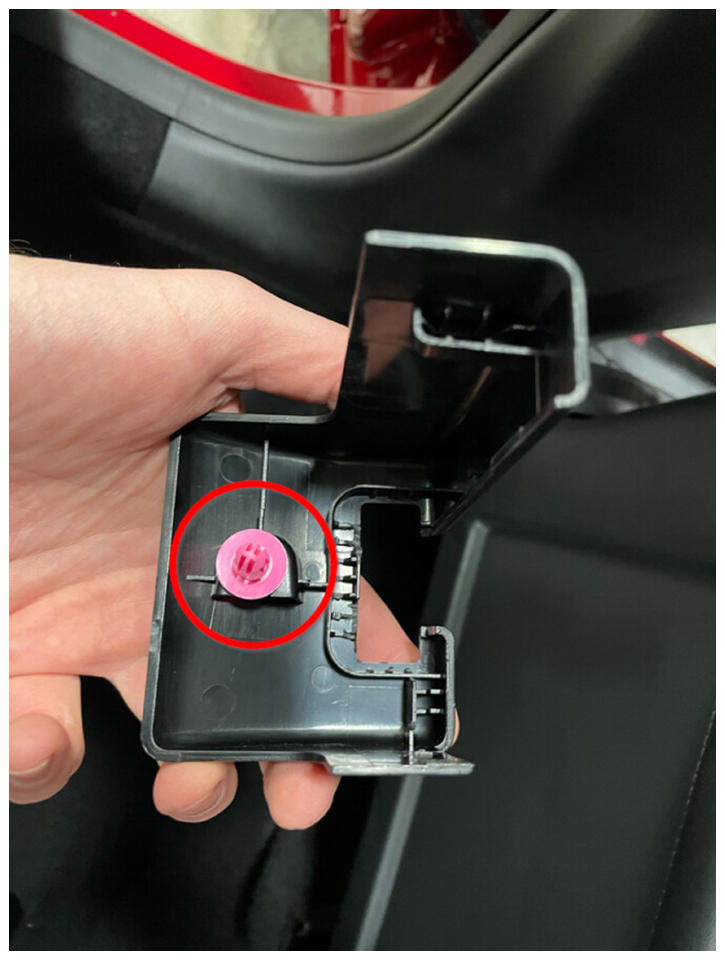

Release the clip that attaches the LH 2nd row seat outboard track cover to the seat track, and then remove the cover from the track.
Tip: Slide the cover forward to release it from the track.

Courtesy of TESLA, INC.

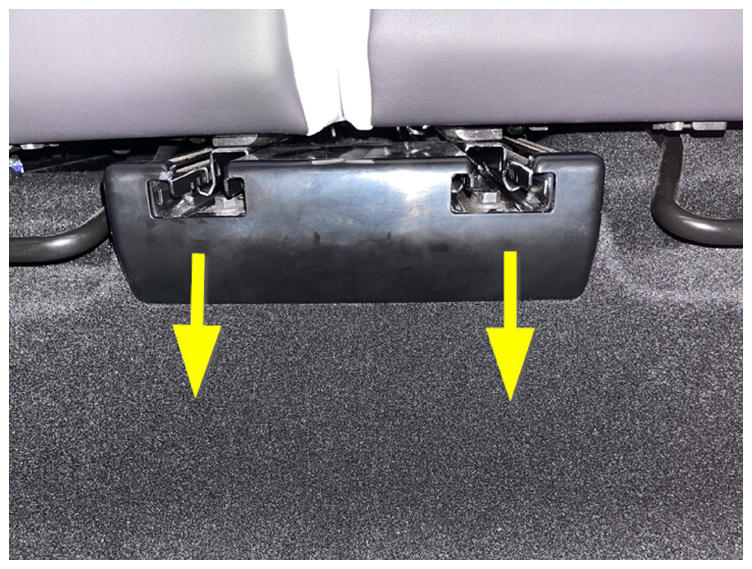

Release the clip that attaches the 2nd row seat center track cover to the seat track, and then remove the cover from the track.

Courtesy of TESLA, INC.

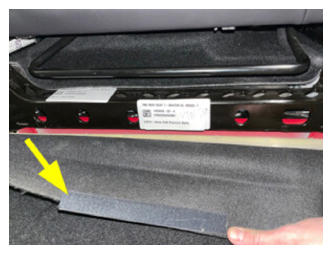

Pull the cabin carpet towards the front of the vehicle to release it from the LH 2nd row seat.

Courtesy of TESLA, INC.

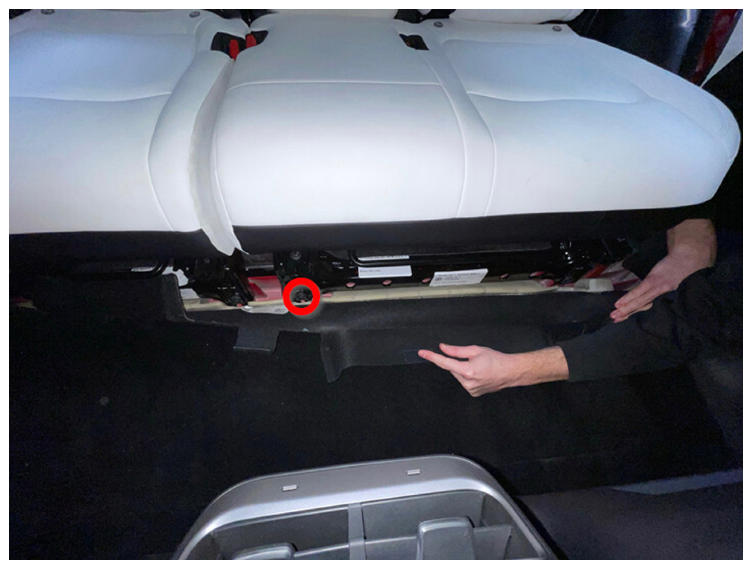

Remove and discard the bolt from the LH 2nd row seat front inboard track.
Torque 37 N.m

Tip: Use of the following tool(s) is recommended:
- 11 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.
Remove and discard the bolt from the LH 2nd row seat front outboard track.
Torque 37 N.m

Tip: Use of the following tool(s) is recommended:
- 11 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

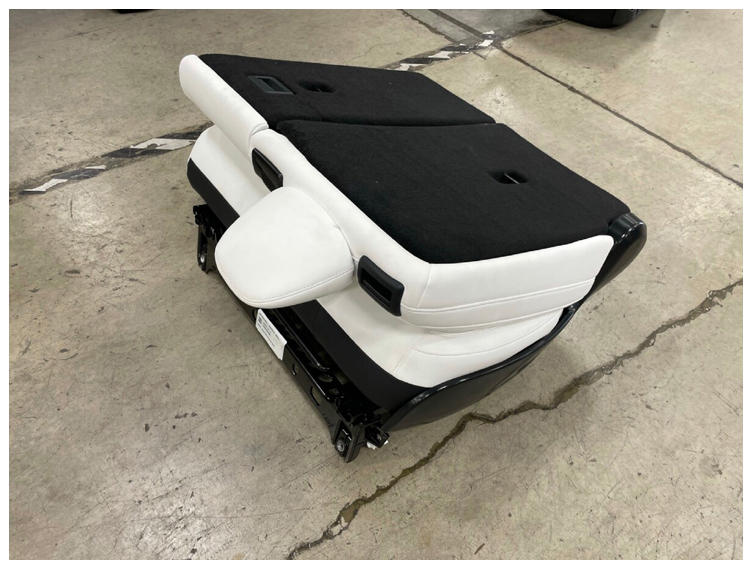

With assistance, remove the LH 2nd row seat assembly from the vehicle.

Courtesy of TESLA, INC.
