Seat Assembly - 2nd Row - LH (7-Seat) - Remove And Replace: Install

With assistance, position the LH 2nd row seat assembly into the vehicle.

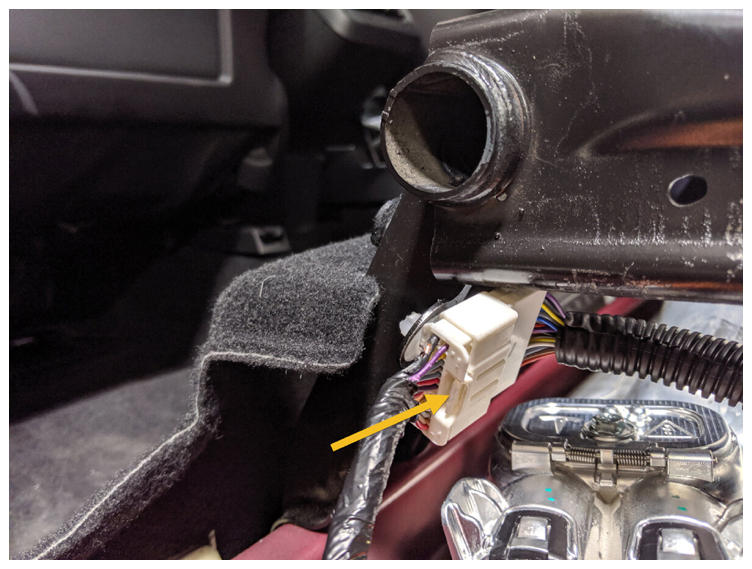

Connect the logic electrical connector at the LH 2nd row seat frame.

Courtesy of TESLA, INC.
Install and hand tighten the bolts that attach the LH 2nd row seat to the vehicle.

Courtesy of TESLA, INC.

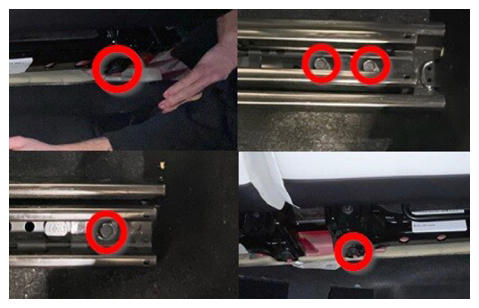

Torque the bolts that attach the LH 2nd row seat to the vehicle.
Torque 37 N.m

NOTE: Torque the bolts in the following sequence: outboard front, inboard rear (x2), outboard rear, inboard front.

Tip: Use of the following tool(s) is recommended:
- 11 mm deep socket
- Flex head ratchet/flex head torque wrench

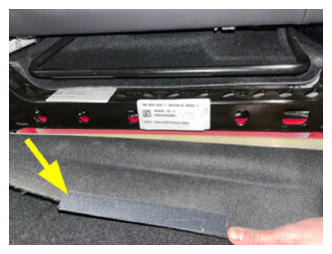

Position the cabin carpet into place, and then secure the Velcro.

Courtesy of TESLA, INC.
Fold the LH 2nd row seat to the upright position.
Install the front outboard track cover.

Courtesy of TESLA, INC.

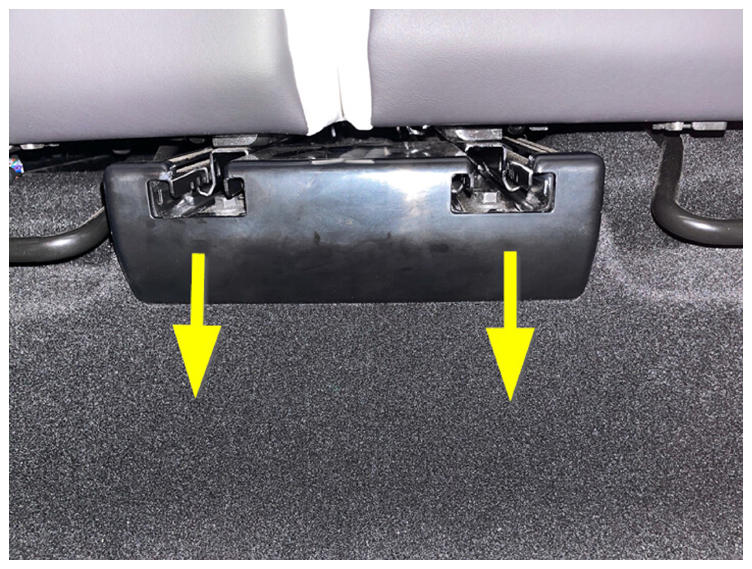

Install the 2nd row seat center track cover.

Courtesy of TESLA, INC.

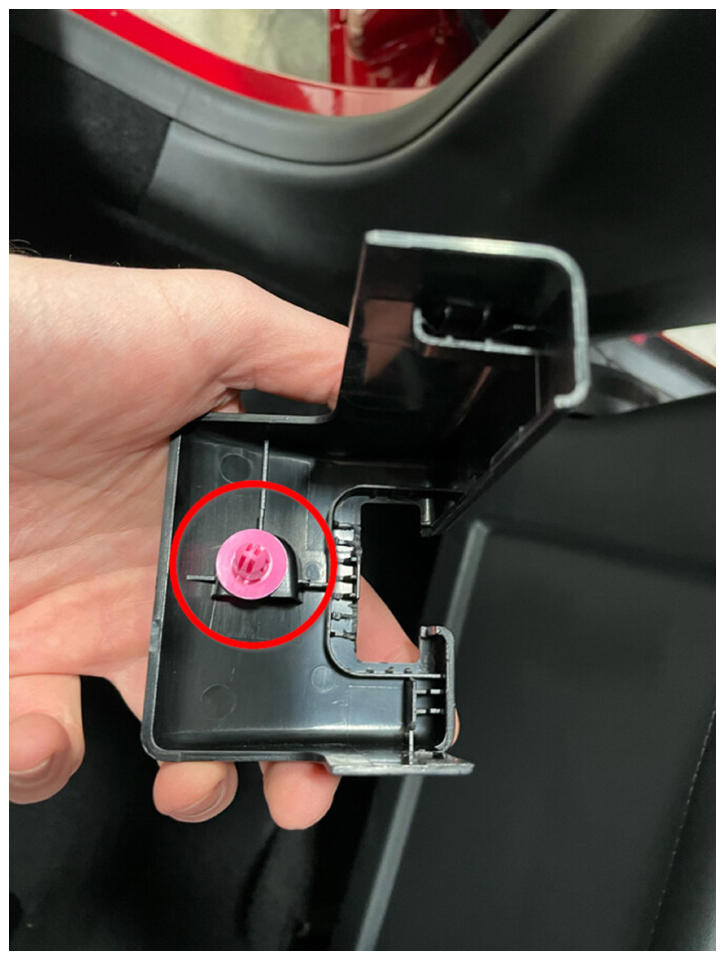

Install the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
Connect a laptop with Toolbox to the vehicle.
In Toolbox, click Actions/Autodiag , and then search for "ENABLE_PITCH".
Move the front seats to the original positions.
Raise all the windows and close all the doors.
