Lumbar Bun - 2nd Row - Center/20 - 7-Seat | Remove And Replace: Install

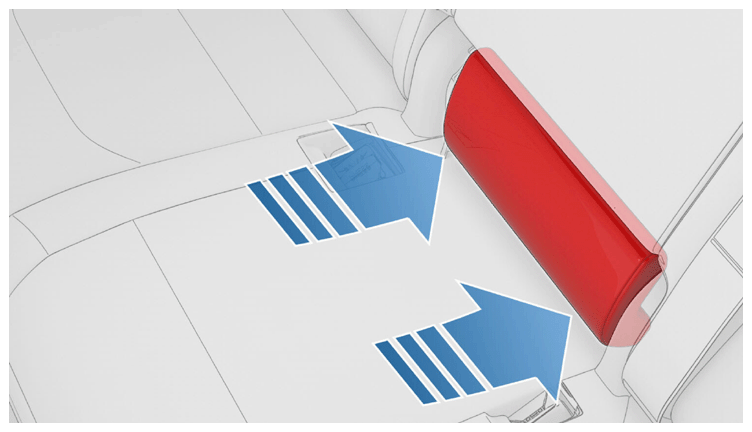

  1. Install the seat bun into the seat assembly, making sure the clips are fully secure.
    G14822780Courtesy of TESLA, INC.
  2. Fold the center/20 seat down.

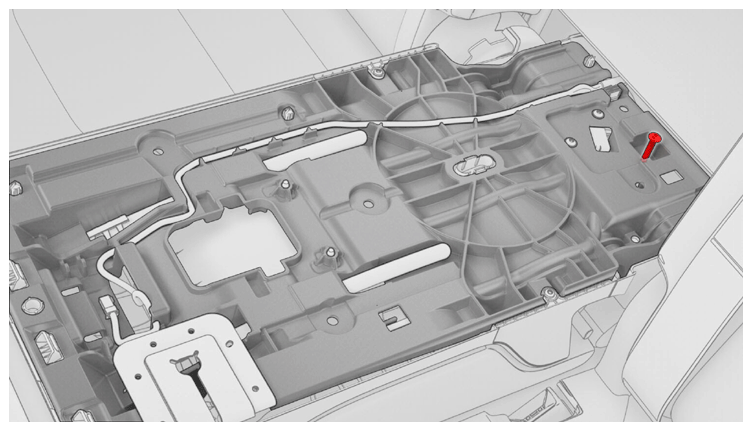

  3. Install the screw that attaches the 2nd row center/20 lumbar bun to the 2nd row seat.

    Torque 1.5 N.m

    NOTE: Use of the following tool(s) is recommended:
    • Torx T20 socket
    G14822781Courtesy of TESLA, INC.
  4. Install the 2nd row center/20 seat back panel. See INSTALL .
