Headrest - 2nd Row - Center - 7-Seat | Remove And Replace: Remove

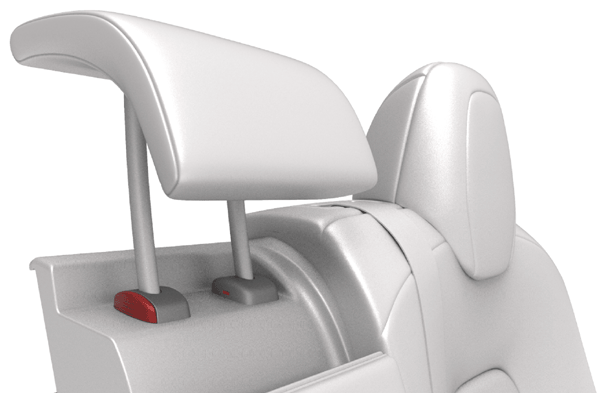

  1. Simultaneously press the adjustment button on the adjustment guide and insert a small pick into the opening on the guide lock.

    Tip: It might be helpful to perform this procedure with the LH/60 seat folded down.

    G14822774Courtesy of TESLA, INC.
  2. Pull the headrest upwards to remove it from the vehicle.
