Backrest Switch -- Seat Back -- 2nd Row -- Center - 7-Seat | Remove And Replace: Remove

  1. Move the driver seat fully forward, and then open the LH rear door and lower the LH rear window.
  2. Fold down the rear LH/60 seat.

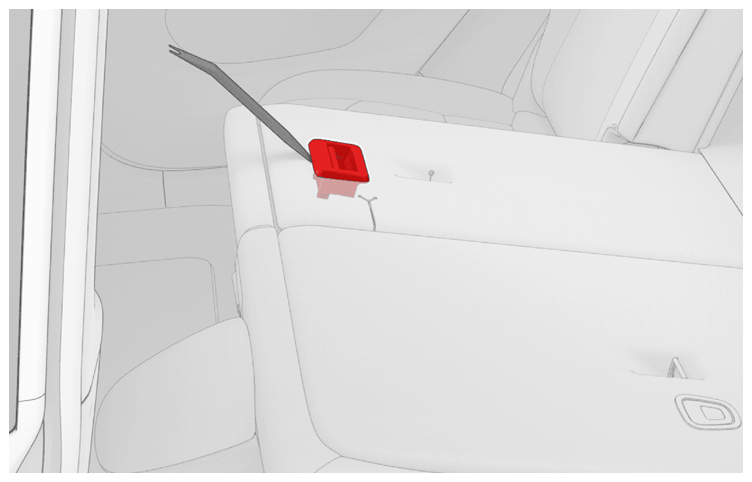

  3. Working from the top of the backrest switch, use a trim tool to release the clips that attach the backrest switch to the seat.
    CAUTION: To avoid damage, do not insert the trim tool at the bottom of the backrest switch.
    CAUTION: The backrest switch has an electrical connector; do not pull the backrest switch away from the seat yet.
    G14822555Courtesy of TESLA, INC.

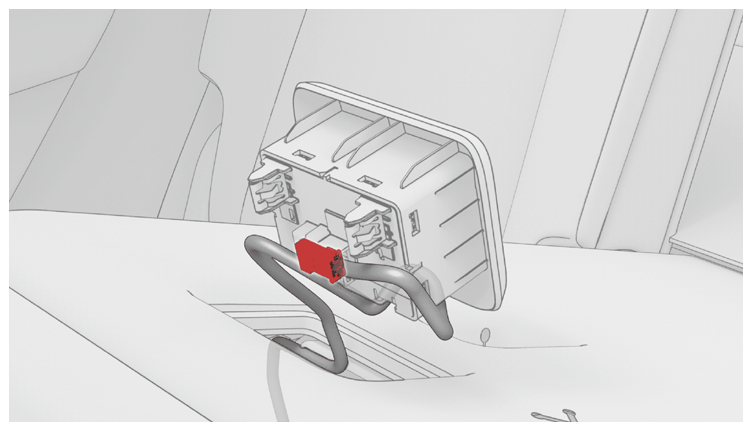

  4. Disconnect the electrical connector from the backrest switch.
    G14822556Courtesy of TESLA, INC.
  5. Remove the backrest switch from the vehicle.
