Backrest Switch -- Seat Back -- 2nd Row -- Center - 7-Seat | Remove And Replace: Install

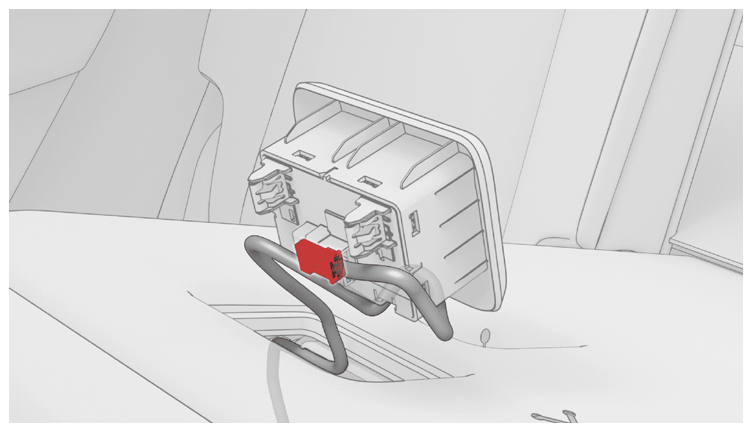

  1. Connect the electrical connector to the backrest switch.
    G14822557Courtesy of TESLA, INC.

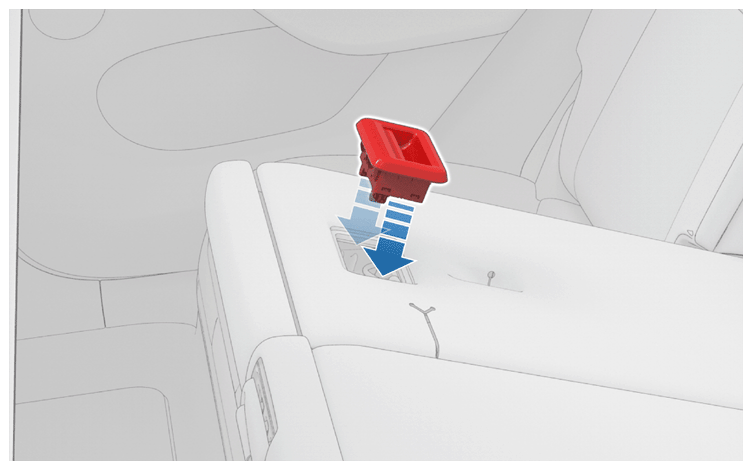

  2. Install the backrest switch and make sure that the clips are fully engaged.
    G14822558Courtesy of TESLA, INC.
  3. Raise the LH/60 seat.
  4. Test the backrest switch to make sure that it works as expected.
  5. Raise the window, move the driver seat to its starting position, and then close all doors.
