Switch - Seat Fold - 5-Seat | Remove And Replace: Remove

  1. Open all doors and fully lower all windows.
  2. Move the front seats to their foremost position.
  3. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  4. Remove the LH trunk side trim.

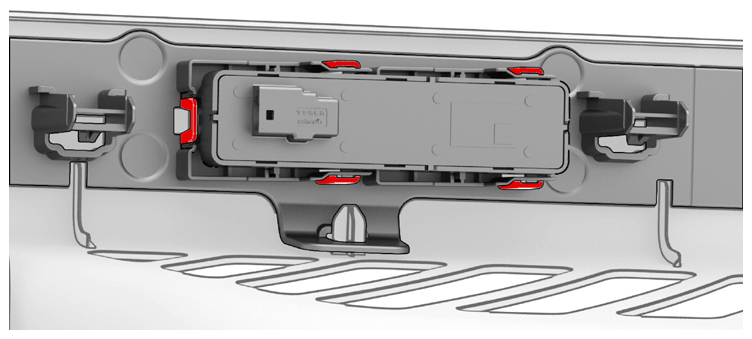

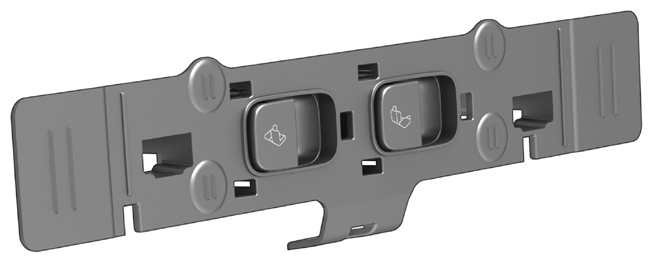

  5. Release the tabs (x5) that attach the 2nd row seat fold switch pack to the LH trunk side trim, and then remove it from the trim.
    G14822986Courtesy of TESLA, INC.
    G14822987Courtesy of TESLA, INC.
